A lighter scaffold component can make installation easier, but does it always perform as well? Component weight matters when choosing Ringlock Scaffolding for construction, industrial maintenance, and temporary access projects. Steel components generally weigh more than aluminium ones, although dimensions and connection designs affect the difference. Tube thickness and alloy selection also influence the final weight of each component. These differences affect manual handling, transportation costs, installation efficiency, and overall project planning. However, lighter components do not necessarily offer the same structural capacity as heavier alternatives. Understanding these factors helps you compare steel and aluminium component weights and choose suitable materials for your project.
Steel components are generally heavier than aluminium components of similar dimensions. However, the actual difference depends on each component's design and construction. For accurate comparisons, contractors should examine complete components rather than raw material weights.
Steel has an approximate density of 7,850 kg/m³. Aluminium alloys typically have densities near 2,700 kg/m³. This means aluminium weighs about 65% less than steel for an equal material volume.
For example, consider two solid metal sections measuring one cubic meter each. The steel section would weigh approximately 7,850 kg. The aluminium section would weigh around 2,700 kg. These figures illustrate the difference in material density, not actual scaffold component weights.
Finished components contain different amounts of metal, depending on their structural design. An aluminium member may need a larger cross-section to meet specific performance requirements.
Manufacturers may also use different connectors, reinforcements, and wall thicknesses. These differences can reduce the weight savings suggested by material density. Therefore, a direct comparison requires equivalent component functions and verified technical specifications.
Different scaffold components have different structural responsibilities. Their weight depends on their dimensions, material, and connection design.
Component |
Steel Weight Considerations |
Aluminium Weight Considerations |
Vertical Standards |
Tube thickness, length, rosettes, and end connections |
Profile dimensions, length, and connection design |
Horizontal Ledgers |
Tube diameter, wall thickness, and wedge heads |
Section dimensions and end fittings |
Diagonal Braces |
Member length, tube thickness, and joint hardware |
Profile geometry and connection hardware |
Stair Units |
Frame construction, treads, and handrail connections |
Alloy profile, stair width, and reinforcement |
Vertical standards often account for a substantial share of scaffold material weight. Their quantity increases as the structure becomes taller or more extensive. Horizontal ledgers and diagonal braces also contribute to the total weight. Longer components generally contain more material, assuming their cross-sections remain unchanged.
Stair units require a different comparison because their designs vary considerably. A complete aluminium staircase may include wider profiles, treads, and reinforced joints. Comparing it against a simple steel ladder would produce misleading results. Contractors should compare components serving the same purpose under equivalent design requirements.
Material selection is only one factor affecting scaffold component weight. Dimensions and connection details can make a substantial difference. Two steel components may have noticeably different weights despite sharing the same length.
Tube diameter and wall thickness directly influence the amount of metal used. A larger tube diameter generally increases material volume when wall thickness remains unchanged. Thicker walls also increase weight, even when the outside diameter stays constant. Consider a steel tube measuring 48.3 mm in outside diameter. Assume it has a 3.2 mm wall thickness and measures one meter long. Using a steel density of 7,850 kg/m³, its theoretical tube weight is approximately 3.56 kg. This figure excludes rosettes, connectors, coatings, and other attached parts.
If the same tube geometry used aluminium, its theoretical weight would be approximately 1.22 kg. However, these values do not establish equal structural performance or product availability. The calculation simply demonstrates how material density affects identical tube geometries. Component length also matters. A longer standard requires more material and generally weighs more. For this reason, contractors should compare exact dimensions rather than product names alone.
A finished Ringlock Scaffolding component contains more than a metal tube. Vertical standards include rosettes that connect horizontal and diagonal members. Ledgers and braces use specialized heads and locking wedges. Each connection adds material to the finished component. Some parts also require reinforcement around heavily loaded areas. These additions can increase weight while supporting the intended structural design.
Surface treatments contribute additional weight, although their effect is usually much smaller. Hot-dip galvanizing adds a protective zinc coating to steel components. Its weight depends on the coated surface area and coating thickness. Aluminium components may use different surface finishes or remain untreated. These differences should be considered when calculating finished product weights. A manufacturer's listed component weight is generally more useful than a calculation based on tube dimensions alone.
Component weight influences daily work long before the scaffold is fully assembled. Workers must unload, carry, position, and connect materials during installation. The same activities occur during dismantling and relocation. Lighter components may make these operations easier, especially during repetitive work.
Scaffolding installation involves repeated lifting and positioning at different heights. Heavier components can increase physical effort, particularly during extended installation periods. They may also require additional workers or suitable mechanical handling equipment.
Aluminium components can reduce the weight workers need to lift. This advantage becomes more noticeable when materials are moved frequently between work areas. For example, maintenance teams may need to relocate access equipment several times. Lighter stair components can simplify some handling operations.
However, total installation time depends on more than weight. Connection design, worker experience, access conditions, and scaffold complexity all affect productivity. Lighter materials also require appropriate lifting procedures. Workers must consider component size, balance, handling frequency, and surrounding hazards. Reducing component weight can improve handling convenience, but it does not eliminate workplace safety requirements.
Transporting scaffold materials requires careful planning around vehicle payload limits. Steel components may consume more of a vehicle's allowable payload than comparable aluminium components. However, shipment volume can become the limiting factor before the vehicle reaches its weight capacity.
Consider a hypothetical shipment containing 200 components. Suppose each component weighs 12 kg in one design. The combined component weight would reach 2,400 kg. If an approved alternative weighs 8 kg per component, the total becomes 1,600 kg. That represents an 800 kg reduction for the same number of components.
These figures are illustrative and require verification against actual product specifications. The example also assumes both alternatives meet the project's functional requirements. Contractors should include pallets, packaging, and accessories when checking transportation limits. Storage planning matters as well. Heavy materials may require specific racks or mechanical handling arrangements. A lighter shipment can offer logistical advantages, but only when its dimensions and structural suitability remain appropriate.
Lower component weight does not automatically mean lower load capacity. However, lighter aluminium components should never be assumed equivalent to steel components without engineering verification. Structural performance depends on material properties, geometry, connections, and the complete scaffold arrangement.
Steel and aluminium behave differently under structural loads. Steel typically has an elastic modulus near 200 GPa. Aluminium alloys generally have an elastic modulus near 69 GPa. This means steel is approximately three times as stiff as aluminium when comparing material properties. For members sharing identical geometry, stiffness differences can influence bending and deflection.
However, component geometry can change the comparison significantly. An aluminium member may use a larger or differently shaped section. This design can help compensate for its lower material stiffness. Strength also depends on the specific material grade. Different steel grades have different yield strengths. Aluminium alloys also vary considerably depending on composition and heat treatment.
Buckling resistance is another important consideration for vertical standards. A long, slender member may buckle before reaching its material's maximum strength. Therefore, scaffold capacity cannot be determined from density or material strength alone. The complete structure must meet the required loading and stability conditions.
A scaffold's allowable working load depends on its approved design. Important factors include vertical spacing, bracing arrangements, platform loads, and connection performance. The load capacity of individual components does not automatically determine the capacity of the assembled system.
Connection compatibility deserves particular attention. Two components may share similar outside dimensions but use different locking mechanisms or tolerances. They should not be combined unless their compatibility has been established. This becomes especially important when integrating aluminium access equipment into steel scaffold structures.
Stair units must fit the supporting framework and meet applicable loading requirements. Connections, landings, and supporting members must also accommodate their intended loads. Contractors should obtain approved technical data before combining components from different systems. The safest comparison considers verified load ratings and approved configurations, not weight alone.
The best material depends on how the scaffold will be used. Steel often suits demanding structural arrangements, while aluminium can be advantageous for weight-sensitive access equipment. Neither material is automatically the better choice for every project.
Steel is commonly used for scaffolding standards, ledgers, and structural bracing. Its stiffness and established structural characteristics make it suitable for many engineered scaffold configurations. Construction projects involving extensive working platforms may benefit from steel systems. Industrial maintenance and complex support arrangements also frequently use steel components.
However, the required capacity must always be confirmed through approved design information. Corrosion protection is another consideration. Galvanized steel components can provide protection against corrosion during outdoor service. Their service life still depends on environmental exposure, maintenance, and handling.
At Unitech, we offer a galvanized Q235 steel Ringlock Scaffolding system using 48.3 mm components. This provides an option for projects requiring steel modular scaffolding. Actual component weights and allowable loads should be confirmed for the selected configuration. Steel may require more physical effort during handling, but its structural characteristics can justify the additional weight.

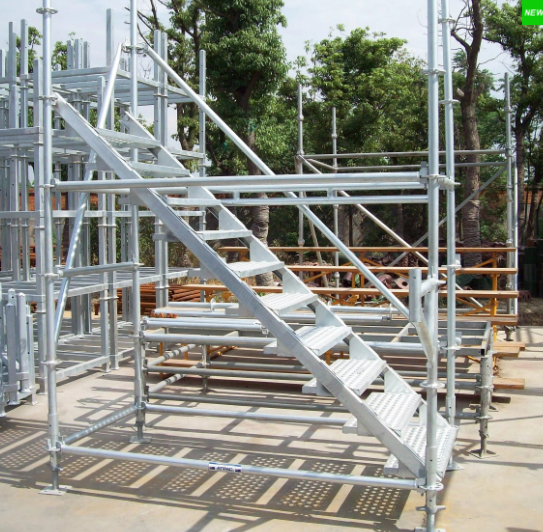

Aluminium becomes attractive when reducing handling weight is a practical priority. Access stairs are a common example. Workers may need to move or install stair units during different project stages. Lighter units can make these activities more manageable. Aluminium can also be useful where transportation payload or access restrictions matter.

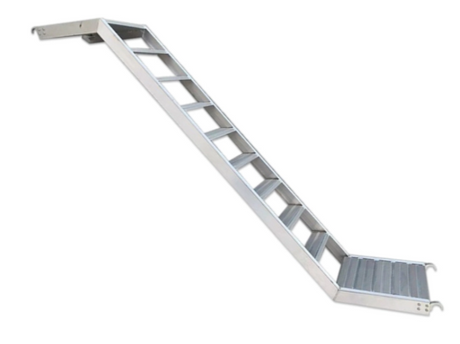

At Unitech, we also offer 6061-T6 aluminium Ringlock staircase options for scaffold access arrangements. These components provide an alternative material choice for compatible access configurations.
However, aluminium stair units should not be treated as direct replacements for steel structural standards. They serve different functions and have different design requirements. Project teams must verify stair dimensions, connections, load ratings, and supporting structures. The goal is not simply to choose the lightest possible material. It is to reduce unnecessary handling weight while meeting the required structural and access conditions.
Knowing individual component weights is useful, but contractors also need the total scaffold weight. A complete estimate supports transportation planning, material handling, and structural assessment. It can also prevent unexpected differences between ordered quantities and delivered shipment weights.
Start by reviewing the approved scaffold design and material list. Identify the required quantities of standards, ledgers, braces, decks, and access equipment. Include smaller accessories because their combined weight can become significant.
The basic calculation is:
Total Scaffold Weight (kg) = Σ (Component Quantity × Unit Weight in kg)
Suppose a project requires the following materials:
Component |
Quantity |
Unit Weight |
Total Weight |
Standards |
100 |
12 kg |
1,200 kg |
Ledgers |
160 |
5 kg |
800 kg |
Diagonal Braces |
40 |
7 kg |
280 kg |
Other Components |
1 lot |
320 kg |
320 kg |
Total |
2,600 kg |
All weights are hypothetical and must be replaced by verified product data. This example demonstrates the calculation method rather than a specific scaffold configuration. The total weight reaches 2,600 kg, excluding shipment packaging. Missing accessories can cause underestimation, especially for larger projects. Accurate quantities and verified unit weights are essential for reliable results.
Before ordering, compare the calculated weight against the actual project requirements.
A practical verification checklist should include:
Component dimensions: Confirm lengths, diameters, and wall thicknesses.
Material grades: Verify the specified steel or aluminium alloy.
Unit weights: Obtain finished component weights from the supplier.
Accessories: Include decks, stairs, base components, and connection hardware.
Transportation: Check total shipment weight and vehicle payload limits.
Structural requirements: Confirm load ratings and approved configurations.
Compatibility: Verify connections before combining different component types.
The total weight also matters when evaluating supporting surfaces. However, scaffold self-weight alone cannot establish foundation or ground-bearing requirements. Engineers must consider additional loads, load distribution, and support conditions. A complete weight schedule provides useful information for these assessments.
Aluminium's lower density helps reduce Ringlock Scaffolding weight, especially for access equipment and projects requiring frequent handling. Steel remains a reliable choice when scaffold designs require greater stiffness and specific structural performance. However, component weight alone cannot determine safety or load capacity. Contractors should compare actual weights, dimensions, approved load ratings, and total material quantities before ordering. Nanjing Uni-tech Metalwork Company Ltd. offers galvanized steel Ringlock Scaffolding and aluminium staircase components for different project needs. These products support reliable structural arrangements, practical access, and efficient material handling. Choosing suitable components helps balance structural requirements, transportation efficiency, and installation costs.
A: Ringlock Scaffolding weight depends on material, tube dimensions, and connections. A typical steel standard weighs approximately 5 kg per meter, although finished component specifications vary.
A: Yes, aluminium Ringlock Scaffolding components are generally lighter than comparable steel components. Aluminium has approximately one-third the density of steel, but actual weight savings depend on component design.
A: Not necessarily. Ringlock Scaffolding load capacity depends on material strength, component geometry, connections, and structural design. Always check approved load ratings rather than comparing weight alone.
A: Multiply each component's unit weight by its required quantity, then add the results. Include standards, ledgers, braces, platforms, stairs, and accessories for an accurate total weight estimate.
A: Steel components may offer lower initial material costs, while aluminium can reduce transportation and handling expenses. The better choice depends on project duration, structural requirements, and installation frequency.
