Choosing the wrong scaffold frame can make a simple construction job more difficult. H frame and ladder frame scaffolding both support elevated work, but their designs differ. H frames use horizontal supports, while ladder frames include rungs that may provide approved climbing access. These differences affect worker movement, platform layouts, and equipment compatibility. However, neither design is automatically stronger or safer than the other. The right Frame Scaffolding depends on load requirements, system configuration, and proper installation. Understanding these factors helps you choose a suitable frame for your project. This comparison explores their practical differences, working conditions, and key selection considerations.
The main difference lies in their frame structure and access arrangements. Both systems use prefabricated frames to support elevated working platforms. However, their horizontal members are arranged differently, affecting how workers move through the structure.
H frame scaffolding typically consists of two vertical steel tubes connected by horizontal members. These connections create the familiar H-shaped structure. The welded frame forms part of a larger scaffold assembly, alongside braces, platforms, and connectors. Depending on the model, additional members may provide structural reinforcement.
Ladder frame scaffolding features multiple horizontal rungs between its vertical supports. These rungs give the frame a ladder-like appearance. Some models are specifically designed to provide climbing access. Others may have similar features without meeting the requirements for safe ladder use.
Both designs rely on correctly installed components for structural support. Their appearance alone cannot establish which system performs better under load. Frame dimensions, material properties, and assembly conditions all influence performance.
The following table highlights important differences between these two scaffold configurations.
Comparison Factor | H Frame Scaffolding | Ladder Frame Scaffolding |
Frame structure | H-shaped welded frame | Multiple horizontal rungs |
Worker access | Usually uses a separate access system | May provide approved built-in climbing access |
Main advantage | Simple frame arrangement | Convenient access between levels |
Platform arrangement | Depends on frame dimensions | Depends on rung and frame configuration |
Assembly | Requires compatible braces and connectors | Requires compatible braces and connectors |
Typical applications | General construction and maintenance | Projects involving frequent vertical movement |
Load capacity | Depends on system specifications | Depends on system specifications |
The biggest practical difference often involves access rather than structural strength. Ladder frames can simplify climbing arrangements when their rungs meet applicable requirements. H frames remain suitable when workers use designated ladders or stair systems. However, these are general design differences, not universal product specifications. Always compare actual frame drawings before selecting equipment.
Worker access deserves careful attention when choosing a scaffold configuration. Crews may climb between levels dozens of times during a workday. Poor access arrangements can interrupt work and increase exposure to climbing hazards.
Ladder frames can offer convenient climbing routes through their integrated rungs. Workers may reach another level without using a separate ladder. However, the rungs must be designed and approved for that purpose. Suitable handholds, foot clearance, and safe platform entry remain essential.
H frame scaffolding often uses attached ladders, stair towers, or other designated access equipment. This approach separates climbing routes from the frame's primary structural arrangement. It may work particularly well when a project already includes dedicated access points.
Consider a crew performing repairs across three working levels. Workers may frequently move between platforms to collect tools or inspect surfaces. Approved ladder frames could make these movements more convenient. However, a stair tower may be preferable when workers carry equipment frequently.
Climbing conditions also depend on local safety requirements. For example, U.S. OSHA rules prohibit using cross braces as climbing access. Integrated access frames must meet specific requirements for rung design and spacing.
Access convenience matters, but workers also need sufficient platform space. Horizontal members, braces, and climbing openings can influence movement around the scaffold. Their placement should not create unnecessary obstructions.
H frames may provide convenient openings for certain platform arrangements. However, actual clearance depends on the selected frame design. Ladder frames introduce additional rungs, which can affect available movement space. These differences become important near walls or equipment.
Platform positioning also influences working comfort. Workers need stable footing and enough room to handle materials safely. Scaffold planks must fit the intended supporting members and installation arrangement.
Before ordering, review the following details:
Platform width and required working height.
Clear openings for entering each working level.
Position of ladder rungs and access openings.
Required guardrails, toe boards, and platform protection.
Available clearance around surrounding structures.
These checks help prevent access problems after installation. They also support a more practical scaffold layout.
Neither frame type is automatically stronger or more stable. A scaffold performs as a complete structural system, not as individual frames. Proper bracing, connections, support conditions, and loading all affect its performance.
Both H frames and ladder frames depend on correctly installed bracing. Cross braces help maintain alignment and resist sideways movement. Their position and connection points must follow the approved scaffold configuration.
Stable foundations are equally important. Uneven ground or unsuitable base support can affect the entire structure. Adjustable base jacks may help achieve proper alignment when correctly specified. However, they cannot compensate for weak foundations.
Taller scaffolds introduce additional stability considerations. Wind exposure, scaffold height, working loads, and surrounding structures may influence support requirements. Some configurations need ties or other restraints to maintain stability.
Workers should never remove braces simply to create more space. Doing so may compromise the scaffold's intended structural performance. A competent person should inspect the assembly and address unsuitable configurations.
A common mistake involves judging load capacity by frame appearance. Thicker-looking tubes or additional rungs do not guarantee greater strength. The rated capacity depends on verified component specifications and the complete assembly.
Important specifications include:
Steel grade: Material properties influence structural performance.
Tube diameter: Dimensions affect individual member behavior under load.
Wall thickness: Thickness contributes to member strength and stiffness.
Weld quality: Connections must withstand their intended forces.
Frame dimensions: Width and height influence the overall configuration.
Rated capacity: Documentation should identify permitted loads and assembly conditions.
Consider two scaffold frames made from similar steel. One may use heavier tubes, while another uses a different frame geometry. Their capacities cannot be determined from these differences alone.
Working loads also vary between projects. A painting crew may carry relatively light tools and supplies. Masonry work often involves heavier materials and concentrated loads. The scaffold must support the intended workers, equipment, and stored materials.
Always request documented load information for the complete system. This provides a more reliable comparison than general claims about frame strength.
The better choice depends on how workers use the scaffold. Project height, access frequency, material handling, and existing equipment all influence selection. Understanding daily working conditions helps identify the more practical configuration.
H frames are commonly used for building construction and maintenance activities. Their straightforward structure suits repetitive layouts and established access arrangements. Contractors can organize working platforms around compatible frame dimensions and supporting components.
For example, a facade maintenance project may use several connected scaffold bays. Workers perform repairs along a consistent working level. A separately planned ladder or stair access point may serve the entire arrangement effectively.
H frames can also suit contractors maintaining established scaffold inventories. Familiar components may simplify equipment planning and replacement orders. However, compatibility must still be checked before combining different products.

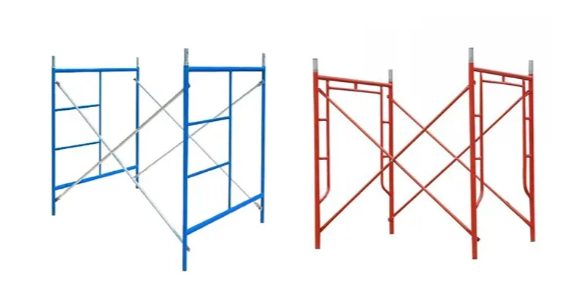

At Unitech Scaffolding, we offer H frame scaffolding options for construction applications. Our range includes mason scaffold frames and several related accessories. Buyers can review frame configurations and available finishes according to their project requirements.
Ladder frames may be useful when workers regularly change working levels. Their integrated rungs can provide convenient access when approved for climbing. This arrangement may reduce the need for separate ladders in suitable scaffold configurations.
Consider workers inspecting different sections of a building facade. They may need to move between platforms throughout the day. A properly designed ladder frame could make these transitions more convenient.
However, integrated rungs are not always the best solution. Workers carrying bulky equipment may find ladder access difficult. Larger crews may also need dedicated access routes to support safe movement. For projects involving frequent material transportation, stair access may be preferable. The decision should reflect actual movement patterns rather than frame appearance.
Purchase price tells only part of the story. Assembly requirements, access equipment, transportation, and component availability also affect project expenses. Comparing complete systems provides a clearer picture of long-term value.
Both frame types use prefabricated components, which can simplify installation. However, assembly speed depends on the complete scaffold configuration. Crew experience, site conditions, and available components also matter.
H frames generally require compatible cross braces, connectors, platforms, and access equipment. Ladder frames need similar structural components, alongside properly arranged climbing access. Neither design should be considered faster without comparing actual installation requirements.
Component compatibility is especially important when expanding an existing scaffold inventory. Frames with similar dimensions may still use different connection arrangements. Incorrectly matched components can create serious structural problems.
Before combining equipment, check frame widths, connection points, and brace dimensions. Confirm the proposed arrangement meets manufacturer instructions and applicable safety requirements.
A lower frame price does not always produce lower project costs. Additional access equipment may increase the total purchase. Transportation, installation labor, inspections, and replacement parts also contribute to expenses.
Imagine a contractor purchasing frames for a multilevel maintenance project. H frames may appear less expensive individually. However, the project also requires a separate climbing system. Approved ladder frames might offer a different overall cost structure.
The comparison changes when the contractor already owns compatible access equipment. Existing inventory can reduce additional purchases and simplify equipment management.
Long-term use deserves attention as well. Durable finishes, replacement component availability, and standardized configurations can influence ownership costs. Buyers should evaluate these factors alongside initial pricing.
A useful purchasing comparison should include:
1. Total number of required frames and braces.
2. Platforms, guardrails, and access equipment.
3. Transportation and expected installation labor.
4. Inspection and maintenance requirements.
5. Replacement component availability and future reuse.
This approach helps buyers compare complete solutions rather than isolated products.
A good selection begins with actual site requirements. Buyers should identify working conditions before comparing frame prices or appearances. This reduces the risk of ordering unsuitable equipment.
Start by determining how workers will use the scaffold. Consider working height, movement between levels, and materials handled during construction. Each requirement can influence the preferred configuration.
Use this checklist before making your decision:
Working height: Identify the required platform elevations and scaffold dimensions.
Access frequency: Determine how often workers must change levels.
Working loads: Verify rated capacity for workers, materials, and equipment.
Access safety: Confirm climbing arrangements meet applicable requirements.
Site conditions: Review ground support, available space, and surrounding obstacles.
Component compatibility: Check existing frames, braces, and connectors.
Project duration: Consider installation needs and future equipment reuse.
These questions help narrow the available options. They also reveal when additional access equipment may be necessary.
Once you identify a suitable configuration, request detailed technical information. Product drawings should identify dimensions, materials, and connection arrangements. Load documentation should cover the intended scaffold assembly.
Inspect specifications for steel quality, tube dimensions, welded connections, and surface protection. Hot-dip galvanizing and powder coating are possible finish options. Their suitability depends on environmental conditions and maintenance expectations.
At Unitech Scaffolding, we provide different frame configurations and related scaffold components. We can help buyers review dimensions, available finishes, and component requirements before ordering. The final assembly must follow its approved design and applicable regulations. Avoid choosing equipment based only on photographs or product names. Technical compatibility and documented performance should guide the purchase.
H frame scaffolding works well for conventional layouts with separate access systems. Ladder frames may offer easier movement between levels when approved climbing rungs are available. However, neither design automatically provides better stability, safety, or load capacity. The right choice depends on worker access, platform requirements, structural ratings, and overall project costs. Buyers should also confirm component compatibility and documented load limits before purchasing. Nanjing Uni-tech Metalwork Company Ltd. offers durable frame scaffolding products for different construction needs. Our H frame options and compatible accessories help contractors create practical working platforms. We support customers in selecting suitable configurations for their projects.
A: H frames use horizontal supports to form rigid structures, while ladder frames feature multiple rungs. Approved ladder frames may provide climbing access, making movement between working levels more convenient.
A: H Frame Scaffolding suits conventional construction layouts using separate access systems. Ladder frames may work better for frequent vertical movement. The best choice depends on site conditions and project requirements.
A: Neither design is automatically safer. Both require proper bracing, stable foundations, and compliant access arrangements. Ladder rungs must meet applicable safety requirements before workers use them for climbing.
A: Neither H Frame Scaffolding nor ladder frames inherently support heavier loads. Capacity depends on steel specifications, frame dimensions, connections, and the rated scaffold system configuration.
A: H Frame Scaffolding may have different initial costs, but total expenses include access equipment, installation, and maintenance. Comparing complete scaffold systems provides a more accurate cost estimate.
