Frame Scaffolding System
Choose Nanjing Uni-Tech Metalwork Company Ltd for top-quality frame scaffolding solutions.keywords: Frame scaffolding / Walk through frame / Mason frame / H Frame Scaffolding / Cross braces / Step frame / Ladder frame,
  • 01
    Strong and Stable Support
    Our frame scaffolding systems are designed to provide strong and stable support for construction and maintenance projects. With their modular design, our frame scaffolding systems are easy to assemble, disassemble, and transport, ensuring efficient use on different job sites.
  • 02
    Safety and Reliability
    We prioritize safety and reliability in our frame scaffolding products. Every frame scaffolding component is meticulously inspected and tested before delivery to ensure compliance with industry standards.
  • 03
    A Secure Working Platform
    Count on our frame scaffolding systems to provide a secure working platform for your construction needs.
What is Frame Scaffolding​​​​​​​？
Frame scaffolding, also known as tubular steel frame scaffolding, is a well-established modular system used for construction and decoration purposes. It provides a stable working platform and is made up of various components such as main frames, catwalks or walk boards, braces, brackets, coupling pins, guardrails, and sometimes casters.

frame scaffolding
VIEW MORE PRODUCTS
frame scaffolding
There are different styles of frame scaffolding available, including walk-through frames, open-end frames, step frames, ladder frames, H frames, and shoring frames.

To meet the specific requirements of clients in different countries and regions, there are various types of frame scaffolding available. These include American type galvanized scaffolding, pre-galvanized walk-through frames, Mason single and double ladder frames, lightweight Italian painted ladder frames, and powder-coated Korean type steel frame scaffolds.
Advantages
  • 1)
    Easy to install and disassemble.

  • 2)
    High carrying capacity.
  • 3)
    High construction efficiency, labor and time saving.

Frame Scaffolding Product Description

Material Q235,Q355
Variety Walk through type & Mason type
Type H frame scaffolding system & A frame scaffolding
Tube Thickness 1.8mm, 2.0mm, 2.5mm, 3mm 3.2mm 3.25mm, 3.5mm, 4mm or customize
Surface treatment Hot Dip Galvanized/Powder Coated
Color Silver, red, blue, yellow, green or customize
Certificate ISO9001:2000
Standard EN74, BS1139, AS1576
Advantage Easy erection, strong loading capacity, safety and stability
Main components Frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster
Application scenario bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry, civil building, etc.

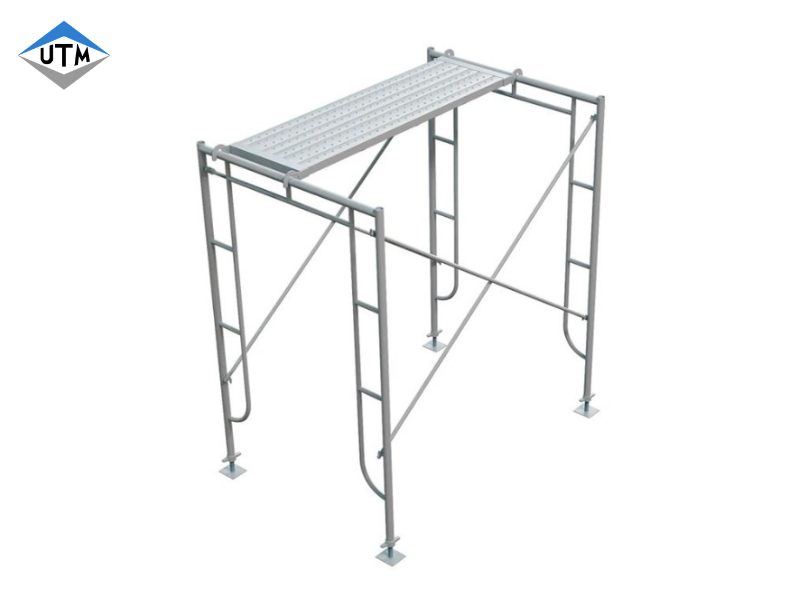

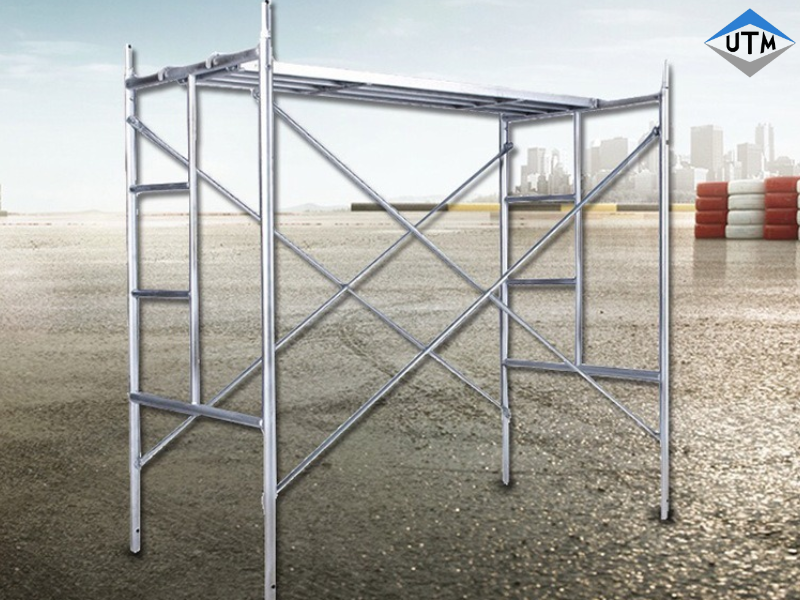

Frame Scaffold​​​​​​​

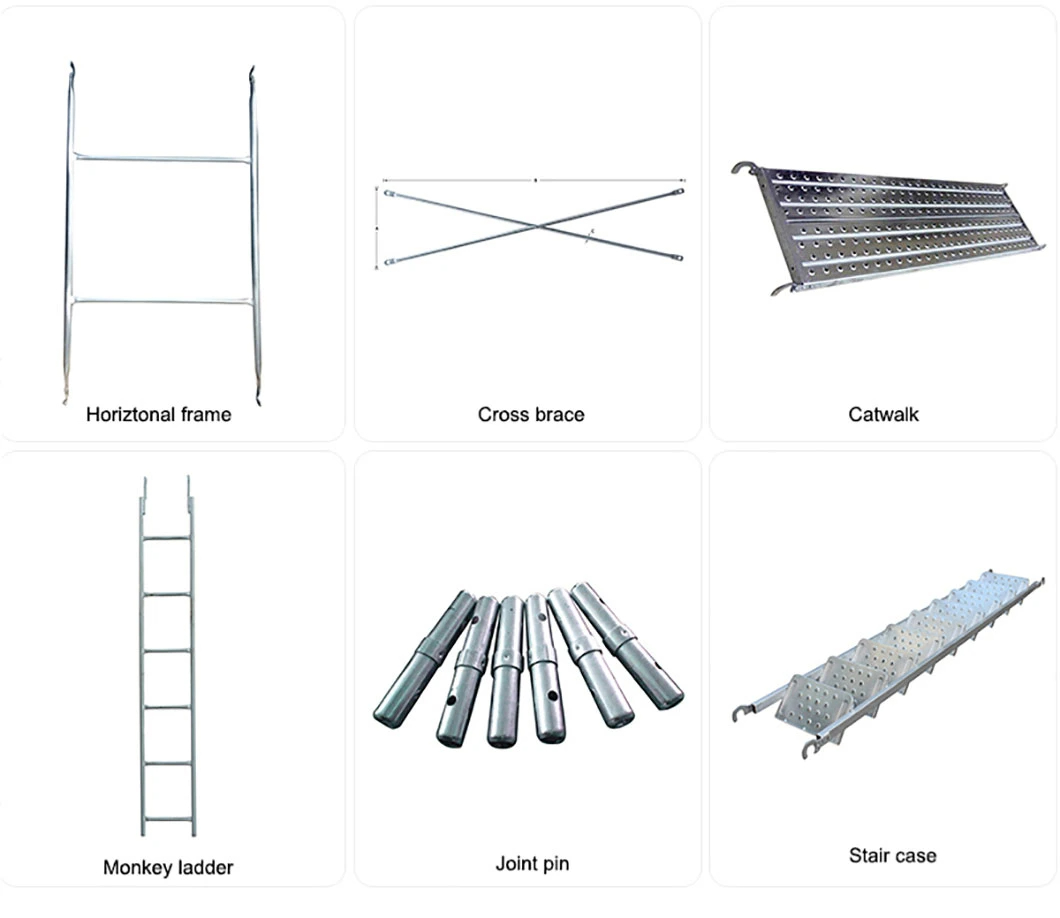

Main components

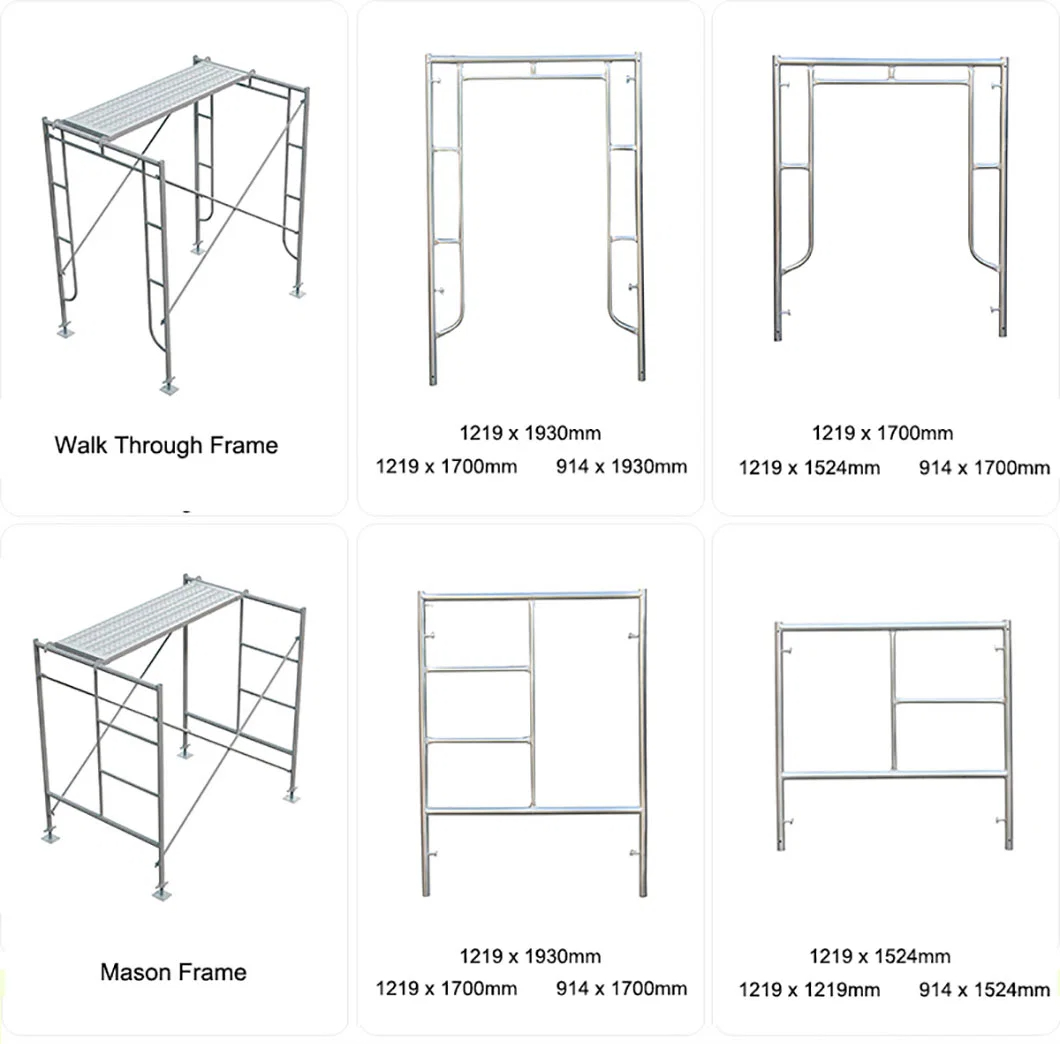

frame scaffold parts
Its main components include frames, cross braces (diagonal braces), catwalk (steel or aluminum), joint pins, jack base and castors. It's always widely used as mobile scaffoldings, outdoor scaffoldings and indoor shoring.
frame scaffolding parts

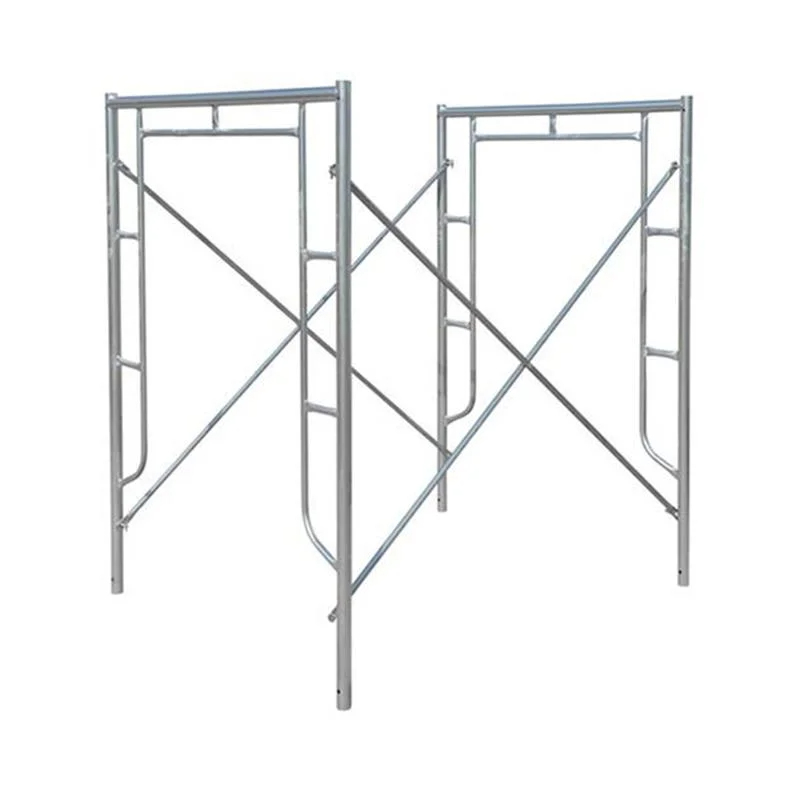

Walk Through Frame Scaffolding
Walkthrough frame is designed to help prevent stacked frames from sliding, it is heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. Walthrought Frame allows a person to pass underneath unobstructed. This allows greater freedom of movement along a work surface.
Product details

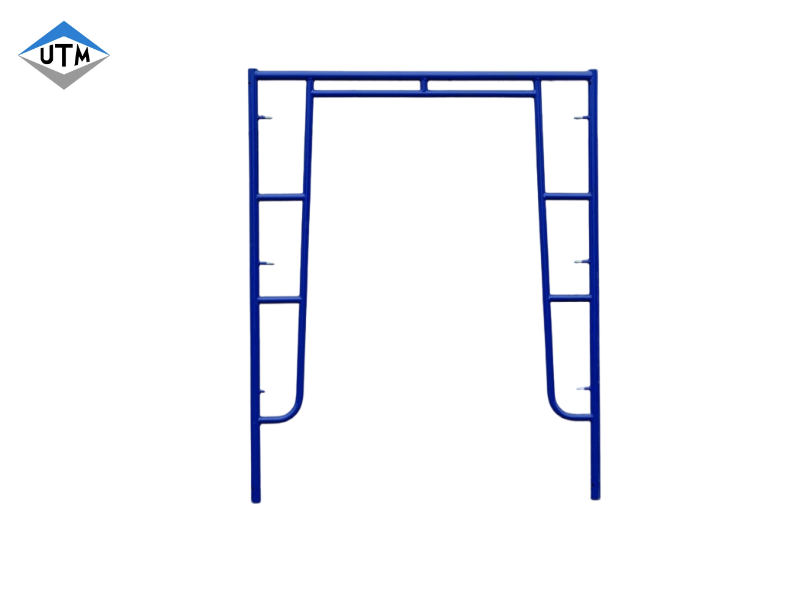

walk through frame scaffolding

Code Name Width Height Surface Treatment Band
UTM-WTF-3*4
Walk Through Frame
 914.4mm 1219.2mm
galvanized/Powder Coated
UTM
UTM-WTF-3*5 914.4mm 1524mm
UTM-WTF-3*6.8 914.4mm 2032mm
UTM-WTF-5*6.8 1524mm 2032mm
Mason Frame / Step Scaffold Frame
Mason Frame/Step Frame is the most common type of scaffold used by contractors of all types. It is manufactured with high-strength steel tubingIt’s easy to set up and dismantle and allows you to get to the height you need fairly quickly.
Product details

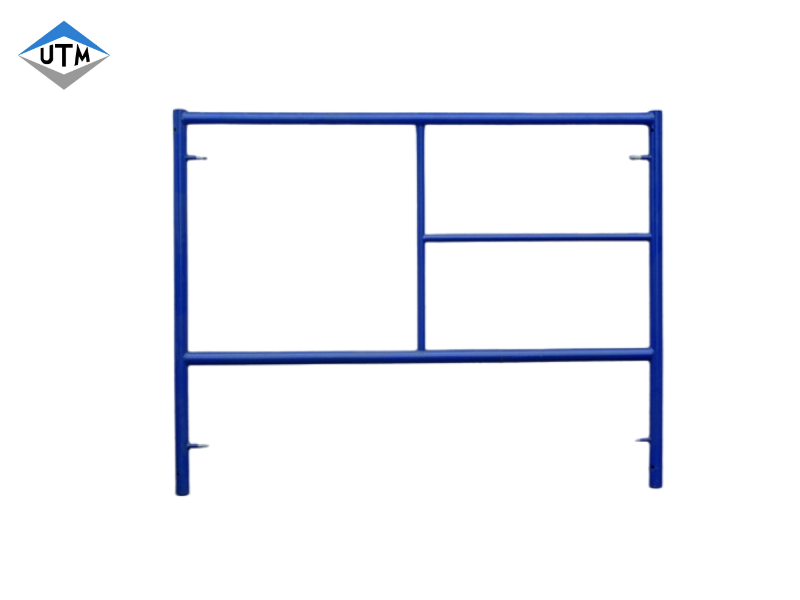

Mason Frame scaffolding

Code Name Width Height Surface Treatment Band
UTM-MS-2.1

Mason Frame
 1524mm 635mm

galvanized/Powder Coated

UTM
UTM-MS-3.1 939.8mm
UTM-MS-4.1 1244.6mm
UTM-MS-5.1 1549mm
UTM-MS-6.7 2006.6mm
Frame Scaffolding Cross Brace
scaffolding frame bay braces are used for the lateral bracing frame scaffolding.Bay braces can also be used as obtuse angle mid rail and top pr hand rails in conjunction with our stair system.Were made of high strength structural steel with hot dip galvanizing finish.
Product details
Frame Scaffold Scaffolding Cross Brace

Code Name A B C Surface Treatment Band
UTM-LF-1
Frame Brace
 1524mm 1219mm 1951mm
galvanized
UTM
UTM-LF-2 3048mm 81208mm 2283.2mm
UTM-LF-3 2133.6mm 812.8mm 3154.43mm
UTM-LF-4 3048mm 1219mm 3284.7mm

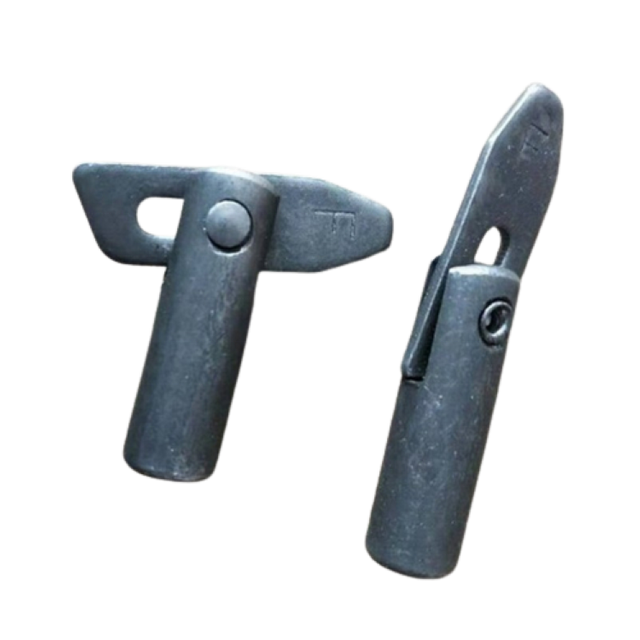

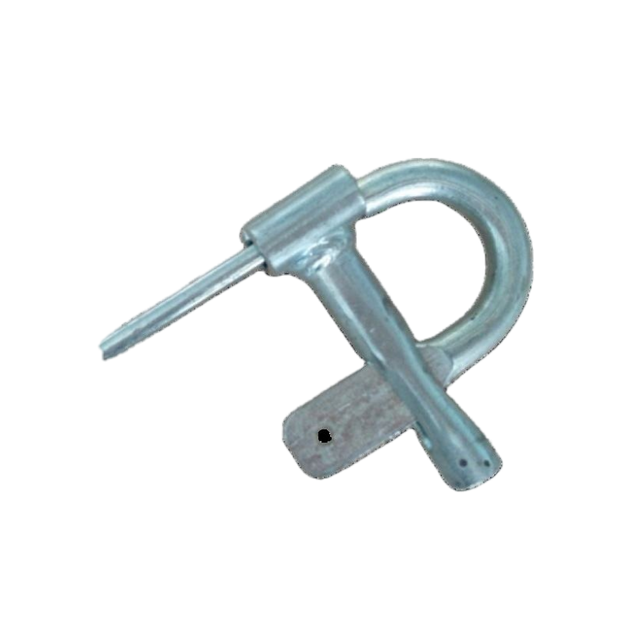

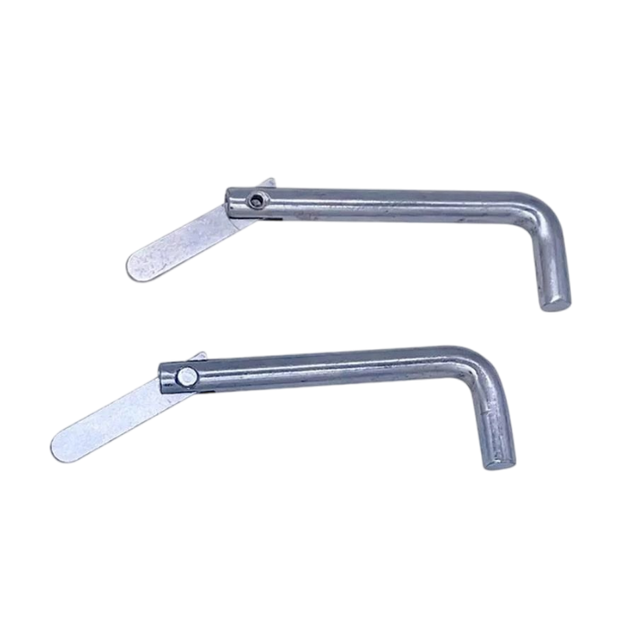

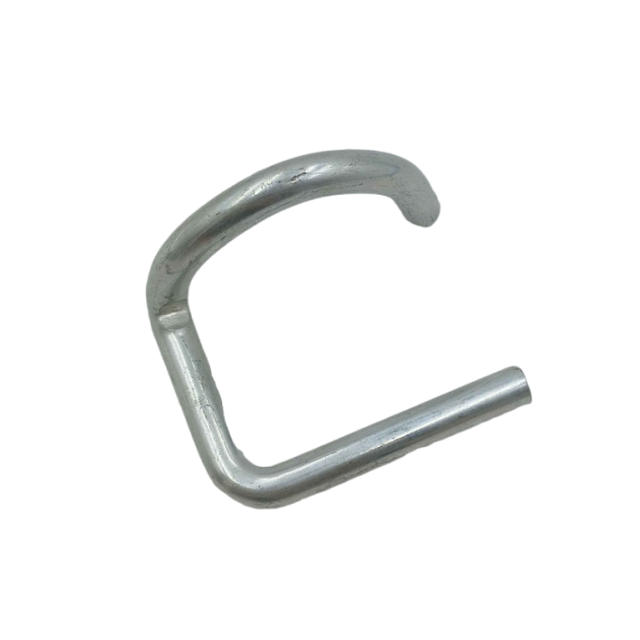

Frame Scaffolding Lock Pins

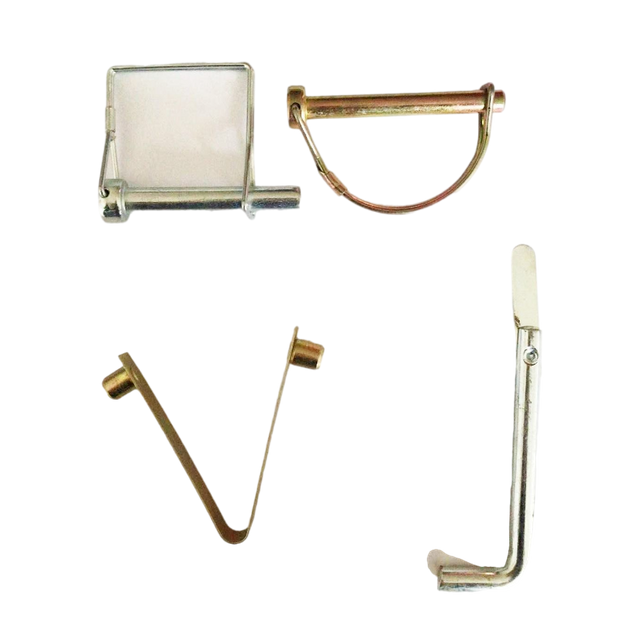

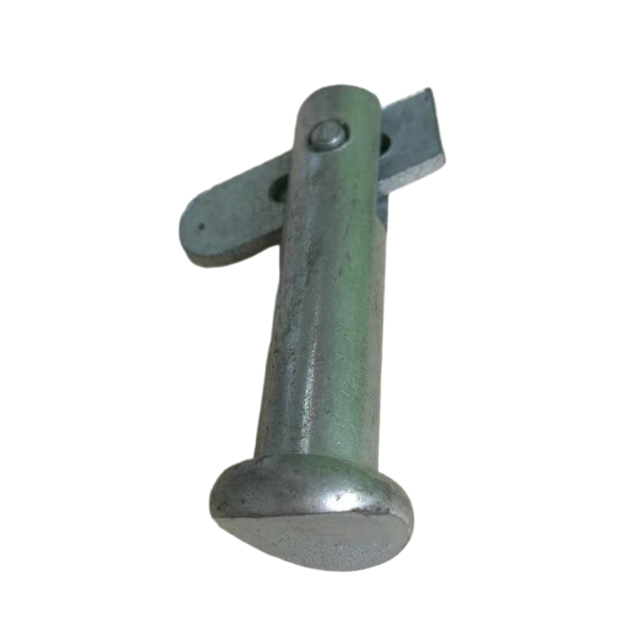

Scaffolding Toggle Pin is essential to locking scaffold frames and accessories together. Frames, posts, casters and any other attachable accessory is designed to be locked together via scaffolding toggle pins or spring clips.
Product details
Frame Scaffold Lock Pins

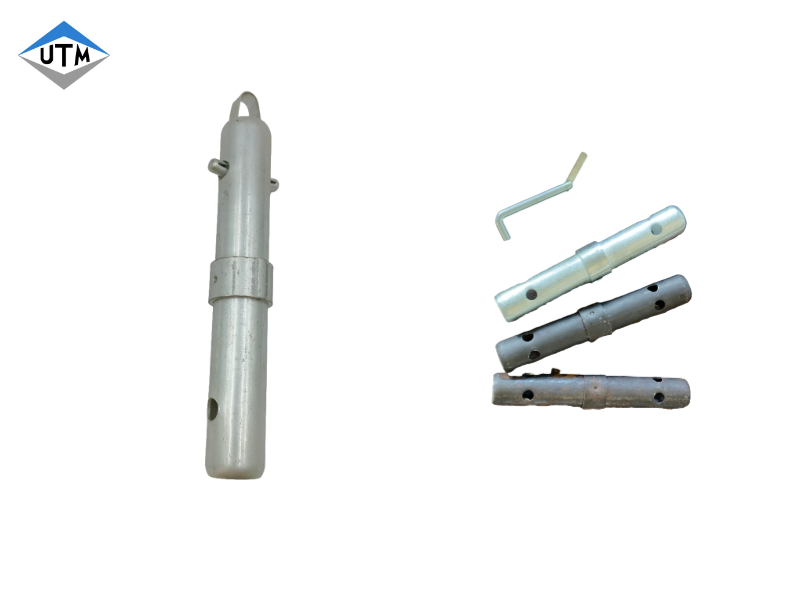

Frame Scaffolding Coupling pin
Coupling pins are used to connect scaffolding frames together vertically. The pins fit on the inside of the frame and are used in conjunction with span pins, toggle pins, and clips to hold them in place.
Product details
Frame Scaffolding Coupling pin

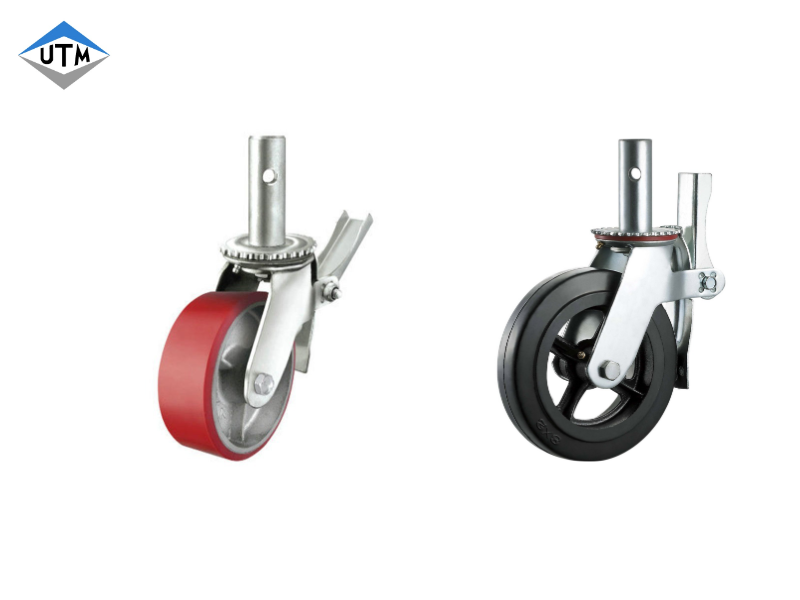

Frame Scaffolding Caster Wheels
Caster wheel that fits into the bottom of scaffolding frame legs. The wheel has a hole in the stem for a pin to lock it to the frame. When the lock is engaged, it keeps the wheel from rolling and also from swiveling. Fit’s all major scaffolding frame styles.
Product details
Frame Scaffolding Caster Wheels

Advantages of Frame Scaffolding
  • 1. Scaffolding frames are extensively utilized in the construction industry as a platform for work or as a support system.
  • 2. Scaffolding frames offer significant cost advantages compared to other types of scaffolding.
  • 3. Scaffolding frames are easily and quickly assembled and disassembled, saving both time and labor.
  • 4. Scaffolding frames can be reused multiple times and have a lifespan of 10 years or more, allowing for the recovery of the initial investment and minimal maintenance costs.
  • 5. Scaffolding frames have an aesthetically pleasing appearance.
  • Popular trust
    The quality is very good, completely consistent with the seller's description, very satisfied, really like it, completely beyond expectations, the delivery speed is very fast, the packaging is very careful and strict, the service attitude of the logistics company is very good, the delivery speed is very fast, very satisfied with a shopping.

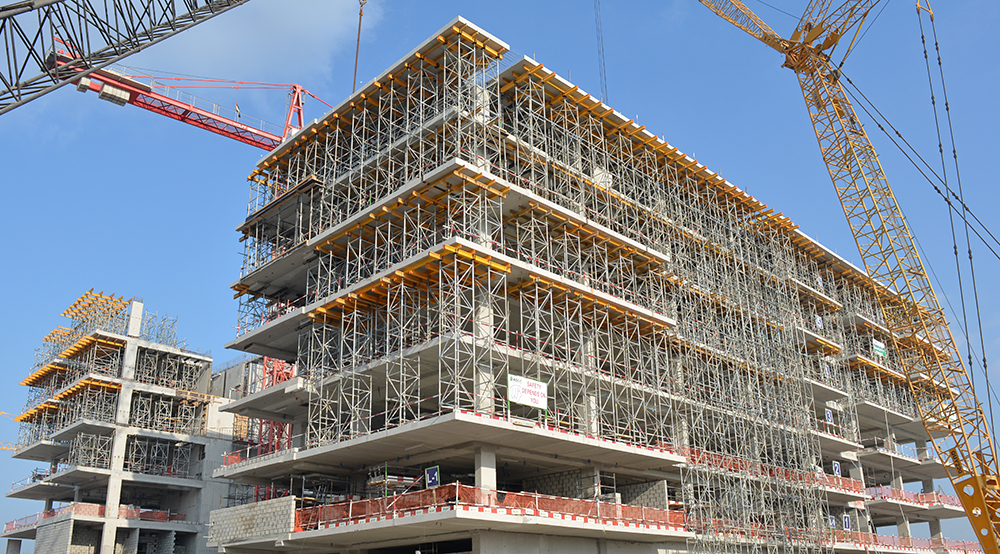

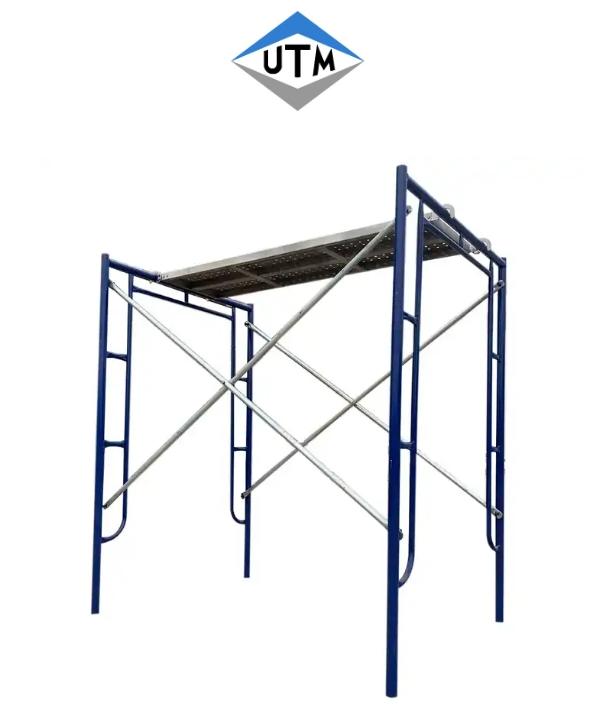

frame scaffolding application



The Applications of Frame Scaffolding

Frame Scaffolding find widespread use in buildings, halls, bridges, as well as in the interior and exterior control grids of tall structures.
They can also be utilized for mechanical and electrical installations, renovation projects, equipment servicing, painting and whitewashing, and temporary viewing platforms, among other activities.



application of frame scaffolding
Why choose us？​​​​​​​
  • 1. Customer oriented.
    We are an OEM and ODM manufacturer with a professional multi-lingual sales team.
    We have been selling our products globally for 18 years. Our technology can satisfy all of our customers’ needs. And our sophisticated sales team can make your whole purchasing experience as simple and relaxed as it can be, from pre-sale to after-sale.

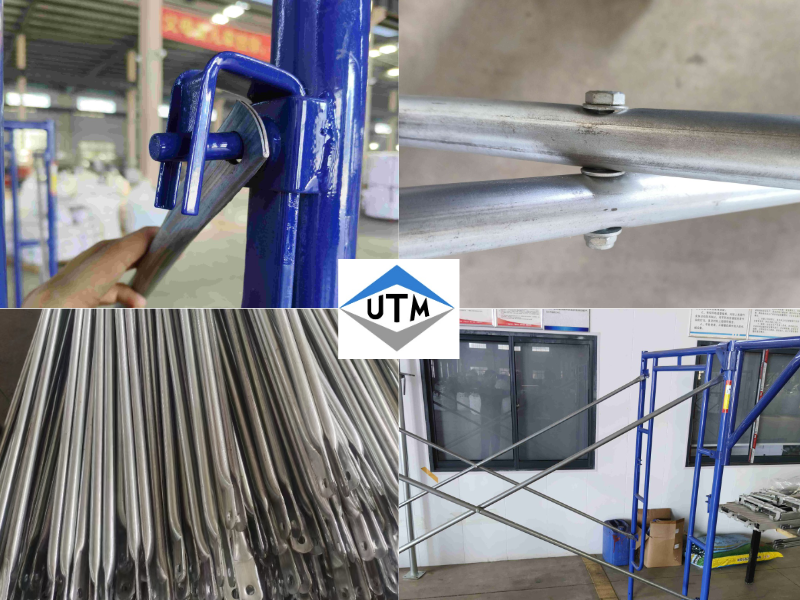

    2. Quality control.
    Our equipment can produce better quality and higher precision products. Our production line is twice as fast as an ordinary one and the specification tolerances are much smaller.
    We have our own factory and test center.
    We can perform all necessary tests to ensure product quality, including chemical component analysis, mechanical property tests, technical property tests, and visual inspection.
    Professional storage & packing.
    We have fully-enclosed, clean, and tidy modern logistics storage and a well-trained packing team to ensure that our products are properly stored and packed.

    3. Cost efficient.
    Excellent quality with a competitive price.
    Thanks to our top-level equipment and our test center, we can produce high-standard quality in less time, which gives us an advantage in providing a competitive price for you.
    Safe shipping & fast delivery
    1. We can load 20-25 containers per day. Our packing accuracy rate is 100%.
    2. We have a well-equipped 24-hour transportation team to make sure that our customers get their orders on time.
