Views: 0 Author: Site Editor Publish Time: 2026-11-23 Origin: Site
Choosing the wrong scaffold dimensions can leave workers short on space or create unnecessary material costs. Even standard-sized components need careful planning before installation. Ringlock Scaffolding uses vertical standards, horizontal ledgers, and rosette connections to create flexible working platforms. Their dimensions affect working height, bay spacing, and structural stability. However, standard component lengths do not always match the scaffold's final assembled dimensions. Overlooking platform width or design loads can lead to costly adjustments. Understanding common sizes and bay configurations helps you plan a more suitable layout. We'll cover standard dimensions, spacing choices, and practical measurements before ordering.

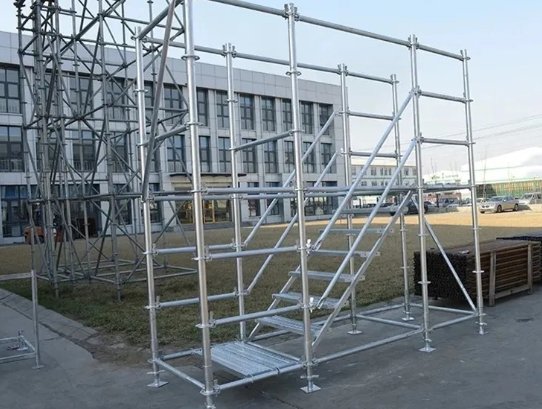

Ringlock Scaffolding systems use standardized components to create different working heights and platform layouts. Their dimensions depend on vertical standards, horizontal ledgers, and the spacing between connection points.
Vertical standards are upright steel tubes supporting the scaffold structure. They connect through spigots or other approved joining arrangements, depending on the system. Common standard lengths range from 500 mm to 4000 mm.
Most conventional systems use rosettes spaced 500 mm apart along the standards. These circular connections allow workers to attach ledgers and diagonal braces at designated positions. This spacing provides regular connection levels, although it does not require every lift to measure 500 mm.
Many Ringlock systems also use steel tubes measuring 48.3 mm in outside diameter. However, wall thickness, steel grade, and connection design can differ. These specifications affect structural performance and should never be treated as interchangeable.
At Unitech, we offer Ringlock Scaffolding vertical standards in several sizes, including 500 mm and 4000 mm options. We also provide intermediate lengths to accommodate different project heights and layouts.
Horizontal ledgers connect neighboring standards and establish the scaffold's bay dimensions. Common nominal lengths include 0.73 m, 1.09 m, 1.57 m, 2.07 m, 2.57 m, and 3.07 m. Actual available sizes depend on the selected product system.
Longitudinal ledgers determine bay length along the building. Transverse ledgers establish the scaffold width between the inner and outer standards. Both dimensions affect the available working area and component requirements.
For example, a nominal 2.07 m ledger may suit a medium-length bay. However, its actual connection spacing must match the manufacturer's dimensional drawings. The usable platform area also depends on deck sizes and supporting components.
The following table summarizes common component dimensions used during preliminary scaffold planning.
Component | Common Dimensions | Main Purpose |
Vertical standards | 0.5–4.0 m | Establish scaffold height |
Rosette intervals | Commonly 500 mm | Provide connection positions |
Steel tube diameter | Commonly 48.3 mm | Define tube specifications |
Horizontal ledgers | Approximately 0.73–3.07 m | Determine bay dimensions |
Diagonal braces | Vary by bay geometry | Provide structural bracing |
Scaffold planks | Vary by system | Create working platforms |
These values represent common configurations rather than universal specifications. Always confirm exact dimensions before combining components or preparing an order.
Bay spacing describes the horizontal distance between neighboring vertical standards. It influences working space, component quantities, and how easily scaffolding fits a structure. The best spacing depends on building dimensions and the tasks performed. Longer bays may reduce the number of standard positions, while shorter bays offer greater layout flexibility.
Bay length usually follows the building's horizontal direction. Bay width extends outward and determines the space available between scaffold rows. Shorter bays, approximately 1.0–1.5 m, can accommodate restricted spaces and irregular structures. Medium bays around 2.0 m are common planning options for straight working areas. Longer bays around 2.5–3.0 m may suit extended building elevations.
However, a longer bay also increases the span between supports. Its suitability depends on the selected system's approved configuration and intended loading. Bay width deserves equal attention because it affects worker movement and material handling. A narrow platform may accommodate simple inspection tasks but restrict equipment movement. Wider platforms may provide more space for workers and construction materials.
Before selecting the width, consider three practical questions:
How many workers need access to the platform?
Will materials or equipment occupy part of the working area?
How much clear space must remain for safe movement?
These answers help establish the required usable platform width. They also prevent unnecessary assumptions based only on nominal ledger dimensions.
Building geometry often determines whether standard bay lengths fit correctly. Straight façades allow repeated modules, while corners and projections require additional planning. Consider a building wall measuring approximately 15 m long. Repeating identical bays may leave unused space near the scaffold ends. Combining approved ledger lengths can create a more suitable arrangement.
Columns, balconies, and entrances also influence the placement of standards. Smaller bays may help maintain clearance around these features without creating awkward platform gaps. Workers should measure the actual building before choosing component sizes. They must also consider access points and clearance from the working surface. A well-planned layout follows the building rather than forcing the building into fixed modules. This approach reduces unnecessary adjustments during installation.
Ringlock Scaffolding dimensions influence how loads travel through the assembled structure. Increasing bay length or changing lift height can affect individual components and overall stability. However, dimensions alone cannot establish the system's allowable load capacity. Approved configurations and engineering requirements remain essential.
Longer bays create greater distances between supporting standards. Depending on the arrangement, ledgers and platform supports may experience increased bending and deflection.
For example, increasing a bay from approximately 1.5 m to 3.0 m changes its structural behavior. The longer span may require stronger components, additional supports, or different platform arrangements.
The load type matters just as much as its total weight. Workers moving across a platform create different loading conditions from stacked construction materials. Concentrated equipment loads can place greater demands on specific support points.
Three factors deserve particular attention:
1. Bay length: Longer spans can increase bending and deflection in supporting members.
2. Working loads: Materials, equipment, and workers contribute to the total applied loading.
3. Component capacity: Each ledger, standard, and platform support must suit the approved arrangement.
A shorter bay may reduce certain structural demands, but it does not automatically guarantee safety. The complete scaffold configuration must satisfy the applicable load requirements.
Lift height describes the vertical distance between successive working or structural levels. It should not be confused with the spacing between individual rosettes. Although rosettes commonly appear every 500 mm, approved lift heights may use multiple intervals. Their selection depends on the system design, working requirements, and structural calculations.
Greater vertical distances between restraints can affect the behavior of scaffold standards. Properly positioned ledgers and diagonal braces help stabilize the assembled structure. Ties also transfer appropriate lateral forces into the supporting building.
Wind exposure, scaffold height, and foundation conditions further influence stability. A layout suitable for one project may require changes at another location. Never select tie intervals or lift heights using rosette spacing alone. These dimensions must follow approved drawings, manufacturer instructions, and applicable safety requirements.
Calculating scaffold dimensions starts with the building's length, required working height, and platform width. Once these measurements are established, planners can estimate bay quantities and major components. A simple example demonstrates the process before detailed engineering begins.
Suppose a building requires scaffolding along a straight 12 m façade. The preliminary layout uses nominal 2.0 m bays.
The basic calculation is:
Number of Bays = Required Scaffold Length ÷ Selected Bay Length
12 m ÷ 2.0 m = 6 bays
This arrangement creates six bays and seven standard positions along one longitudinal line. A scaffold using two continuous rows would therefore have fourteen standard positions. However, this calculation assumes the selected module provides exactly 2.0 m spacing. Actual ledger connection dimensions must be checked before confirming the layout.
The following example shows how different assumed bay lengths change the estimated quantity.
Assumed Bay Length | Bays for a 12 m Run | Standard Positions Per Row |
1.5 m | 8 | 9 |
2.0 m | 6 | 7 |
3.0 m | 4 | 5 |
These figures demonstrate how bay dimensions affect component planning. They do not establish suitable working loads or an approved scaffold design.
After establishing bay quantities, calculate the required vertical positions and working levels. Each additional level may require more ledgers, braces, guardrails, and platform components. For the six-bay example, two scaffold rows require fourteen vertical standard positions. The number of actual standard pieces depends on their lengths and the total required height.
Each continuous horizontal ledger run typically contains six longitudinal bays per level. Two rows would therefore require twelve longitudinal ledger positions at that level. Additional transverse connections must also be included. Platform materials require separate calculations based on usable deck dimensions. For example, a 12 m working run needs enough compatible planks to cover its planned length and width. Deck support requirements can change the final quantity.
Remember that several important components cannot be estimated from bay count alone:
Diagonal braces and their approved positions
Building ties and anchoring components
Base jacks, sole boards, and foundation supports
Guardrails, toe boards, and access equipment
Additional supports around corners or openings
These materials depend on the complete scaffold arrangement. A detailed bill of materials should follow approved layout drawings.
Standard dimensions simplify scaffold planning, but ordering components still requires careful verification. Similar-looking parts may differ in connection geometry, manufacturing tolerances, and approved performance. Checking these details early helps prevent compatibility problems and unnecessary replacement orders.
Different Ringlock Scaffolding systems may share similar nominal ledger lengths. However, their wedge heads and rosette connections are not necessarily interchangeable.
Even small dimensional differences can affect component engagement and assembled geometry. A ledger may appear to fit while failing to meet the required connection specifications.
Tube diameter, wall thickness, connection design, and manufacturing tolerances all deserve attention. Buyers should also check whether the selected components belong to the same approved system.
For mixed inventory, compatibility needs confirmation from appropriate technical documentation. Physical fit alone does not demonstrate structural suitability. At Unitech, we can help customers review available Ringlock Scaffolding component sizes against their project requirements. We recommend confirming specifications and system compatibility before finalizing an order.
Before ordering, compare the proposed scaffold layout against actual site measurements. Confirm the working height, building clearance, and available foundation space.
The following checklist covers the main dimensional requirements:
Overall length: Measure the scaffold run and available end clearances.
Bay dimensions: Confirm longitudinal and transverse connection spacing.
Working height: Check required platform elevations and standard lengths.
Platform coverage: Verify plank dimensions and usable working width.
Design loads: Confirm allowable loads for the selected configuration.
Base adjustments: Account for approved jack extensions and ground levels.
Structural support: Verify bracing, ties, and required restraints.
Compatibility: Match components to approved system specifications.
The final arrangement should also account for entrances, corners, and uneven ground. These details can affect material quantities even when the basic bay calculation appears correct.
A useful approach is to prepare a preliminary layout first. Then verify component dimensions and obtain the required design approval before ordering. This process helps reduce material waste and installation delays. More importantly, it keeps dimensional planning aligned with the scaffold's intended working conditions.
Choosing the right Ringlock Scaffolding dimensions requires more than selecting standard component lengths. Bay spacing, platform width, and structural requirements must work together to create a practical layout. Accurate measurements also help the scaffold fit the building without exceeding approved load limits. Start by measuring the working area and selecting compatible bay sizes. Then verify the final configuration against project requirements and approved specifications. Nanjing Uni-tech Metalwork Company Ltd. offers Ringlock Scaffolding components in various standard sizes for flexible project layouts. Our modular solutions help customers plan efficient scaffold arrangements and select suitable components for different construction needs.
A: Ringlock Scaffolding vertical standards commonly range from 0.5 to 4.0 meters. Horizontal ledger lengths vary between systems, typically ranging from 0.73 to 3.07 meters.
A: Ringlock Scaffolding commonly uses bay lengths around 1.5, 2.0, or 3.0 meters. The appropriate spacing depends on building dimensions, platform requirements, and approved load capacities.
A: Ringlock Scaffolding typically has rosettes spaced 500 mm apart along vertical standards. These connection points allow different ledger elevations, although actual lift heights depend on the approved scaffold configuration.
A: Divide the required scaffold length by the selected bay length. For example, a 12-meter run using 2-meter bays requires six bays and seven standard positions per row.
A: Longer bay spacing may reduce the number of standards and connections required. However, additional support requirements and load limitations can affect overall material costs and installation expenses.
