UTM: Premium Aluminum Mobile Scaffolding Tower

Lightweight, CE/EN1004 Certified, Customizable for Global Construction & Maintenance Projects.

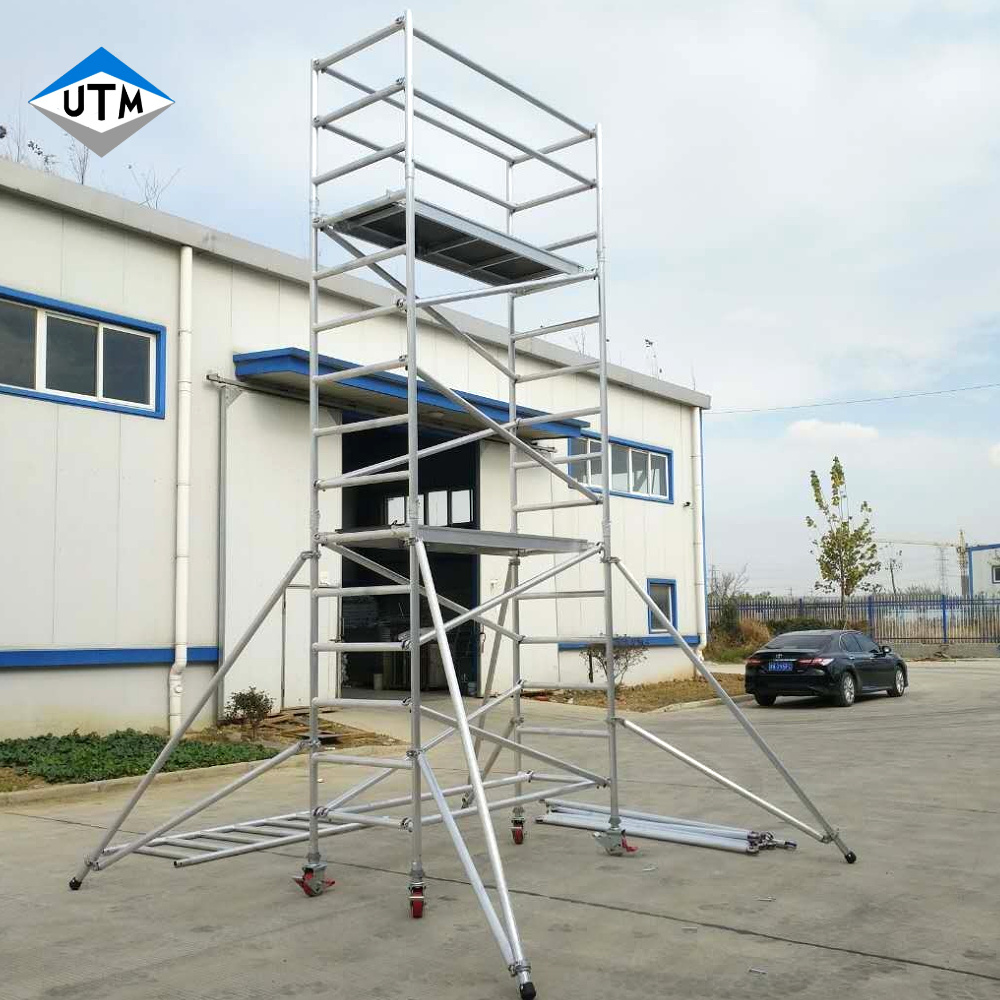

What is scaffolding aluminum tower?

Scaffolding Alunimium Tower is designed to be mobile and portable, it is set on castors or wheels to make it easy to move, and is normally used for tasks such as plastering, changing light bulbs, painting and any other overhead work. It's suitable for any kind of construction work outside or inside the house.It is highly versatile and provides a storing working platform for a variety of heights.

Lightweight

EN1004 Certified

Customizable

ALUMINIUM SCAFFOLD TOWER Catalog.pdf
DIY Mobile Aluminium Scaffold Tower working platform with wheels
Uncategorized
2025-11-17
3.92MB
819
Copy Link
Download

Certificates

We always focus on customers, pay attention to their needs, provide high-quality products and excellent services to meet their expectations.

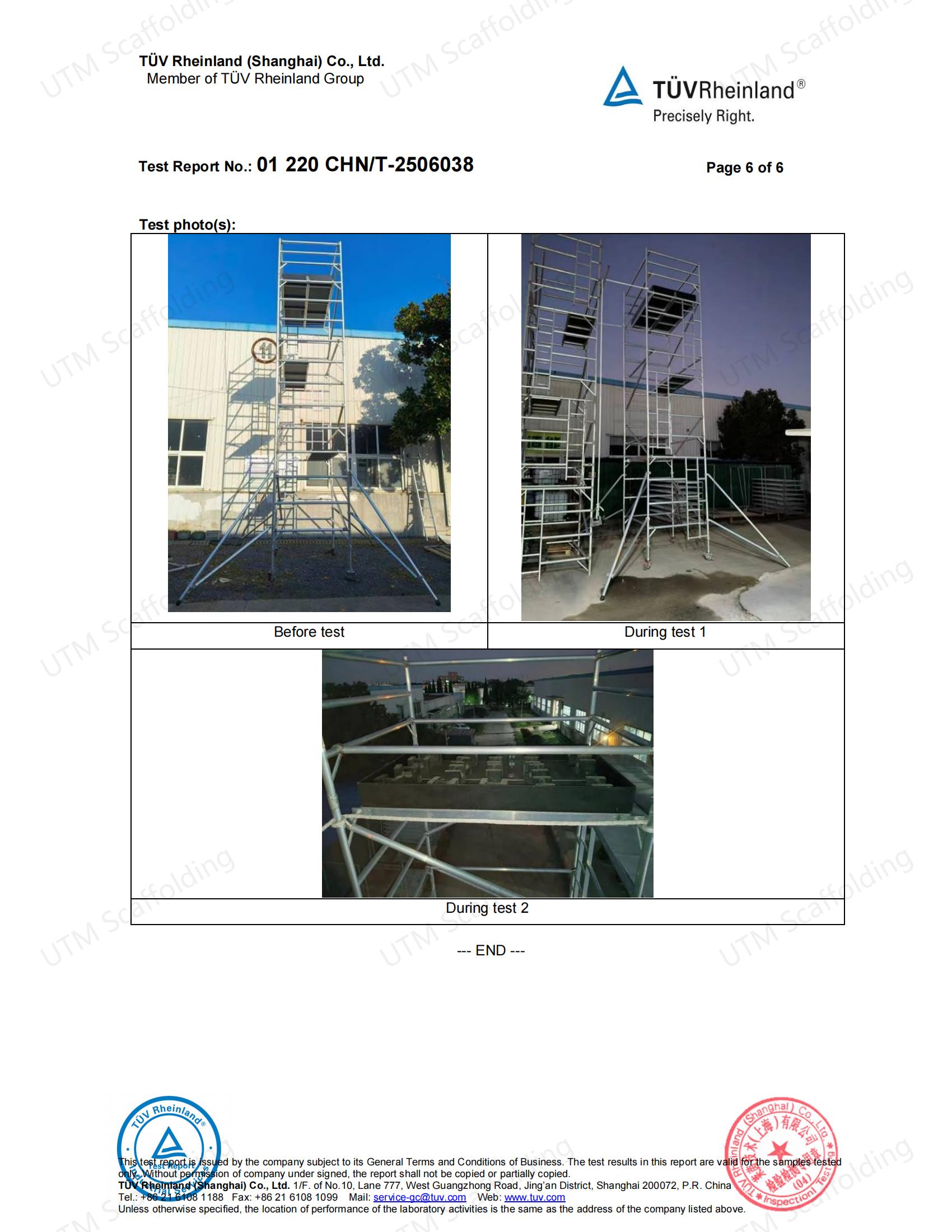

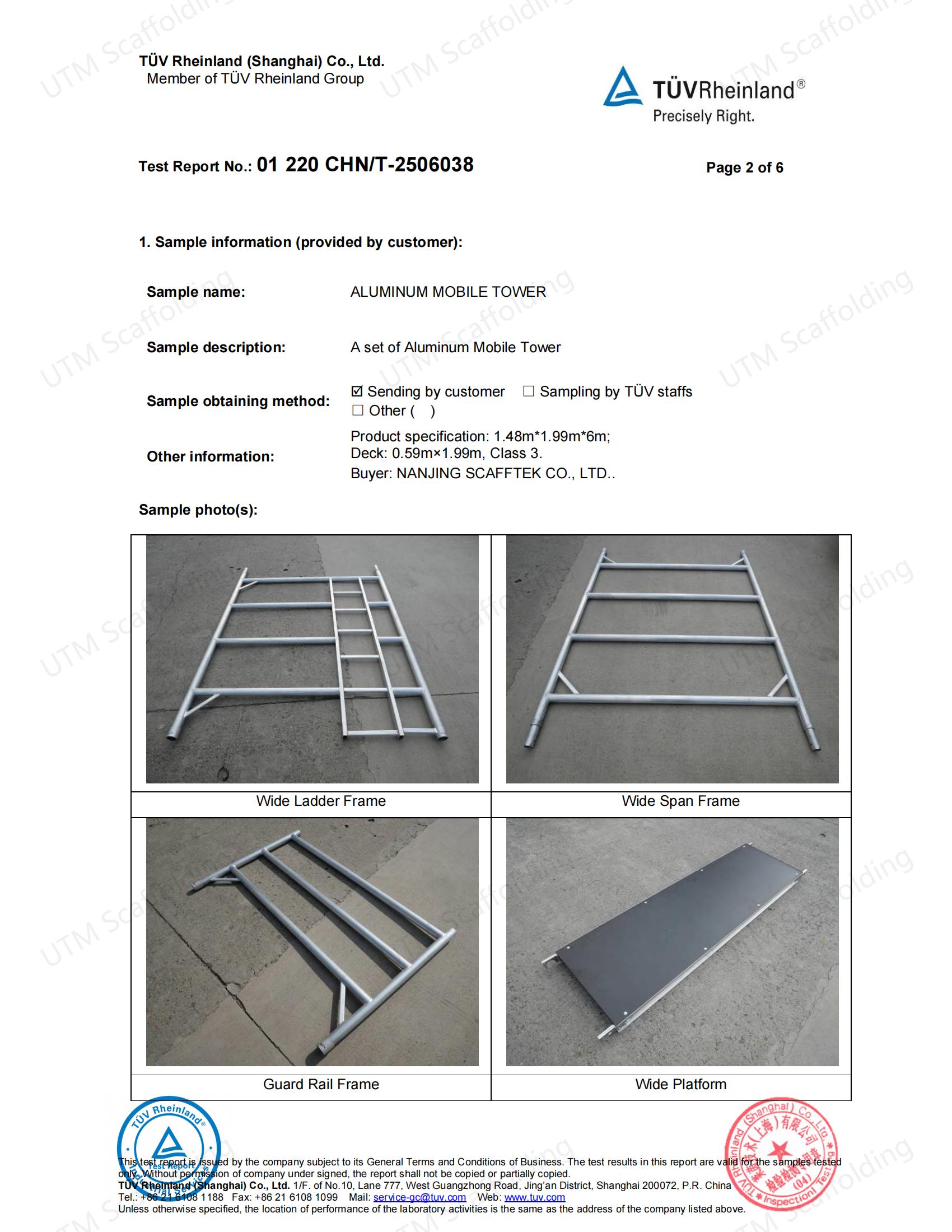

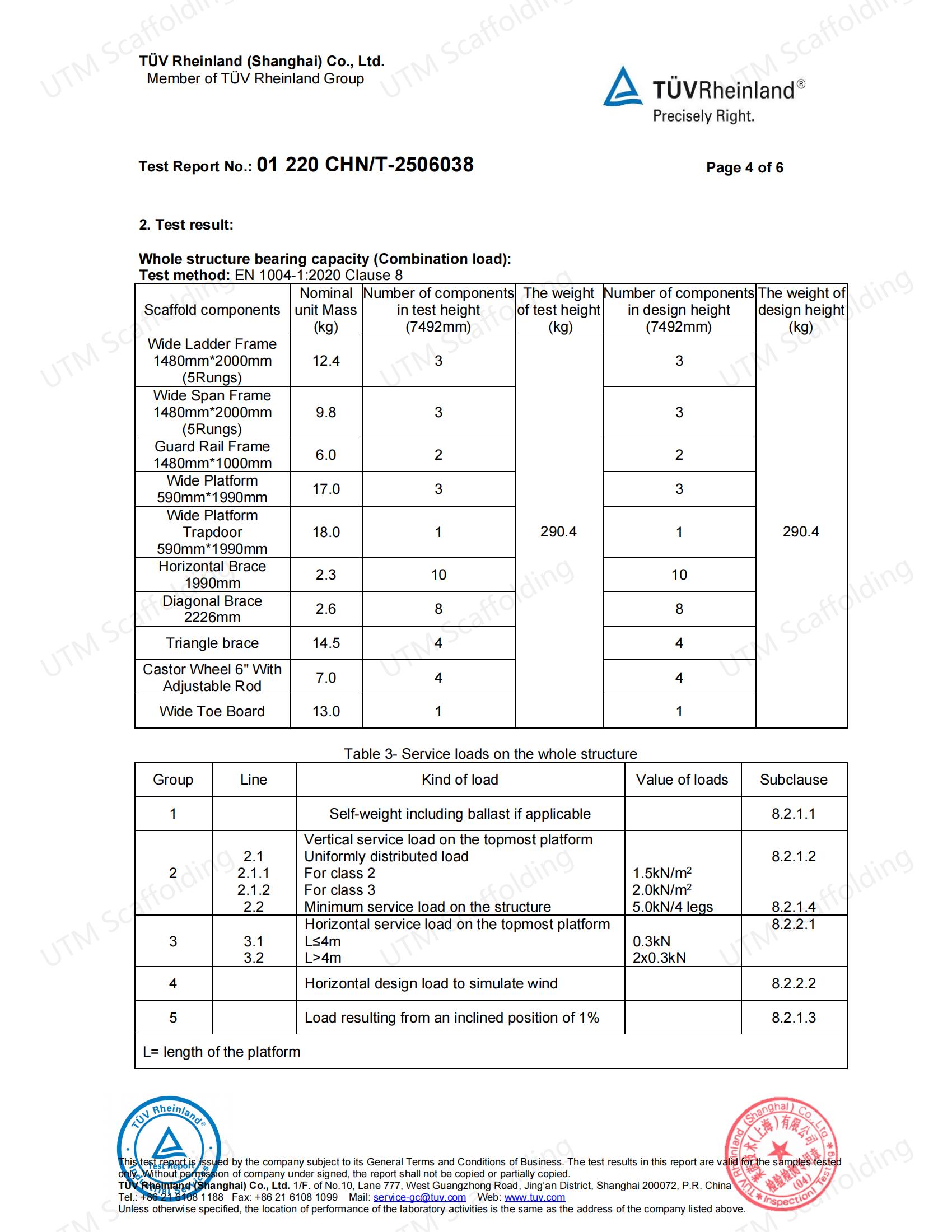

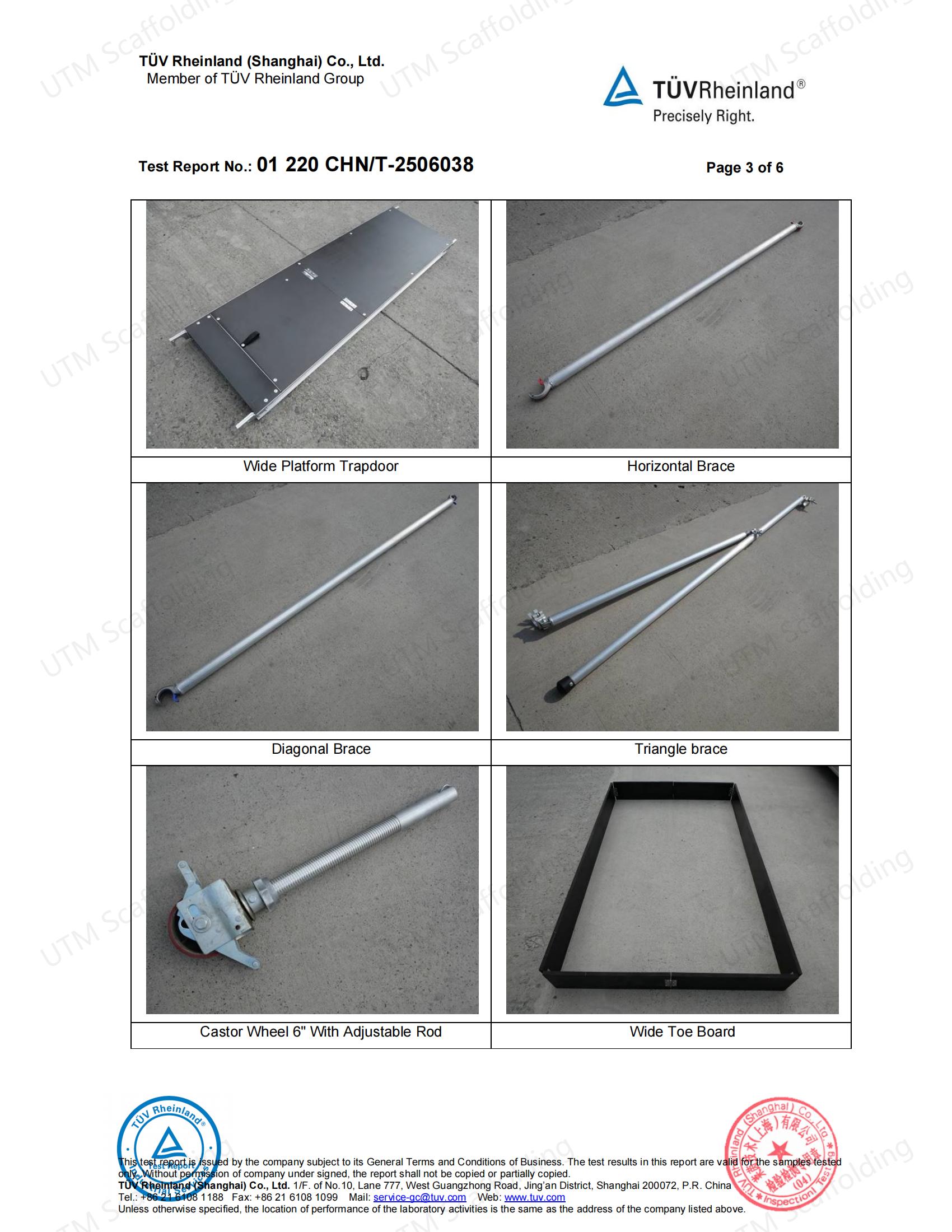

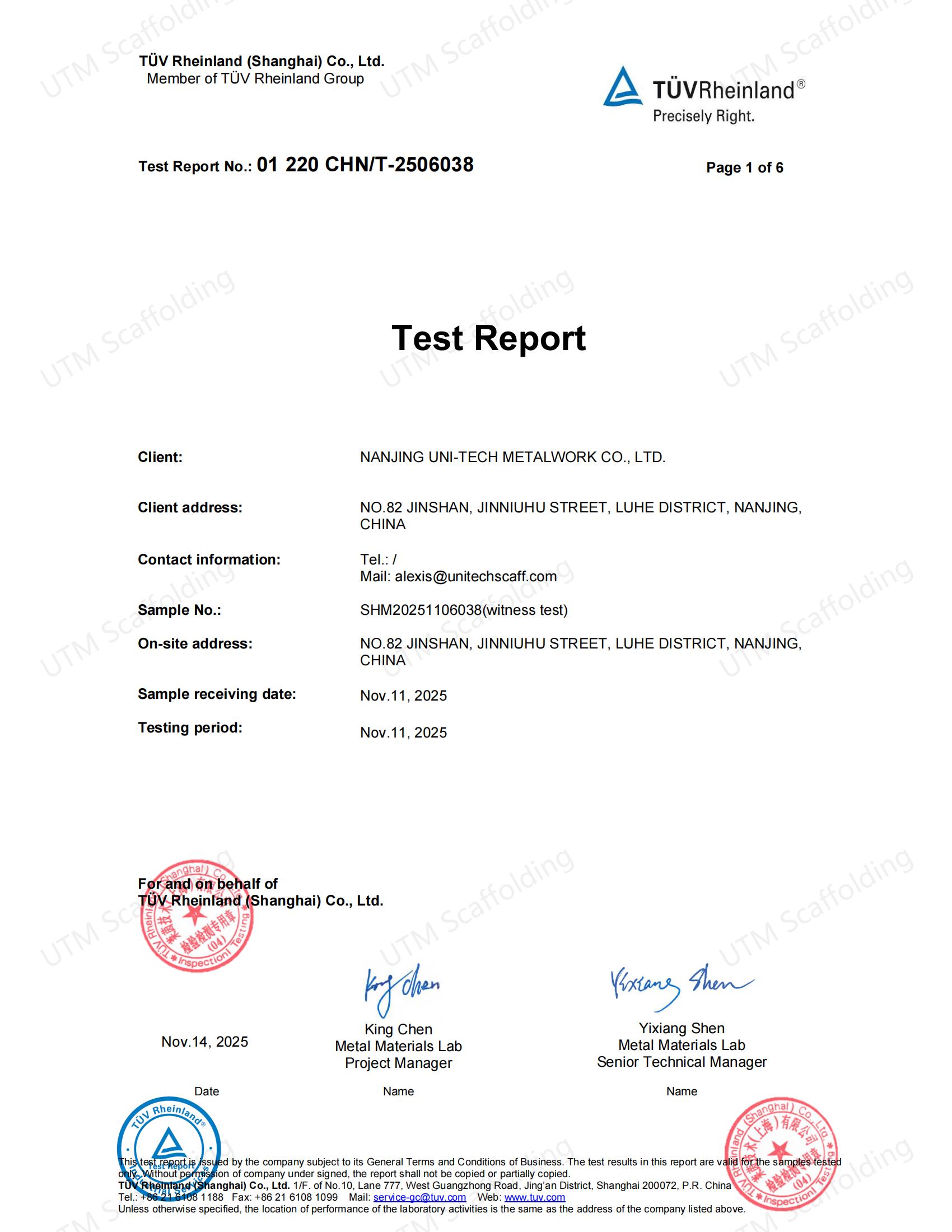

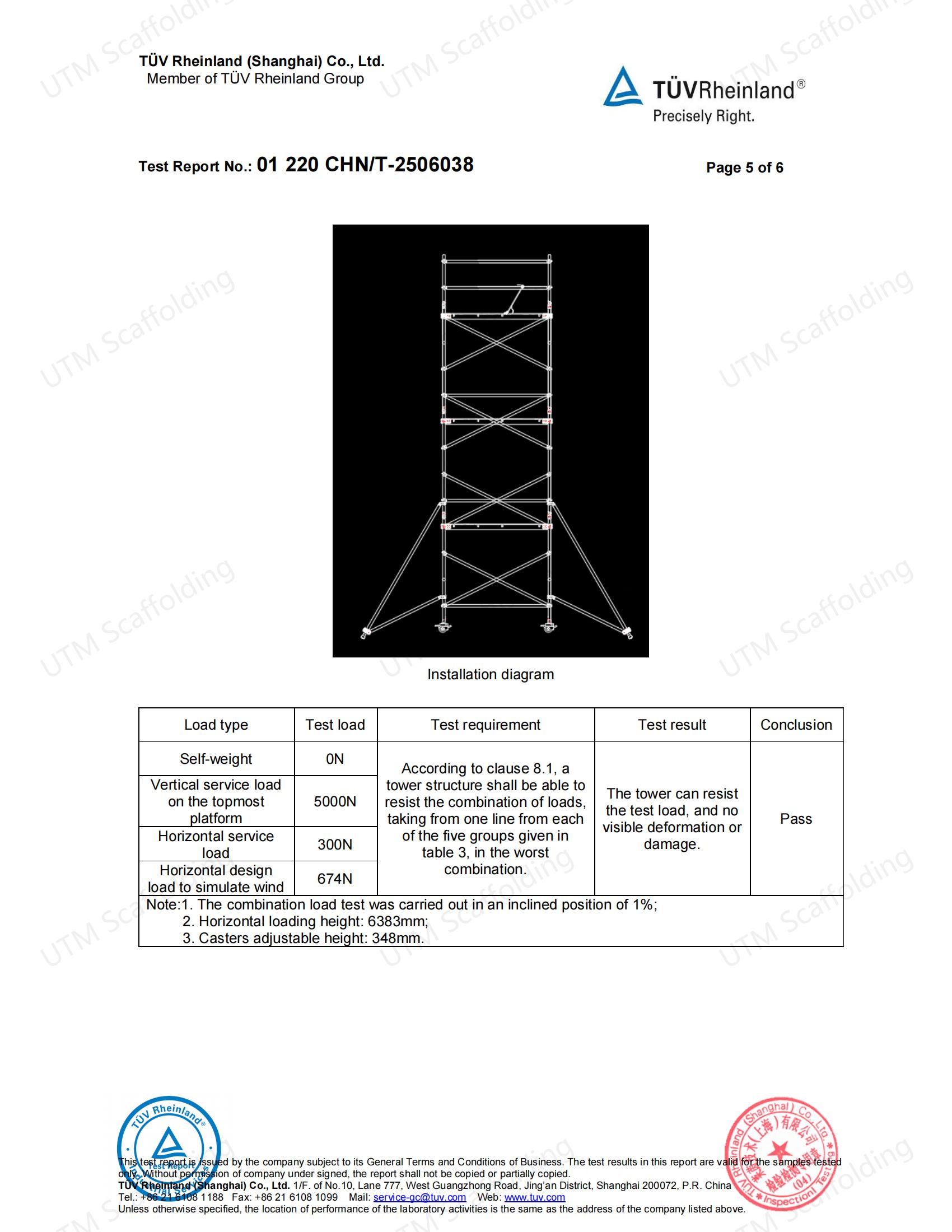

Test Report 01

Test Report 02

Test Report 03

Test Report 04

Test Report 05

Test Report 06

Why Choose UTM Scaffold Aluminum Mobile Towers?

Ultra-Light & Maneuverable

1/3 the weight of steel towers (single section ≤25kg) – moved by 1-2 workers, no hoist needed.

Industrial-Grade Safety

3:1 height-to-base stability ratio, full guardrails, dual-lock casters – zero compromise on safety.

Fast Assembly & Flexibility

Modular design – 10m tower erected in 30 mins (no special tools). Single/double width options.

Global Compliance & Logistics

Certified for EU/NA/AUS markets – optimized packaging for 20ft/40ft container shipping.

Product Features

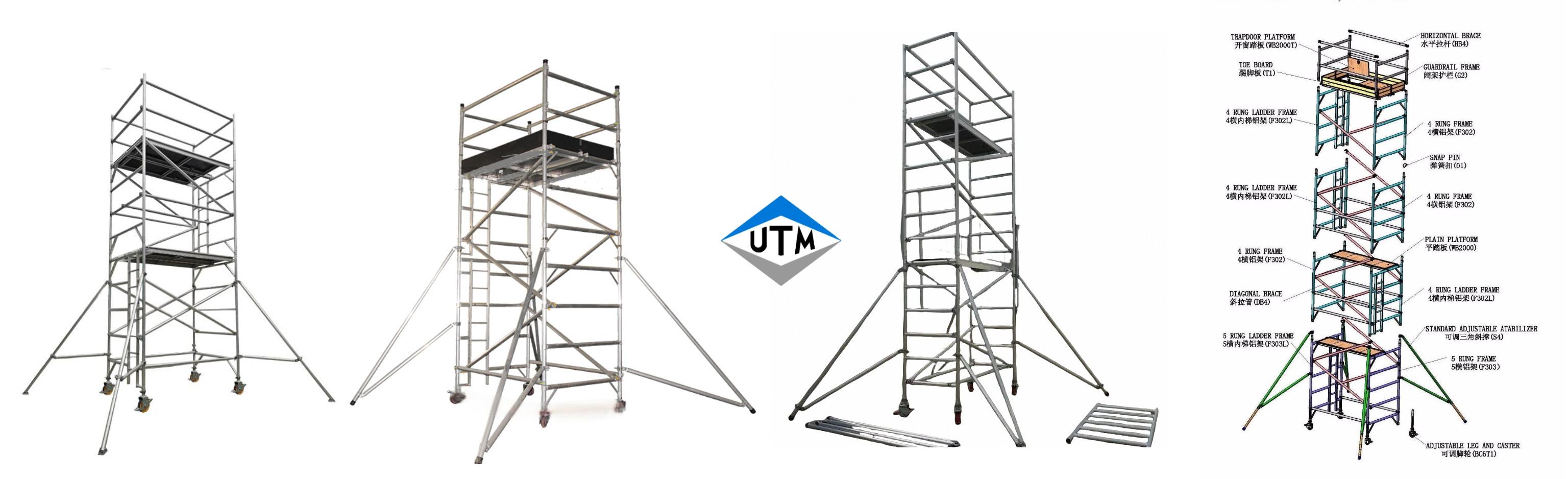

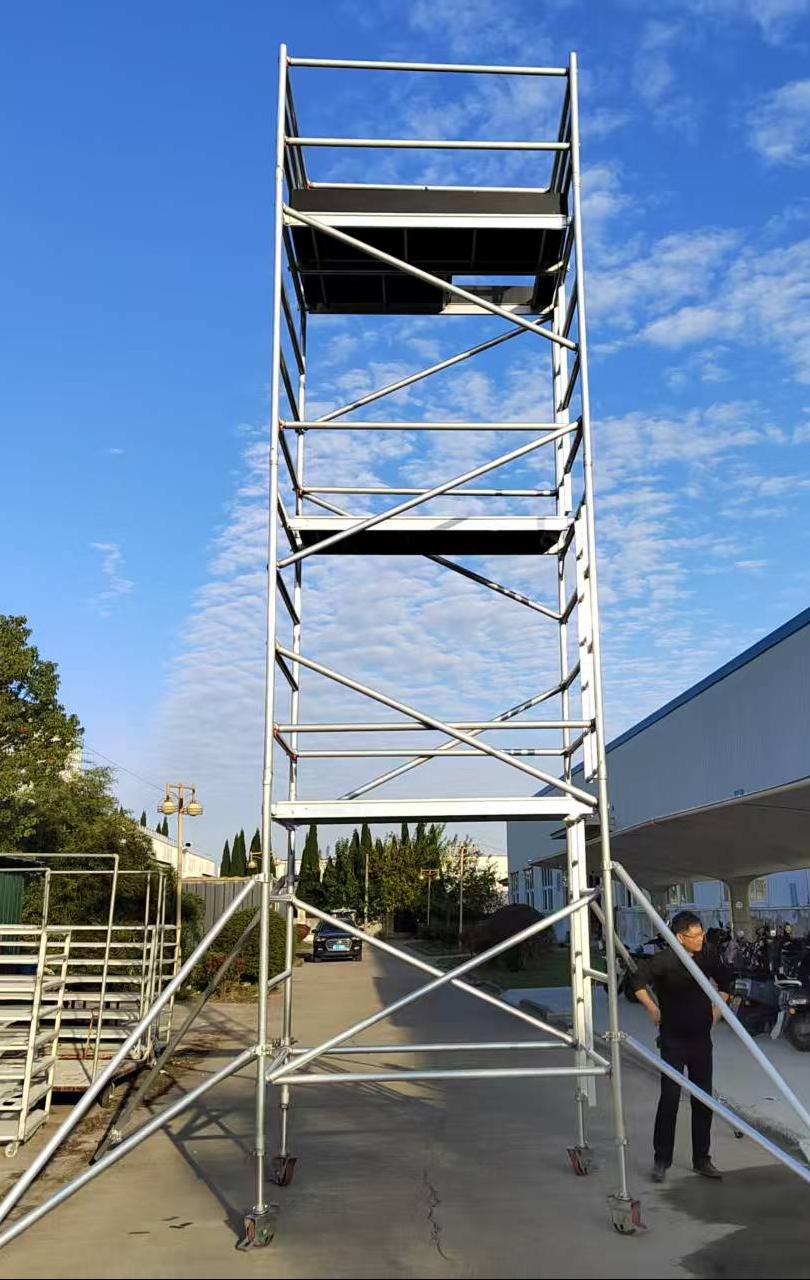

A lightweight, modular work platform supported by an aluminum frame with wheels, designed for safe access to elevated work areas.

Aviation-grade Material

6061-T6/6082-T6 aluminum alloy (tensile strength ≥290MPa, wall thickness ≥2mm)

Dual Fixation Structure

Welded + pin-jointed dual fixation (reinforced joints for enhanced durability)

Non-slip Platform

Anti-slip coefficient ≥0.8, trapdoor design, 150mm high toeboards included

Dual-lock Casters

6Inch polyurethane locking casters (wheel + steering lock)

Adjustable Feet

200mm adjustment range (level on ≤1.5° uneven ground)

Anti-corrosion Coating

Anodization (≥15μm) + IP65 protection, 10+ year service life

Aluminum Mobile Scaffold Tower Specifications

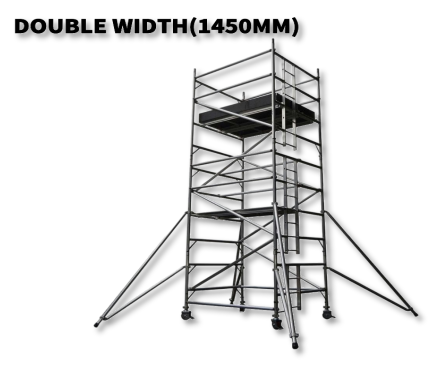

Double-width (1450mm) with ladder frame

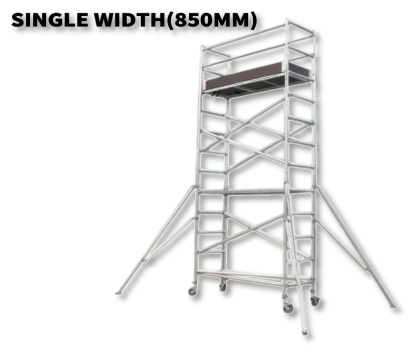

Single width (850mm) with ladder frame

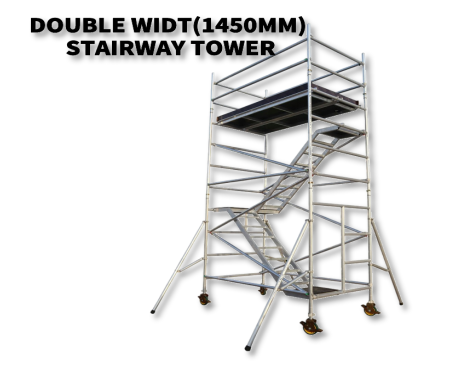

Double-width (1450mm) with inclined ladders

Outdoor use: The platform height is 8 meters

Indoor use: Platform height 12 meters

Tower Ref.	UTM-L-1.8/2.0/2.5H- 1.8	UTM-L-1.8/2.0/2.5H- 2.3	UTM-L-1.8/2.0/2.5H- 2.8	UTM-L-1.8/2.0/2.5H- 3.3	UTM-L-1.8/2.0/2.5H- 3.8	UTM-L-1.8/2.0/2.5H- 4.3
Working height	3.8m	4.3m	4.8m	5.3m	5.8m	6.3m
Tower height	2.8m	3.3m	3.8m	4.3m	4.8m	5.3m
Platform height	1.8m	2.3m	2.8m	3.3m	3.8m	4.3m
Width	0.85m/1.45m	0.85m/1.45m	0.85m/1.45m	0.85m/1.45m	0.85m/1.45m	0.85m/1.45m
Length	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m

Tower Ref.	UTM-L-1.8/2.0/2.5H-4.8	UTM-L-1.8/2.0/2.5H-5.3	UTM-L-1.8/2.0/2.5H-5.8	UTM-L-1.8/2.0/2.5H-6.3	UTM-L-1.8/2.0/2.5H-6.8	UTM-L-1.8/2.0/2.5H-7.3
Working height	6.8m	7.3m	7.8m	8.3m	8.8m	9.3m
Tower height	5.8m	6.3m	6.8m	7.3m	7.8m	8.3m
Platform height	4.8m	5.3m	5.8m	6.3m	6.8m	7.3m
Width	0.85m/1.45m	0.85m/1.45m	0.85m/1.45m	0.85m/1.45m	0.85m/1.45m	0.85m/1.45m
Length	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m

Tower Ref.	UTM-L-1.8/2.0/2.5H-7.8	UTM-L-1.8/2.0/2.5H-8.3	UTM-L-1.8/2.0/2.5H-8.8	UTM-L-1.8/2.0/2.5H-9.3	UTM-L-1.8/2.0/2.5H-9.8	UTM-L-1.8/2.0/2.5H-10.3
Working height	9.8m	10.3m	10.8m	11.3m	11.8m	12.3m
Tower height	8.8m	9.3m	9.8m	10.3m	10.8m	11.3m
Platform height	7.8m	8.3m	8.8m	9.3m	9.8m	10.3m
Width	0.85m/1.45m	1.45m	1.45m	1.45m	1.45m	1.45m
Length	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m

Tower Ref.	UTM-L-1.8/2.0/2.5H-10.8	UTM-L-1.8/2.0/2.5H-11.3	UTM-L-1.8/2.0/2.5H-11.8	UTM-L-1.8/2.0/2.5H-12.3
Working height	12.8m	13.3m	13.8m	14.3m
Tower height	11.8m	12.3m	12.8m	13.3m
Platform height	10.8m	11.3m	11.8m	12.3m
Width	1.45m	1.45m	1.45m	1.45m
Length	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m	1.8m/2.0m/2.5m
