Ringlock Standard
| Material | Steel Q355,Q235 |
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74/BS1139/AS1576 |
| Certificate | CE Certificate / SGS |
| Payment Term | TT L/C |
| code | name | length | Surface Treatment | weight/kg | Materil | band | standard |
| UTM-RLS-147-500 | Ringlock Standard | 500mm | galvanized | 3.22 | Q355 | UTM | EN74/BS1139/AS1576 |
| UTM-RLS-147-1000 | 1000mm | 5.57 | |||||
| UTM-RLS-147-1500 | 1500mm | 7.97 | |||||
| UTM-RLS-147-2000 | 2000mm | 10.39 | |||||
| UTM-RLS-147-2500 | 2500mm | 12.76 | |||||
| UTM-RLS-147-3000 | 3000mm | 15.15 | |||||
| UTM-RLS-147-4000 | 4000mm | 19.94 |

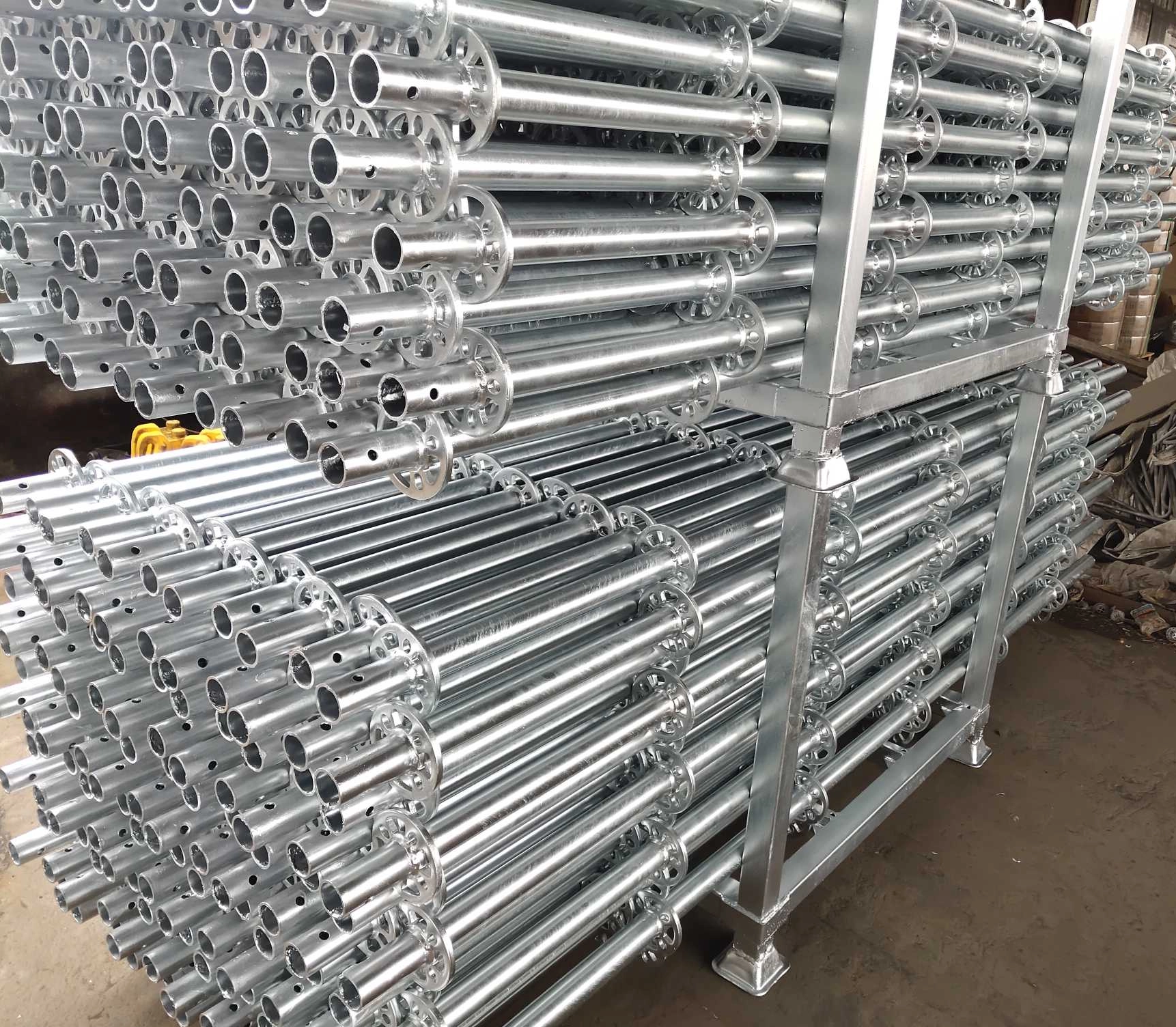

Scaffolding ringlock Standards are the vertical members of ringlok scaffolding.
They provide the vertical support for scaffolding.
Were made of high strength structural steel with hot dip galvanizing finish.
The ringlock standard bears the loads from the scaffold down to the earth.
Ringlock scaffolding system is a new type of braced scaffolding system, which breaks through the traditional scaffolding fasteners and bolts fastening connection, using the pre-welded joint device at both ends of the crossbar and the joint device on the diagonal bar, the eight-hole disc welded on the upright bar, and using the principle of gravity wedge self-locking pins to achieve a complete replacement of the steel pipe and fasteners, connecting the crossbar with the upright bar and the diagonal bar, to form a flat triangular stable structure. Then the plane structure is combined in three dimensions to form a stable space structure. It has the advantages of high safety performance, labour saving, easy to set up and dismantle, saving the usage, and beautiful overall appearance.
Ringlock Standard
| Material | Steel Q355,Q235 |
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74/BS1139/AS1576 |
| Certificate | CE Certificate / SGS |
| Payment Term | TT L/C |
| code | name | length | Surface Treatment | weight/kg | Materil | band | standard |
| UTM-RLS-147-500 | Ringlock Standard | 500mm | galvanized | 3.22 | Q355 | UTM | EN74/BS1139/AS1576 |
| UTM-RLS-147-1000 | 1000mm | 5.57 | |||||
| UTM-RLS-147-1500 | 1500mm | 7.97 | |||||
| UTM-RLS-147-2000 | 2000mm | 10.39 | |||||
| UTM-RLS-147-2500 | 2500mm | 12.76 | |||||
| UTM-RLS-147-3000 | 3000mm | 15.15 | |||||
| UTM-RLS-147-4000 | 4000mm | 19.94 |
Scaffolding ringlock Standards are the vertical members of ringlok scaffolding.
They provide the vertical support for scaffolding.
Were made of high strength structural steel with hot dip galvanizing finish.
The ringlock standard bears the loads from the scaffold down to the earth.
Ringlock scaffolding system is a new type of braced scaffolding system, which breaks through the traditional scaffolding fasteners and bolts fastening connection, using the pre-welded joint device at both ends of the crossbar and the joint device on the diagonal bar, the eight-hole disc welded on the upright bar, and using the principle of gravity wedge self-locking pins to achieve a complete replacement of the steel pipe and fasteners, connecting the crossbar with the upright bar and the diagonal bar, to form a flat triangular stable structure. Then the plane structure is combined in three dimensions to form a stable space structure. It has the advantages of high safety performance, labour saving, easy to set up and dismantle, saving the usage, and beautiful overall appearance.
