Mason Scaffold Frame
UTM
UTM-MS
| Quantity: | |
|---|---|

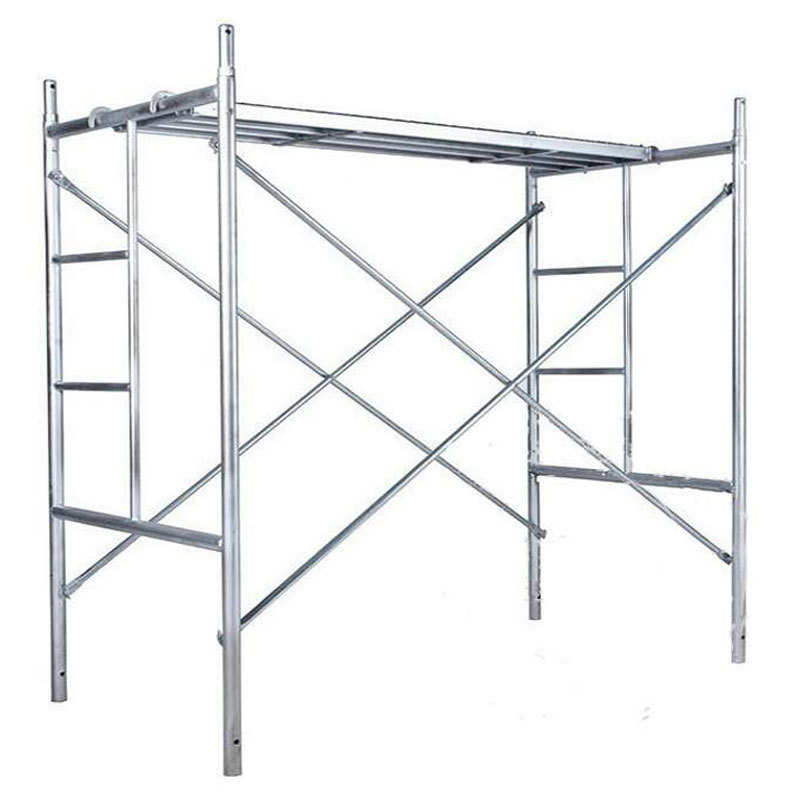

Mason Step Scaffold Frame H Frame Scaffolding
| Material | Q235,Q355 |
| Variety | Walk through type & Mason type |
| Type | H frame scaffolding system & A frame scaffolding |
| Tube Thickness | 1.8mm, 2.0mm, 2.5mm, 3mm 3.2mm 3.25mm, 3.5mm, 4mm or customize |
| Surface treatment | Hot Dip Galvanized/Powder Coated |
| Color | Silver, red, blue, yellow, green or customize |
| Certificate | ISO9001:2000 |
| Standard | EN74, BS1139, AS1576 |
| Advantage | Easy erection, strong loading capacity, safety and stability |

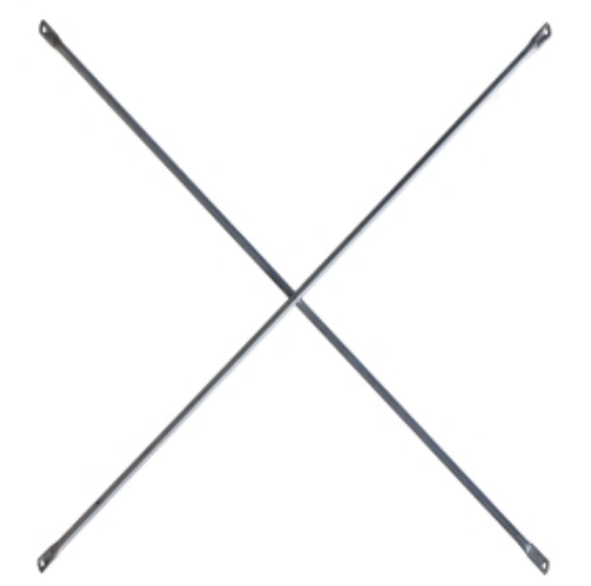

| Main components | Frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster |
| Application scenario | bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry, civil building, etc. |

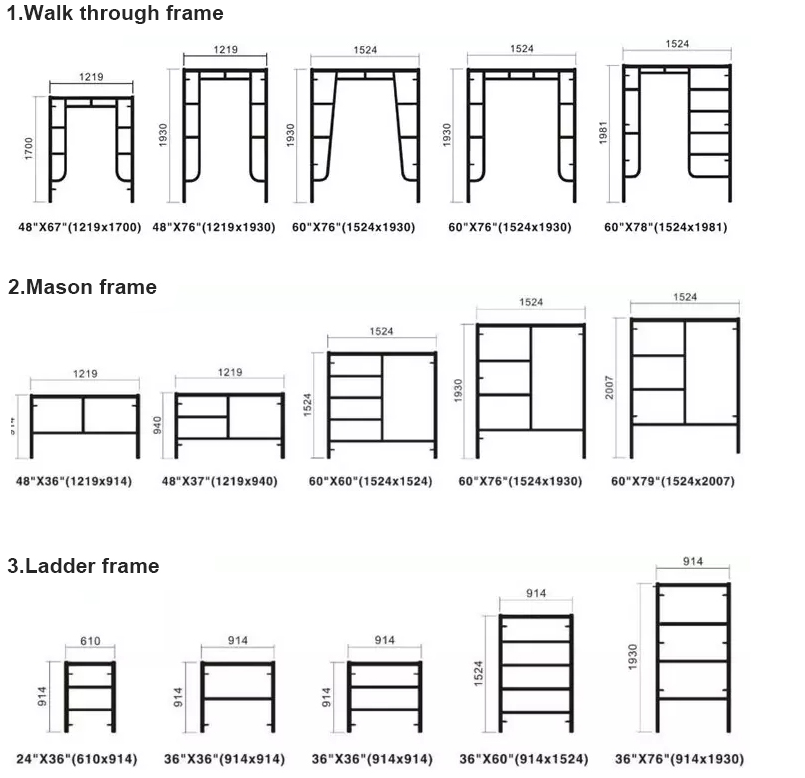

| code | name | width | height | Surface Treatment | band |
| UTM-MS-2.1 | Mason Frame | 1524mm | 635 | galvanized/Powder Coated | UTM |
| UTM-MS-3.1 | 939.8 | ||||
| UTM-MS-4.1 | 1244.6 | ||||
| UTM-MS-5.1 | 1549 | ||||
| UTM-MS-6.7 | 2006.6 |

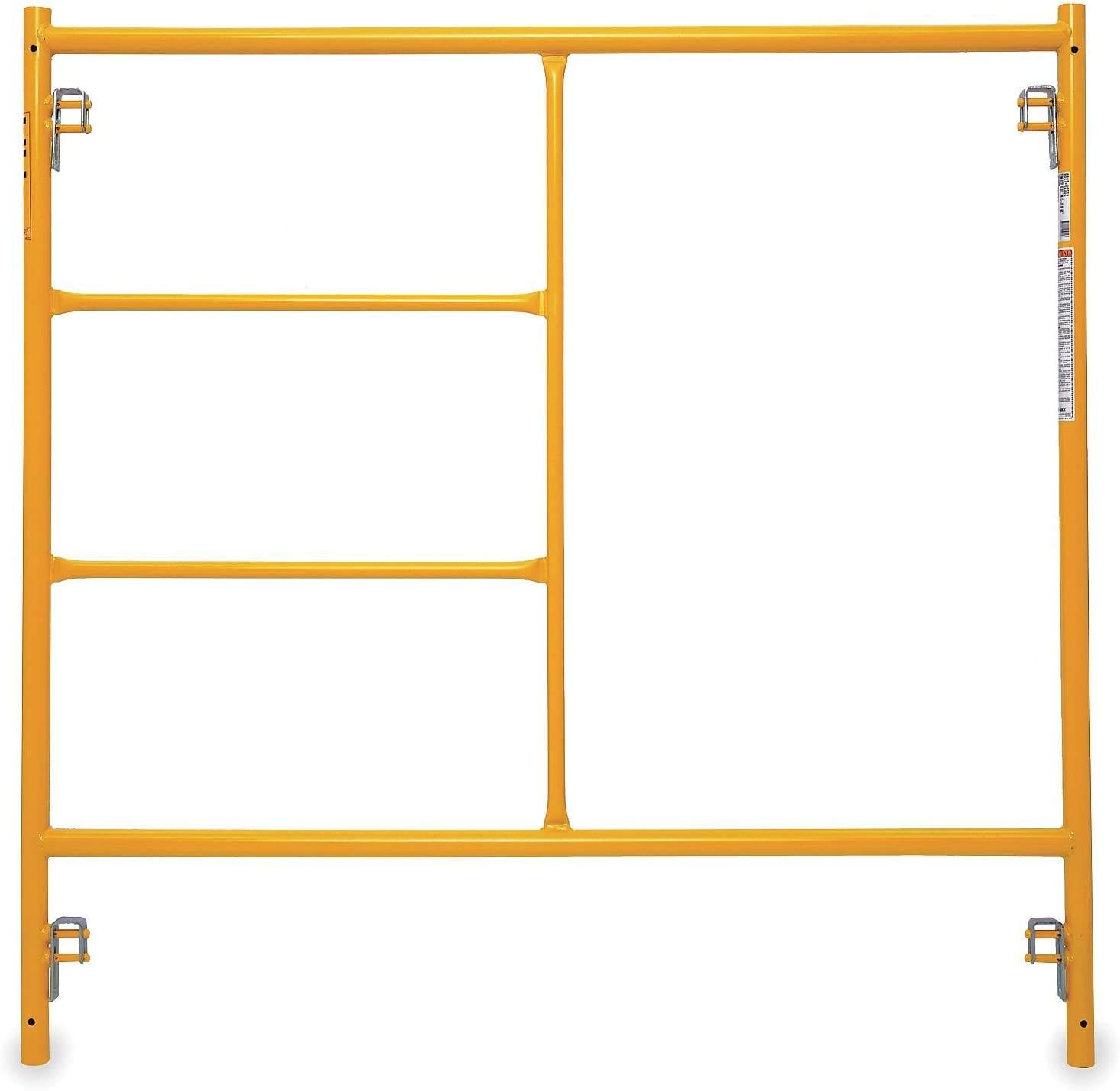

Mason Frame/Step Frame is the most common type of scaffold used by contractors of all types.
It is manufactured with high-strength steel tubingIt’s easy to set up and dismantle and allows you to get to the height you need fairly quickly.
Packing&Shipping
Application
1. Customer oriented.
We are an OEM and ODM manufacturer with a professional multi-lingual sales team.
We have been selling our products globally for 10 years. Our technology can satisfy all of our customers’ needs. And our sophisticated sales team can make your whole purchasing experience as simple and relaxed as it can be, from pre-sale to after-sale.
2. Quality control.
Our equipment can produce better quality and higher precision products. Our production line is twice as fast as an ordinary one and the specification tolerances are much smaller.
We have our own factory and test center.
We can perform all necessary tests to ensure product quality, including chemical component analysis, mechanical property tests, technical property tests, and visual inspection.
Professional storage & packing.
We have fully-enclosed, clean, and tidy modern logistics storage and a well-trained packing team to ensure that our products are properly stored and packed.
3. Cost efficient.
Excellent quality with a competitive price.
Thanks to our top-level equipment and our test center, we can produce high-standard quality in less time, which gives us an advantage in providing a competitive price for you.
Safe shipping & fast delivery
1. We can load 20-25 containers per day. Our packing accuracy rate is 100%.
2. We have a well-equipped 24-hour transportation team to make sure that our customers get their orders on time.
