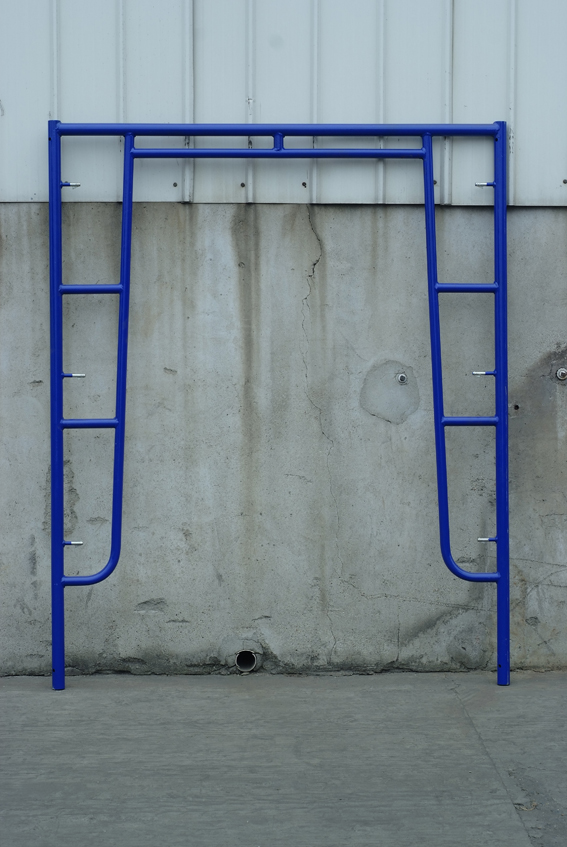

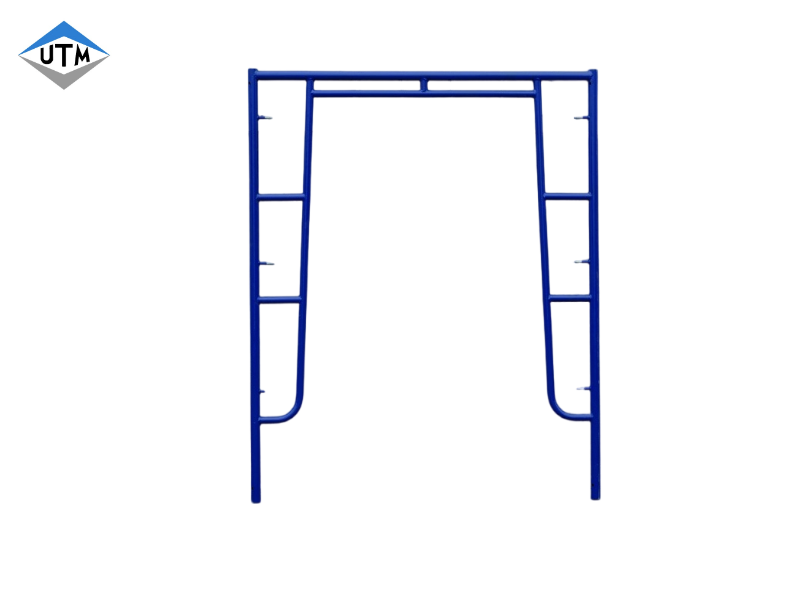

Walk Through Frame
Walkthrough frame is designed to help prevent stacked frames from sliding, it is heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them.
Walthrought Frame allows a person to pass underneath unobstructed.
This allows greater freedom of movement along a work surface.
| Material | Q235,Q355 |
| Variety | Walk through type & Mason type |
| Type | H frame scaffolding system & A frame scaffolding |
| Tube Thickness | 1.8mm, 2.0mm, 2.5mm, 3mm 3.2mm 3.25mm, 3.5mm, 4mm or customize |
| Surface treatment | Hot Dip Galvanized/Powder Coated |
| Color | Silver, red, blue, yellow, green or customize |
| Certificate | ISO9001:2000 |
| Standard | EN74, BS1139, AS1576 |
| Advantage | Easy erection, strong loading capacity, safety and stability |
| Main components | Frame, catwalk, joint pin, cross brace, base jack, u-head jack and caster |
| Application scenario | bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry, civil building, etc. |
| Code | Name | Width | Height | Surface Treatment | Band |
| UTM-WTF-3*4 | Walk Through Frame | 914.4mm | 1219.2mm | galvanized/Powder Coated | UTM |
| UTM-WTF-3*5 | 914.4mm | 1524mm | |||
| UTM-WTF-3*6.8 | 914.4mm | 2032mm | |||
| UTM-WTF-5*6.8 | 1524mm | 2032mm |
