Caster wheel
UTM
UTM-CW-179
| Quantity: | |
|---|---|

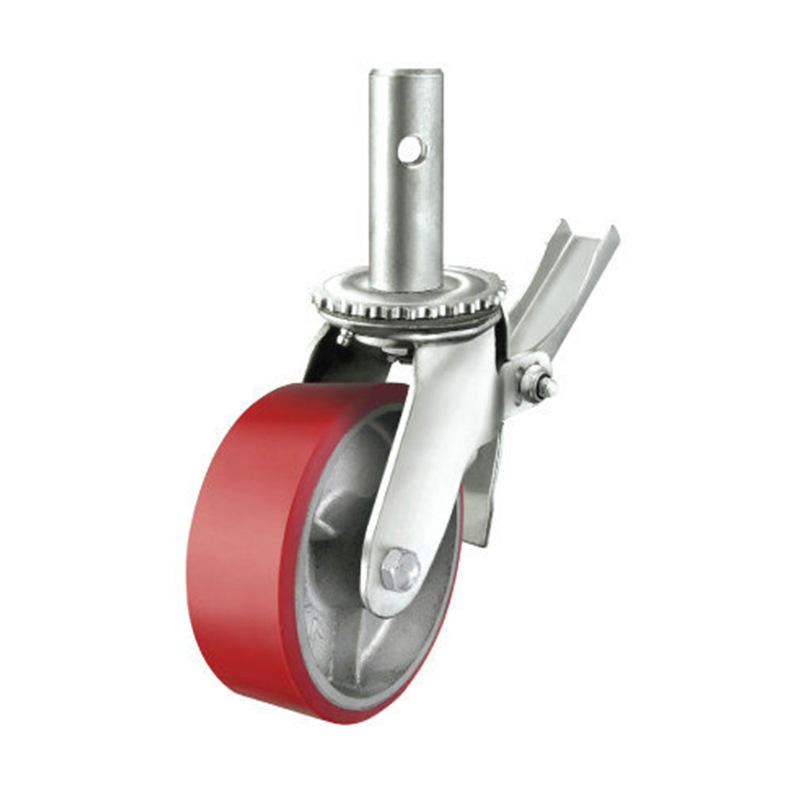

Frame Scaffolding Caster wheels
Caster wheel that fits into the bottom of scaffolding frame legs.
The wheel has a hole in the stem for a pin to lock it to the frame.
When the lock is engaged, it keeps the wheel from rolling and also from swiveling.
Fit’s all major scaffolding frame styles.
| Wheel material | Wheel diameter | Wheel width | overall height | loadingcapacity (KG) |
| PU | 6 inch | 50mm | 190mm | 350 |
| 8 inch | 50mm | 240mm | 400 | |
| PA | 6inch | 45mm | 190mm | 300 |
| 8inch | 45mm | 240mm | 320 | |
| Rubber | 6inch | 50mm | 190mm | 400 |
| 8inch | 50mm | 240mm | 420 |

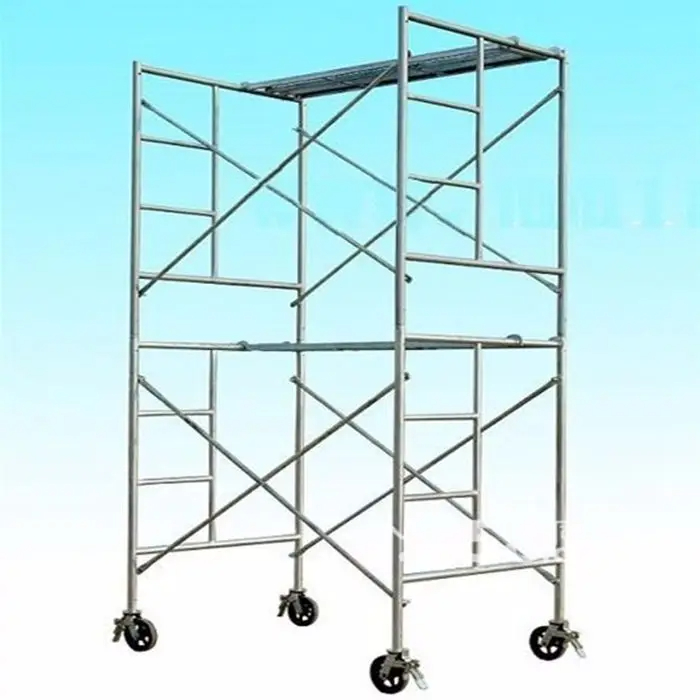

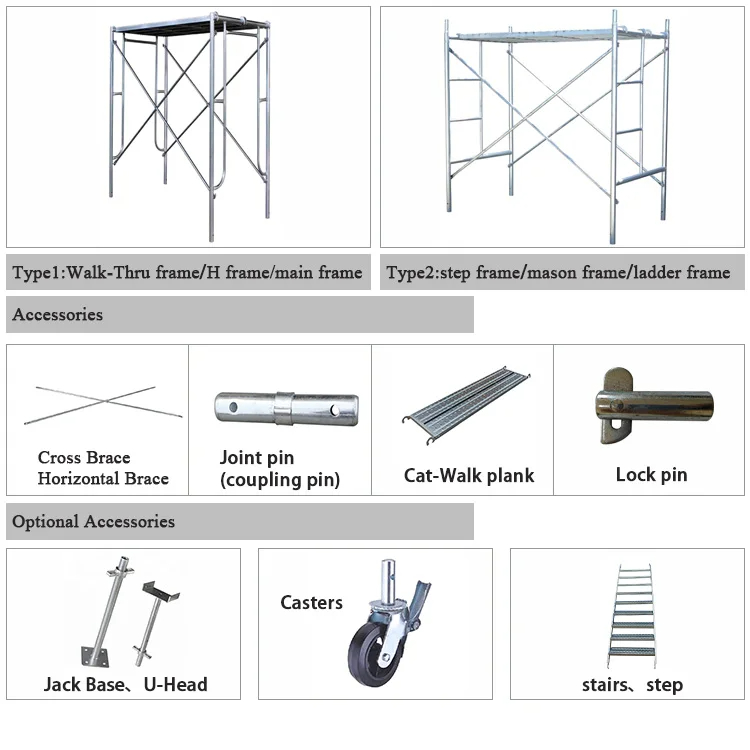

Frame scaffolding, also known as tubular steel frame scaffolding, is a well-established modular system used for construction and decoration purposes. It provides a stable working platform and is made up of various components such as main frames, catwalks or walk boards, braces, brackets, coupling pins, guardrails, and sometimes casters.
Frame Scaffolding Caster wheels
Caster wheel that fits into the bottom of scaffolding frame legs.
The wheel has a hole in the stem for a pin to lock it to the frame.
When the lock is engaged, it keeps the wheel from rolling and also from swiveling.
Fit’s all major scaffolding frame styles.
| Wheel material | Wheel diameter | Wheel width | overall height | loadingcapacity (KG) |
| PU | 6 inch | 50mm | 190mm | 350 |
| 8 inch | 50mm | 240mm | 400 | |
| PA | 6inch | 45mm | 190mm | 300 |
| 8inch | 45mm | 240mm | 320 | |
| Rubber | 6inch | 50mm | 190mm | 400 |
| 8inch | 50mm | 240mm | 420 |
Frame scaffolding, also known as tubular steel frame scaffolding, is a well-established modular system used for construction and decoration purposes. It provides a stable working platform and is made up of various components such as main frames, catwalks or walk boards, braces, brackets, coupling pins, guardrails, and sometimes casters.
