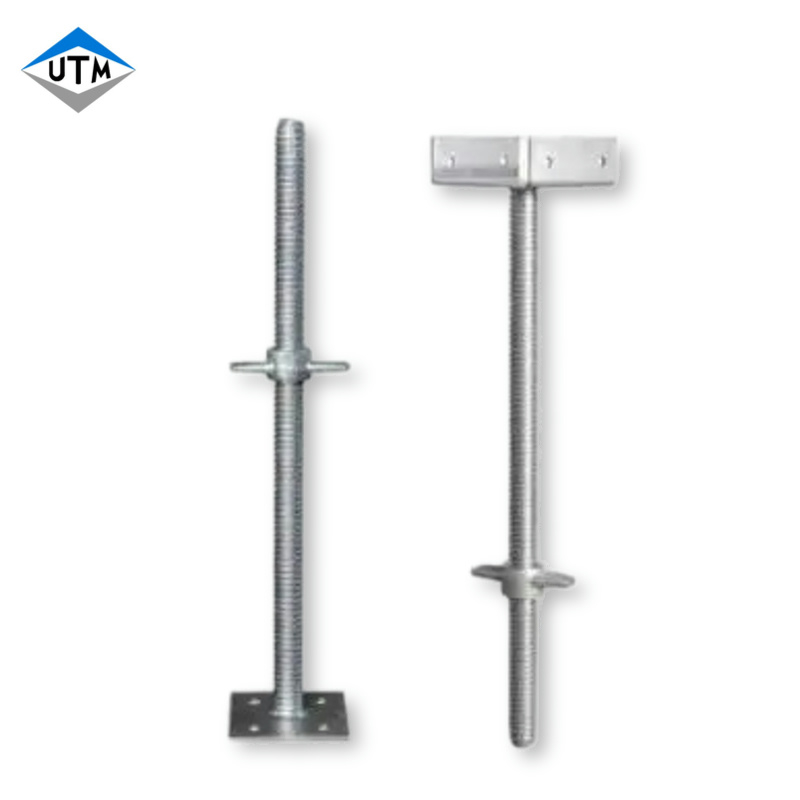

Wholesale Scaffold Hollow Adjustable U Head Screw Base Jack Scaffolding Shoring

Wholesale Scaffold Hollow Adjustable U Head Screw Base Jack Scaffolding Shoring

Materil：Q235

Finsh：Zinc Plated/Hot Dip Galvanized

Standard：EN74/BS1139

Model:
Base Jack
Brand:
UTM
Code:
UTM-BJ

Quantity:
length:	300mm 400mm 600mm
Availability:





Inquire Add to Basket

Product Description

Wholesale Scaffold Hollow Adjustable U Head Screw Base Jack Scaffolding Shoring

Screw Jacks are designed to provide a level base for your scaffolding platform.

Screw Jacks are scaffolding jacks used to level fixed scaffolding.

They are installed on a stable base and contain a large adjustable screw to move the scaffold up or down.

After the scaffold is built, the screw jack is used to level the working platform before it is used.

Specification

Item	value
Warranty	3 years
After-sale Service	Online technical support, Return and Replacement
Project Solution Capability	graphic design, 3D model design
Design Style	Modern
Place of Origin	China
Brand Name	UTM
Model Number	UTM-BJ
Product name	Base jack
application	Workshop, Supporting scaffolding system
Material	Q235
Type	U head and base plate
Color	Customer Requirements
Surface treatment	Zinc Plated/Hot Dip Galvanized
Package	Pallet
weight	2.6kg-3.82kg
Thickness	4.75mm
MOQ	100pcs

code	name	length	Material specifications	weight/kg	Materil	band	standard
UTM-SJ-105-600	Screw Jack	600mm	385600mm 1501504.75mm	3.82	Q235	UTM	EN74/BS1139
UTM-SJ-105-400	Screw Jack	400mm	385400mm 1501504.75mm	3	Q235	UTM	EN74/BS1139
UTM-SJ-105-300	Screw Jack	300mm	385300mm 1501504.75mm	2.6	Q235	UTM	EN74/BS1139
UTM-SSJ-106	Swivel Screw Jack	600mm	385300mm 1501504.75mm	4.5	Q235	UTM	EN74/BS1139
UTM-ASJ-107	U Head Adjustable Screw Jack	600mm	385300mm 1501504.75mm	4.4	Q235	UTM	EN74/BS1139

The advantages of Adjustable Base Jack.

♦ Material: Q235 round steel or ERW tube.
♦ Diameter: 30mm/32mm/34mm/38mm/48mm or according to your requirements.
♦ Adjustable length: from 100mm to 1000mm according to your requirements.
♦ Type: Solid/hollow for your choice.
♦ Surface treatment: black, paint, electric galvanizing, hot dip galvanizing.
♦ Main components: threaded rod, cast nut and bottom plate.
♦ Samples are available upon request.
♦ BS1139 Scaffold adjustable base jack, with or without reinforcement.
♦ Good joint, high efficiency, strong bearing capacity.
♦ Leveling jacks with various types of plates.
♦ Simple structure, simple installation.
♦ Widely used in various types of scaffolding systems, such as ring lock system, Cuplock system, kwikstage system, Haki system, Frame system and Pipe fitting system.

♦ Certificate: SGS, CE.
♦ Packing: Bulk or steel pallets, suitable for shipping or according to your requirements.
♦ Provide OEM service.

Types of Base Jack：solid base jack, hollow base jack,solid U-jack and hollow U-jack.

Detail-05 Detail-06
