Screw Jack
UTM
UTM-SJ-105
| length: | |
|---|---|
| Quantity: | |
Screw Jack
| code | name | length | Material specifications | weight/kg | Materil | band | standard |
| UTM-SJ-105-600 | Screw Jack | 600mm | 38*5*600mm 150*150*4.75mm | 3.82 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-400 | Screw Jack | 400mm | 38*5*400mm 150*150*4.75mm | 3 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-300 | Screw Jack | 300mm | 38*5*300mm 150*150*4.75mm | 2.6 | Q235 | UTM | EN74/BS1139 |
| UTM-SSJ-106 | Swivel Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.5 | Q235 | UTM | EN74/BS1139 |
| UTM-ASJ-107 | U Head Adjustable Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.4 | Q235 | UTM | EN74/BS1139 |
Screw Jacks are designed to provide a level base for your scaffolding platform.
Screw Jacks are scaffolding jacks used to level fixed scaffolding.
They are installed on a stable base and contain a large adjustable screw to move the scaffold up or down.
After the scaffold is built, the screw jack is used to level the working platform before it is used.
♦ Material: Q235 round steel
♦ Diameter: 30mm/32mm/34mm/38mm/48mm or according to your requirements.
♦ Adjustable length: from 100mm to 1000mm according to your requirements.
♦ Type: Solid/hollow for your choice.
♦ Surface treatment: black, paint, electric galvanizing, hot dip galvanizing.
♦ Main components: threaded rod, cast nut and bottom plate.
♦ Samples are available upon request.
♦ BS1139 Scaffold adjustable base jack, with or without reinforcement.
♦ Good joint, high efficiency, strong bearing capacity.
♦ Leveling jacks with various types of plates.
♦ Simple structure, simple installation.
♦ Widely used in various types of scaffolding systems, such as ring lock system, Cuplock system, kwikstage system, Haki system, Frame system and Pipe fitting system.
Product advantages
♦ Adjustable scaffolding jack
♦ For many types of scaffolding systems, such as ring lock systems, frame systems and clock systems.
♦ With or without stiffeners.
♦ Good joint, high loading capacity.
♦ Many types of plates.

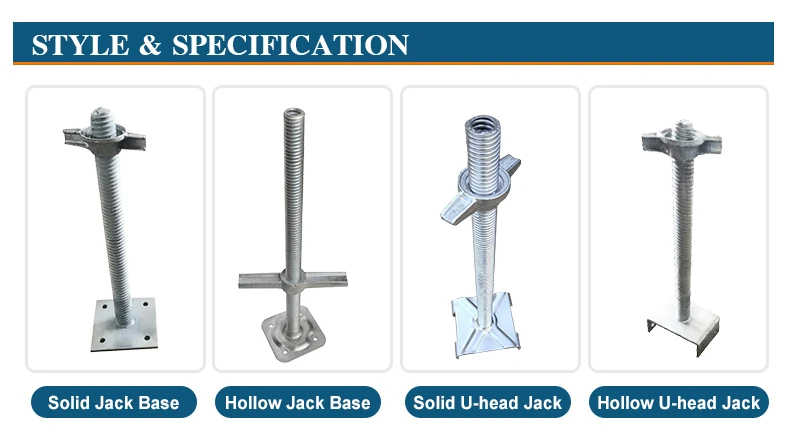

Types of Base Jack
Solid base jack, Hollow base jack,Solid U-jack and Hollow U-jack.
Screw Jack
| code | name | length | Material specifications | weight/kg | Materil | band | standard |
| UTM-SJ-105-600 | Screw Jack | 600mm | 38*5*600mm 150*150*4.75mm | 3.82 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-400 | Screw Jack | 400mm | 38*5*400mm 150*150*4.75mm | 3 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-300 | Screw Jack | 300mm | 38*5*300mm 150*150*4.75mm | 2.6 | Q235 | UTM | EN74/BS1139 |
| UTM-SSJ-106 | Swivel Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.5 | Q235 | UTM | EN74/BS1139 |
| UTM-ASJ-107 | U Head Adjustable Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.4 | Q235 | UTM | EN74/BS1139 |
Screw Jacks are designed to provide a level base for your scaffolding platform.
Screw Jacks are scaffolding jacks used to level fixed scaffolding.
They are installed on a stable base and contain a large adjustable screw to move the scaffold up or down.
After the scaffold is built, the screw jack is used to level the working platform before it is used.
♦ Material: Q235 round steel
♦ Diameter: 30mm/32mm/34mm/38mm/48mm or according to your requirements.
♦ Adjustable length: from 100mm to 1000mm according to your requirements.
♦ Type: Solid/hollow for your choice.
♦ Surface treatment: black, paint, electric galvanizing, hot dip galvanizing.
♦ Main components: threaded rod, cast nut and bottom plate.
♦ Samples are available upon request.
♦ BS1139 Scaffold adjustable base jack, with or without reinforcement.
♦ Good joint, high efficiency, strong bearing capacity.
♦ Leveling jacks with various types of plates.
♦ Simple structure, simple installation.
♦ Widely used in various types of scaffolding systems, such as ring lock system, Cuplock system, kwikstage system, Haki system, Frame system and Pipe fitting system.
Product advantages
♦ Adjustable scaffolding jack
♦ For many types of scaffolding systems, such as ring lock systems, frame systems and clock systems.
♦ With or without stiffeners.
♦ Good joint, high loading capacity.
♦ Many types of plates.
Types of Base Jack
Solid base jack, Hollow base jack,Solid U-jack and Hollow U-jack.
