U head
UTM
UTM-SJ-107
| length: | |
|---|---|
| Quantity: | |
U Head Adjustable Screw Jack
| code | name | length | Material specifications | weight/kg | Materil | band | standard |
| UTM-SJ-105-600 | Screw Jack | 600mm | 38*5*600mm 150*150*4.75mm | 3.82 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-400 | Screw Jack | 400mm | 38*5*400mm 150*150*4.75mm | 3 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-300 | Screw Jack | 300mm | 38*5*300mm 150*150*4.75mm | 2.6 | Q235 | UTM | EN74/BS1139 |
| UTM-SSJ-106 | Swivel Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.5 | Q235 | UTM | EN74/BS1139 |
| UTM-ASJ-107 | U Head Adjustable Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.4 | Q235 | UTM | EN74/BS1139 |

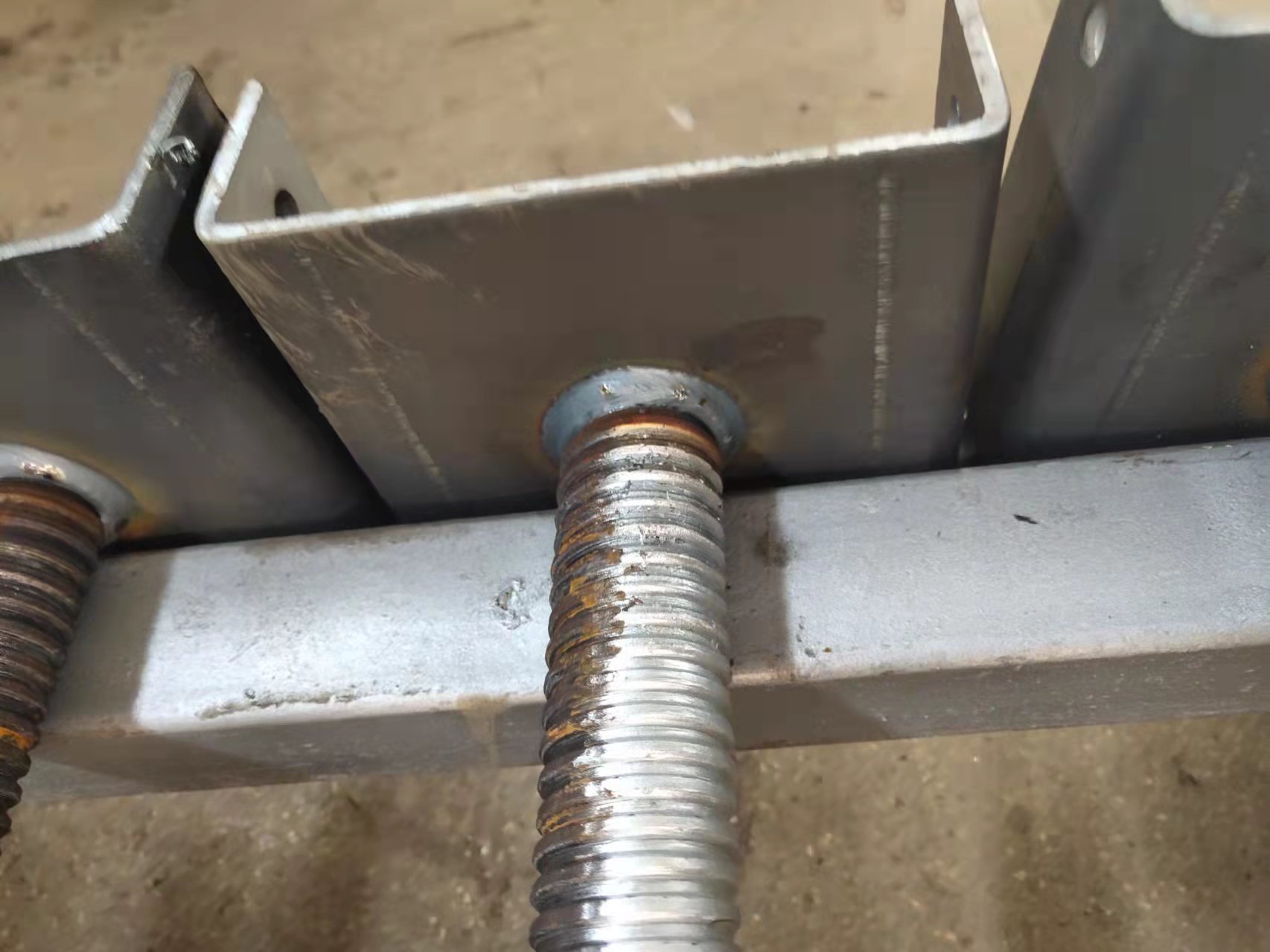

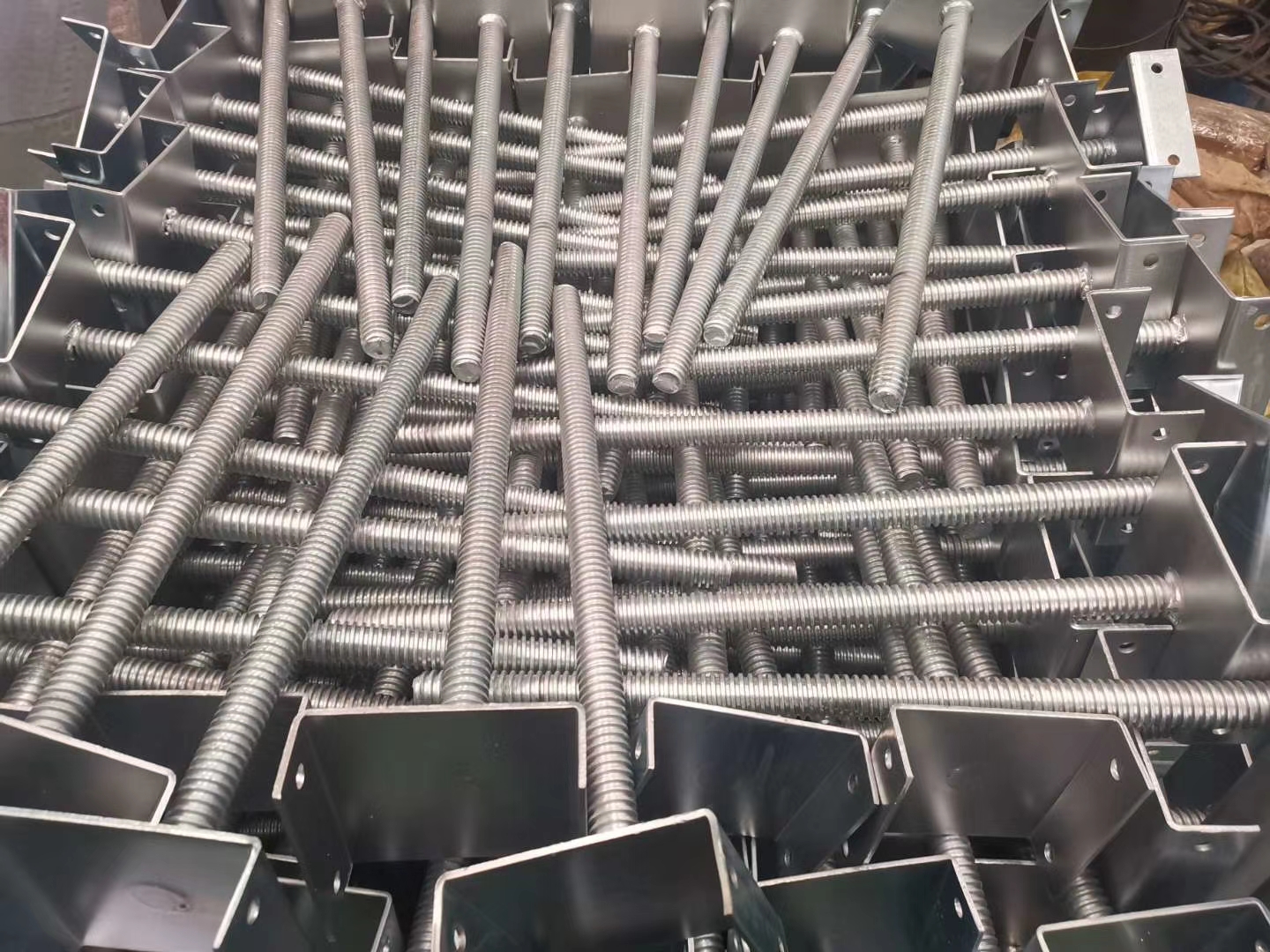

U-head Screw Jack as a steel scaffolding parts adopts the disc type connection is the international mainstream scaffolding connection, reasonable node design can achieve the transmission of force through the node center.
U-Head Screw Jack is used with system scaffolding, frame scaffolding, and shoring posts.
The heavy duty U-Head jack is the optimal piece for your shoring beam needs.
This jack comes complete with self-cleaning threading and increased base plate thickness to improve load ratings.
U Head Adjustable Screw Jack
| code | name | length | Material specifications | weight/kg | Materil | band | standard |
| UTM-SJ-105-600 | Screw Jack | 600mm | 38*5*600mm 150*150*4.75mm | 3.82 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-400 | Screw Jack | 400mm | 38*5*400mm 150*150*4.75mm | 3 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-300 | Screw Jack | 300mm | 38*5*300mm 150*150*4.75mm | 2.6 | Q235 | UTM | EN74/BS1139 |
| UTM-SSJ-106 | Swivel Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.5 | Q235 | UTM | EN74/BS1139 |
| UTM-ASJ-107 | U Head Adjustable Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.4 | Q235 | UTM | EN74/BS1139 |
U-head Screw Jack as a steel scaffolding parts adopts the disc type connection is the international mainstream scaffolding connection, reasonable node design can achieve the transmission of force through the node center.
U-Head Screw Jack is used with system scaffolding, frame scaffolding, and shoring posts.
The heavy duty U-Head jack is the optimal piece for your shoring beam needs.
This jack comes complete with self-cleaning threading and increased base plate thickness to improve load ratings.
