Base Jack
UTM
UTM-BJ
| length: | |
|---|---|
| Quantity: | |
OEM Adjustable Base Jack And U Head Jack Scaffolding Jack Base
Screw Jacks are designed to provide a level base for your scaffolding platform.
Screw Jacks are scaffolding jacks used to level fixed scaffolding.
They are installed on a stable base and contain a large adjustable screw to move the scaffold up or down.
After the scaffold is built, the screw jack is used to level the working platform before it is used.
| Item | value |
| Warranty | 3 years |
| After-sale Service | Online technical support, Return and Replacement |
| Project Solution Capability | graphic design, 3D model design |
| Design Style | Modern |
| Place of Origin | China |
| Brand Name | UTM |
| Model Number | UTM-BJ |
| Product name | Base jack |
| application | Workshop, Supporting scaffolding system |
| Material | Q235 |
| Type | U head and base plate |
| Color | Customer Requirements |
| Surface treatment | Zinc Plated/Hot Dip Galvanized |
| Package | Pallet |
| weight | 2.6kg-3.82kg |
| Thickness | 4.75mm |
| MOQ | 100pcs |
| code | name | length | Material specifications | weight/kg | Materil | band | standard |
| UTM-SJ-105-600 | Screw Jack | 600mm | 38*5*600mm 150*150*4.75mm | 3.82 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-400 | Screw Jack | 400mm | 38*5*400mm 150*150*4.75mm | 3 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-300 | Screw Jack | 300mm | 38*5*300mm 150*150*4.75mm | 2.6 | Q235 | UTM | EN74/BS1139 |
| UTM-SSJ-106 | Swivel Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.5 | Q235 | UTM | EN74/BS1139 |
| UTM-ASJ-107 | U Head Adjustable Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.4 | Q235 | UTM | EN74/BS1139 |
Types of Base Jack：solid base jack, hollow base jack,solid U-jack and hollow U-jack.
Product Applications

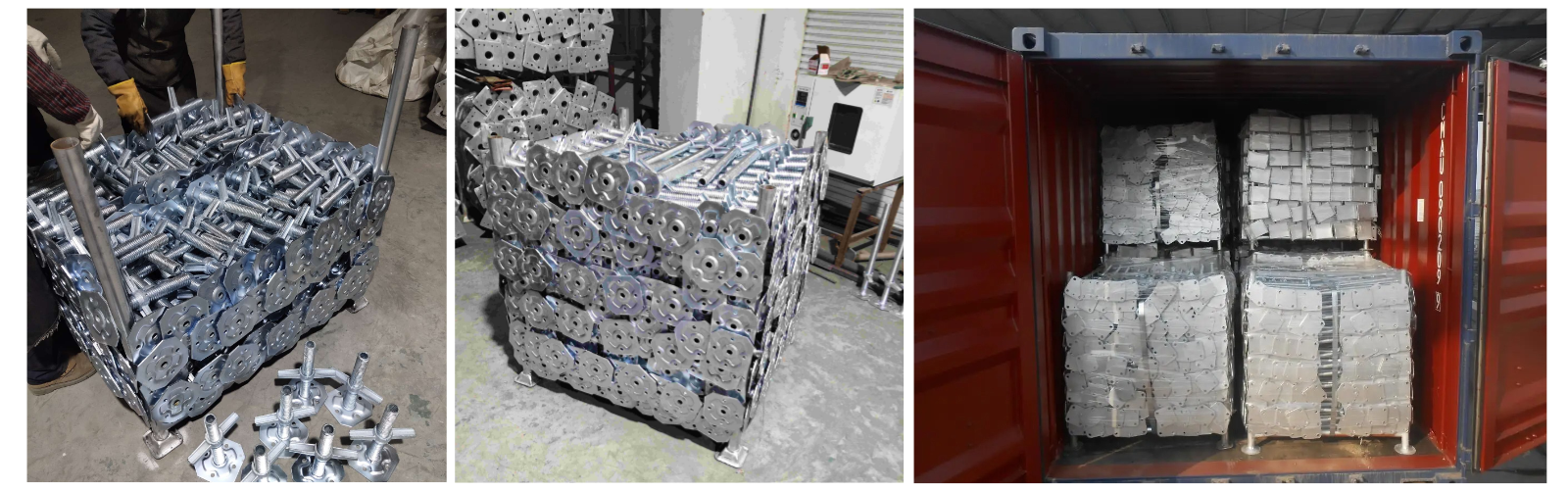

Packing & Loading
Our Services
1- Pre-sales or after-sales service available
2- Sample available for small parts
3- Technology support available
4- OEM or ODM service available
5- Sourcing service available
OEM Adjustable Base Jack And U Head Jack Scaffolding Jack Base
Screw Jacks are designed to provide a level base for your scaffolding platform.
Screw Jacks are scaffolding jacks used to level fixed scaffolding.
They are installed on a stable base and contain a large adjustable screw to move the scaffold up or down.
After the scaffold is built, the screw jack is used to level the working platform before it is used.
| Item | value |
| Warranty | 3 years |
| After-sale Service | Online technical support, Return and Replacement |
| Project Solution Capability | graphic design, 3D model design |
| Design Style | Modern |
| Place of Origin | China |
| Brand Name | UTM |
| Model Number | UTM-BJ |
| Product name | Base jack |
| application | Workshop, Supporting scaffolding system |
| Material | Q235 |
| Type | U head and base plate |
| Color | Customer Requirements |
| Surface treatment | Zinc Plated/Hot Dip Galvanized |
| Package | Pallet |
| weight | 2.6kg-3.82kg |
| Thickness | 4.75mm |
| MOQ | 100pcs |
| code | name | length | Material specifications | weight/kg | Materil | band | standard |
| UTM-SJ-105-600 | Screw Jack | 600mm | 38*5*600mm 150*150*4.75mm | 3.82 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-400 | Screw Jack | 400mm | 38*5*400mm 150*150*4.75mm | 3 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-300 | Screw Jack | 300mm | 38*5*300mm 150*150*4.75mm | 2.6 | Q235 | UTM | EN74/BS1139 |
| UTM-SSJ-106 | Swivel Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.5 | Q235 | UTM | EN74/BS1139 |
| UTM-ASJ-107 | U Head Adjustable Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.4 | Q235 | UTM | EN74/BS1139 |
Types of Base Jack：solid base jack, hollow base jack,solid U-jack and hollow U-jack.
Product Applications
Packing & Loading
Our Services
1- Pre-sales or after-sales service available
2- Sample available for small parts
3- Technology support available
4- OEM or ODM service available
5- Sourcing service available
