Scaffolding Drop Forged Steel Swivel Double Coupler Clamp

Scaffolding Drop Forged Steel Swivel Double Coupler Clamp

Price: 1.27usd

Materil：Q235

Finsh：Zinc Plate or Hot Dipped Galvanized

Standard：EN74-1/BS1139

Model:
48.3 / 60.3
Brand:
UTM
Code:
UTM-FS-002

Quantity:
weight:	1.10kg
Availability:





Inquire Add to Basket

Product Description

Scaffolding Drop Forged Steel Swivel Double Coupler Clamp

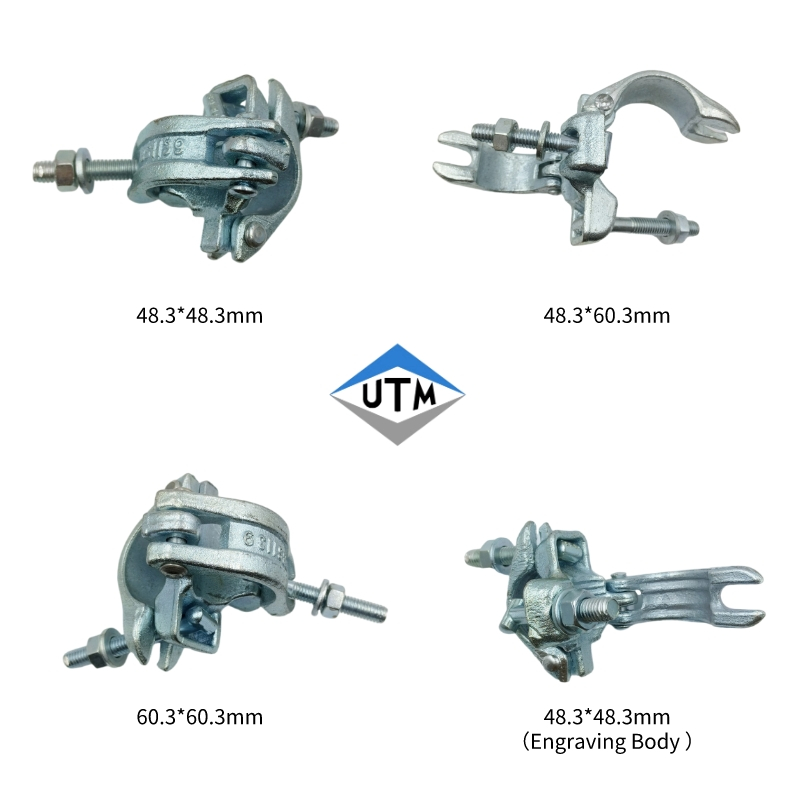

*Dimensions:48.3-48.3mm(60.3mm 89mm)

*Meterial:Q235 steel

*Nut:21mm,22mm,23mm

*Weight 0.97-1.56kg or as per your request

*Standard:EN74,BS1139,CE and also fit for our demostic stardand , through SGS test.

*Technic:Forged or pressed

*Surface treatment:Self-color,Zinc plated ,Hot dip galvanised

*Color:Self-color(Black) , White, Yellow

*Style:British(also can produce German, American, Japanese and so on)

*Quality:good bearing capacity,durable & stable

*Price:reasonable & wonderful

*OEM service is available

Forged coupler raw material Q235 raw steel, process forging, surface plating white zinc treatment.
Scaffold forged coupler is a kind of scaffold connecting parts, forged coupler has high strength and hardness

The characteristics of the scaffolding forging couplers
are as follows:

The connection between the forging coupler and the main beam and the auxiliary beam of the scaffold is fixed by the hook and the locking device, which is suitable for the large-span engineering construction.

The forging coupler is easy to assemble, easy to disassemble, and can be used many times, which reduces the construction cost and improves the operation rate.

Forged scaffolding couplers

Pressed coupler raw material Q235 plate, process pressed, surface plating color zinc treatment.

Compared to forged couplers, pressed couplers have a price advantage and can particularly address the production shortcomings that cannot be overcome by forging processes. Using Q235, Q355, SPHC, and other grades of steel plates, these couplers are processed into couplers that meet the requirements of BS EN74-1:2005 through processes including cutting, mold forming, galvanizing, and assembly. Compared to forged couplers, pressed couplers have a certain cost advantage and also address the production gap that cannot be achieved using some forging techniques.

Pressed scaffolding couplers

Right Angle couplers advantages

1. plating is not easy to corrode, beautiful use time is long

2. the use of thermal process, increase the use of peace of mind

3. bolt capping, do not lose the nut

4. The bolts are 8.8 high strength bolts

America type scaffolding couplers

Swivel couplers advantages

1.Plating is not easy to corrode, beautiful use time is long

2.The use of thermal process, increase the use of peace of mind

3.Bolt capping, do not lose the nut

4.The bolts are 8.8 high strength bolts

5.Solid cold riveting, stable structure
British forged Swivel Coupler

The characteristics of the scaffolding forging couplers are as follows:

The connection between the forging coupler and the main beam and the auxiliary beam of the scaffold is fixed by the hook and the locking device, which is suitable for the large-span engineering construction.

The forging coupler is easy to assemble, easy to disassemble, and can be used many times, which reduces the construction cost and improves the operation rate.

Scaffolding Coupler Load Capacity Detail-14
