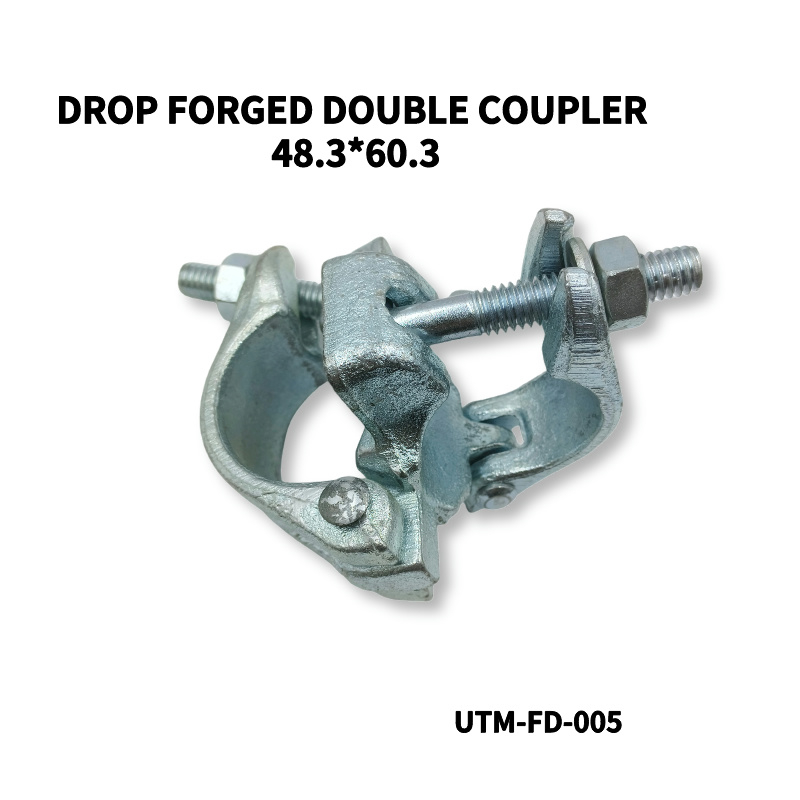

48.3mm 60.3mm Steel Forged Double Coupler Scaffolding Clamp

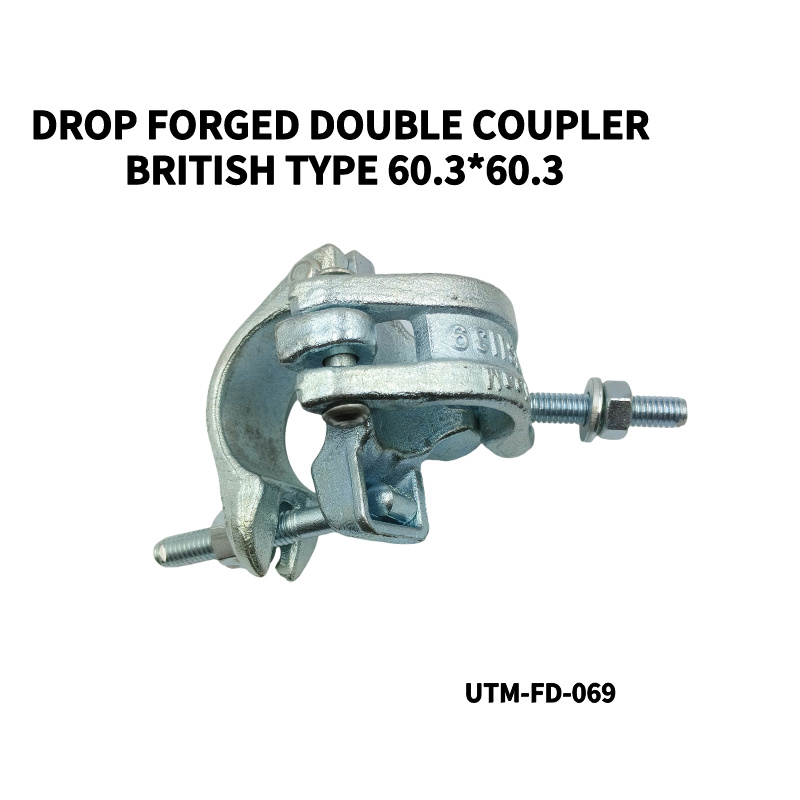

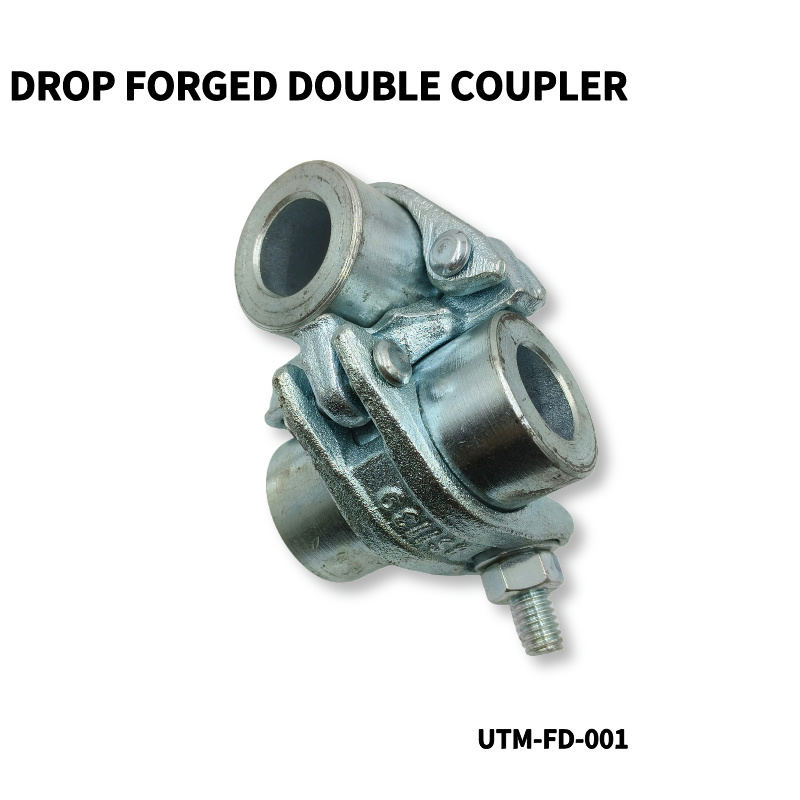

British Type Drop Forged Double Coupler :

Scafffold Double coupler is used for connecting 48.3mm/60.3mm tubes or Scaffold Tube and Standard at right angles .It is available in either pressed or drop forged versions.

*Dimensions:48.3-60.3mm

*Meterial:Q235 steel

*Nut:21mm,22mm,23mm

*T-bolt:80mm,89mm

*Weight 0.97-1.56kg or as per your request

*Standard:EN74,BS1139,CE and also fit for our demostic stardand , through SGS test.

*Technic:Forged

*Surface treatment:Self-color,Zinc plated ,Hot dip galvanised

*Color:Self-color(Black) , White, Yellow

*Style:British(also can produce German, American, Japanese and so on)

*Quality:good bearing capacity,durable & stable

*Price:reasonable & wonderful

*OEM service is available

British forged right Angle couplers advantages

1, plating is not easy to corrode, beautiful use time is long

2, the use of thermal process, increase the use of peace of mind

3, bolt capping, do not lose the nut

4. The bolts are 8.8 high strength bolts

The characteristics of the scaffolding forging couplers are as follows:

The connection between the forging coupler and the main beam and the auxiliary beam of the scaffold is fixed by the hook and the locking device, which is suitable for the large-span engineering construction.

The forging coupler is easy to assemble, easy to disassemble, and can be used many times, which reduces the construction cost and improves the operation rate.

Product application

1. Surface Treatment

• Galvanization: Apply a galvanized coating to the couplers. Galvanization involves coating the metal with a layer of zinc, which protects the underlying steel from corrosion.
• Painting: Use a rust-preventive paint or primer. Ensure the paint is specifically designed for metal surfaces and provides a barrier against moisture and corrosive elements.

2. Regular Cleaning

• Remove Debris: Regularly clean the couplers to remove dirt, dust, and other debris that can trap moisture and lead to rust.
• Use a Soft Brush: Gently scrub the couplers with a soft brush to avoid scratching the surface.

3. Lubrication

• Apply Lubricant: Use a suitable lubricant on moving parts to reduce friction and prevent wear. Ensure the lubricant is compatible with the coupler material and does not attract dirt.
• Regular Maintenance: Reapply lubricant periodically, especially in harsh environments.

4. Storage Conditions

• Dry Environment: Store couplers in a dry, covered area to protect them from moisture and weather elements.
• Avoid Direct Contact with Water: Keep couplers away from standing water or damp areas.

5. Corrosion-Resistant Materials

• Stainless Steel: Consider using stainless steel couplers, which are more resistant to rust and corrosion.
• Aluminum: Aluminum couplers are lightweight and naturally corrosion-resistant.

6. Regular Inspection

• Inspect for Rust: Regularly inspect the couplers for signs of rust or corrosion. Early detection allows for timely treatment.
• Remove Rust: If rust is detected, use a rust remover or a wire brush to clean the affected areas. Apply a rust-preventive coating afterward.

7. Protective Coatings

• Anti-Rust Sprays: Use anti-rust sprays or coatings that provide a protective barrier against moisture.
• Wax: Apply a thin layer of protective wax to the couplers to prevent moisture from adhering to the surface.

Our product advantages

Ensure the integrity and stability of your scaffolding structure with our durable scaffolding couplers.

Nanjing Uni-Tech Metalwork Company Ltd offers a range of scaffolding couplers designed to provide secure connections between scaffolding tubes. With their robust construction and precise engineering, our scaffolding couplers deliver reliable performance and enhanced safety on construction sites. All our scaffolding couplers undergo rigorous testing to meet industry standards and ensure their strength and durability. Whether you need swivel couplers, double couplers, or sleeve couplers, we have the right couplers to suit your scaffolding requirements. Trust our high-quality scaffolding couplers to ensure a secure and stable scaffolding structure for your projects.
