British Type
UTM
UTM-BC-030
| weight: | |
|---|---|
| Quantity: | |

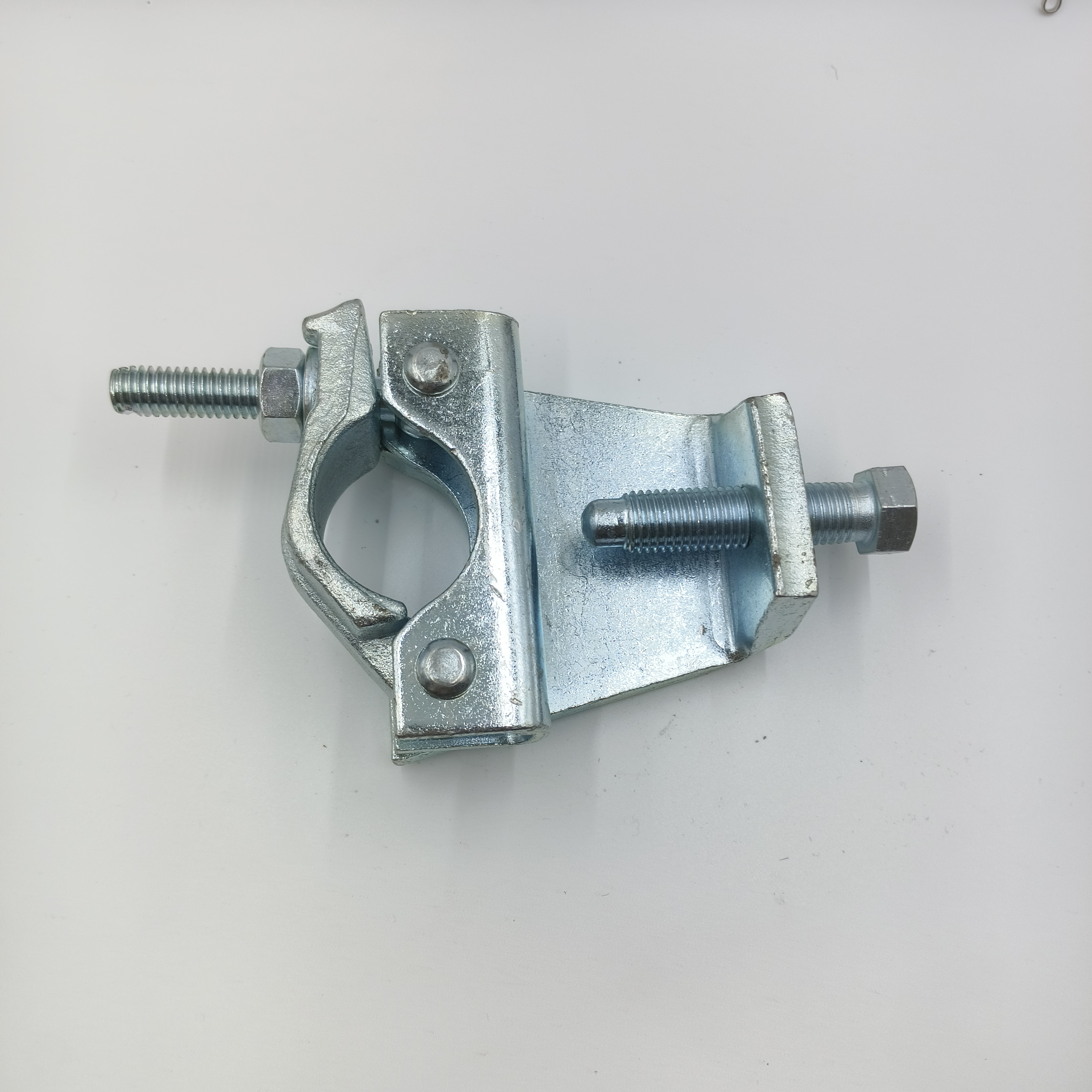

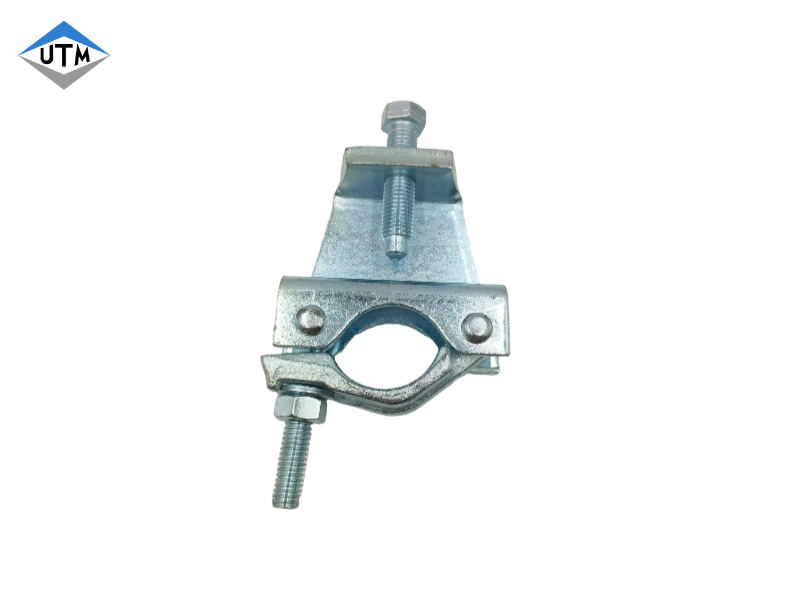

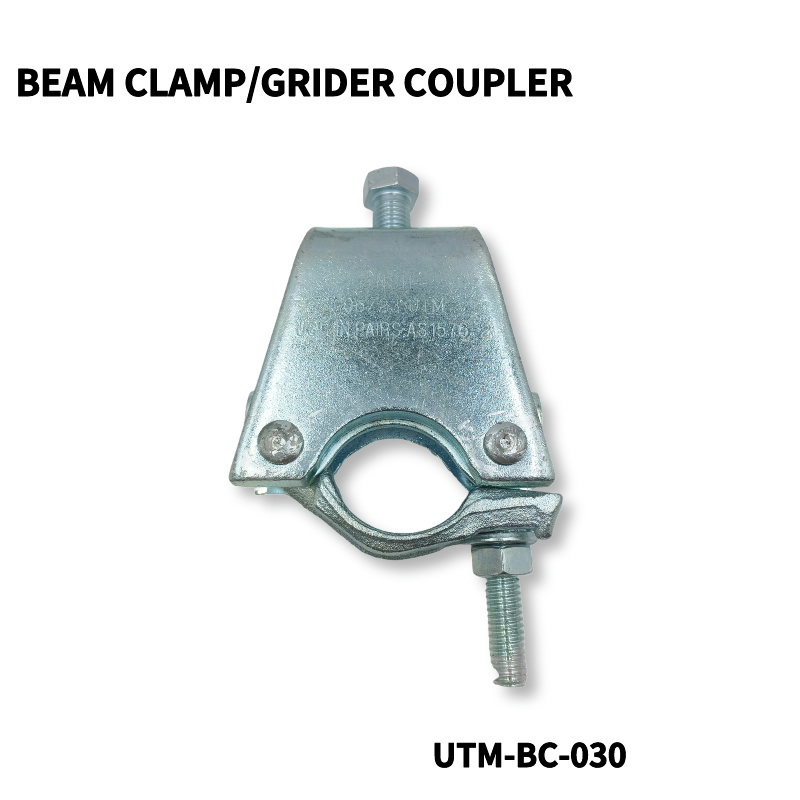

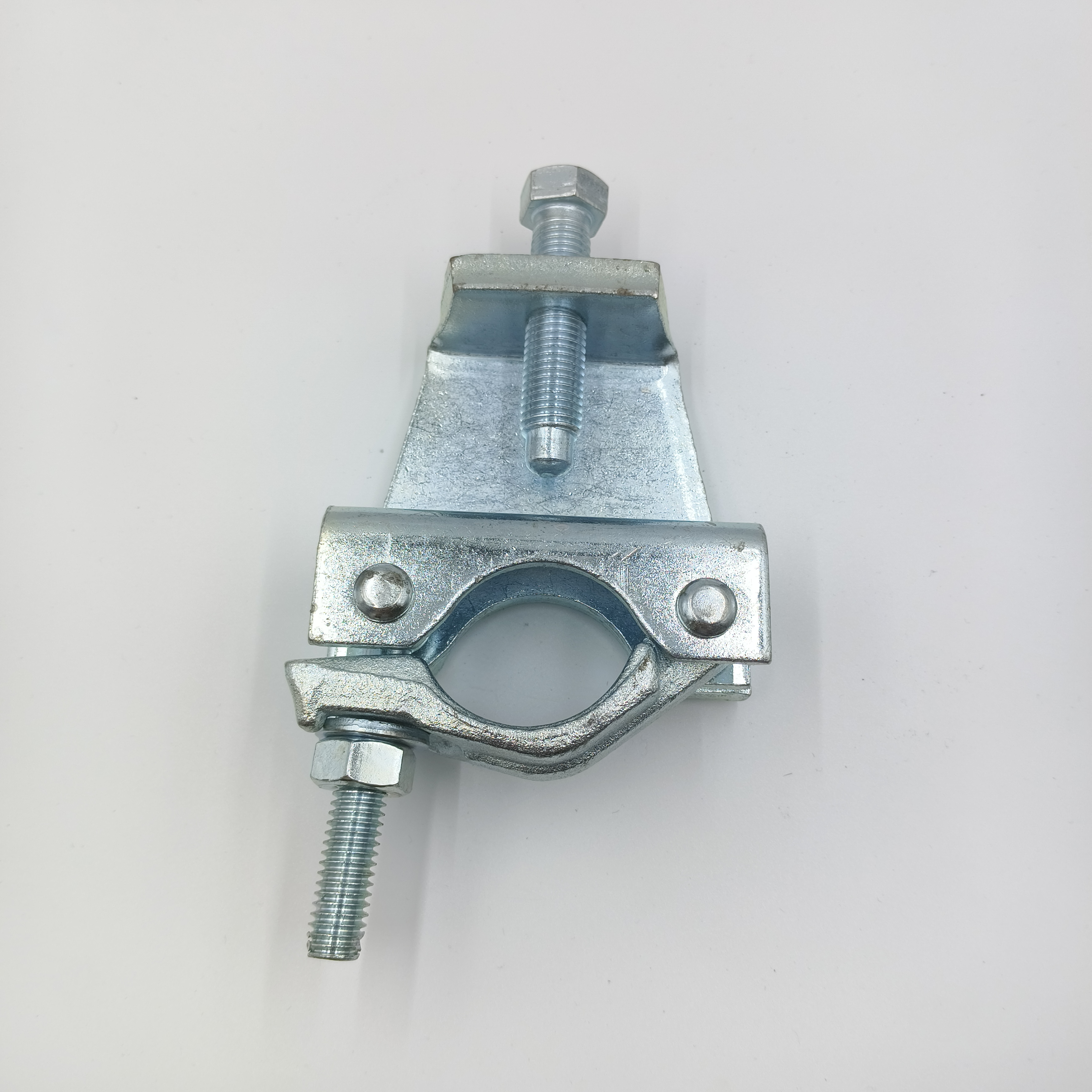

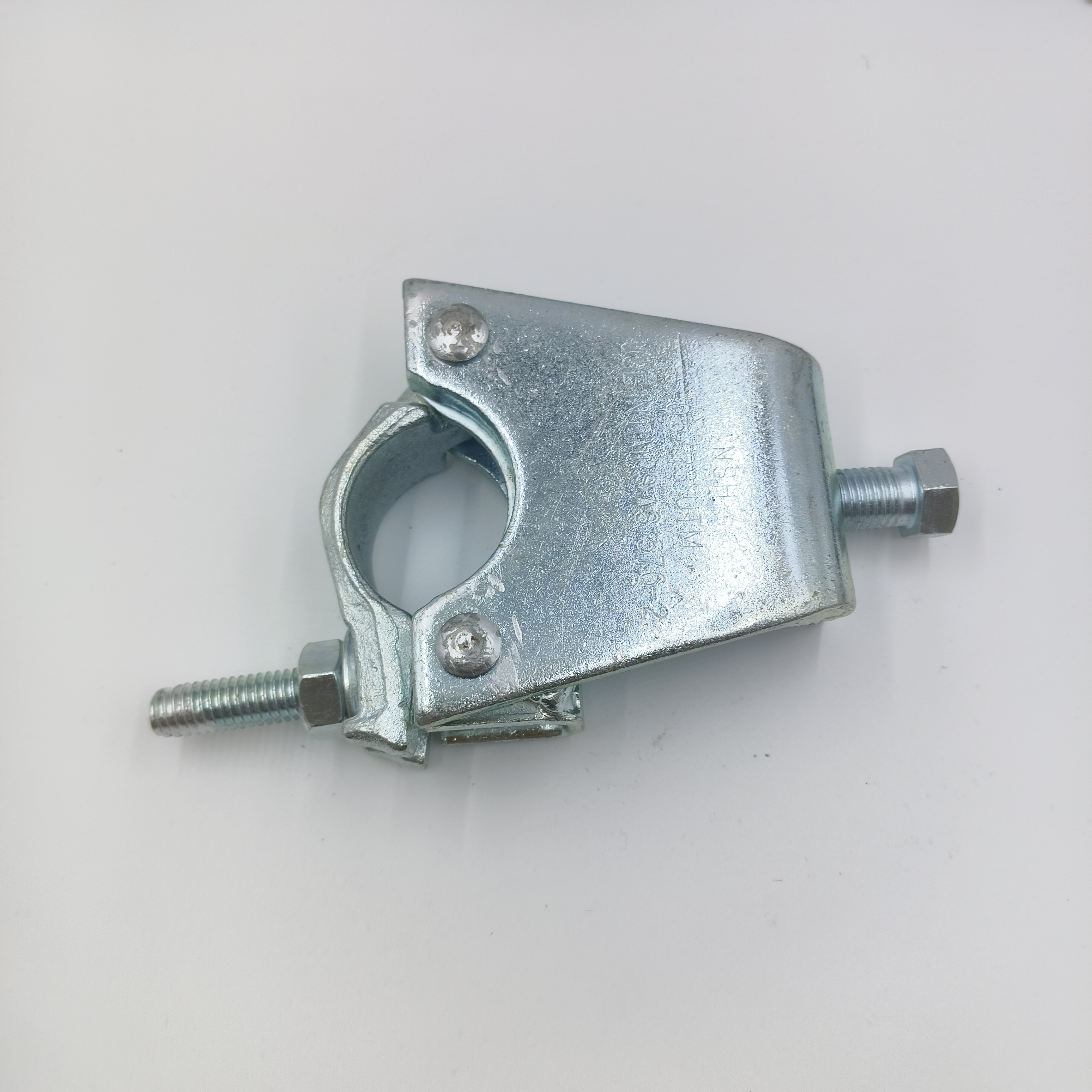

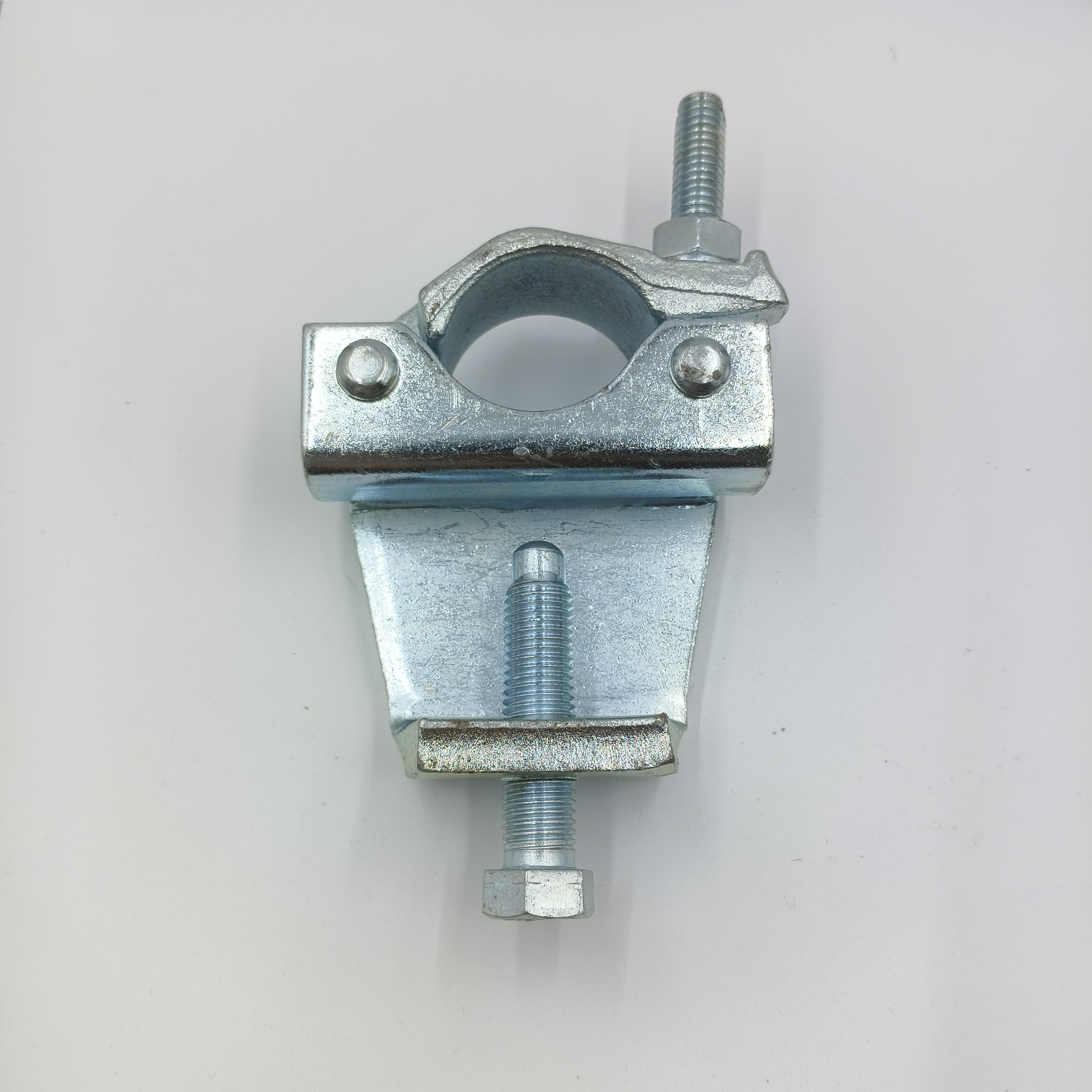

Scaffolding Gravlock Coupler Scaffold Beam Clamp
Scaffold Beam Clamp which is also knows as Girder Coupler, designed for connecting scaffolding pipes to steel beams or other structural sections.It provides a secure and stable connections between scaffolding and beams.To be used in pairs.
Product Paramenters
| Name | Scaffolding Beam Clamp / Girder Coupler |
| Material | Steel Q235 |
| Process | Forged / Pressed |
| Surfance Treatment | Zinc Plate or Hot Dipped Galvanized |
| Standard | EN74/BS1139/AS 1576.2 |
| Specs | For 48.3 tube |
| Weight | 1.48kg 1.40kg 1.01kg |
| T-bolt | M12, grade8.8 |
| Sample | Available |
| Package | In woven bags+steel pallet or ton bag |
Features of scaffolding beam clamp:
1.Good bearing capacity
2.Durable & stable
3.Easy to assemble & dismantle
*Meterial:Q235 steel
*Nut:21mm,22mm,23mm
*Weight 1.55-2.75kg or as per your request
*Standard:EN74,BS1139,CE and also fit for our demostic stardand , through SGS test.
*Technic:Forged
*Surface treatment:Self-color,Zinc plated ,Hot dip galvanised
*Color:Self-color(Black) , White, Yellow
*Style: American type (also can produce British,German , Japanese and so on)
*Quality:good bearing capacity,durable & stable
*Price:reasonable & wonderful
*OEM service is available
The main advantage of couplers :
1) High skid resistance: large touching area between steel tube and coupler
2) High crack resistance :drop forged from steel Q235, high strength and toughness
4) High corrosion resistance :coupler is deal with electro galvanized
5) High strength T-bolt.
