British Type
UTM
UTM-SG-033
| weight: | |
|---|---|
| Quantity: | |

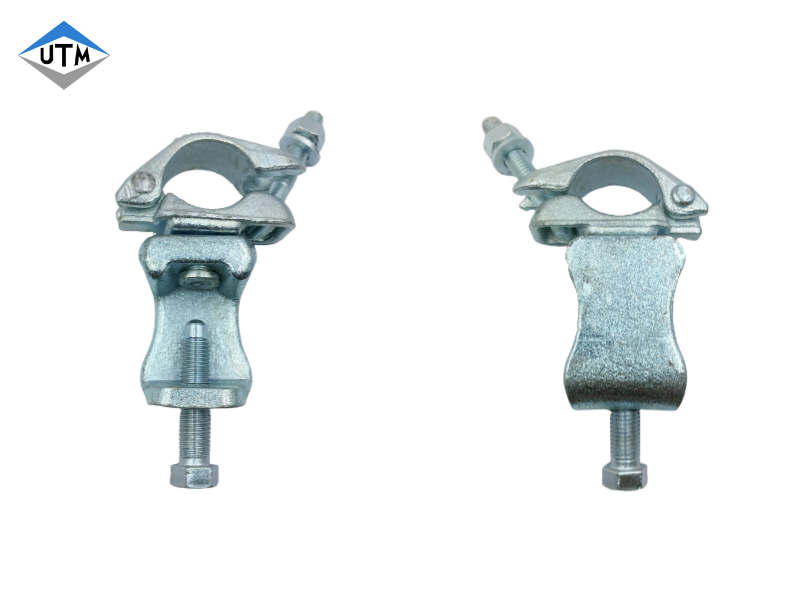

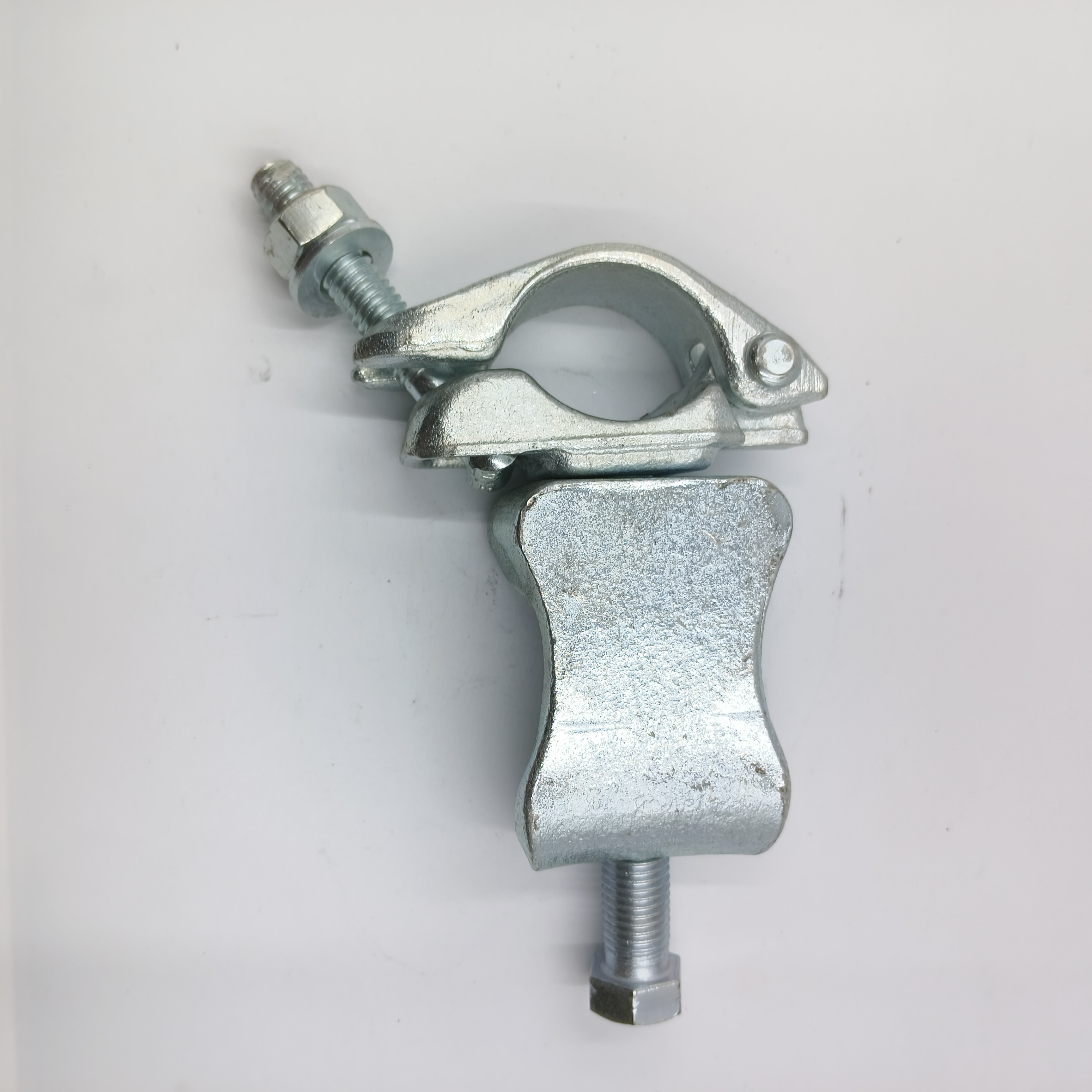

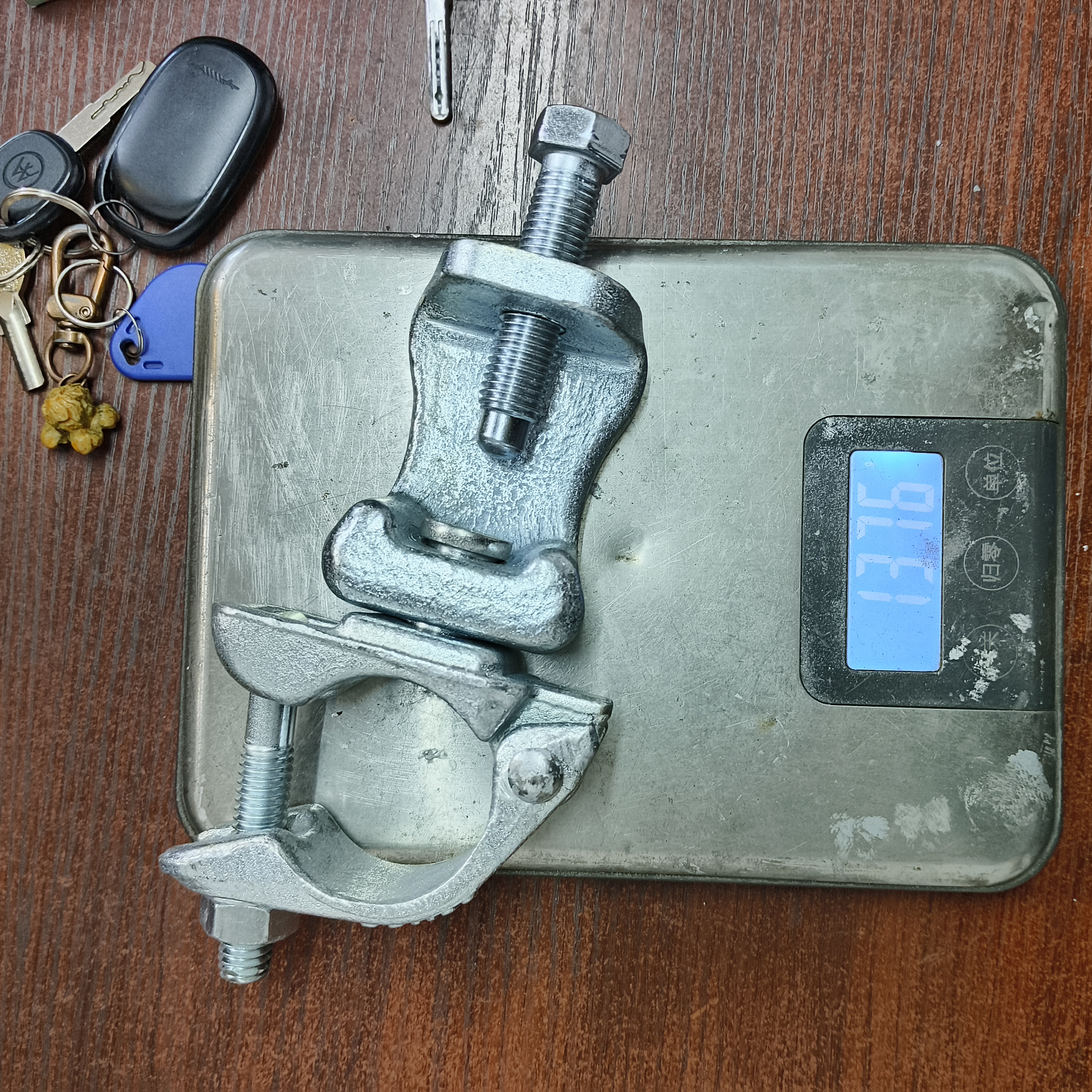

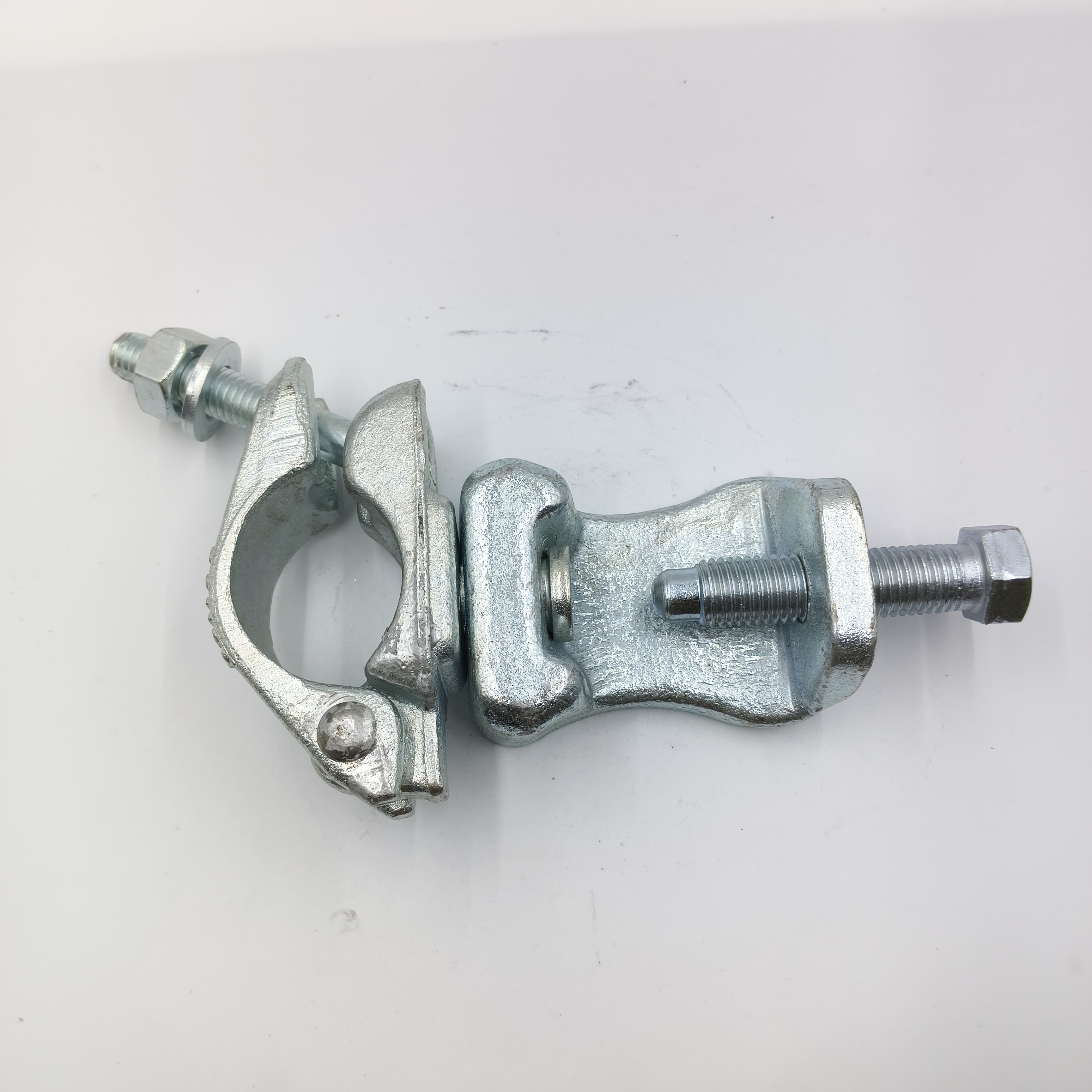

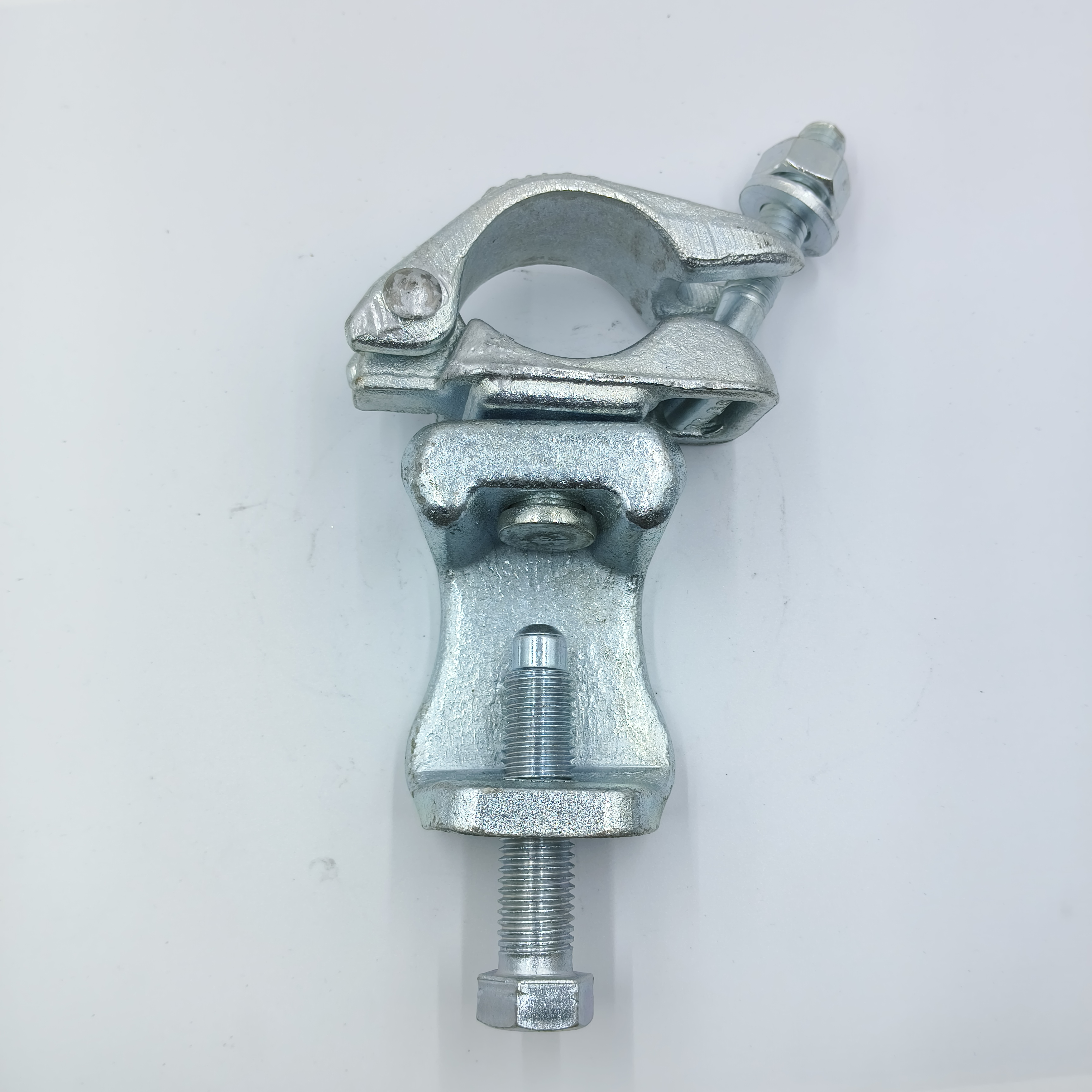

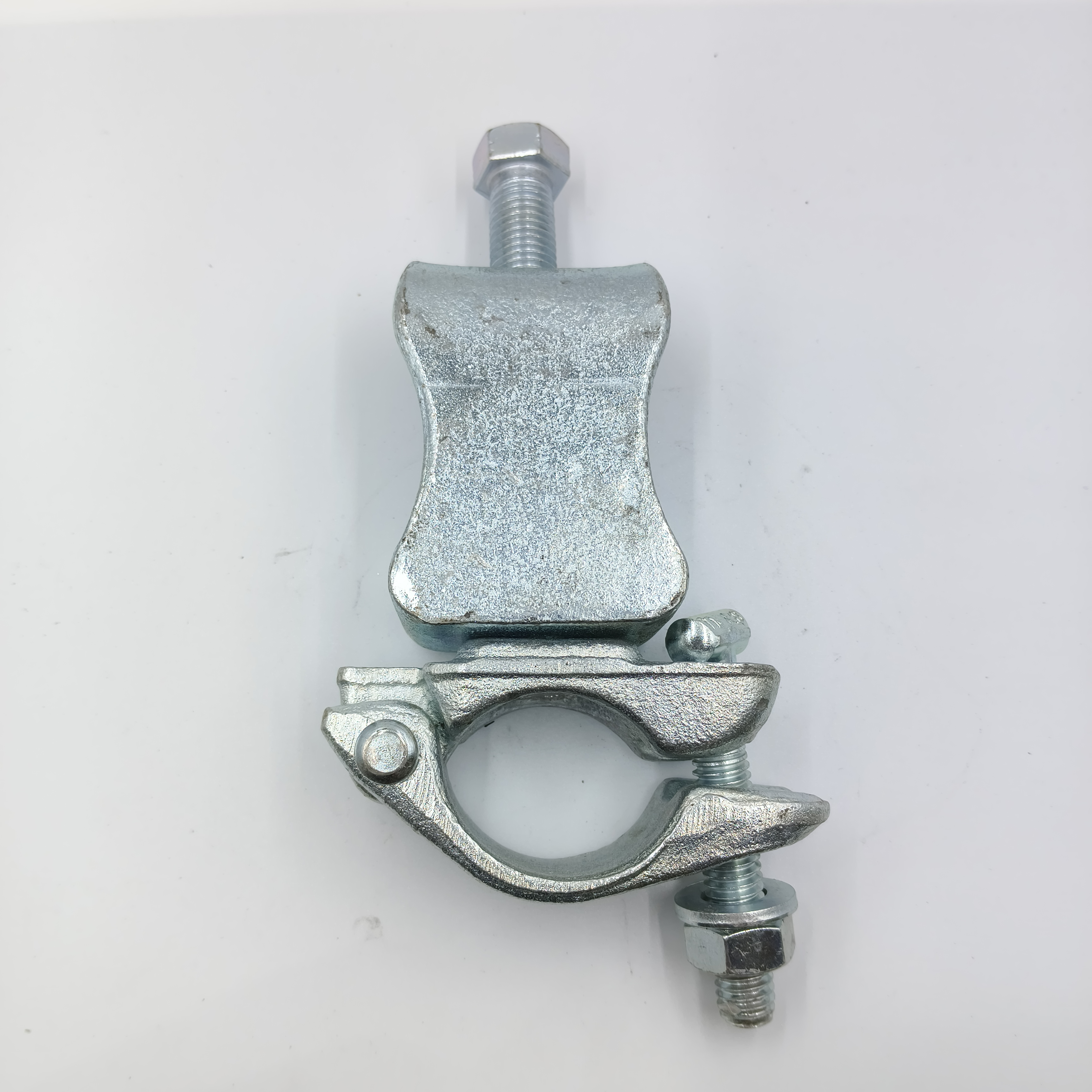

Beam Clamp/Swivel Girder Coupler/Gravlock Coupler British Type
Swivel Girder Coupler is used in pairs to connect 48.3mm scaffold tube to an “I” beam with a swivel 360 degree rotation. This fitting is also known as a Gravlok coupler.
Product Paramenters
| Name | Scaffolding Swivel Girder Coupler |
| Material | Steel Q235 |
| Process | Forged / Pressed |
| Surfance Treatment | Zinc Plate or Hot Dipped Galvanized |
| Standard | EN74/BS1139/AS 1576.2 |
| Specs | For 48.3 tube |
| Weight | 1.48kg 1.40kg 1.01kg |
| T-bolt | M12, grade8.8 |
| Sample | Available |
| Package | In woven bags+steel pallet or ton bag |
Features of scaffolding Girder Coupler:
1.Good bearing capacity
2.Durable & stable
3.Easy to assemble & dismantle
*Meterial:Q235 steel
*Nut:21mm,22mm,23mm
*Weight 1.55-2.75kg or as per your request

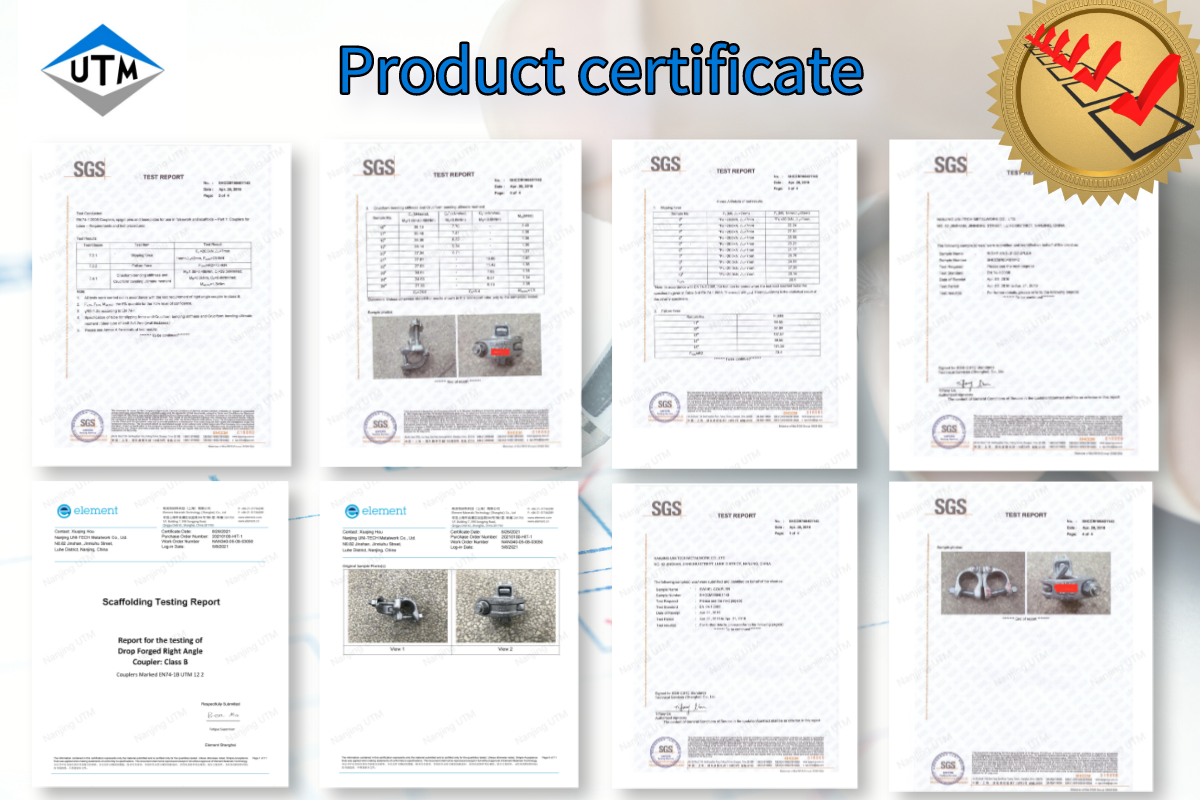

*Standard:EN74,BS1139,CE and also fit for our demostic stardand , through SGS test.
*Technic:Forged
*Surface treatment:Self-color,Zinc plated ,Hot dip galvanised
*Color:Self-color(Black) , White, Yellow
*Style: American type (also can produce British,German , Japanese and so on)
*Quality:good bearing capacity,durable & stable
*Price:reasonable & wonderful
*OEM service is available
The main advantage of couplers :
1) High skid resistance: large touching area between steel tube and coupler
2) High crack resistance :drop forged from steel Q235, high strength and toughness
4) High corrosion resistance :coupler is deal with electro galvanized
5) High strength T-bolt.
The characteristics of the scaffolding forging couplers are as follows:
The connection between the forging coupler and the main beam and the auxiliary beam of the scaffold is fixed by the hook and the locking device, which is suitable for the large-span engineering construction.
The forging coupler is easy to assemble, easy to disassemble, and can be used many times, which reduces the construction cost and improves the operation rate.
Company Profile
Nanjing Uni-Tech Metal Work Co., Ltd. (U T M) is a scaffolding production and sales enterprise. We have 16 years of industry experience. Our products have EN BS and AS certificate qualifications and are exported to the United States, the United Kingdom, Australia, the United Arab Emirates, and Saudi Arabia. Singapore and other countries.
Our main products are ringlock and aluminium scaffold systems and their accessories. We have extensive experience in seating system and edge protection, we provide design solutions and suggestions.We also make scaffold couplers, cuplock scaffolding, kwikstage scaffolding ,frames,, props, screw jacks and other relative products.
We always pay attention to the needs of our customers, treat every order with a strict attitude, and control the entire process from raw material supply to cutting, stamping, welding, surface treatment, packaging, and packing to ensure quality and complete each order on schedule.
