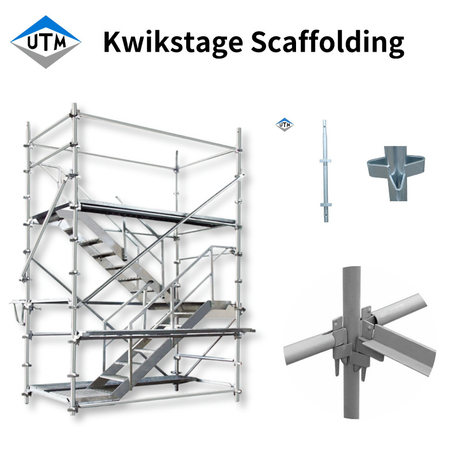

Hot-Dip Galvanized Kwikstage Scaffolding: The Ultimate Solution for Construction Safety And Durability

What Is Hot-Dip Galvanization?

Hot-dip galvanizing is a process in which fabricated steel components are dipped into a bath of molten zinc at about 450°C. The process creates a thick, metallurgically bonded zinc coating (normally 70 to 100 microns thick) that bonds well to the steel surface.

Hot-dip galvanizing ensures total coverage of all surfaces, welds, joints, corners and internal cavities where corrosion usually begins. Pre-galvanized or electro-galvanized finishes only provide thin coatings of 10-30 microns.

Superior Corrosion Resistance

The zinc coating acts as a sacrificial anode, corroding preferentially to protect the underlying steel. This provides:

• Exceptional resistance to moisture, salt, and corrosive substances

• 3x longer corrosion resistance than painted finishes, particularly in coastal environments

• 30–50% longer service life compared to non-galvanized scaffolding

Hot-dip galvanized Kwikstage scaffolding can last 20–50 years or more in Australia’s varied climate—and even over 100 years in inland urban environments with low corrosivity.

Minimal Maintenance, Maximum Value

While hot-dip galvanized scaffolding may have a higher initial cost than painted alternatives, it delivers significantly lower total cost of ownership over its lifecycle. The durable zinc coating:

• Requires virtually no ongoing maintenance

• Resists mechanical damage during transport and installation

• Withstands UV radiation without degradation

• Features self-healing properties—minor scratches are protected by the cathodic nature of the zinc coating

For contractors who value long-term reliability and want to avoid costly repainting or replacement cycles, hot-dip galvanized scaffolding is the clear winner.

Key Advantages of Hot-Dip Galvanized Kwikstage Scaffolding

1. Rapid Assembly and Dismantling

The Kwikstage system is engineered for speed. The wedge-lock connection allows components to be secured with a single hammer blow, dramatically reducing erection and stripping time.

This translates to:

• Reduced labor costs

• Faster project timelines

• Earlier project completion

2. Exceptional Strength and Load Capacity

UTM’s Kwikstage scaffolding is manufactured from high-strength Q235 or Q355 steel. Q235 steel offers superior tensile strength of 410 MPa, making it ideal for heavy-duty applications like bridge construction and high-rise buildings.

Our systems are engineered to withstand demanding loads, providing reliable support for:

• Multiple workers and equipment simultaneously

• Heavy construction materials

• Complex formwork and shoring applications

3. Unmatched Versatility

The modular design of Kwikstage scaffolding allows it to adapt to virtually any construction scenario:

• Uneven terrain: Adjustable base jacks ensure stability on sloped or irregular ground

• Various heights and configurations: Add or remove modules to match project requirements

• Multiple applications: Suitable for access scaffolding, formwork support, shoring, and industrial maintenance

• Confined spaces: Components can pass through narrow channels, making it ideal for tight job sites

4. Enhanced Safety

Safety is paramount in any construction project. Kwikstage scaffolding delivers:

• No loose fittings: The wedge-lock system eliminates screws and nuts that can be lost or become hazards

• Complete safety accessory range: Guardrails, toe boards, and other safety components are readily available

• Stable, secure platforms: Designed to provide strong, reliable support for workers at height

5. Convenient Storage and Transport

The modular nature of Kwikstage scaffolding makes it easy to:

• Store compactly with minimal storage area required

• Transport efficiently between job sites

• Reconfigure quickly for different projects

6. Long Service Life

Thanks to the combination of high-strength steel and hot-dip galvanized protection, Kwikstage scaffolding offers exceptional durability. While the initial investment may be higher than wood scaffolding systems, the extended lifespan and minimal maintenance make it a highly cost-effective choice in the long run.

Compliance with Australian and International Standards

For contractors operating in regulated markets, compliance is non-negotiable. UTM Scaffolding’s Kwikstage systems are manufactured, tested, and approved in accordance with rigorous international standards.

Our products comply with:

All UTM Kwikstage scaffolding components carry CE certification and are available with SGS testing reports. We also offer comprehensive engineering calculations, load tables, and wind load ratings to support project documentation and regulatory compliance.

Why Choose UTM Scaffolding?

Over a Decade of Scaffolding Excellence

Nanjing Uni-Tech Metalwork Co., Ltd. (UTM) is a leading Chinese scaffolding manufacturer and exporter with extensive experience in seating systems, edge protection, and scaffolding solutions. We specialize in:

• Kwikstage scaffolding

• Cuplock scaffolding

• Scaffold couplers and frames

• Props and screw jacks

• Formwork accessories

Quality You Can Trust

Every UTM product undergoes rigorous testing to ensure compliance with safety standards. Our commitment to quality has made us a trusted supplier for construction projects worldwide.

Customization and Technical Support

We understand that every project is unique. UTM offers:

• OEM and ODM services to match specific requirements

• Custom lengths and surface treatments upon request

• Engineering drawings and design solutions

• Technical support throughout your project
