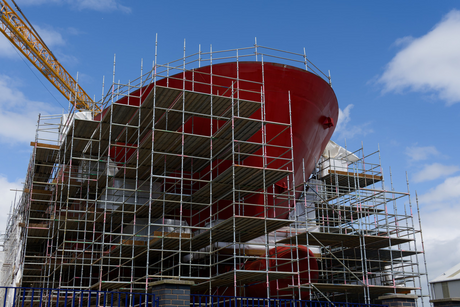

Ringlock Scaffolding in Shipbuilding Industry

The shipbuilding industry requires scaffolding systems that can be adapted to complex geometries, withstand harsh marine environments and be erected quickly to reduce dock time in the construction and maintenance of vessels. Ringlock scaffolding has been one of the most dependable modular scaffolding options for shipyards, offshore platforms and global marine repair jobs over the years.

Ringlock systems differ from traditional tube and clamp systems in that they utilize a rosette connection system which enables multi-directional bracing at virtually any angle. This flexibility makes ringlock scaffolding ideal for applications in shipbuilding where hull contours, curved surfaces and tight inner spaces are constant challenges.

Why Ringlock Scaffolding Is Ideal for Shipbuilding

1. Superior Adaptability to Curved Hull Shapes

Ship hulls are large, curved surfaces that do not conform to the rectangular geometry of conventional scaffolding systems. Ringlock scaffolding is designed with a rosette connection system, allowing ledgers and diagonal braces to be connected at multiple angles such as 45°, 90° and 135°, allowing scaffolders to build closer to the contour of the vessel’s hull.

The rosette is a circular disc welded to the vertical standards at regular intervals (usually 500mm) and offers up to eight connection points per level. The high density of connection points enables ringlock scaffolding to conform to irregular shapes without requiring custom-fabricated components, saving time and material costs on every project.

2. Exceptional Strength and Load Capacity

Heavy materials, welding equipment and large crews working at height simultaneously are common in shipbuilding operations. So we make ringlock scaffolding with high strength Q355 galvanized steel, which has the strong load-bearing capacity required in these demanding applications.

The wedge-head locking mechanism guarantees a rigid connection of the nodes which can transfer bending moments and shear forces correctly. A correctly erected ringlock scaffold can support heavy duty loads for concrete pouring, steel plate welding and大型设备安装, all common tasks in vessel construction.

3. Corrosion Resistance for Marine Environments

Saltwater, humidity, and chemical exposure make shipyards one of the most corrosive environments for construction equipment. Hot-dip galvanization protects ringlock scaffolding components from rust and corrosion, significantly extending the system's service life even in offshore and maritime conditions.

This durability makes ringlock scaffolding particularly valuable for:

• Shipyard construction and assembly

• Offshore oil platform maintenance

• Saltwater vessel repairs

4. Rapid Assembly and Dismantling

In shipbuilding, time is money. In shipbuilding, time is money. The loss of revenue through operation is the loss of a vessel's daily time in dry dock. The loss of revenue through operation is the loss of a vessel's daily time in dry dock. Ringlock scaffolding's wedge and rosette locking system needs only basic tools (usually a hammer) to securely lock connections. Ringlock scaffolding's wedge and rosette locking system needs only basic tools (usually a hammer) to securely lock connections. No bolts, screws or mechanical tools are needed for standard assembly. No bolts, screws or mechanical tools are needed for standard assembly.

This streamlined process allows shipyards to:

• Reduce labor costs and erection time

• Minimize vessel downtime in dry dock

• Quickly reconfigure scaffolding as different areas of the hull require access

5. Multi-Directional Stability

The eight-hole rosette design enables full 360-degree versatility, allowing diagonal bracing to be integrated across multiple planes. This multi-directional connectivity significantly enhances lateral stability—a critical consideration when working on tall vessel structures or in open-sea conditions where wind loads can create unexpected forces on scaffolding.

Common Applications of Ringlock Scaffolding in Shipbuilding

Hull Construction and Newbuild Projects

During new vessel construction, ringlock scaffolding provides safe working platforms for:

• Steel plate fitting and welding: Creating stable access around curved hull sections

• Blasting and painting: Applying anti-corrosive coatings to hard-to-reach areas

• Structural inspections: Enabling thorough quality checks at all construction stages

• Equipment installation: Supporting workers during the installation of hull appendages, propellers, and rudders

Ringlock scaffolding's modular nature means it can be configured as birdcage scaffolding for open interior spaces or as cantilevered platforms for overhanging hull sections.

Vessel Repair and Dry Dock Maintenance

When vessels enter dry dock for scheduled maintenance, ringlock scaffolding offers the flexibility needed to address various repair requirements:

• Hull blasting and repainting: Full-hull access for removing old coatings and applying new protective layers

• Propeller and shaft removal: Stable platforms for mechanical work in confined aft sections

• Tank inspections: Safe entry into ballast tanks, cargo holds, and fuel tanks

• Structural repairs: Access for welding, plating replacement, and crack repairs

Offshore Platform and Marine Structure Work

Beyond traditional shipbuilding, ringlock scaffolding is widely used in offshore oil platforms, floating production storage and offloading (FPSO) vessels, and marine renewable energy installations.

Offshore scaffolds must be:

• Rapidly erected and dismantled to minimize helicopter or boat transfer time

• Corrosion-resistant for long-term deployment in saltwater environments

• Capable of supporting heavy equipment and multiple workers simultaneously

Ringlock scaffolding meets all these requirements while its modular design ensures that 80% of components can be reused across different offshore projects.

Interior Shipfitting and Outfitting

The interior of a vessel requires scaffolding for:

• Pipe and duct installation

• Electrical cable routing

• Ventilation system fitting

• Accommodation area finishing

Ringlock's stair towers and access platforms provide safe and efficient movement of workers and materials through multi-level interior spaces where permanent staircases have not yet been installed.

Technical Specifications: What to Look for in Shipbuilding Ringlock Scaffolding

When sourcing ringlock scaffolding for maritime applications, consider the following specifications:

Key Accessories for Maritime Applications

To optimize your ringlock scaffolding system for shipbuilding, consider these accessories:

• Adjustable base jacks: For leveling on uneven dock surfaces

• Lattice girders and truss ledgers: For spanning large openings and providing extra load capacity

• Suspension hooks: For hanging scaffolds over water

• Guardrails and toe boards: Integrated safety features compliant with maritime regulations

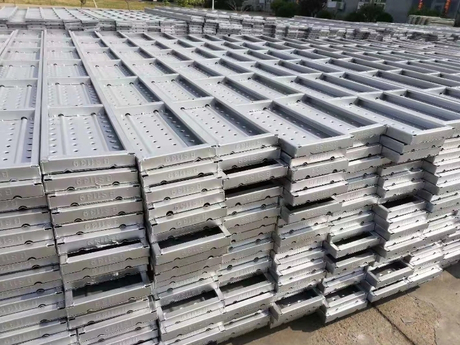

• Steel decking planks: Non-slip, durable working platforms

Ringlock vs. Cuplock: Which Is Better for Shipbuilding?

Both ringlock and cuplock scaffolding are modular systems widely used in shipbuilding, but their design differences make ringlock the preferred choice for many maritime applications.

When to choose ringlock for shipbuilding:

• Hull sections with significant curvature

• Projects requiring multi-directional access

• Tall vessel structures with complex lateral loads

• Offshore platform maintenance

Why Choose a Reliable Ringlock Scaffolding Supplier for Maritime Projects

When buying ringlock scaffolding for use in shipbuilding applications, select a supplier who understands the demands of the maritime industry:

1. Quality certification: Look for third party load testing reports and manufacturers with ISO 9001 quality management system

2. Material traceability: Q355 steel, with mill test certificates on file for consistent strength

3. Quality of galvanization: Hot dip galvanization with sufficient coating thickness (min. 45μm) for marine environment

4. Technical Support Engineering support for custom installations and load calculations.

5. Global logistics: Ability to ship large volumes to ports throughout the world

A professional ringlock scaffolding supplier can provide custom configuration services to ensure your scaffolding system is optimized for your specific shipyard operations and vessel types.
