Views: 55 Author: Site Editor Publish Time: 2026-04-27 Origin: Site
Kwikstage Scaffolding erection is the process of assembling standards, ledgers, transoms, braces, boards, base jacks, and safety accessories into a stable temporary access structure. The system uses wedge connections, so each component must be positioned, locked, braced, and inspected in the correct sequence. This guide explains the general erection process for Kwikstage Scaffolding, but final assembly should always follow project drawings, local regulations, site conditions, and competent-person inspection.
● Kwikstage Scaffolding should be erected on a firm, level, and inspected base.
● Main erection steps include base setup, standards, ledgers, transoms, braces, platforms, guardrails, and final inspection.
● Compatible standards, ledgers, transoms, braces, boards, base jacks, and accessories should be used together.
● Bracing, platform support, guardrails, toe boards, and access points must be checked before use.
● Complex Kwikstage Scaffolding structures require project drawings, local compliance, and engineering review.

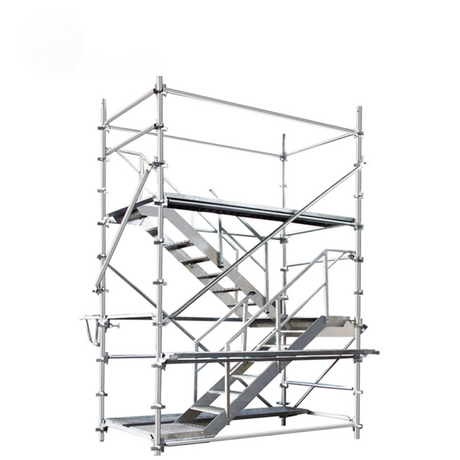

Kwikstage Scaffolding is a modular scaffold system made from vertical standards, horizontal ledgers, transoms, braces, boards, base jacks, and accessories. It is designed for fast assembly and dismantling, making it suitable for repeated scaffold layouts. The system is commonly used for construction access, façade work, formwork support, shoring, maintenance, and industrial projects.
The main vertical members are standards, while ledgers and transoms form the length and width of the scaffold bay. Braces provide lateral stability, and boards create the working platform. Website-listed Kwikstage Scaffolding standards include 500mm, 1000mm, 1500mm, 2000mm, 2500mm, and 3000mm lengths, while transom lengths include 530mm, 560mm, 760mm, 1000mm, 1270mm, 2438mm, and 3048mm.
The wedge locking system is the key feature of Kwikstage Scaffolding. Transoms fit into the lower V pressings on the standards and are used to carry steel boards. This connection method allows the scaffold frame to be assembled with consistent connection points instead of many loose couplers.
Before erecting Kwikstage Scaffolding, the work area should be cleared, measured, and checked for ground stability. Soft soil, slopes, holes, nearby traffic, overhead hazards, and drainage conditions can affect the scaffold layout. Base plates or adjustable base jacks should be placed on suitable support to reduce settlement and alignment problems.
All Kwikstage Scaffolding components should be checked before use. Standards, ledgers, transoms, braces, boards, base jacks, and accessories should be free from cracks, severe corrosion, bending, broken welds, damaged wedges, or distorted connection points. Components from different systems should not be mixed unless the design has been checked by a qualified person.
Inspection Item | What to Check | Main Purpose |
Ground condition | Level, firm, clear surface | Reduce settlement and tilt |
Standards | Straight tubes and clean connection points | Maintain vertical alignment |
Ledgers and transoms | Secure wedge ends and no deformation | Support scaffold geometry |
Braces | Correct length and usable connectors | Control lateral movement |
Boards | No major damage or slipping risk | Create stable platforms |
Base jacks | Proper adjustment and support | Level the scaffold base |
Guardrails and toe boards | Complete and compatible parts | Improve edge protection |
Start by marking the scaffold length, width, bay positions, and access points according to the project layout. The scaffold line should follow the building façade or work area while leaving enough clearance for workers and materials. Accurate set-out keeps the Kwikstage Scaffolding frame aligned from the first bay.
Place base plates or adjustable base jacks at the planned standard positions. The base should be level and capable of carrying the scaffold load. If the ground is uneven, base jacks can correct height differences, but excessive adjustment should be avoided unless the design allows it.
Install the first vertical standards on the prepared base points. The standards must be kept plumb because the first lift controls the alignment of the entire Kwikstage Scaffolding structure. Website-listed standard sizes from 500mm to 3000mm allow height planning with modular vertical sections.
After positioning the standards, connect ledgers along the scaffold length and transoms across the width. The wedge connection should be seated and locked properly at each joint. Transoms support boards and platform width, so missing or loose transoms can weaken the working deck.
Diagonal braces should be installed early to stabilize the first bay. Braces prevent the Kwikstage Scaffolding frame from swaying under movement, wind, or uneven loading. Website-listed diagonal brace sizes include 760×1500mm, 760×2000mm, 1830×2000mm, 1830×2500mm, and 2440×2500mm.
Once the frame and bracing are stable, place scaffold boards or working platforms on the supported transoms. Boards should sit flat and should not rock, slide, or overhang beyond the approved arrangement. Side brackets may be used where closer façade access is required, with listed side bracket options for 1 board, 2 boards, and 3 boards.
Guardrails, toe boards, ladders, and access routes should be installed before the platform is used. These safety parts reduce fall risk and material drop risk during work. Kwikstage Scaffolding should not be treated as complete until edge protection and access components are in place.
After the first lift has been checked, the next lift can be erected by repeating the same sequence. Standards are extended, ledgers and transoms are fixed, braces are installed, and platforms are placed as required. Each lift should be checked before work continues upward.
A competent person should inspect the full Kwikstage Scaffolding structure before it is used. The inspection should cover base support, vertical alignment, locked wedges, bracing, boards, guardrails, toe boards, access points, and visible component damage. If the scaffold is altered, exposed to severe weather, or loaded differently from the original plan, it should be inspected again.
Step | Main Action | Key Control Point |
1 | Set out scaffold area | Confirm layout and access |
2 | Install base plates or jacks | Keep base firm and level |
3 | Position standards | Maintain vertical alignment |
4 | Connect ledgers and transoms | Lock wedge joints securely |
5 | Install braces | Stabilize the frame |
6 | Place boards | Support platforms correctly |
7 | Add guardrails and toe boards | Complete edge protection |
8 | Extend upper lifts | Repeat sequence safely |
9 | Inspect before use | Confirm structure is ready |
The erection sequence should be followed from the base upward. Kwikstage Scaffolding should not be built randomly because platform support, bracing, and edge protection depend on the correct order. Each bay should be stable before the next section is added.
Kwikstage Scaffolding relies on compatible components. Website-listed materials include Q235 and Q355 steel, with hot dip galvanized and powder coated surface treatments for different Kwikstage items. Several listed products also refer to AS1576, AS/NZS 1576, EN74, or BS1139 standards, depending on the item.
Many erection problems begin at the base. If base jacks are placed on weak or uneven ground, the scaffold can settle, lean, or become difficult to align. A stable base is essential because every standard transfers load downward through the scaffold frame.
A scaffold with standards, ledgers, and boards may look usable, but it is not complete without correct bracing and edge protection. Missing braces can reduce lateral stability, especially on tall structures or long façade runs. Missing guardrails, toe boards, or safe access routes can create serious site hazards.
Kwikstage Scaffolding should be assembled as a compatible system. Mixing parts from different scaffold systems can affect wedge fit, connection strength, bay spacing, and platform support. Component compatibility should be confirmed before erection, especially for bulk procurement or replacement parts.
The erection process should follow project drawings, site procedures, and local scaffolding regulations. General steps are useful, but they do not replace project-specific design. Height, tie spacing, load class, platform arrangement, and bracing layout should be confirmed before work begins.
Materials should not be stored on the scaffold unless the structure is designed for that load. Kwikstage Scaffolding used for shoring, formwork, or heavy-duty work requires separate load verification. Workers should avoid sudden impact loads, overloaded platforms, and unsupported material storage.
Inspection should continue after erection. Weather, vibration, impact, material movement, or scaffold modification can change the safety condition of the structure. Any damaged component, loose wedge, unstable board, missing guardrail, or shifted base should be corrected before the scaffold is used again.

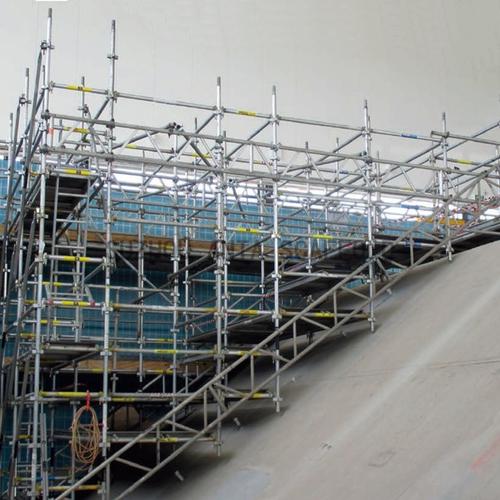

Tall buildings, irregular façades, bridges, plants, and industrial structures may require detailed scaffold planning. In these cases, Kwikstage Scaffolding should be selected and erected according to drawings, site conditions, and engineering review. Simple step-by-step guidance is not enough for complex temporary works.
When Kwikstage Scaffolding is used for shoring or formwork support, the structure may carry loads beyond normal access use. Load transfer, base support, bracing, ties, and platform design require careful checking. A qualified engineer or competent scaffold designer should review these applications before erection.
For large orders, the component list should match the erection plan. Standards, ledgers, transoms, braces, side brackets, boards, base jacks, and accessories should be listed separately by size, material, finish, and standard. This reduces missing parts during erection and improves packing, inspection, and site distribution.
Erecting Kwikstage Scaffolding starts with site inspection, base setup, standard positioning, ledger and transom connection, bracing, platform placement, guardrail installation, upper lift extension, and final inspection. Each step should be completed in sequence because the system depends on proper alignment, locked wedge joints, stable platforms, and complete safety components. Website-listed Kwikstage Scaffolding details include Q235 and Q355 steel, hot dip galvanized and powder coated finishes, standard lengths from 500mm to 3000mm, transom sizes from 530mm to 3048mm, and side bracket options for 1, 2, and 3 boards.
For residential, commercial, infrastructure, shoring, formwork, and industrial projects, Kwikstage Scaffolding components should be selected according to drawings, site conditions, and compatibility requirements. Nanjing Uni-Tech Metalwork Company Ltd. supplies Kwikstage Scaffolding systems and components with different material, finish, and standard options. Buyers can prepare scaffold height, bay layout, working platform width, surface treatment requirements, and component lists before requesting a Kwikstage Scaffolding quotation.
Kwikstage Scaffolding is erected by preparing the site, setting base plates or base jacks, positioning standards, connecting ledgers and transoms, installing braces, placing boards, adding guardrails and toe boards, extending upper lifts, and completing final inspection. The sequence should follow project drawings and local safety rules.
The main components include standards, ledgers, transoms, diagonal braces, scaffold boards, base jacks, side brackets, guardrails, toe boards, and accessories. Each component has a specific role in the scaffold frame. Compatible Kwikstage Scaffolding parts should be used together to maintain correct connection and platform support.
Kwikstage Scaffolding can be erected on uneven ground only when the base is properly prepared and adjusted. Base jacks may be used for leveling, but the ground must still be firm enough to carry the load. Excessive adjustment or weak ground can reduce scaffold stability.
Yes, braces are important for Kwikstage Scaffolding stability. They help control lateral movement and reduce sway in tall, long, or exposed scaffold structures. Bracing layout should follow project drawings, scaffold height, wind exposure, and local safety requirements.
Kwikstage Scaffolding should be inspected by a competent person before use. The inspection should check base support, vertical alignment, locked wedges, bracing, boards, guardrails, toe boards, access points, and component condition. Any unsafe condition should be corrected before workers use the scaffold.
