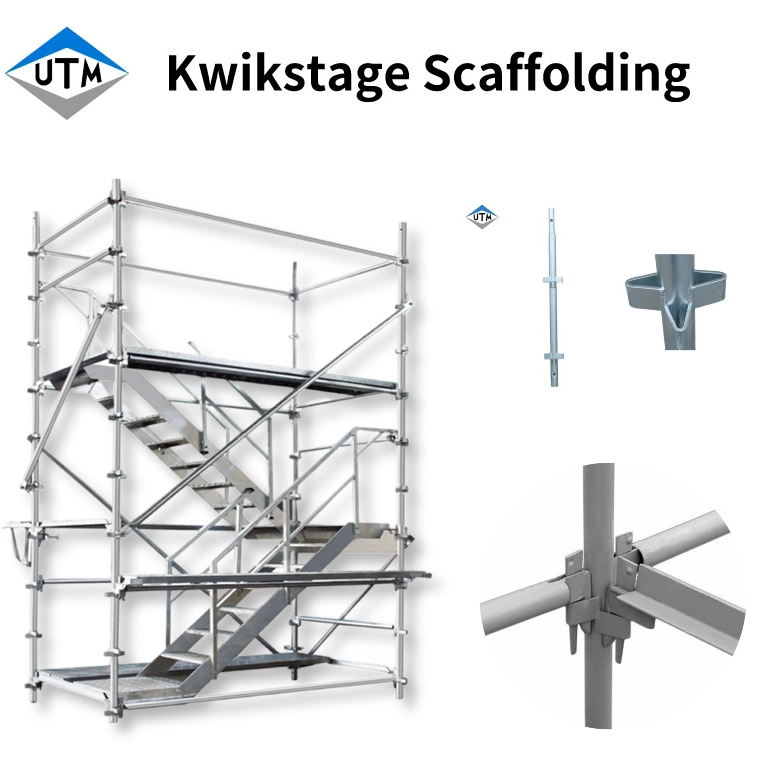

Kwikstage scaffolding
UTM
UTM-KS
Availability: | |
---|---|
Quantity: | |
Australian Construction Hot Dip Galvanized Painted Q235/Q355 Steel Kwikstage Scaffolding
Material | Steel Q355,Q235 |
Surface Treatment | Hot Dip Galvanized/Powder Coated |
Standard | EN74/BS1139/AS1576 |
Certificate | CE Certificate / SGS |
Payment Term | TT L/C |
Kwikstage Scaffolding is a heavy-duty modular scaffolding system renowned for its efficiency, safety, and adaptability in construction projects. Originating from British Commonwealth standards (e.g., UK, Australia), it features a unique quadrilateral wedge-locking mechanism—four high-strength steel triangular brackets stamped and welded to vertical standards. This design enables rapid assembly/disassembly without loose components, making it ideal for complex structures where traditional scaffolding fails.
Features
Kwikstage Scaffolding Systems Main Parts
Main components
Why choose Kwikstage Scaffolding?
Kwikstage scaffolding is flexible in design, each component can be easily adapted to different projects, just need to add or remove modules in the design.
Kwikstage scaffolding is easy to use, can be assembled quickly, saves erection time, and is ideal for construction projects that require regular movement.
Kwikstage scaffolding is very durable and stable, providing security.
Kwikstage scaffolding is cost effective. While it may be more expensive than a wood scaffolding system, it will last longer.
Kwikstage scaffolding is highly adaptable, making it suitable for a variety of projects, regardless of the size or shape of the structure.
Kwikstage scaffolding can be used on sloped or uneven ground
Kwikstage Scaffolding Standard
Code | Name | Length | Surface Treatment | Materil | Band | Standard |
UTM-KS-169-500 | Kwikstage Standard | 500mm | galvanized/Powder Coated | Q355 | UTM | AS1576 |
UTM-KS-169-1000 | 1000mm | |||||
UTM-KS-169-1500 | 1500mm | |||||
UTM-KS-169-2000 | 2000mm | |||||
UTM-KS-169-2500 | 2500mm | |||||
UTM-KS-169-3000 | 3000mm |
Kwikstage Scaffolding Ledger
Code | Name | Length | Surface Treatment | Materil | Band | Standard |
UTM-KS-170-760 | Kwikstage Ledger | 760mm | galvanized/Powder Coated | Q235 | UTM | AS1576 |
UTM-KS-170-1270 | 1270mm | |||||
UTM-KS-170-1830 | 1830mm | |||||
UTM-KS-170-2440 | 2440mm |
Ledgers are used to tie the uprights/standards along the length of the scaffold.They are also used as to form the guard rail.Ledgers have a wedge fixing that is located into the V-pressing on the standards.
Kwikstage Scaffolding Bay Brace
Code | Name | Length | Surface Treatment | Materil | Band | Standard |
UTM-KS-171-760*1500 | Kwikstage Brace | 760*1500mm | galvanized/Powder Coated | Q235 | UTM | AS1576 |
UTM-KS-171-760*2000 | 760*2000mm | |||||
UTM-KS-171-1830*2000 | 1830*2000mm | |||||
UTM-KS-171-1830*2500 | 1830*2500mm | |||||
UTM-KS-171-2440*2500 | 2440*2500mm |
Kwikstage Diagonal Braces provides strength and stability to the scaffold. They fit diagonally across the scaffold bay. They can be used for handrail to strecther stairs.
Kwikstage Scaffolding Intermidiate Transom
Code | Name | Length | Surface Treatment | Materil | Band | Standard |
UTM-KS-172-530 | Kwikstage Intermidiate Transom | 530mm | galvanized/Powder Coated | Q235 | UTM | AS1576 |
UTM-KS-172-560 | 560mm | |||||
UTM-KS-172-760 | 760mm | |||||
UTM-KS-172-1000 | 1000mm | |||||
UTM-KS-172-1270 | 1270mm | |||||
UTM-KS-172-2438 | 2438mm | |||||
UTM-KS-172-3048 | 3048mm |
A kwikstage transom is an essential scaffolding component used to securely connect scaffolding standards to ledgers.Transoms fit into the lower "V" pressings on the standards to carry steel boards.
Kwikstage Scaffolding Side Bracket
Code | Name | Length | Surface Treatment | Materil | Band | Standard |
UTM-KS-173-1B | Kwikstage Side Bracket | 1 BOARD | galvanized | Q235 | UTM | AS1576 |
UTM-KS-173-2B | 2 BOARD | |||||
UTM-KS-173-3B | 3 BOARD |
Kwikstage side brackets form a stabilized triangle with connection portion of rosette design. Adds adjustable work height & space to scaffolding.
Company Profile
Nanjing Uni-Tech Metal Work Co., Ltd. (U T M) is a scaffolding production and sales enterprise. We have 16 years of industry experience. Our products have EN BS and AS certificate qualifications and are exported to the United States, the United Kingdom, Australia, the United Arab Emirates, and Saudi Arabia. Singapore and other countries.
Our main products are ringlock and aluminium scaffold systems and their accessories. We have extensive experience in seating system and edge protection, we provide design solutions and suggestions.We also make scaffold couplers, cuplock scaffolding, kwikstage scaffolding ,frames,, props, screw jacks and other relative products.
We always pay attention to the needs of our customers, treat every order with a strict attitude, and control the entire process from raw material supply to cutting, stamping, welding, surface treatment, packaging, and packing to ensure quality and complete each order on schedule.
