Base Jack
UTM
UTM-BJ
| length: | |
|---|---|
| Quantity: | |

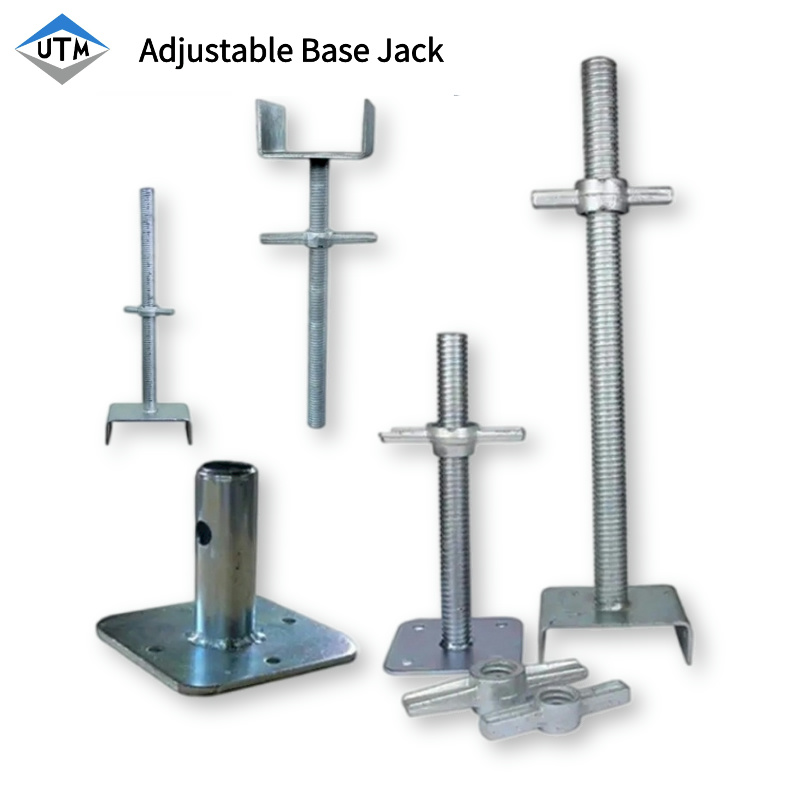

Hot DIP Galvanized Q235 Steel Scaffolding Base Jack U Head Hollow Jack
Scaffold Base Jacks are used as the base for scaffolding bays, in which standards are put on. Provide stability by adjusting the level of the bay on uneven ground.Adjustable screw jack base can be used in engineering construction, bridge construction, and used with all kinds of scaffold, play the role of top and bottom support.The surface treatment :hot dip galvanized or electro galvanized .Head base is usually U type,the base plate is usually square or customized by customer.The most common size of scaffold adjustable base jacks are OD38mm scaffold adjustable base jacks.OD30mm scaffold adjustable base jacks are compatible with walk-through, ladder, and other traditional scaffolding frames. Frame scaffolding can also use OD 32-36mm adjustable base jacks. Heavy Duty Shoring Scaffolding System has selected to employ OD 48mm scaffold adjustable base jacks.
| Item | value |
| Warranty | 3 years |
| After-sale Service | Online technical support, Return and Replacement |
| Project Solution Capability | graphic design, 3D model design |
| Design Style | Modern |
| Place of Origin | China |
| Brand Name | UTM |
| Model Number | UTM-BJ |
| Product name | Base jack |
| application | Workshop, Supporting scaffolding system |
| Material | Q235 |
| Type | U head and base plate |
| Color | Customer Requirements |
| Surface treatment | Zinc Plated/Hot Dip Galvanized |
| Package | Pallet |
| weight | 2.6kg-3.82kg |
| Thickness | 4.75mm |
| MOQ | 100pcs |

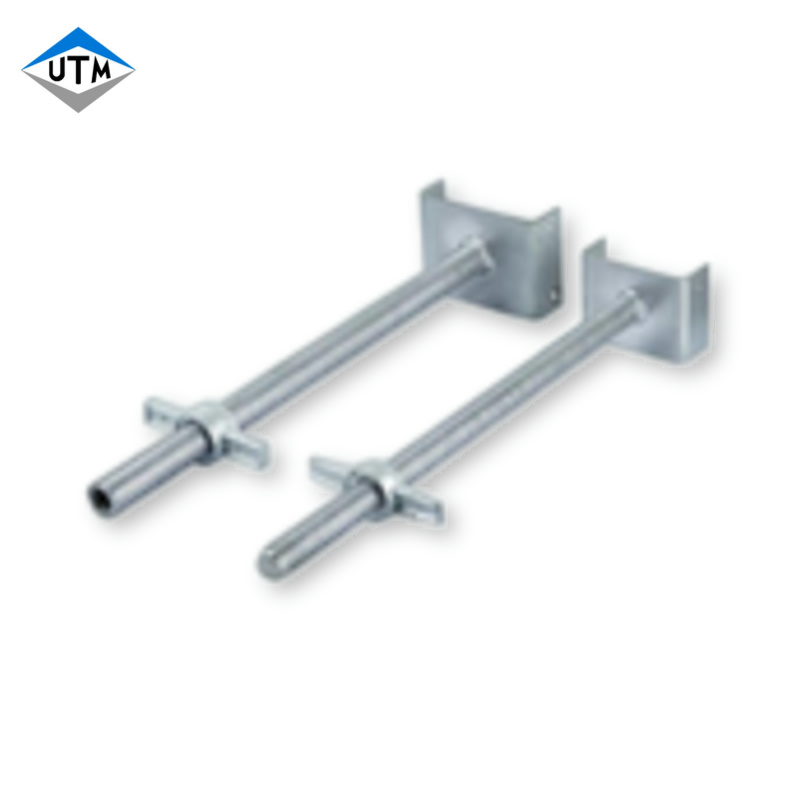

| U head Jack | ||
| Type | Specification | U Base Plate size |
| Solid | 30*400 mm | 150*150*50*4 mm |
| Solid | 30*600 mm | 150*120*50*4 mm |
| Solid | 32*400 mm | 120*120*50*4 mm |
| Solid | 32*600 mm | 150*120*50*4 mm |
| Solid | 34*400 mm | 120*120*50*4 mm |
| Solid | 34*600 mm | 150*120*50*4 mm |
| Hollow | 38*4*600 mm | 150*150*50*5 mm |
| Hollow | 38*4*660 mm | 170*150*80*6 mm |
| Hollow | 38*4*760 mm | 165*150*50*5 mm |
| Hollow | 48*4*600 mm | 150*150*50*8 mm |
| Hollow | 48*4*900 mm | 200*200*50*8 mm |
| code | name | length | Material specifications | weight/kg | Materil | band | standard |
| UTM-SJ-105-600 | Screw Jack | 600mm | 38*5*600mm 150*150*4.75mm | 3.82 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-400 | Screw Jack | 400mm | 38*5*400mm 150*150*4.75mm | 3 | Q235 | UTM | EN74/BS1139 |
| UTM-SJ-105-300 | Screw Jack | 300mm | 38*5*300mm 150*150*4.75mm | 2.6 | Q235 | UTM | EN74/BS1139 |
| UTM-SSJ-106 | Swivel Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.5 | Q235 | UTM | EN74/BS1139 |
| UTM-ASJ-107 | U Head Adjustable Screw Jack | 600mm | 38*5*300mm 150*150*4.75mm | 4.4 | Q235 | UTM | EN74/BS1139 |
Types of Base Jack：solid base jack, hollow base jack,solid U-jack and hollow U-jack.
Product Applications
Packing & Loading
Our Services
1- Pre-sales or after-sales service available
2- Sample available for small parts
3- Technology support available
4- OEM or ODM service available
5- Sourcing service available
