HDG Painted Powder Coated Scaffolding Cuplock System

Construction Heavy Duty Galvanized Cuplock Scaffolding System Scaffold

HDG Painted Powder Coated Scaffolding Cuplock System

Materil：Q235

Finsh：Hot Dip Galvanized/Powder Coated

Standard：BS1139

Model:
Cuplock Scaffolding
Brand:
UTM
Code:
UTM-CL

Quantity:
Availability:





Inquire Add to Basket

Product Description

HDG Painted Powder Coated Scaffolding Cuplock System

Material	Steel Q355,Q235
Surface Treatment	Hot Dip Galvanized
Standard	EN74/BS1139/AS1576
Certificate	CE Certificate / SGS
Payment Term	TT L/C

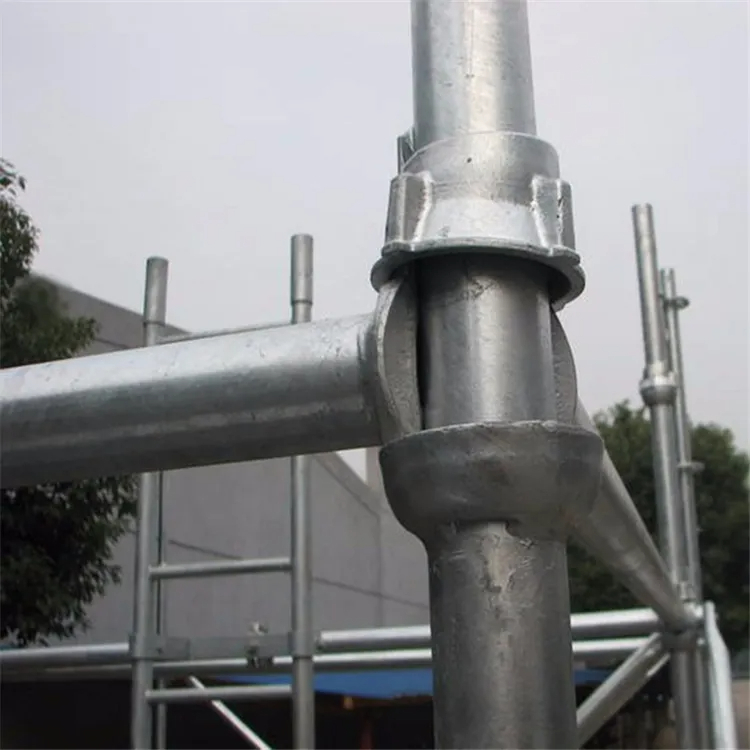

Cuplock Scaffolding System is the most commonly used system scaffolding in the world.

The official name of this scaffolding system is Cuplok, but most people know it as Cuplock.

Cuplock Scaffolding System is used for support and access structures in construction industry, offshore construction, industrial maintenance, and ship building.

And all Cuplock Scaffolding System parts are designed and manufactured to meet all scaffolding industry standard.

Cuplock Scaffolding System has quick locking and fastening devices that simplify the construction process and make it safer for workers to participate in construction.

All of these are good ways to optimize the work efficiency of construction projects and improve the construction safety index.

Cuplock Scaffolding System joint structure is reasonable, simple production process, easy operation, wide range of use, compared with traditional scaffolding, Cuplock Scaffolding System has the following remarkable features:

Cuplock Features	Details
Easy to Stand	No nut and bolt or wedge, just lock the blade into cup at each node on the standard.
Sample	Fast and simple to erect with only four component fastenings.
Light Weight	Manufactured using 3.2mm thickness high grade steel, Cuplock Scaffolding System is 20% lighter than standard 4mm thickness scaffolding tube.
Economical	Cuplock Scaffolding System with only three maincomponents.
Fast	30%-50% faster than traditional scaffolding.
Durable	Hot-Dip-Galvanized provides a low maintenance, long life.
Versatile	With 500mm cup intervals on the verticals, Cuplock Scaffolding System is extremely versatile Facade, Shoring Structures, Circular, Birdcages, Staircases, Mobile Towers and etc.
Flexible	0.6m to 3.0m bays using boards or battens.

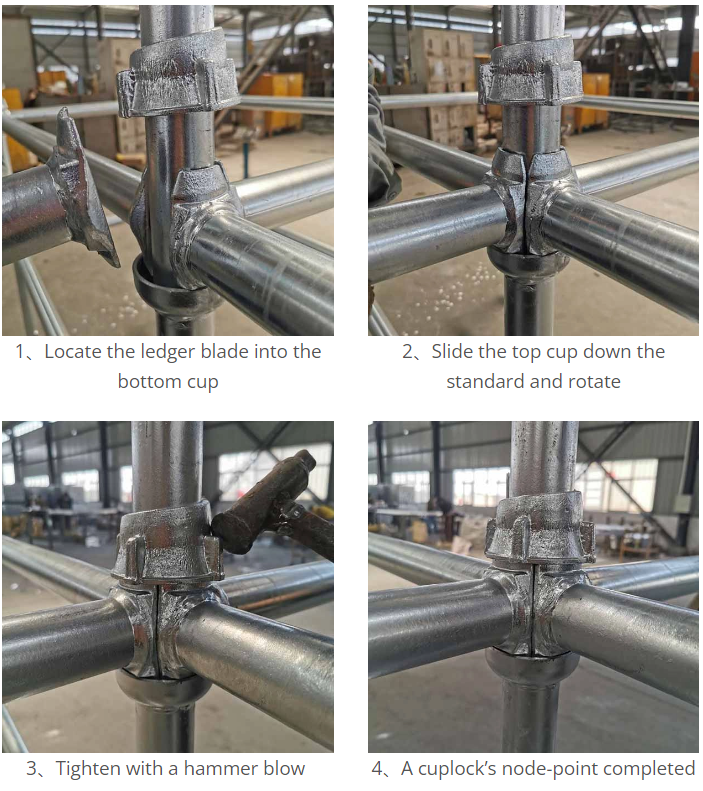

Cup-Locking Procedure:

Main components

cuplock scaffolding system

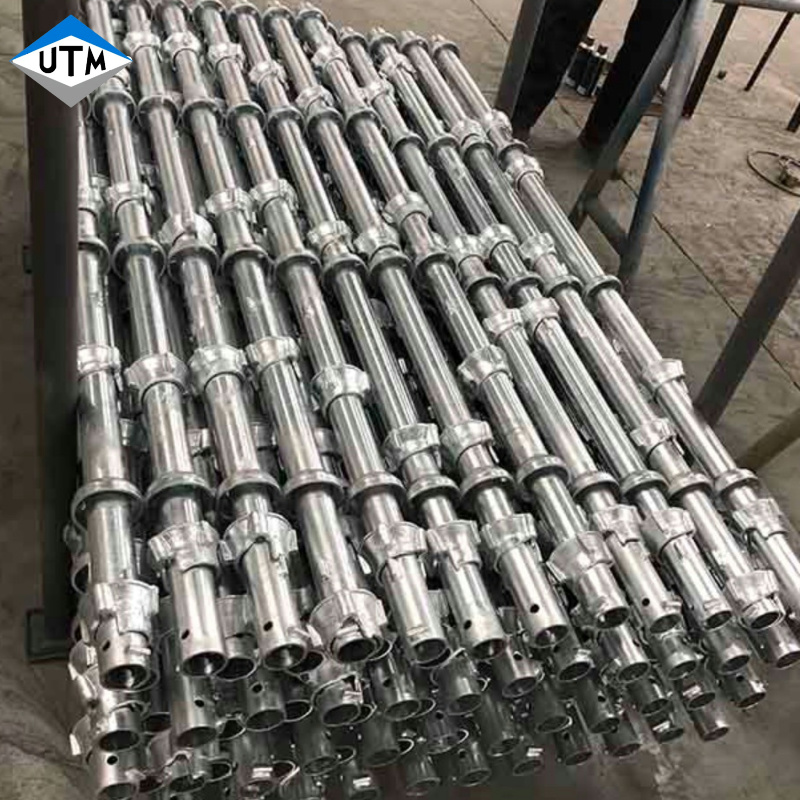

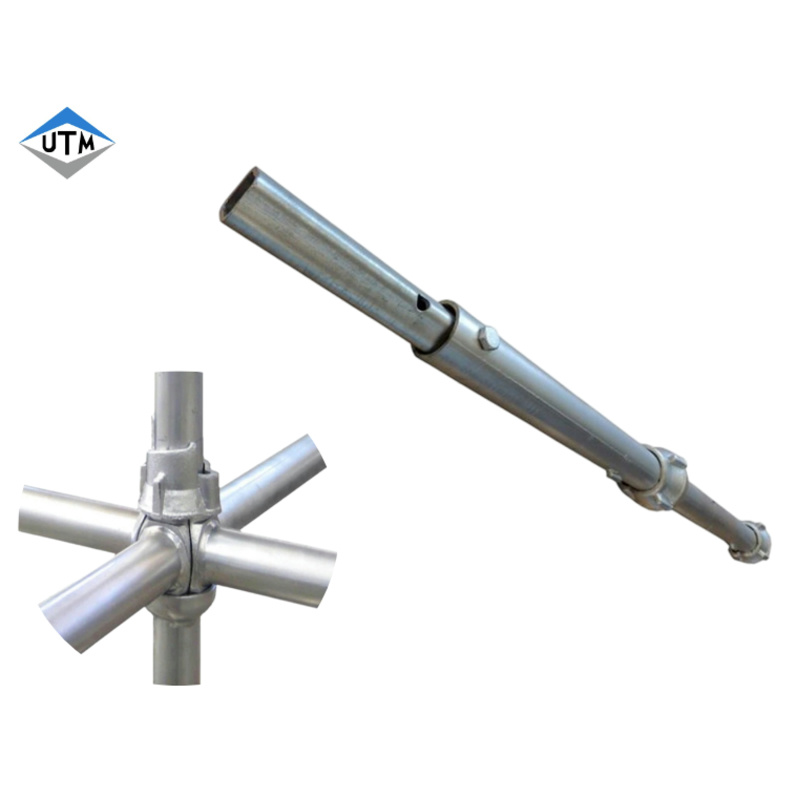

Cuplock Scaffolding Standard

Code	Name	Length	Surface Treatment	Materil	Band	Standard
UTM-CL-163-500	Cuplock Standard	500mm	galvanized	Q355	UTM	BS1139
UTM-CL-163-1000		1000mm
UTM-CL-163-1500		1500mm
UTM-CL-163-2000		2000mm
UTM-CL-163-2500		2500mm
UTM-CL-163-3000		3000mm

Scaffold Cuplock Standards are manufactured by a fixed bottom cup which is welded at 50mm intervals, with a capative moving top cup that can secure up to four components. The cuplock standard provides vertical support for the entire scaffold cuplock system.

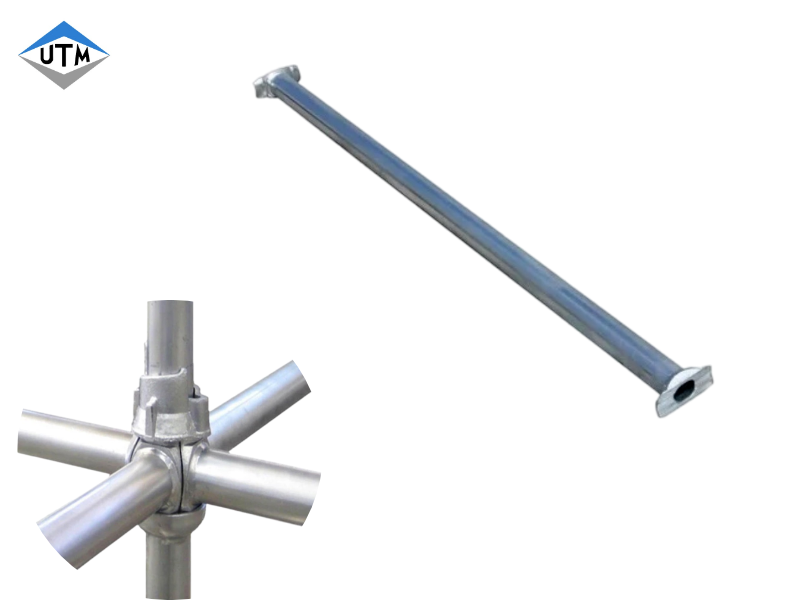

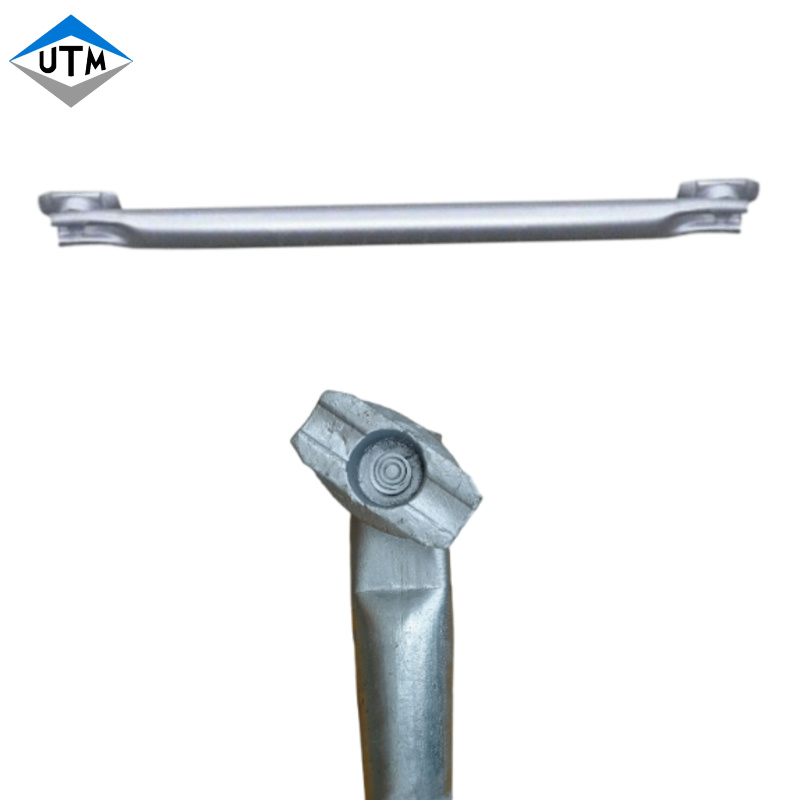

Cuplock Scaffolding Ledger

Code	Name	Length	Surface Treatment	Materil	Band	Standard
UTM-CL-164-560	Cuplock Ledger	560mm	galvanized	Q235	UTM	BS1139
UTM-CL-164-914		914mm
UTM-CL-164-1067		1067mm
UTM-CL-164-1219		1219mm
UTM-CL-164-1524		1524mm
UTM-CL-164-2134		2134mm
UTM-CL-164-2572		2572mm
UTM-CL-164-3048		3048mm

Cuplock ledgers provide horizontal support for these system scaffold structures. The Cuplock ledger has a unique design that allows it to be easily connected to the vertical standards using a cup-shaped socket. Ledgers can also be used as mid rail and top or hand guard rails

Cuplock Scaffolding Bay Brace

Code	Name	Length	Surface Treatment	Materil	Band	Standard
UTM-CL-165-1.219*1.5	Cuplock Brace	1219*1500mm	galvanized	Q235	UTM	BS1139
UTM-CL-165-1.219*2		1219*2000mm
UTM-CL-165-2.57*1.5		2572*1500mm
UTM-CL-165-2.57*2		2572*2000mm
UTM-CL-165-3.05*2		3048*2000mm
UTM-CL-165-3.05*2.5		3048*2500mm

Cuplock vertical bay braces are designed to provide lateral support for scaffolding constructs. They can also be used as handrails on stair towers and guardrails for extra safety on scaffold platforms.

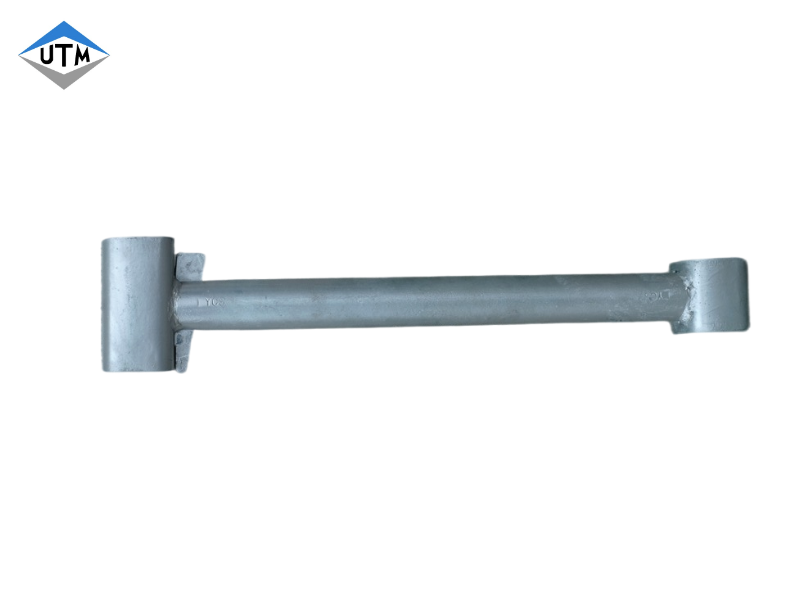

Cuplock Scaffolding Intermidiate Transom

Code	Name	Length	Surface Treatment	Materil	Band	Standard
UTM-CL-166-560	Cuplock Intermidiate Transom	560mm	galvanized	Q235	UTM	BS1139
UTM-CL-166-914		914mm
UTM-CL-166-1067		1067mm
UTM-CL-166-1219		1219mm
UTM-CL-166-1524		1524mm
UTM-CL-166-2134		2134mm
UTM-CL-166-2572		2572mm
UTM-CL-166-3048		3048mm

Cuplock Intermediate Transom is designed to provide a safe mid-bay support for scaffold boards,create a transom at the deck level anywhere inside of the bay by straddling the outer ledgers/transoms of the bay.

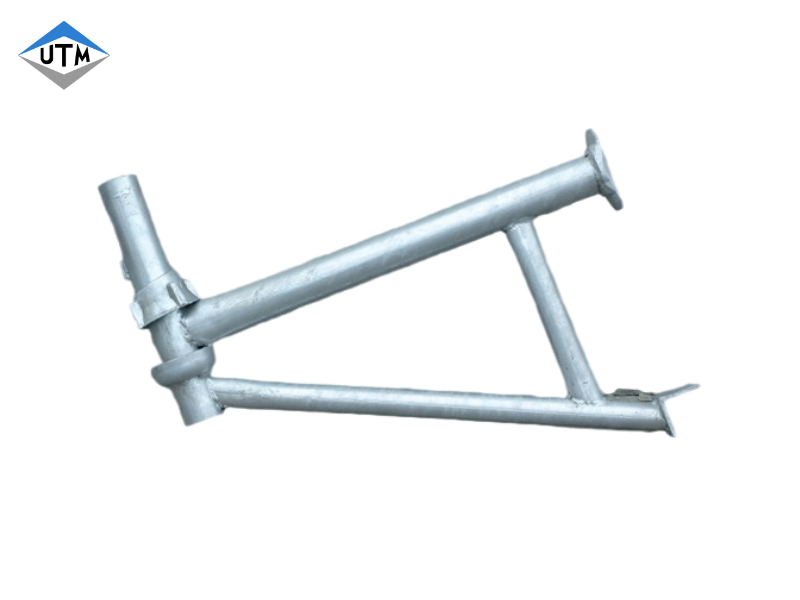

Cuplock Scaffolding Side Bracket

Code	Name	Length	Surface Treatment	Materil	Band	Standard
UTM-CL-179-1B	Cuplock Side Bracket	1 BOARD	galvanized	Q235	UTM	BS1139
UTM-CL-179-2B		2 BOARD
UTM-CL-179-3B		3 BOARD

Cuplock side brackets form a stabilized triangle with connection portion of rosette design. Adds adjustable work height & space to scaffolding.

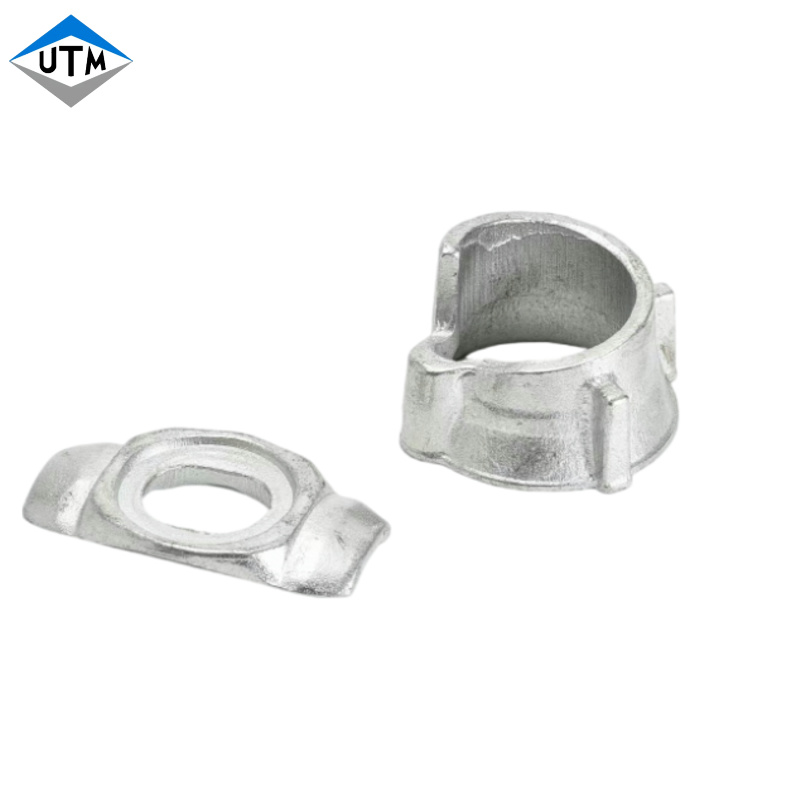

Cuplock Top Cup / Blade
The Cuplock Scaffolding Top Cup is a fundamental component in the construction field. It plays a crucial role in securely connecting vertical standards and horizontal ledgers in cuplock scaffolding systems.
The cuplock blades are welded ends of cuplock scaffolding ledger,which can be inserted in the top cups of the cuplock standard.

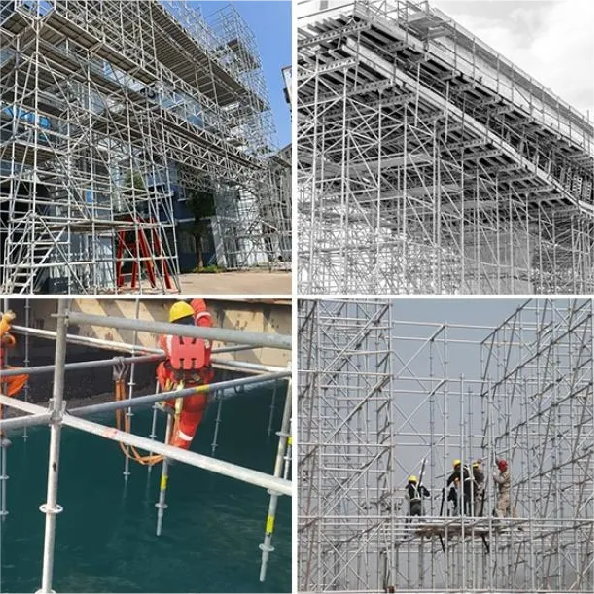

The application scenarios of cuplock scaffolding system

Used in making advertising, painting ceiling, building construction, cleaning, repairing, suspending scaffolding, cantilever rack, bridging frame, curved frame and stage rack.
