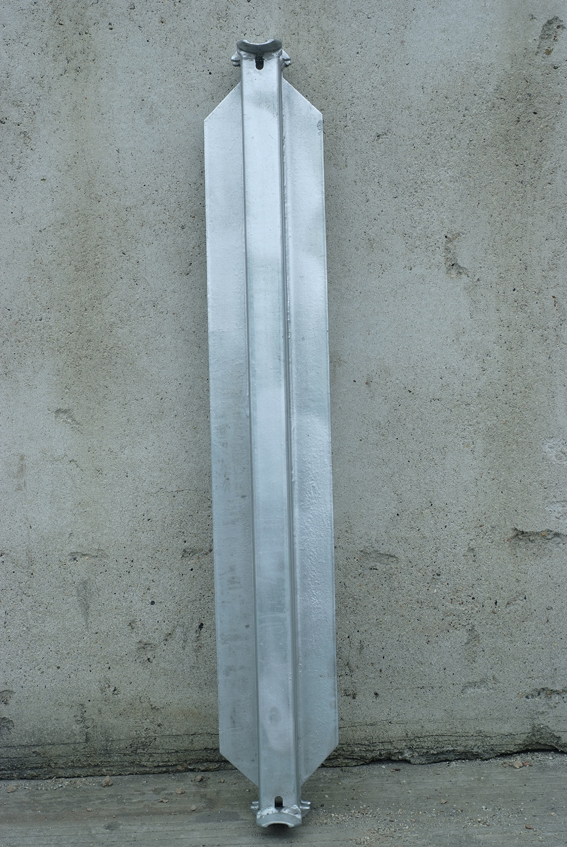

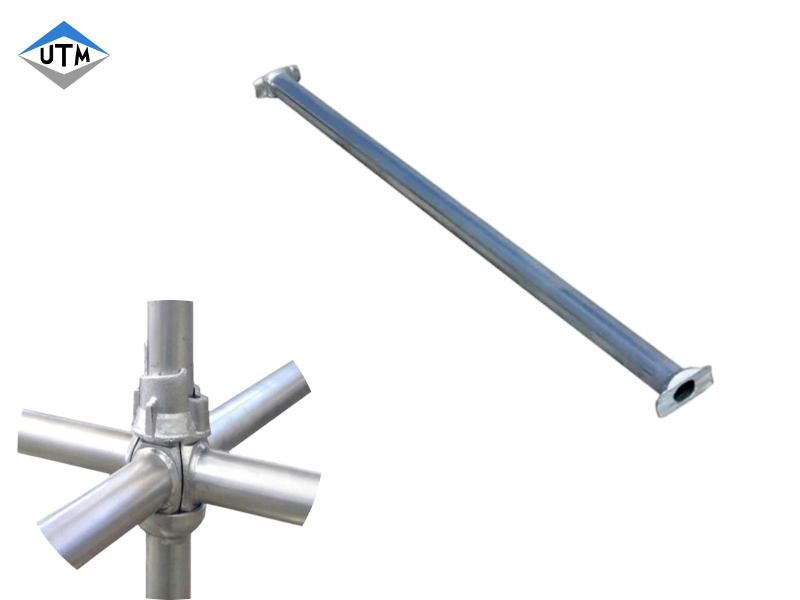

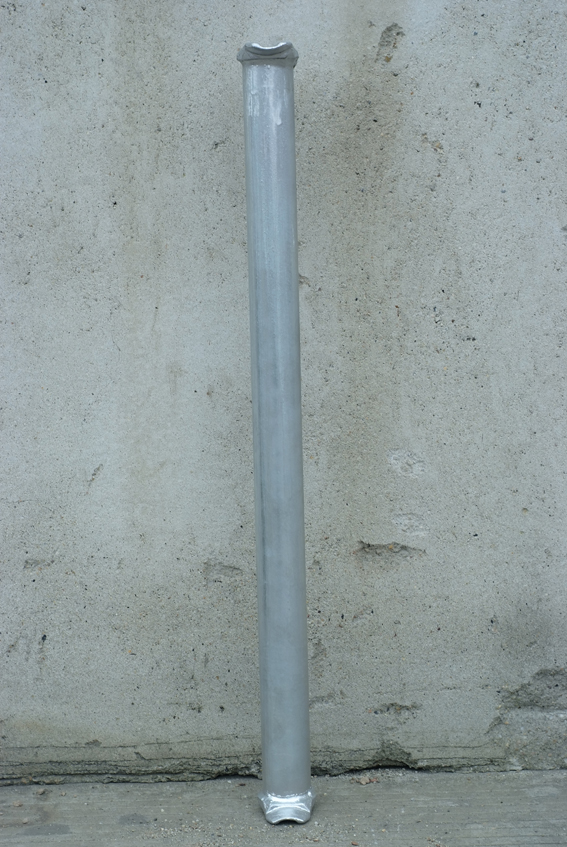

Cuplock Ledger
| Material | Steel Q235 |
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74/BS1139/AS1576 |
| Certificate | CE Certificate / SGS |
| Payment Term | TT L/C |
| code | name | length | Surface Treatment | Materil | band | standard |
| UTM-CL-164-560 | Cuplock Ledger | 560mm | galvanized | Q235 | UTM | BS1139 |
| UTM-CL-164-914 | 914mm | |||||
| UTM-CL-164-1067 | 1067mm | |||||
| UTM-CL-164-1219 | 1219mm | |||||
| UTM-CL-164-1524 | 1524mm | |||||
| UTM-CL-164-2134 | 2134mm | |||||
| UTM-CL-164-2572 | 2572mm | |||||
| UTM-CL-164-3048 | 3048mm |
Cup Lock ledgers provide horizontal support for these system scaffold structures.
The Cuplock ledger has a unique design that allows it to be easily connected to the vertical standards using a cup-shaped socket.
Ledgers can also be used as mid rail and top or hand guard rails
Cuplock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on.

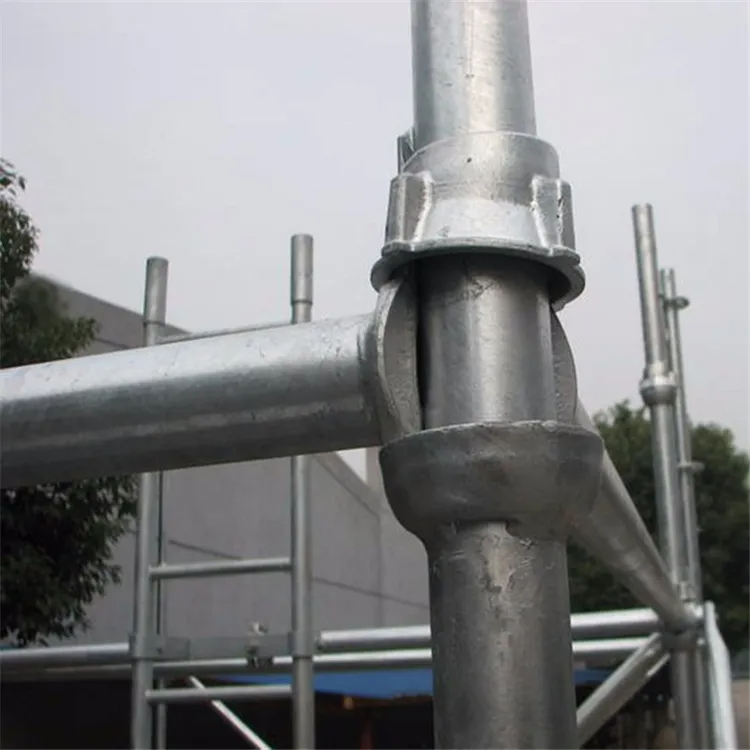

Cuplock node is revolutionary, so makes it faster and easier erection than any other scaffolding. It uses the "Cup"
and "Blade" to lock the vertical and horizontal together by rotating the top cup.
On the standard each top cup has a limited position pin. This small part determines whether the ledger can be locked tightly. It must be at right place, not too up or too down.
