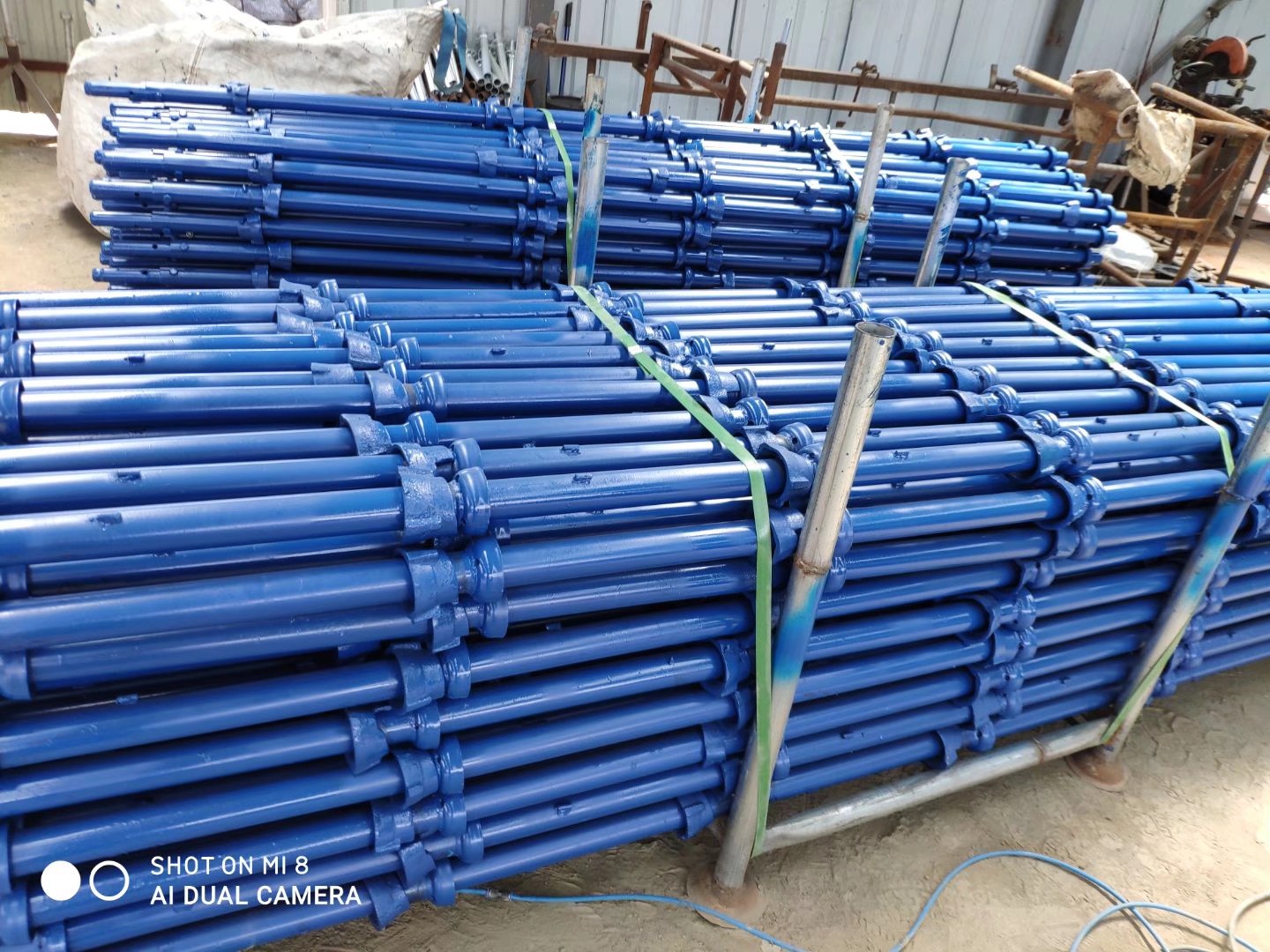

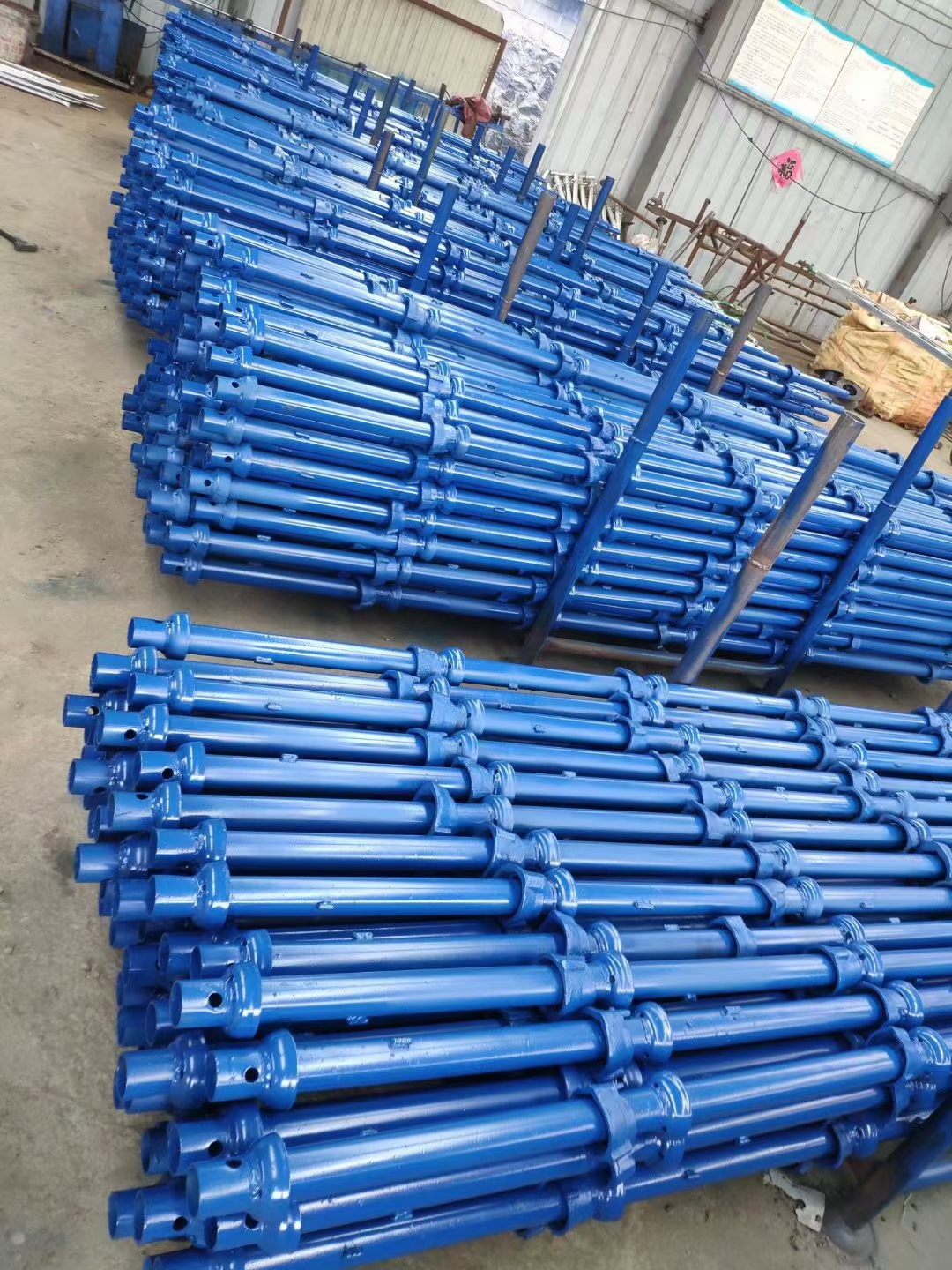

Cuplock Standard
| Material | Steel Q355 |
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74/BS1139/AS1576 |
| Certificate | CE Certificate / SGS |
| Payment Term | TT L/C |
| code | name | length | Surface Treatment | Materil | band | standard |
| UTM-CL-163-500 | Cuplock Standard | 500mm | galvanized | Q355 | UTM | BS1139 |
| UTM-CL-163-1000 | 1000mm | |||||
| UTM-CL-163-1500 | 1500mm | |||||
| UTM-CL-163-2000 | 2000mm | |||||
| UTM-CL-163-2500 | 2500mm | |||||
| UTM-CL-163-3000 | 3000mm |

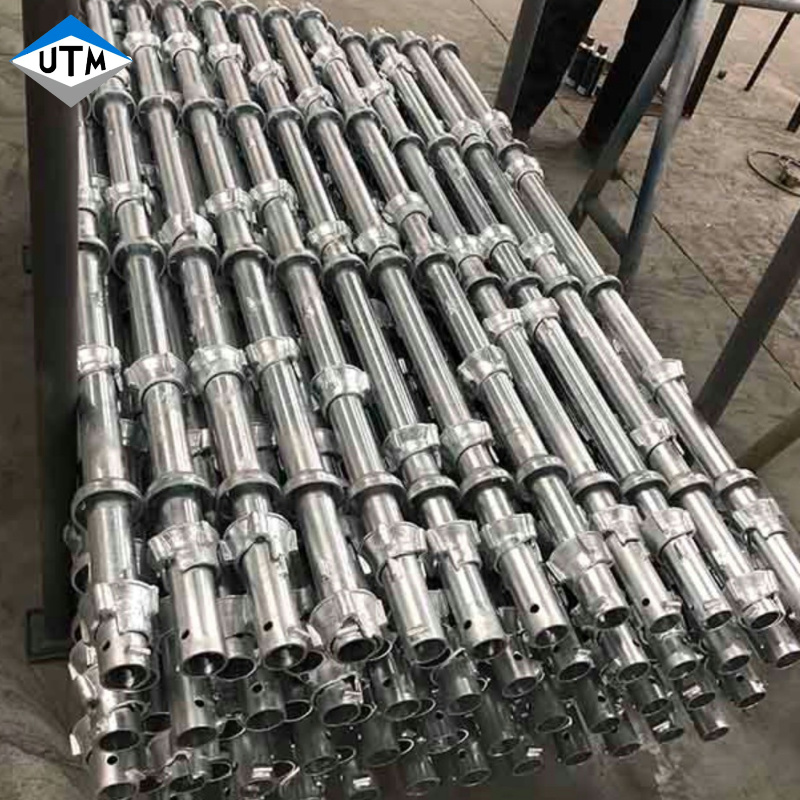

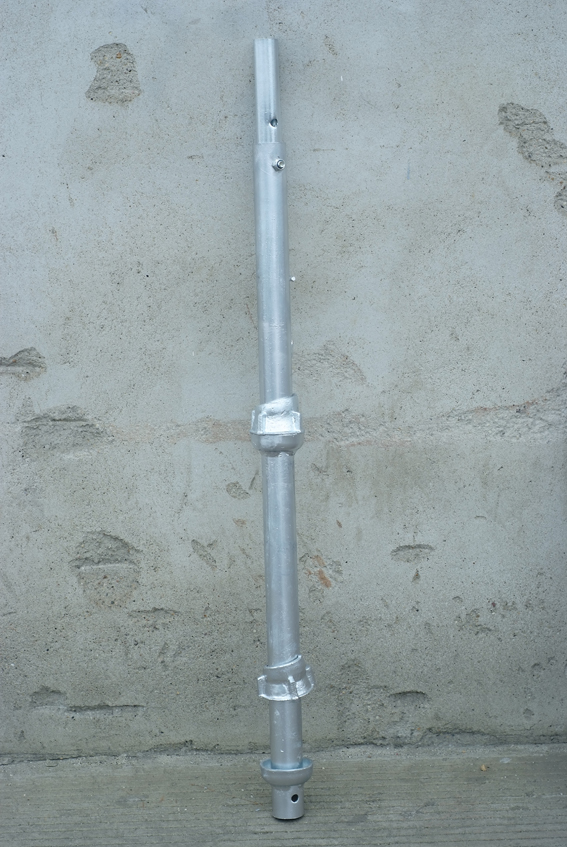

Scaffold Cuplock Standards are manufactured by a fixed bottom cup which is welded at 50mm intervals, with a capative moving top cup that can secure up to four components.
The cuplock standard provides vertical support for the entire scaffold cuplock system.

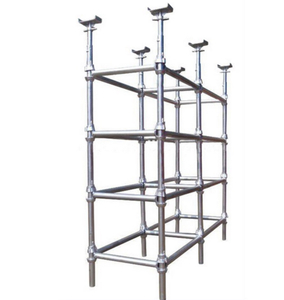

Cuplock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on.

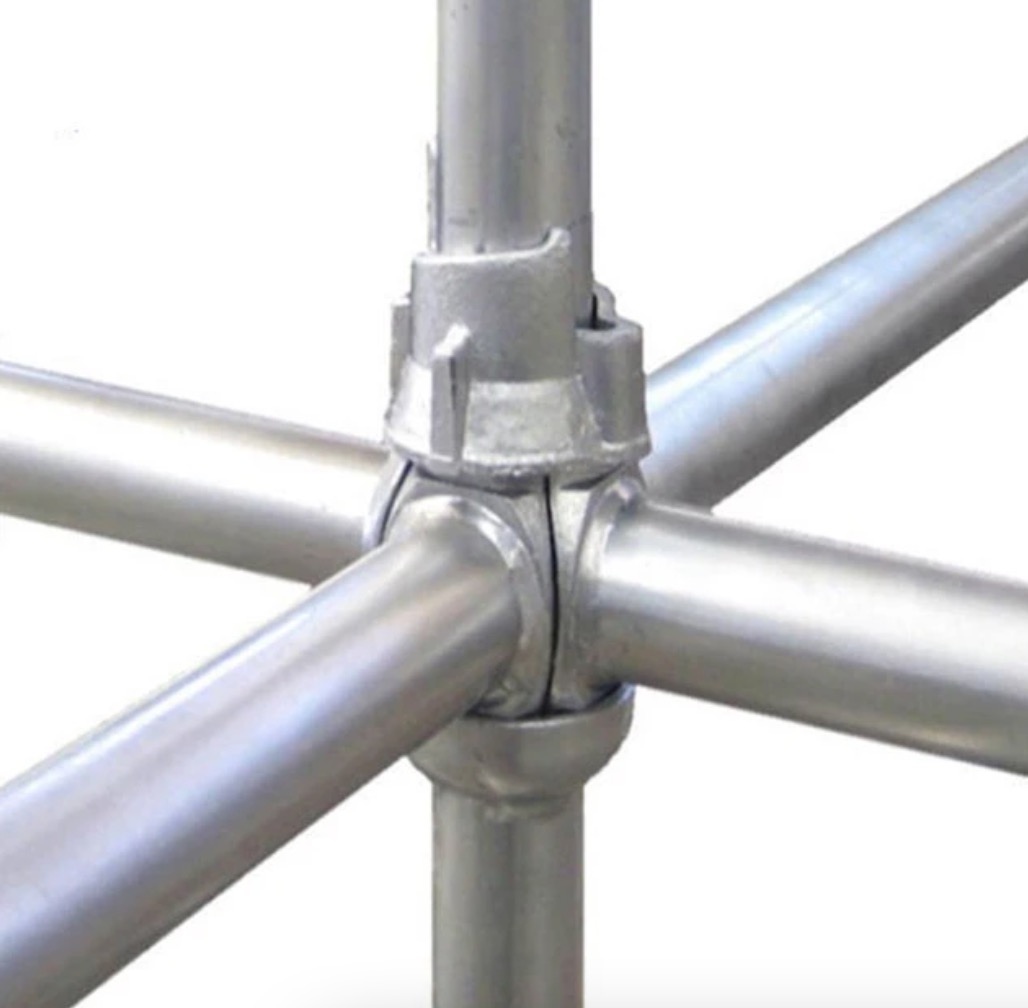

Cuplock node is revolutionary, so makes it faster and easier erection than any other scaffolding. It uses the "Cup"
and "Blade" to lock the vertical and horizontal together by rotating the top cup.

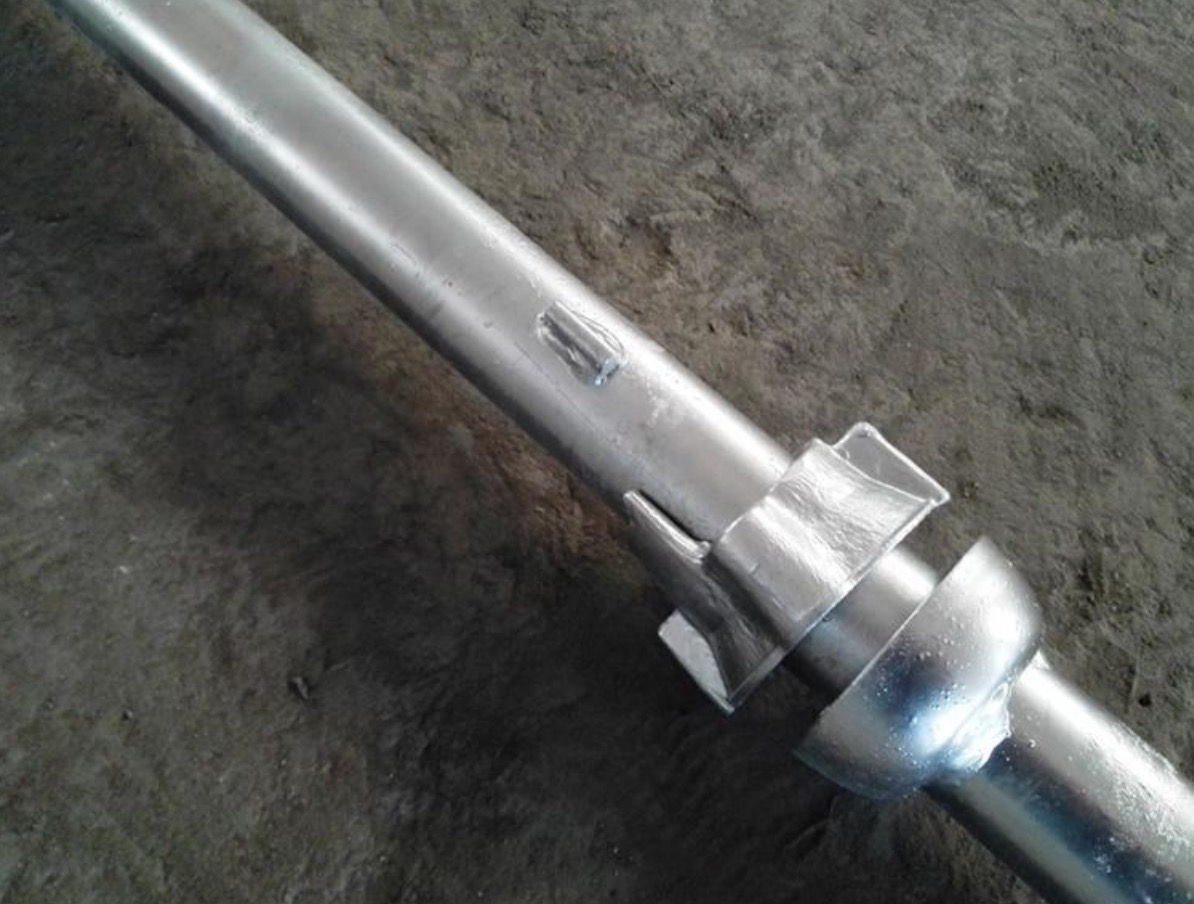

On the standard each top cup has a limited position pin. This small part determines whether the ledger can be locked tightly. It must be at right place, not too up or too down.
| Cuplock Features | Details |
| Easy to Stand | No nut and bolt or wedge, just lock the blade into cup at each node on the standard. |
| Sample | Fast and simple to erect with only four component fastenings. |
| Light Weight | Manufactured using 3.2mm thickness high grade steel, Cuplock Scaffolding System is 20% lighter than standard 4mm thickness scaffolding tube. |
| Economical | Cuplock Scaffolding System with only three maincomponents. |
| Fast | 30%-50% faster than traditional scaffolding. |
| Durable | Hot-Dip-Galvanized provides a low maintenance, long life. |
| Versatile | With 500mm cup intervals on the verticals, Cuplock Scaffolding System is extremely versatile Facade, Shoring Structures, Circular, Birdcages, Staircases, Mobile Towers and etc. |
| Flexible | 0.6m to 3.0m bays using boards or battens. |
