Cuplock Scaffolding System Load Calculation: A Comprehensive Guide for Safety & Compliance

The cuplock scaffolding system is a modular, high-strength structure widely used in construction, renovation, and maintenance projects due to its quick assembly, versatility, and robustness. However, ensuring its safety and structural integrity hinges on accurate load calculation—a critical step that prevents overloading, structural failure, and potential accidents. This guide breaks down the fundamentals of cuplock scaffolding load calculation, covering key load types, step-by-step calculations, influencing factors, and compliance with global safety standards.

Understanding the Basics of Cuplock Scaffolding Loads

Before diving into calculations, it’s essential to grasp the core principle: a cuplock scaffolding system must safely support three primary categories of loads. These loads are distributed across vertical standards (uprights), horizontal ledgers, transoms, and bracing, with each component designed to bear specific stress limits. All calculations must adhere to a minimum safety factor of 4:1—meaning the system’s ultimate load capacity must be at least four times the maximum intended load—as specified by OSHA, ANSI, and CSA guidelines.

1. Dead Loads (Permanent Loads)

Dead loads are the constant, fixed weights of the scaffolding system itself and any permanent attachments. These loads are predictable and must be accounted for in every calculation. Key components include:

  • Vertical standards (cuplock uprights): Typically made of galvanized steel with an outer diameter of 48.3mm and wall thickness of 3.0–4.0mm, their weight ranges from 3.53kg (0.5m length) to 17.34kg (3.0m length).

  • Horizontal ledgers and transoms: Forged steel components that connect standards, with ledgers distributing loads evenly across the system. A 1.5m ledger has an ultimate load capacity of 11kN, translating to a safe working load of 3.67kN with a 3:1 safety factor.

  • Platform decking: Plywood or steel planks (e.g., 18mm Finnish birch plywood) with a typical self-weight of 0.50kN/m².

  • Accessories: Base jacks, adjustable supports, cup joints, and bracing. Each cup joint (including插销) weighs approximately 0.015kN, while adjustable bases and supports have a minimum compressive capacity of 100kN each.

2. Live Loads (Variable Loads)

Live loads are temporary weights imposed on the scaffold during use, varying based on the project phase and activities. These are the most dynamic and critical loads to calculate, as they often determine the system’s maximum capacity. Common live loads include:

  • Worker weight: Typically assumed as 1.0kN per worker (including tools carried).

  • Construction materials: Materials stored on the platform (e.g., concrete, bricks, tools), with typical loads ranging from 1.50kN/m² to 2.0kN/m² depending on the project type.

  • Equipment: Temporary machinery (e.g., small concrete mixers, power tools) placed on the scaffold, which must be factored as point loads or distributed loads.

3. Environmental Loads (External Loads)

Often overlooked, environmental loads can significantly impact scaffold stability, especially for outdoor or high-rise projects. Key considerations include:

  • Wind load: Calculated based on wind speed, scaffold height, and exposure (e.g., open terrain vs. urban areas). For example, a scaffold at 54.6m height in an area with a basic wind pressure of 0.45kN/m² can experience a wind load of approximately 0.98kN/m².

  • Rain or snow: Accumulated water or snow adds additional weight—rainwater can add 0.10–0.20kN/m², while snow loads vary by region.

Step-by-Step Cuplock Scaffolding Load Calculation

The goal of load calculation is to determine the total load per vertical standard (the primary load-bearing component) and ensure it does not exceed the standard’s safe working load. Below is a practical, step-by-step process with a real-world example.

Step 1: Define Scaffold Configuration

Start by documenting the scaffold’s key dimensions, as these directly impact load distribution. A common configuration is:

  • Vertical standard spacing: 1.8m (longitudinal) × 1.3m (transverse) [common grid for slab falsework].

  • Step height (distance between horizontal ledgers): 1.8m.

  • Platform decking: 18mm plywood, covering the entire grid area.

Step 2: Calculate Dead Load per Standard

First, determine the area each vertical standard supports: 1.8m (longitudinal) × 1.3m (transverse) = 2.34m². Then calculate the total dead load for this area:

  • Platform decking: 0.50kN/m² × 2.34m² = 1.17kN.

  • Horizontal ledgers/transoms: Assume 0.117kN per step (for 1.5m ledgers), totaling 0.117kN for one step.

  • Vertical standard: 1.8m standard weighs 11.05kg, converted to 0.108kN (11.05kg × 9.8m/s⊃2; ÷ 1000).

  • Accessories: 2 nodes per step × 0.015kN/node = 0.03kN.

  • Total dead load (DL) = 1.17 + 0.117 + 0.108 + 0.03 = 1.425kN.

Step 3: Calculate Live Load per Standard

Assume a construction live load of 1.50kN/m² (common for slab work) and a maximum of 2 workers (2.0kN total) on the 2.34m² area:

  • Distributed live load: 1.50kN/m² × 2.34m² = 3.51kN.

  • Worker load: 2.0kN.

  • Total live load (LL) = 3.51 + 2.0 = 5.51kN.

Step 4: Calculate Environmental Load (Wind Load)

For a scaffold height of 10m, basic wind pressure (w₀) = 0.45kN/m², wind pressure height coefficient (μ_z) = 1.0, and wind load shape coefficient (μ_s) = 1.3:

  • Wind load standard value (w_k) = w₀ × μ_z × μ_s = 0.45 × 1.0 × 1.3 = 0.585kN/m².

  • Wind load on one standard: 0.585kN/m² × 1.8m (step height) × 1.3m (transverse spacing) = 1.36kN.

  • Total environmental load (EL) = 1.36kN.

Step 5: Total Load & Safety Check

Total load per standard = DL + LL + EL = 1.425 + 5.51 + 1.36 = 8.295kN.

Next, verify this load against the standard’s safe working load. A 1.8m cuplock standard has an ultimate load capacity of 153.47kN, with a 3:1 safety factor, resulting in a safe working load of 51.16kN. Since 8.295kN < 51.16kN, the scaffold is safe for the intended use.

Key Factors Influencing Load Capacity

Several factors can reduce or enhance the cuplock scaffolding’s load-bearing capacity, and they must be considered during calculations:

  1. Component Quality: High-grade steel (e.g., S355 steel) and hot-dip galvanization ensure higher load capacity. For example, fixed bottom cups made from 5mm steel plates can better distribute ledger loads.

  2. Scaffold Height: Taller scaffolds require additional bracing (every 2 bays in both directions) to maintain stability. A standard with 1.5m ledger spacing and proper bracing can safely bear 35kN per standard.

  3. Base Conditions: Adjustable base jacks have varying load capacities based on height—at 1100mm height, a base jack has a safe load of 57.67kN, while at 400mm, it increases to 35.33kN.

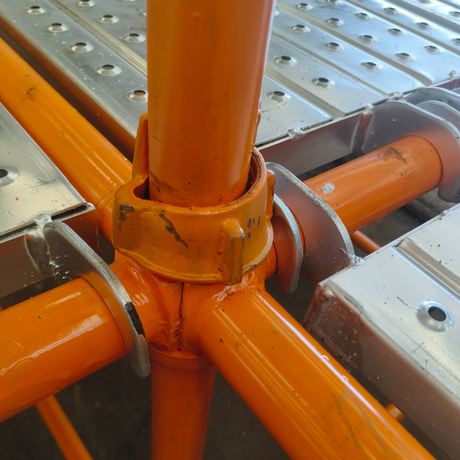

  4. Joint Integrity: Cup joints must be properly locked to ensure load transfer. The upper cup’s tensile capacity must be at least 30kN, and lower cup’s shear capacity at least 60kN.

Compliance with Global Safety Standards

Accurate load calculation is not just a best practice—it’s a legal requirement. Key standards governing cuplock scaffolding load calculations include:

  • OSHA (U.S.): Mandates a 4:1 safety factor and requires trained personnel to oversee erection and load calculations.

  • EN 12811 (Europe): Specifies design, testing, and load capacity requirements for scaffolding components, including a 3:1 safety factor for most components.

  • JGJ/T 231-2021 (China): Provides detailed load calculation formulas and load取值 for cuplock scaffolding, including wind load adjustments and立杆 stability checks.

Common Mistakes to Avoid

Even small errors in load calculation can lead to catastrophic failures. Avoid these common pitfalls:

  • Underestimating live loads: Failing to account for peak material storage or multiple workers on the same platform.

  • Ignoring environmental loads: Wind load is critical for outdoor scaffolding—omitting it can lead to instability in high winds.

  • Overlooking component wear: Damaged or corroded standards, ledgers, or cups reduce load capacity significantly.

  • Incorrect spacing: Widening standard or ledger spacing beyond recommended limits (e.g., exceeding 1.8m × 1.3m) reduces load distribution efficiency.

Conclusion

Cuplock scaffolding load calculation is a cornerstone of construction safety, ensuring the system can safely support all intended loads while complying with global standards. By understanding the three primary load types, following a systematic calculation process, and accounting for key influencing factors, you can prevent overloading and protect workers, equipment, and the project itself. Always consult a qualified structural engineer for complex or high-rise scaffolding setups, and never compromise on component quality or safety factors.

Whether you’re a construction manager, site supervisor, or safety professional, mastering cuplock scaffolding load calculation is essential for delivering projects safely, efficiently, and in compliance with industry regulations.
