How To Calculate Cuplock Scaffolding

Cuplock scaffolding calculation usually means estimating the quantity of standards, ledgers, transoms, planks, braces, base jacks, and accessories required for a project. It is mainly a material quantity calculation, not a structural load calculation. A proper cuplock scaffolding estimate should be based on scaffold length, height, platform width, bay arrangement, working levels, and site conditions, so buyers can reduce shortages, over-ordering, shipment issues, and installation delays before procurement.

Key Takeaways

●  Cuplock scaffolding calculation estimates standards, ledgers, transoms, planks, braces, jacks, and accessories.

●  Cuplock scaffolding material quantity is different from cuplock scaffolding load calculation.

●  Main dimensions include scaffold length, height, bay length, platform width, and working levels.

●  Official product dimensions include 48.3mm standards, 3.2mm / 4.0mm tube options, and 225mm × 38mm steel planks.

●  Complex cuplock scaffolding projects should be checked with drawings before final ordering.

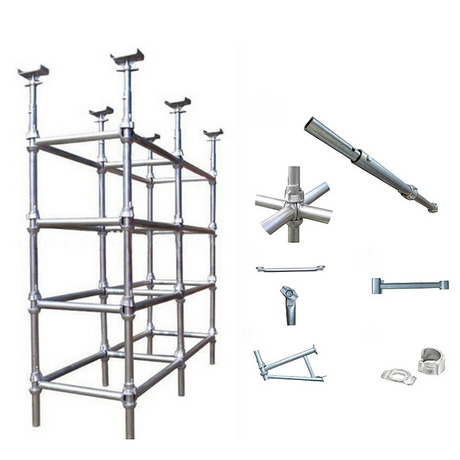

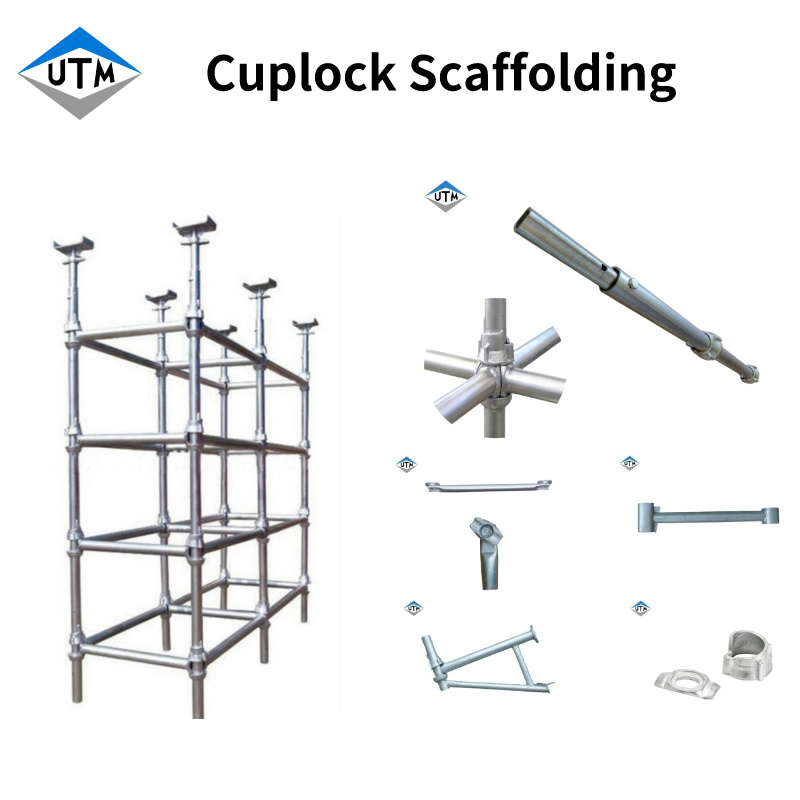

Key Components of Cuplock Scaffolding

Standards and Ledgers

Standards are the vertical members of cuplock scaffolding and carry loads down to the base. On the company website, cuplock scaffolding standards are shown with a 48.3mm diameter and available system tube thickness options of 3.2mm and 4.0mm. Standard lengths listed on the website include 500mm, 1000mm, 1500mm, 2000mm, 2500mm, and 3000mm, so the number of standards should be calculated according to vertical positions and height modules.

Ledgers are the horizontal members that connect standards and form scaffold bays. In cuplock scaffolding, ledgers define the scaffold length direction and keep standards aligned. The ledger quantity depends on the number of bays, the number of ledger levels, and whether the scaffold has one row or two rows.

Transoms, Planks, and Base Jacks

Transoms support the working platform and connect the width direction of the cuplock scaffolding bay. Omega transoms are listed as cuplock scaffolding system parts and are used to support scaffold planks and walking boards. In calculation, transoms should be counted according to bay quantity, working levels, and platform support requirements.

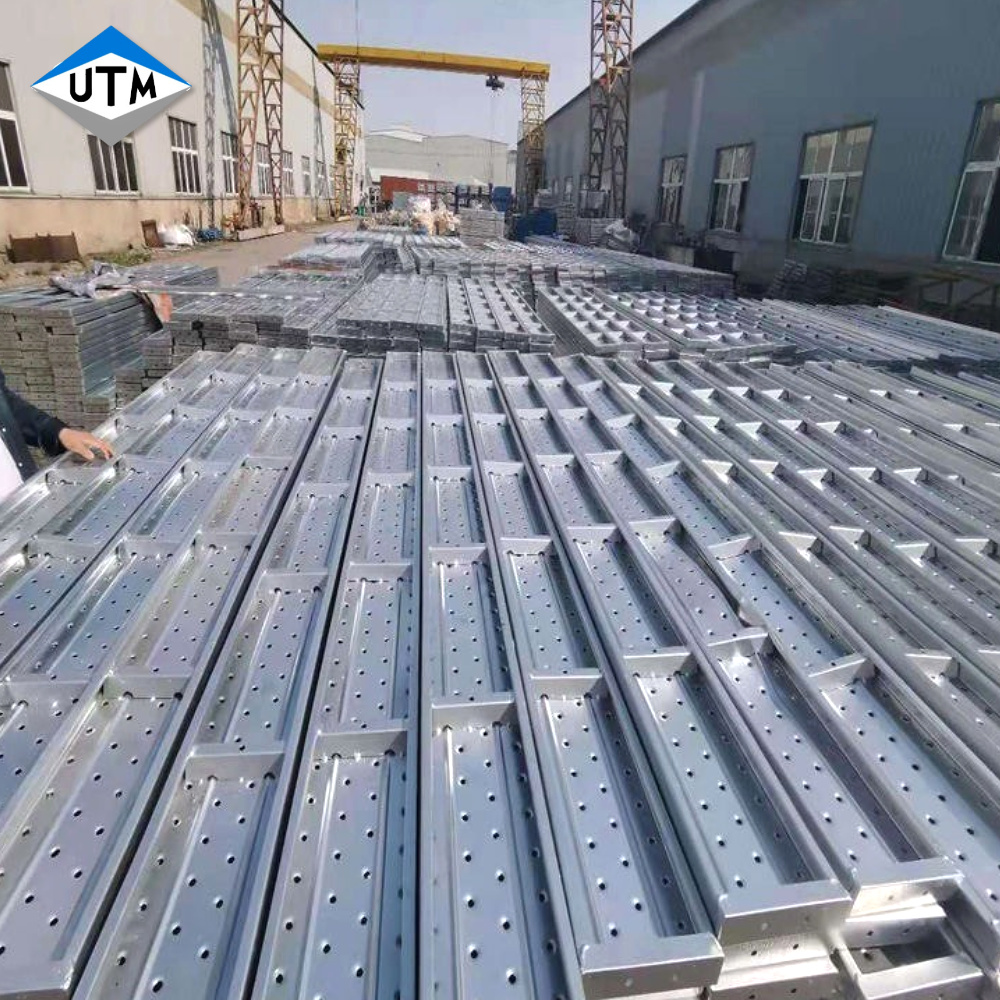

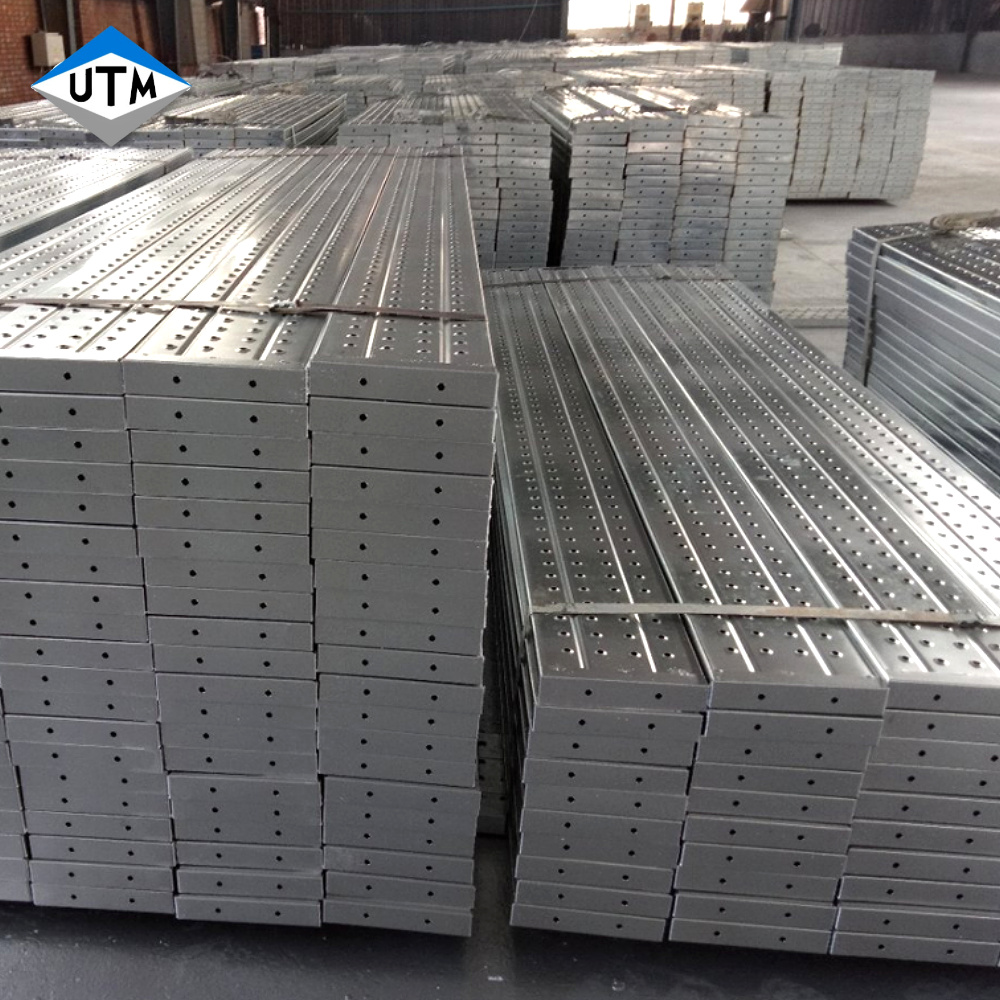

Steel planks form the walking surface of cuplock scaffolding. The company website lists galvanized steel plank dimensions of 225mm width and 38mm height, with lengths of 1M, 2M, 3M, and 4M. Base jacks are used to level cuplock scaffolding on uneven ground, and listed base jack lengths include 300mm, 400mm, and 600mm.

Component Reference Chart

Factors Affecting Cuplock Scaffolding Calculations

Scaffold Length, Height, and Width

The first factor in cuplock scaffolding calculation is the overall size of the working area. Scaffold length determines the number of bays, scaffold height determines the number of vertical levels, and scaffold width affects transoms and planks. If the structure length is not divisible by the selected bay length, the calculation should be rounded up to the next full bay.

Height should be planned according to available standard lengths and lift arrangement. For example, a 2000mm vertical module can be used when the scaffold height is planned in 2.0m levels. Cuplock scaffolding should still be checked against actual site drawings because parapets, corners, façade setbacks, and ground levels can change the final quantity.

Bay Length and Working Levels

Bay length directly affects the number of standards, ledgers, transoms, and planks. A longer bay may reduce the number of standard positions but may require stronger plank support and careful load checking. A shorter bay can increase the quantity of cuplock scaffolding components but may improve platform stiffness and layout flexibility.

Working levels also change the material list. If cuplock scaffolding has only one working platform, fewer planks and transoms are needed. If several platform levels are active at the same time, more planks, transoms, guardrails, toe boards, and access components should be included.

Bracing, Access, and Safety Components

Braces should not be ignored in cuplock scaffolding calculation. A scaffold may appear complete with standards and ledgers, but without proper bracing it can lose lateral stability. Tall cuplock scaffolding, stair towers, loading bays, and shoring structures require careful bracing layout.

Access components also affect quantity. Ladders, guardrails, toe boards, side brackets, and base jacks may be required depending on project conditions. These safety components are part of the cuplock scaffolding system and should be included in the procurement list from the beginning.

Step-by-Step Cuplock Scaffolding Calculation Process

Step 1: Measure the Structure

Start by measuring the required scaffold length, working height, and platform width. The measurement should follow the actual structure because site conditions may include corners, openings, slopes, or access restrictions. A cuplock scaffolding estimate based on inaccurate dimensions may lead to missing parts or unused stock.

Write down the total length in meters and confirm the required working height. If the scaffold must cover several elevations, each elevation should be calculated separately. For cuplock scaffolding used near bridges, industrial plants, or irregular façades, separate zones make the material list more accurate.

Step 2: Define Bay and Lift Dimensions

Select a bay length according to available plank length and scaffold layout. Since the website lists steel plank lengths of 1M, 2M, 3M, and 4M, a 3M bay can be used as a simple example when the site allows it. Lift height can be planned with available standard lengths such as 2000mm, depending on scaffold configuration.

The basic bay formula is simple: number of bays equals total scaffold length divided by selected bay length, rounded up to a whole number. In cuplock scaffolding calculation, rounding down is unsafe because it underestimates material needs. The lift count can be calculated by dividing working height by selected lift height.

Step 3: Calculate Standards

For a double-row façade scaffold, standard positions are usually calculated by bay count plus one, multiplied by two rows. If the scaffold has 10 bays, there are 11 standard lines along the length and 22 standard positions for two rows. The number of cuplock scaffolding standards then depends on the number of vertical levels.

A simplified formula is: standards = standard positions × vertical levels. If the working height is 10m and the selected vertical module is 2000mm, there are 5 vertical levels. The final quantity may change when shorter standards such as 500mm, 1000mm, or 1500mm are needed for height adjustment.

Step 4: Calculate Ledgers

Ledgers are calculated by bay count, level count, and scaffold rows. For a double-row scaffold, longitudinal ledgers are often counted on both inner and outer rows. A simplified formula is: ledgers = bays × ledger levels × 2 sides.

Additional ledgers may be required for guardrails or special working levels. Cuplock scaffolding used for high-rise façades or maintenance platforms may need extra horizontal members for edge protection. The final ledger count should match both the scaffold layout and safety design.

Step 5: Calculate Transoms and Planks

Transoms are usually counted by bay and working level. If each bay requires one main transom per working level, the formula is: transoms = bays × working levels. If extra transoms are needed to support planks, the number should be increased.

Planks are calculated according to bay count, platform width, and plank arrangement. Since the listed cuplock scaffolding steel plank is 225mm wide, a platform requiring about 675mm width may use three planks per bay. A simplified formula is: planks = bays × planks per bay × working levels.

Step 6: Add Braces, Base Jacks, and Spare Quantity

Base jacks should normally match the number of bottom standard positions. If there are 26 bottom standard positions, the initial estimate should include 26 base jacks. The final choice among 300mm, 400mm, and 600mm base jacks depends on actual ground adjustment requirements.

Braces should be calculated based on scaffold length, height, wind exposure, and site design. A simplified estimate may place braces at regular intervals, but final bracing should follow project requirements. Add 5% to 10% spare quantity for cuplock scaffolding components to cover site loss, damage, replacement, and adjustment.

Common Mistakes in Cuplock Scaffolding Calculations

Confusing Material Quantity with Load Capacity

A material list tells how many cuplock scaffolding components are needed, but it does not prove that the scaffold can carry the intended load. Load capacity depends on scaffold height, bracing, ties, platform loading, ground conditions, and component strength. Cuplock scaffolding used for shoring or loading platforms needs separate structural verification.

Some buyers only calculate standards, ledgers, and planks. That approach may ignore the design forces acting on the cuplock scaffolding structure. Material quantity and engineering safety must be treated as related but different tasks.

Forgetting Small Components and Accessories

Small components often cause site delays. Base jacks, top cups, ledger blades, guardrails, toe boards, ladders, pins, and spare parts may not seem large, but they affect assembly and safety. A cuplock scaffolding material list should include structural parts and safety accessories.

Replacement parts are also important for long-term use. The website includes top cup and ledger blade accessories, which indicates that connection parts may be purchased separately. Including spare connection parts in a cuplock scaffolding order can reduce downtime during installation or maintenance.

Safety Considerations and Standards

Check Site Conditions Before Assembly

Cuplock scaffolding should not be calculated only from length and height. Ground bearing capacity, wind exposure, nearby machinery, traffic, lifting operations, and access routes all affect the final layout. A scaffold that fits the drawing may still need adjustment when site conditions are checked.

Base jacks are especially important on uneven ground. The website lists 300mm, 400mm, and 600mm base jack lengths, but the selected size should match actual leveling needs. Excessive adjustment without proper support can reduce cuplock scaffolding stability.

Follow Project Standards and Inspection Requirements

Cuplock scaffolding products on the website are shown with standards such as BS1139 for several listed components. Project specifications may also require local scaffolding codes, inspection procedures, and documentation. Buyers should confirm the required standard before finalizing cuplock scaffolding material quantity and surface treatment.

Inspection should be done before, during, and after assembly. Components with bending, cracks, corrosion, damaged cups, worn blades, or poor welding should be removed from use. Cuplock scaffolding performs properly only when components, layout, and installation quality are controlled together.

When to Ask for a Cuplock Scaffolding Material List

Large or Irregular Projects

A simple straight façade can be estimated with basic formulas, but large or irregular projects need more detailed calculation. Bridges, industrial plants, curved structures, stair towers, and multi-level buildings often require divided zones and drawing-based material take-off. In these cases, cuplock scaffolding quantity should be checked with layout drawings before procurement.

Irregular areas often require additional standards, shorter verticals, side brackets, and special access components. Corners and setbacks can also increase ledger and transom quantities. A drawing-based cuplock scaffolding estimate reduces the risk of missing critical components.

Bulk Procurement and Export Orders

Bulk cuplock scaffolding orders require accurate material lists because packing, container loading, and delivery schedules depend on component quantity. Incorrect estimates can increase freight cost or delay site work. Export buyers should also confirm material grade, surface treatment, standard requirements, and product compatibility before placing an order.

For procurement, the material list should separate standards, ledgers, transoms, planks, braces, jacks, and accessories. Surface treatment options such as hot dip galvanized, powder coated, painted, or zinc plated should also be clearly stated. A complete cuplock scaffolding list makes quotation, packing, inspection, and site receiving more organized.

Conclusion

Final Summary

Cuplock scaffolding calculation starts with measuring the structure, defining bay size, counting standards, adding ledgers, calculating transoms and planks, and then including braces, base jacks, accessories, and spare quantity. The calculation should use actual project dimensions and available product specifications, such as 48.3mm cuplock scaffolding standards, 3.2mm / 4.0mm tube options, 225mm × 38mm steel planks, and 300mm / 400mm / 600mm base jacks. A material quantity estimate should never replace load capacity verification.

Supplier Direction

For projects involving façades, bridges, shoring, loading bays, or industrial maintenance, drawing-based cuplock scaffolding calculation is often more reliable than rough estimation. Nanjing Uni-Tech Metalwork Company Ltd. supplies cuplock scaffolding systems, standards, planks, base jacks, transoms, and related accessories with different material and surface treatment options. Buyers can prepare scaffold length, height, width, working levels, and required finish before requesting a cuplock scaffolding material list.

FAQ

How do you calculate cuplock scaffolding?

Cuplock scaffolding is calculated by measuring scaffold length, height, width, bay length, and working levels. Then standards, ledgers, transoms, planks, base jacks, braces, and accessories are counted according to the layout. The final quantity should be adjusted for site conditions, bracing, access, safety parts, and spare stock.

How do you calculate cuplock scaffolding standards?

First calculate the number of standard positions. For a double-row scaffold, standard positions usually equal the number of bays plus one, multiplied by two rows. Then multiply the positions by the number of vertical levels to estimate cuplock scaffolding standards.

How many planks are needed for cuplock scaffolding?

The number of planks depends on bay count, platform width, plank width, and working levels. The company website lists cuplock scaffold boards with 225mm width and 38mm height, with lengths of 1M, 2M, 3M, and 4M. If a platform uses three planks per bay and has three working levels, planks equal bays multiplied by three and then multiplied by working levels.
