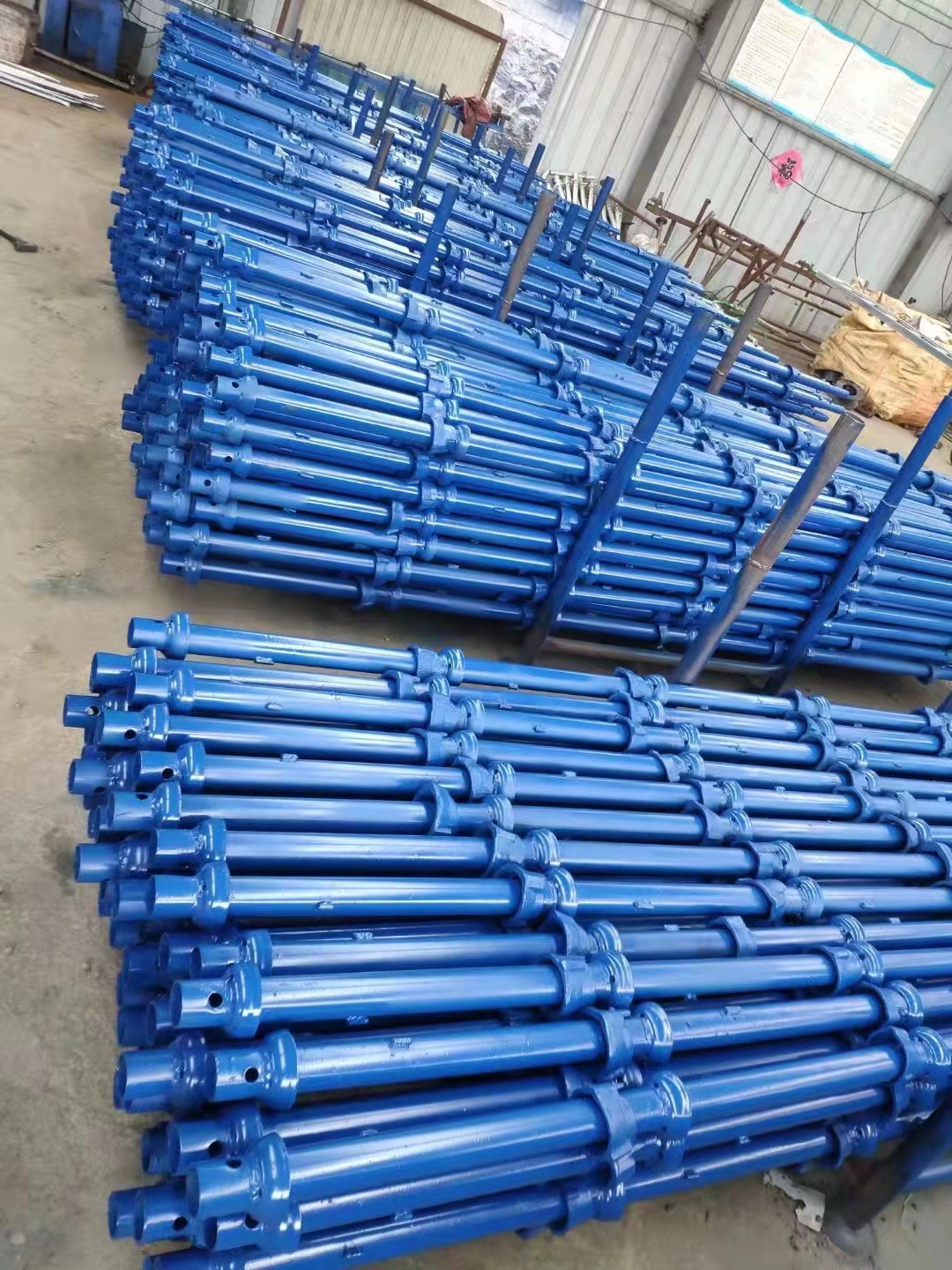

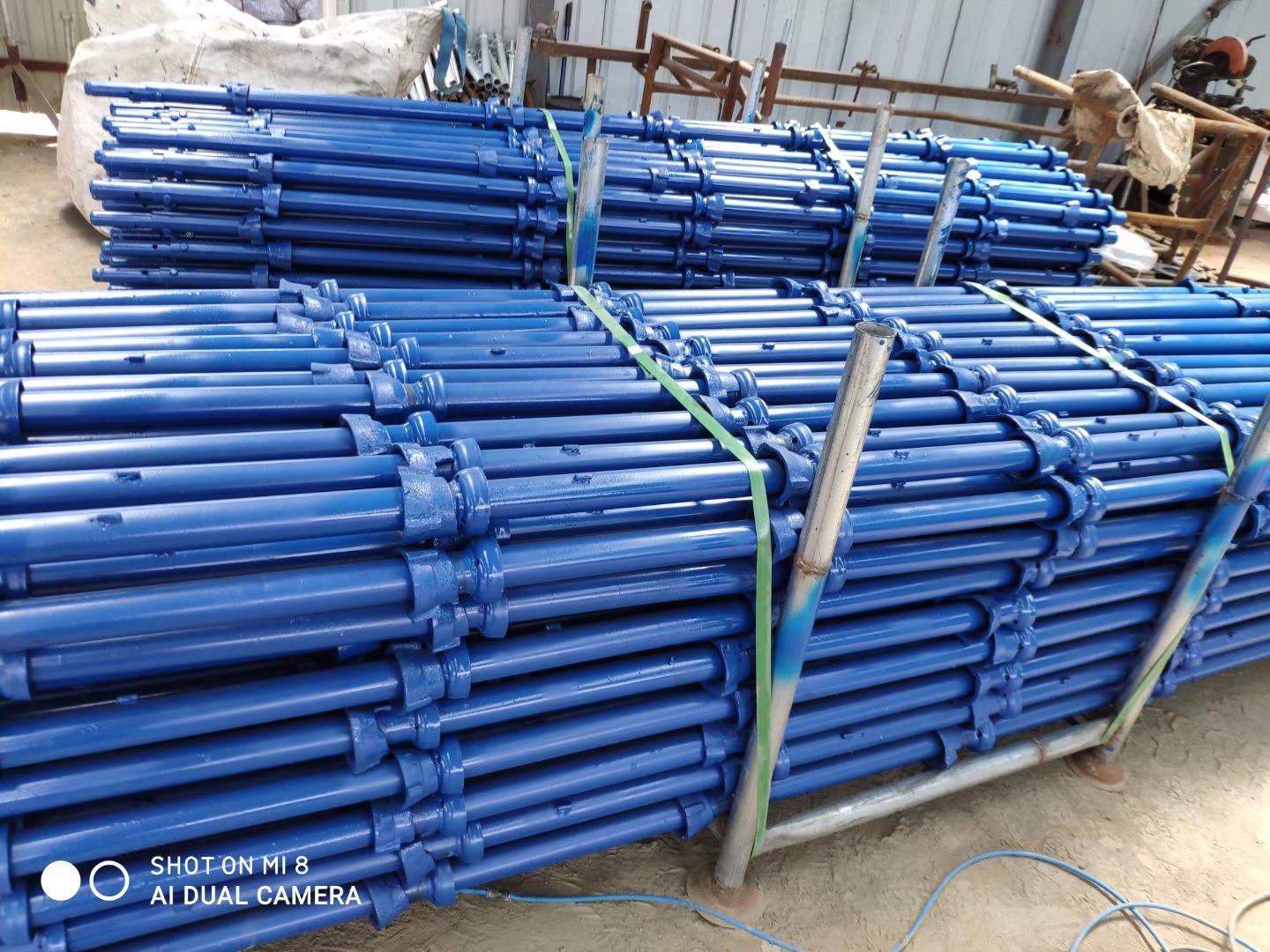

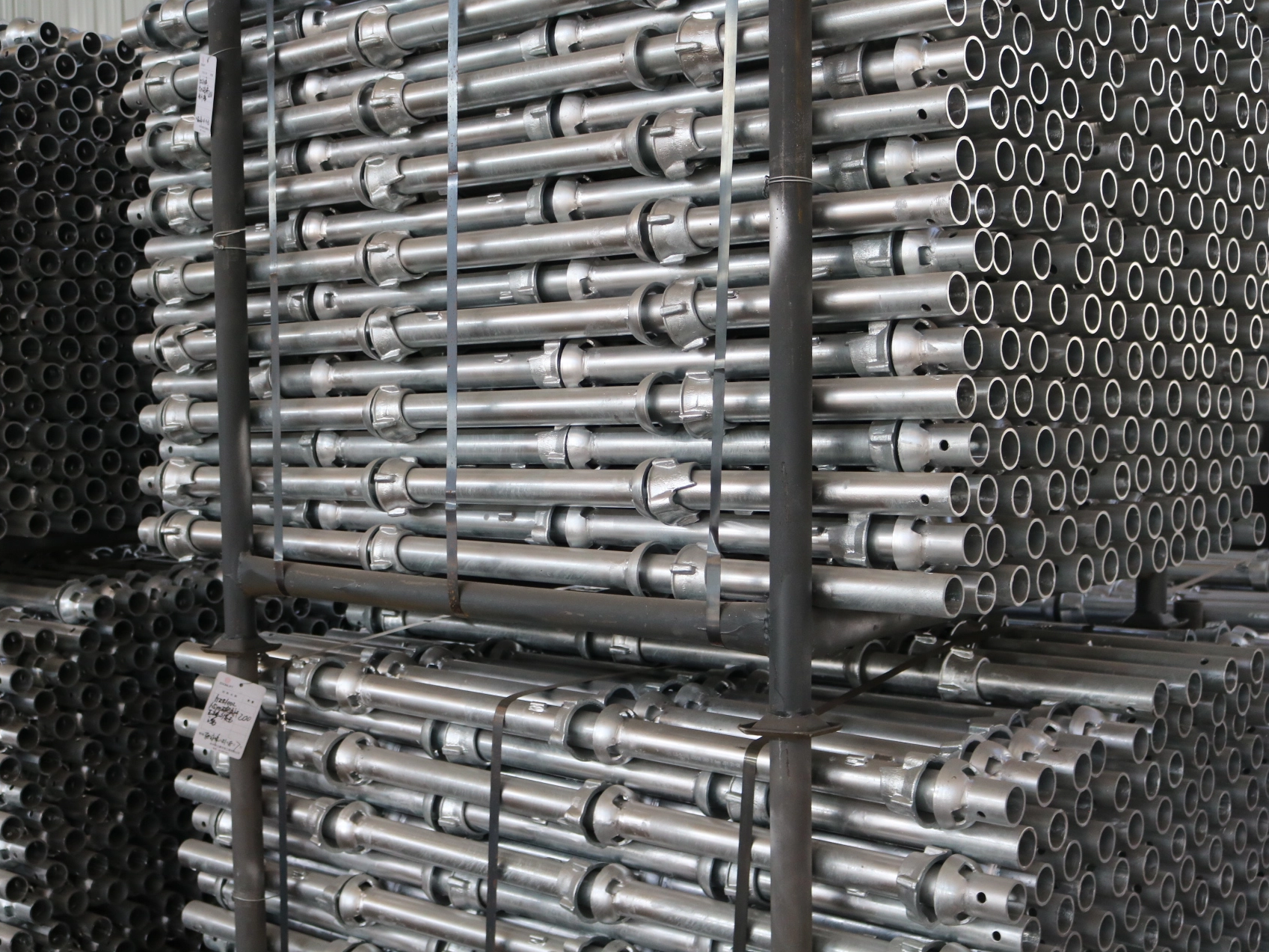

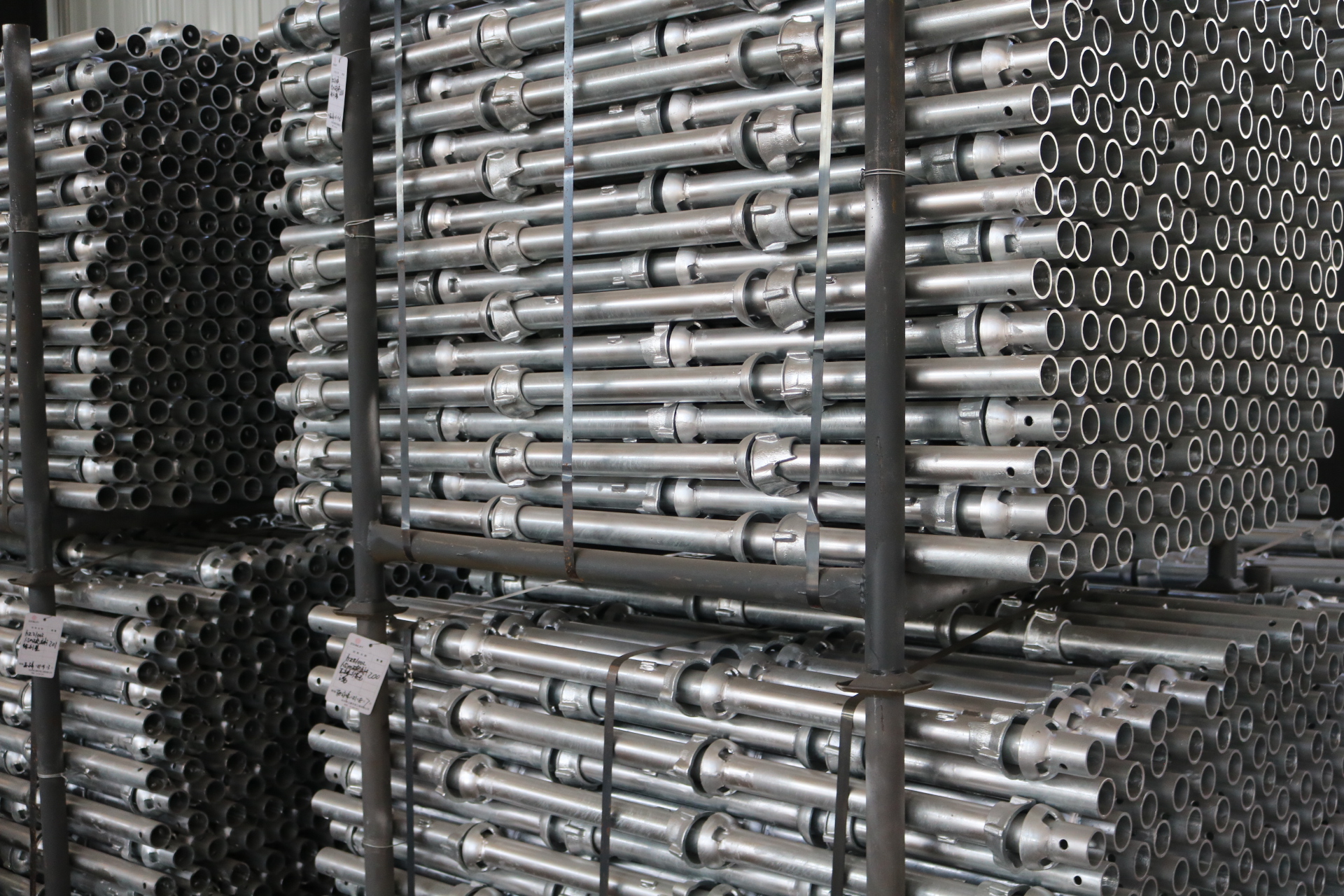

Cuplock Standard
| Material | Steel Q355 |
| Surface Treatment | Hot Dip Galvanized |
| Standard | EN74/BS1139/AS1576 |
| Certificate | CE Certificate / SGS |
| Payment Term | TT L/C |
| code | name | length | Surface Treatment | Materil | band | standard |
| UTM-CL-163-500 | Cuplock Standard | 500mm | galvanized | Q355 | UTM | BS1139 |
| UTM-CL-163-1000 | 1000mm | |||||
| UTM-CL-163-1500 | 1500mm | |||||
| UTM-CL-163-2000 | 2000mm | |||||
| UTM-CL-163-2500 | 2500mm | |||||
| UTM-CL-163-3000 | 3000mm |

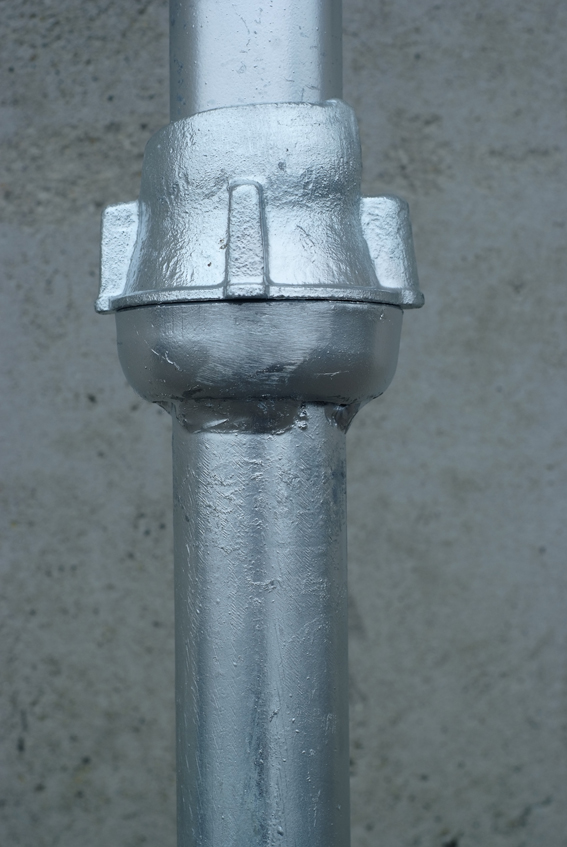

Scaffold Cuplock Standards are manufactured by a fixed bottom cup which is welded at 50mm intervals, with a capative moving top cup that can secure up to four components.
The cuplock standard provides vertical support for the entire scaffold cuplock system.
| Cuplock Features | Details |
| Easy to Stand | No nut and bolt or wedge, just lock the blade into cup at each node on the standard. |
| Sample | Fast and simple to erect with only four component fastenings. |
| Light Weight | Manufactured using 3.2mm thickness high grade steel, Cuplock Scaffolding System is 20% lighter than standard 4mm thickness scaffolding tube. |
| Economical | Cuplock Scaffolding System with only three maincomponents. |
| Fast | 30%-50% faster than traditional scaffolding. |
| Durable | Hot-Dip-Galvanized provides a low maintenance, long life. |
| Versatile | With 500mm cup intervals on the verticals, Cuplock Scaffolding System is extremely versatile Facade, Shoring Structures, Circular, Birdcages, Staircases, Mobile Towers and etc. |
| Flexible | 0.6m to 3.0m bays using boards or battens. |
