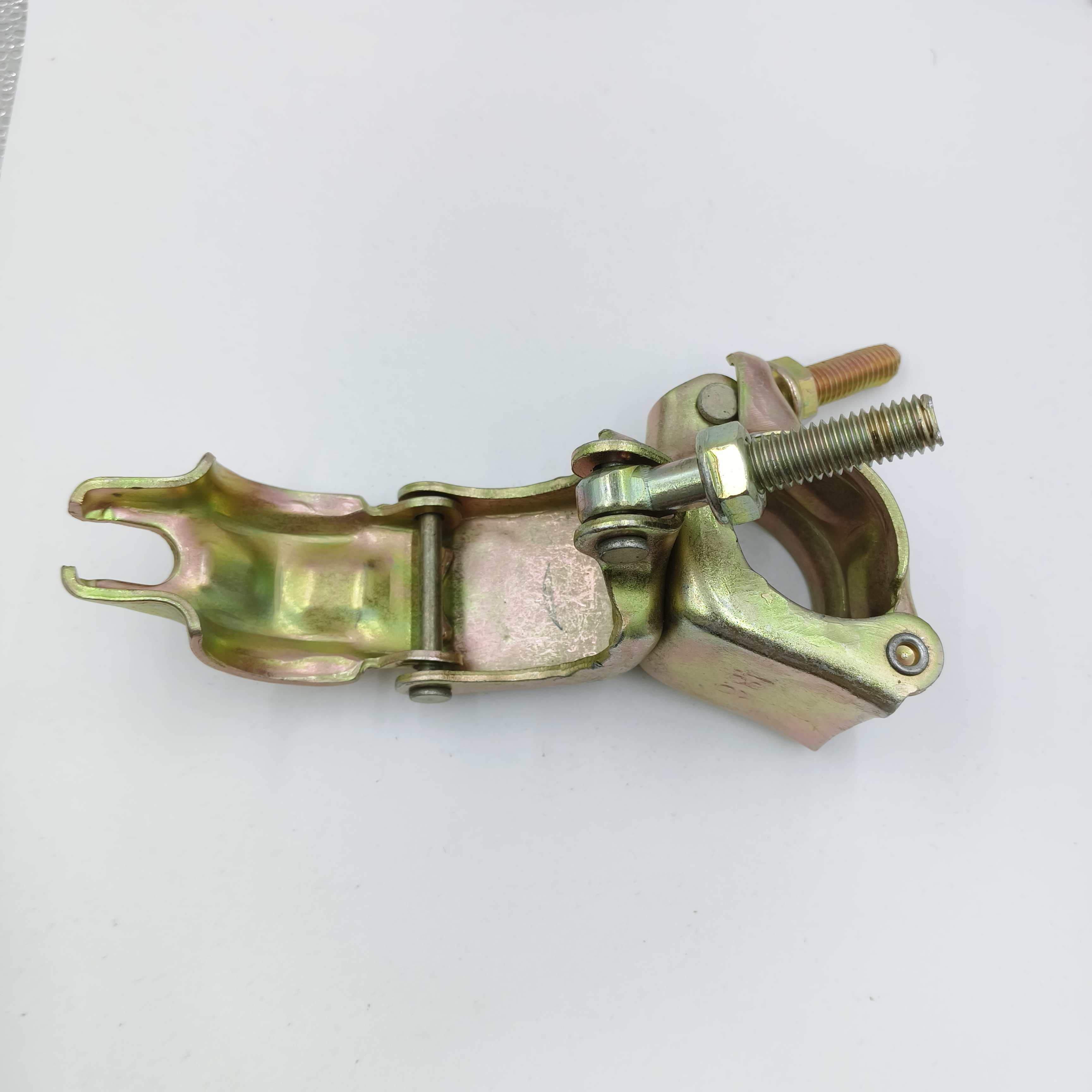

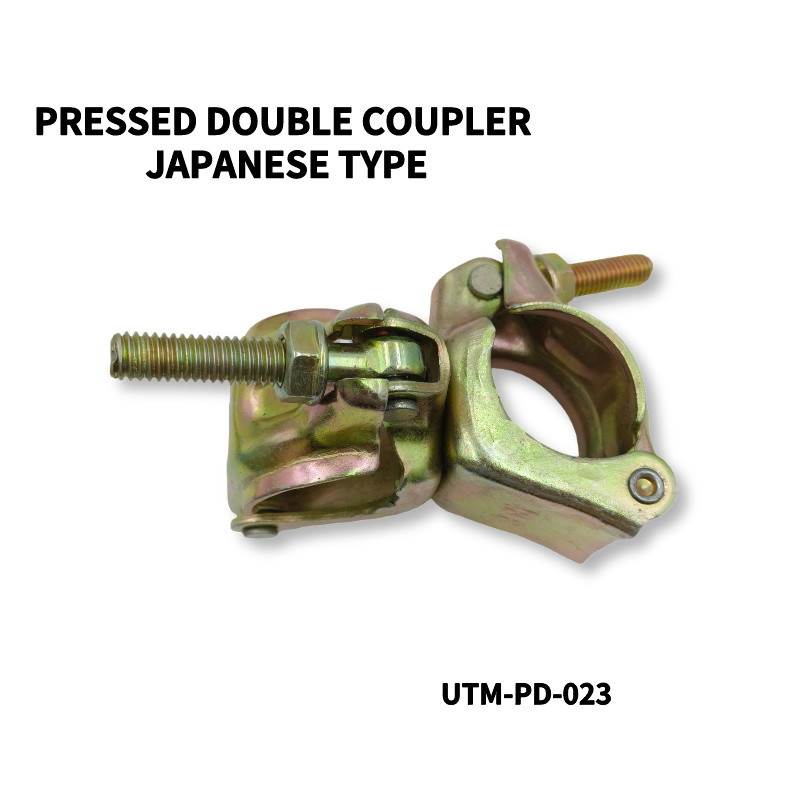

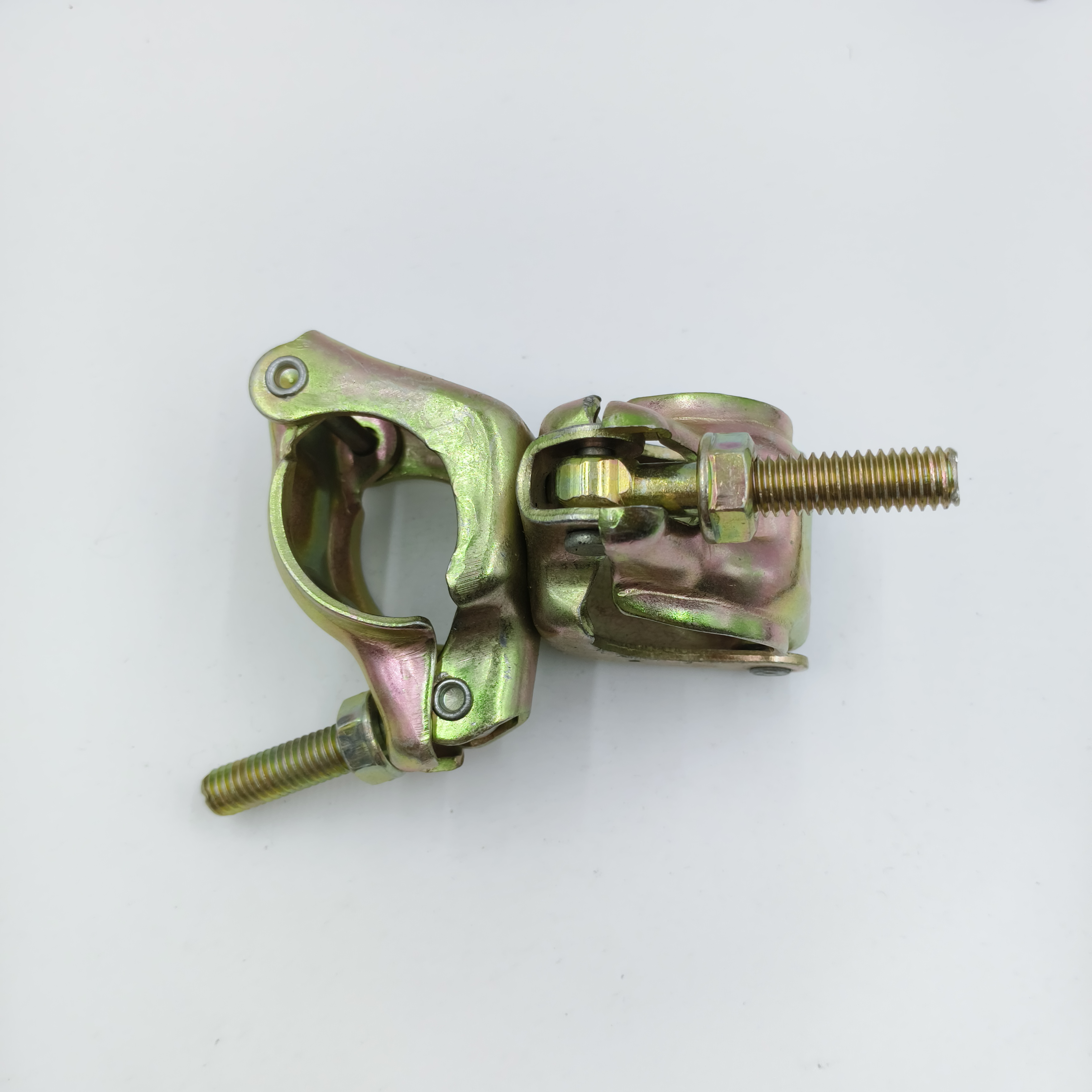

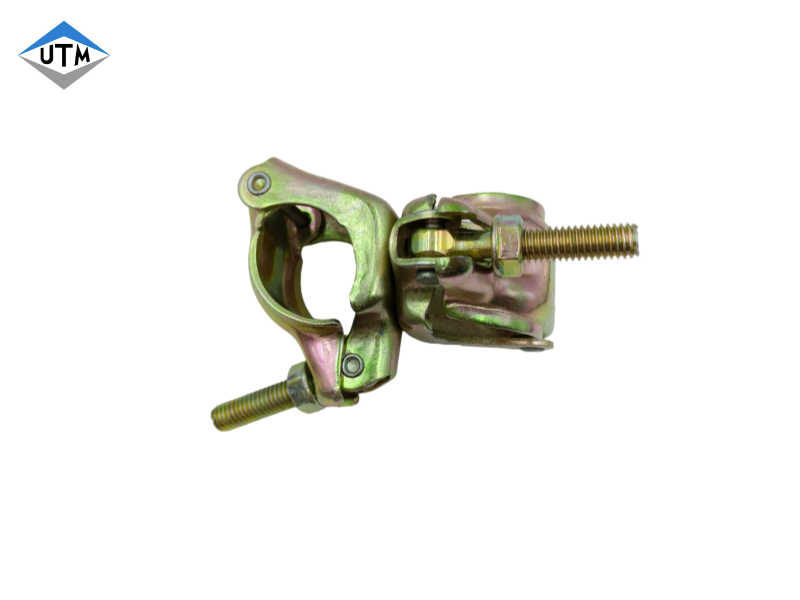

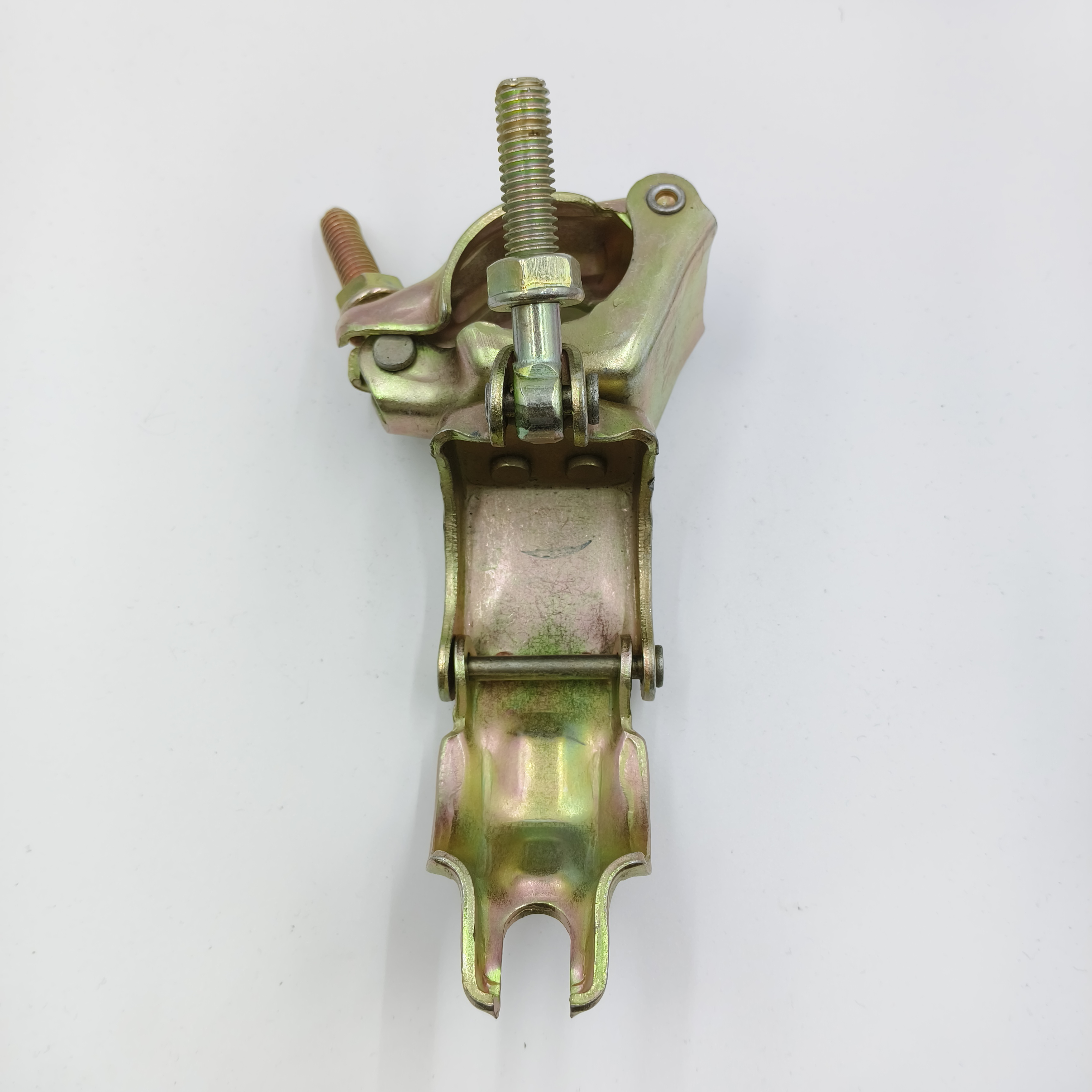

48.6*48.6mm Scaffold Japanese Type Pressed Double Coupler

Scafffold Double coupler is used for connecting two 48.3mm tubes or Scaffold Tube and Standard at right angles .

*Dimensions:48.3-48.3mm(60.3mm)

*Meterial:Q235 steel

*Nut:21mm,22mm,23mm

*Weight 0.65-1.35kg or as per your request

*Standard:EN74,BS1139,CE and also fit for our demostic stardand , through SGS test.

*Technic:Pressed

*Surface treatment:Self-color,Zinc plated ,Hot dip galvanised

*Color:Self-color(Black) , White, Yellow

*Style:Japanese(also can produce German, American, British and so on)

*Quality:good bearing capacity,durable & stable

*Price:reasonable & wonderful

*OEM service is available

Pressed coupler raw material Q235 plate, process pressed, surface plating color zinc treatment.

Compared to forged couplers, pressed couplers have a price advantage and can particularly address the production shortcomings that cannot be overcome by forging processes. Using Q235, Q355, SPHC, and other grades of steel plates, these couplers are processed into couplers that meet the requirements of BS EN74-1:2005 through processes including cutting, mold forming, galvanizing, and assembly. Compared to forged couplers, pressed couplers have a certain cost advantage and also address the production gap that cannot be achieved using some forging techniques.
