H20 Wooden Beam
UTM
UTM-HB-092
| Quantity: | |
|---|---|

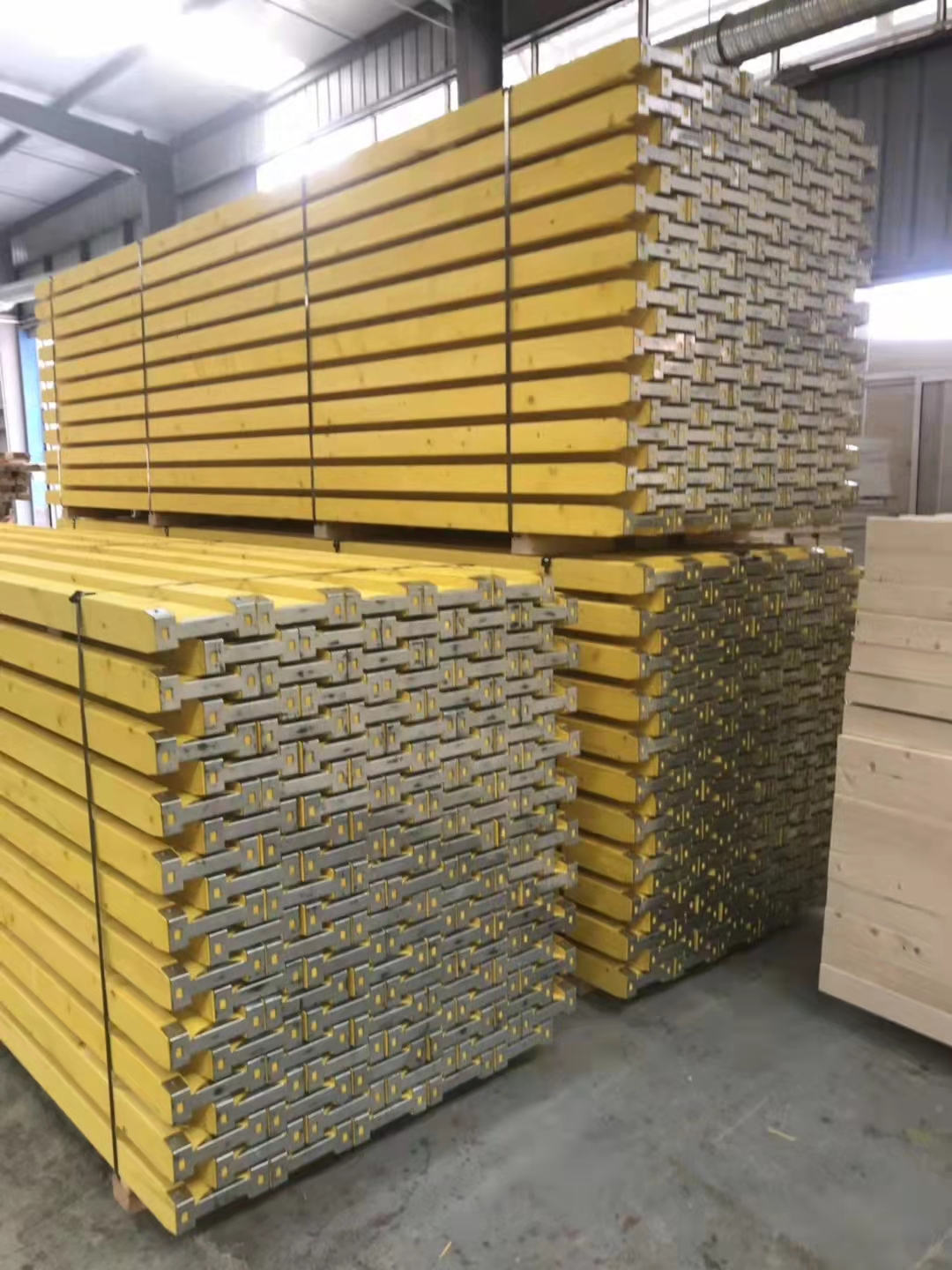

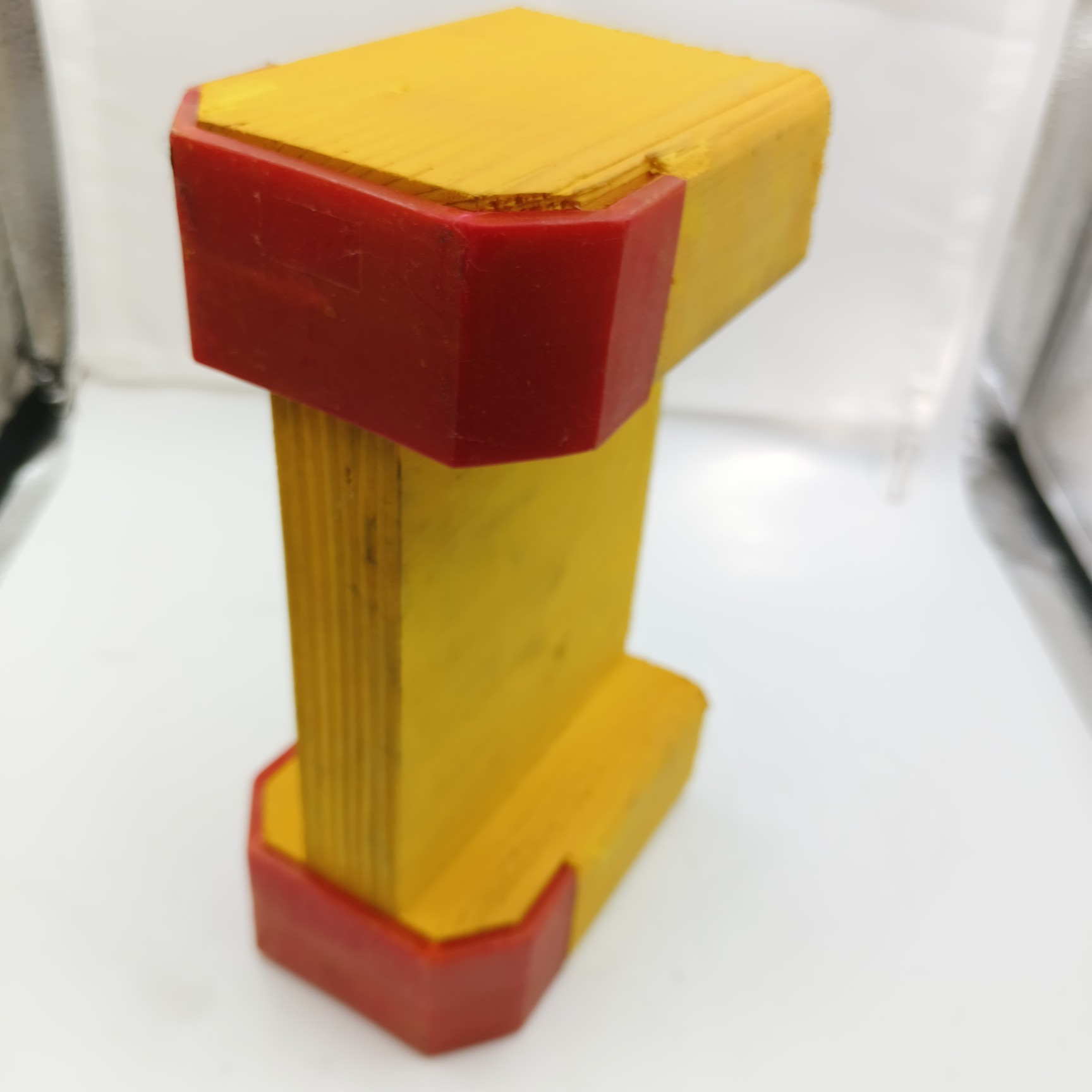

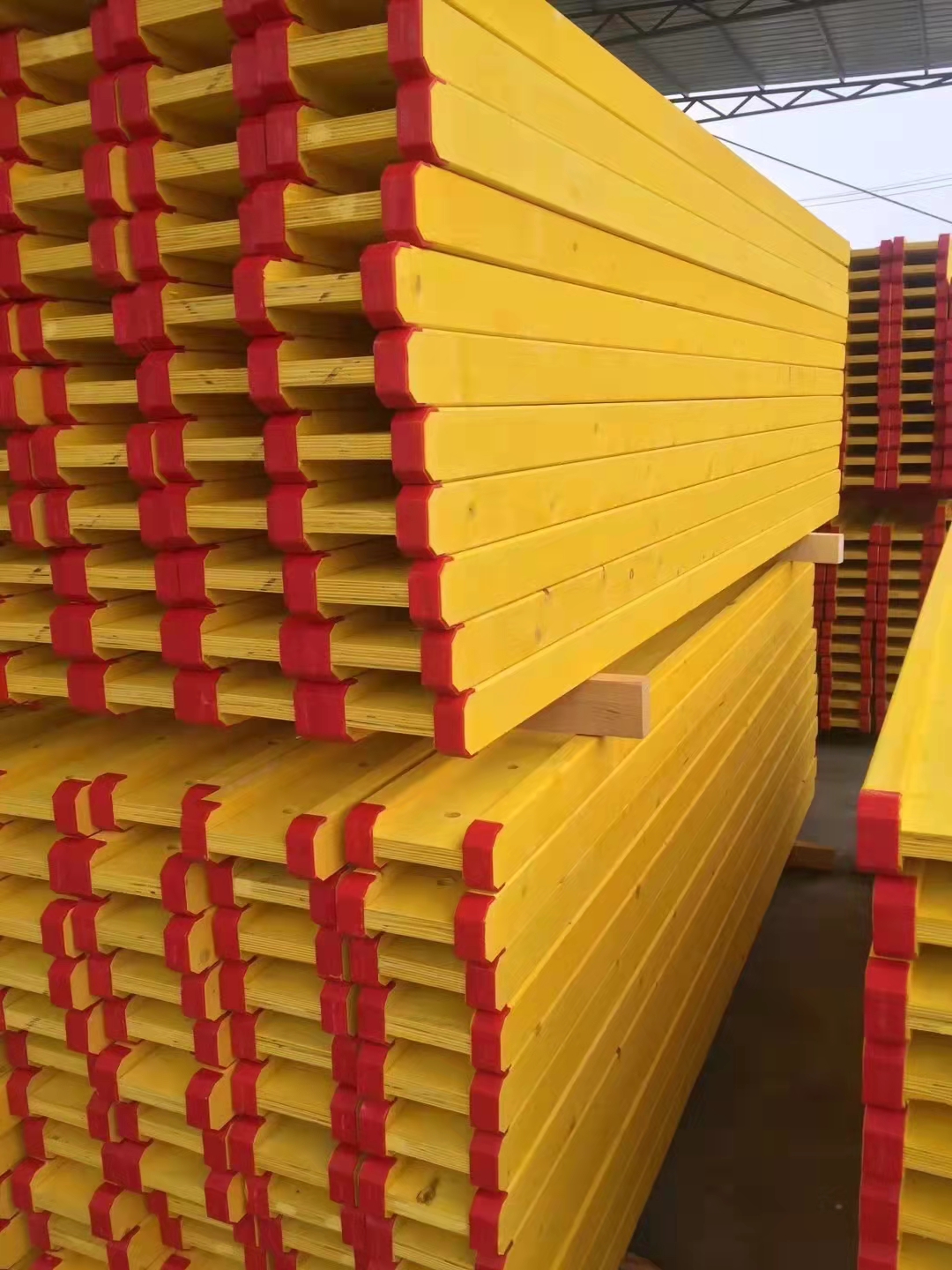

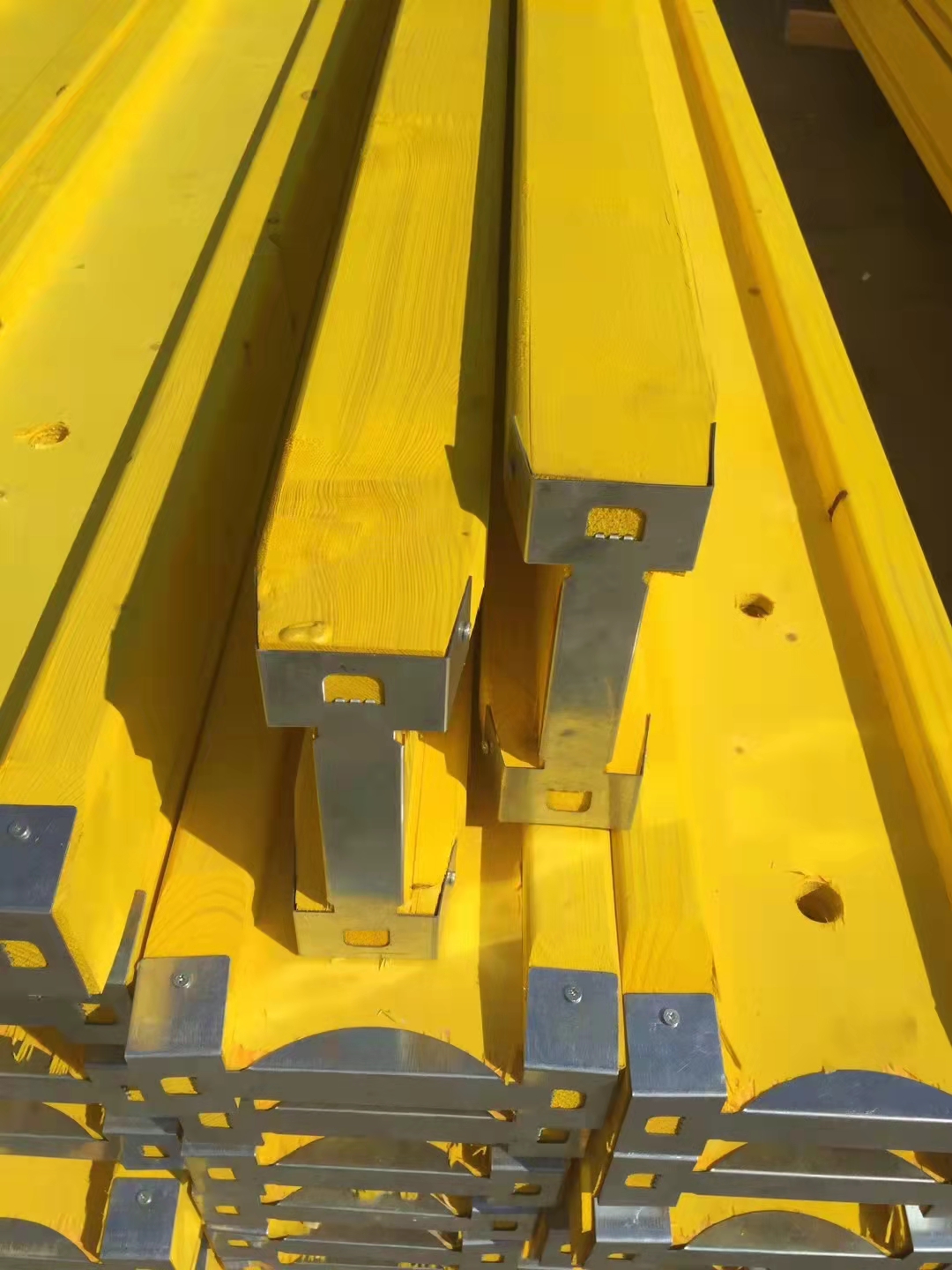

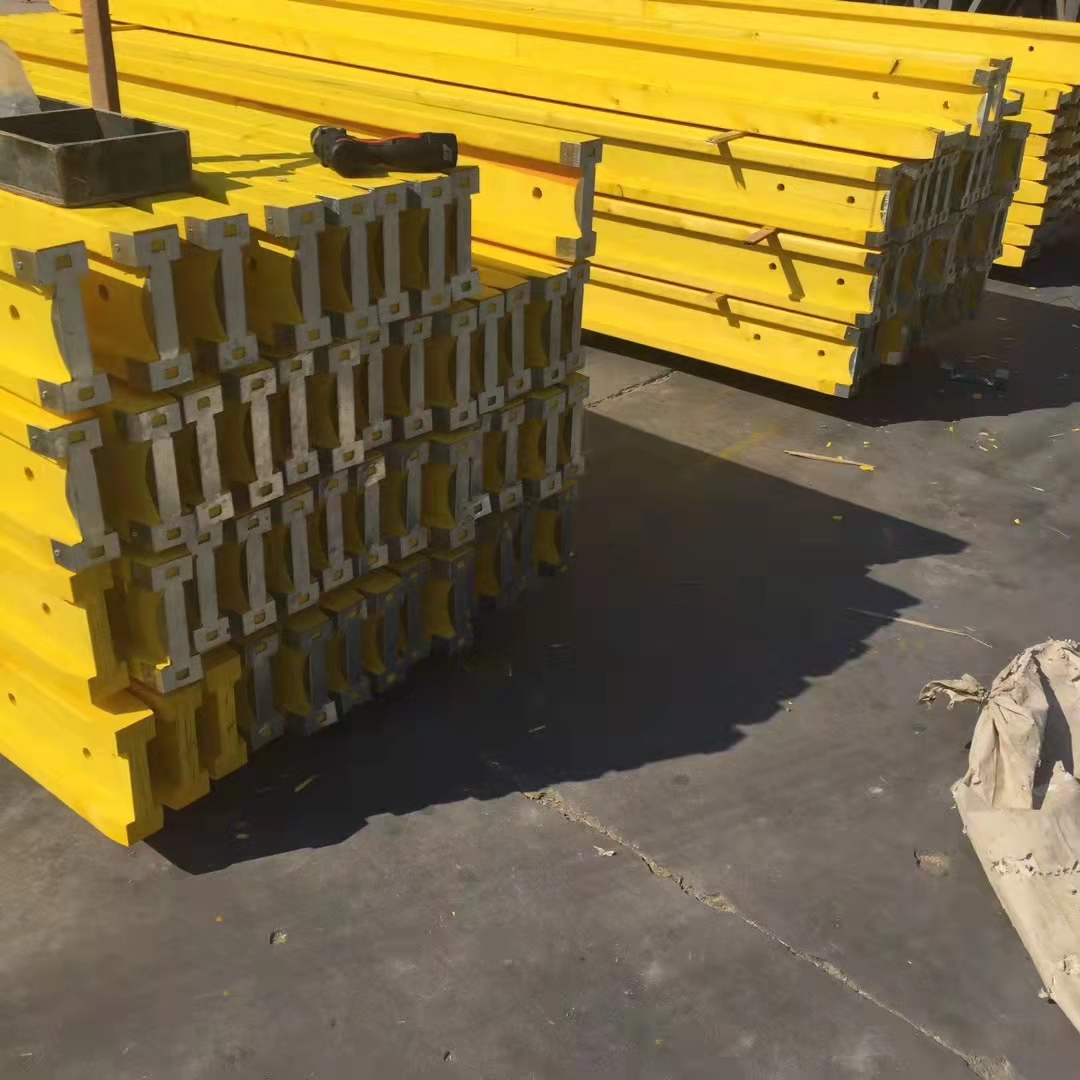

H20 Wooden Beam
H20 Beam is also knownas a H20 Wood beam, I Joist, I beam, Wood H beam or Wood Girder, is widely used together with shuttering film faced plywood in formwork systems, construction systems parts, Falsework systems, timber structures and other bearing structures .The HT20 Beam has a high load capacity throughout their length, is easy to handle and quick to assemble.

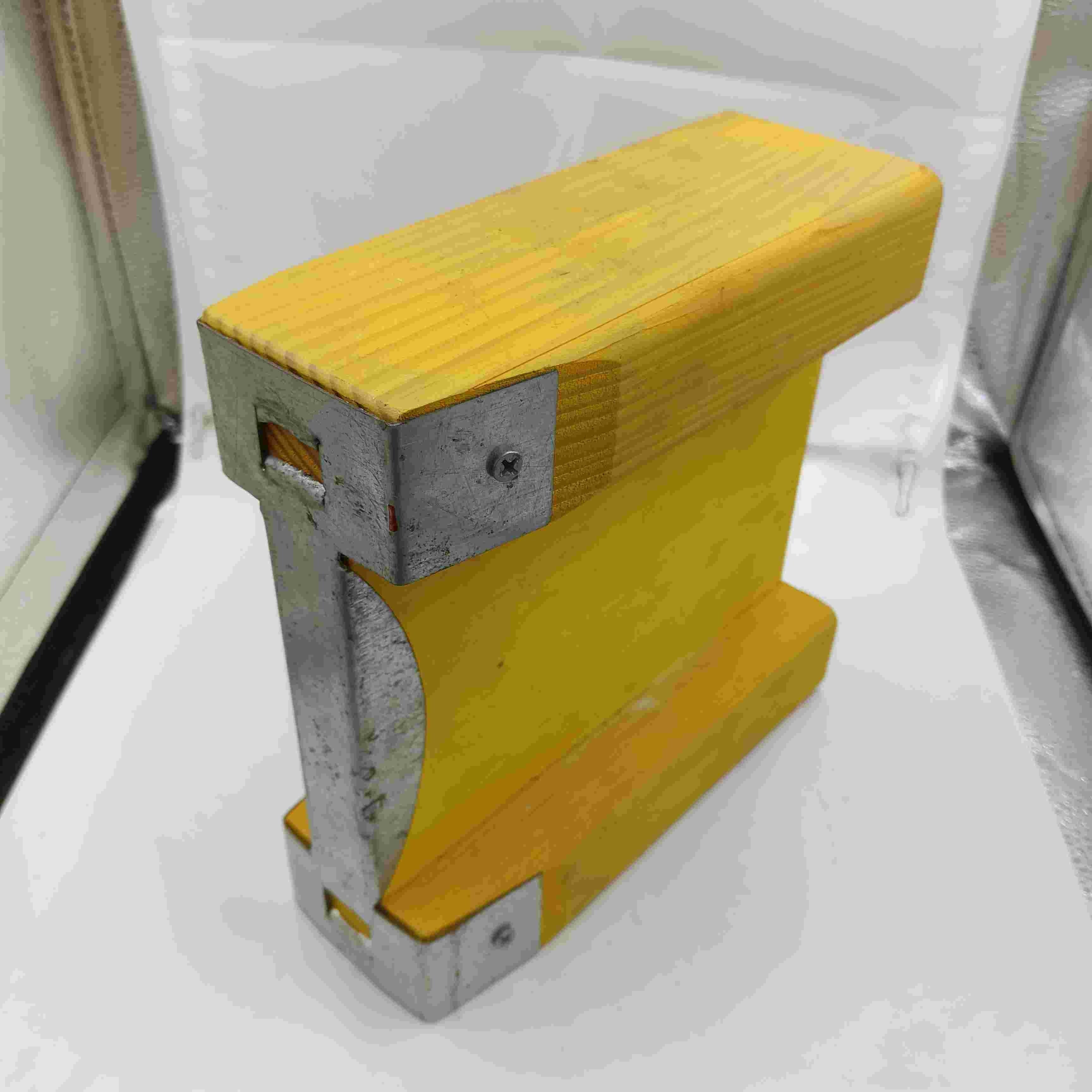

Standard Size | 20cm(height)×8cm(width)×4cm(flange thickness)×27mm(web thickness) |
Length | from 1m to 6m |
Material | Flange :spruce wood , Web:poplar plywood |
Surface Treatment | antispetic & water-proof yellow painting |
Weight | 4.8kgs/m |
Other size | H12,H16 |
Shear Resistance | 37.22KN |
Bending Resistance | 19.77KN |
Bearing Resistance | 63.3KN |
Bending Stiffness | 46KNm² |
H20 Wood Beam Advantages
1.High stiffness ,light weight,strong load-carrying capability
2.Reduction of props quantity ,enlargement of the span between props and working spaces
3.Simple assembly and disassembly ,flexible application,easy operation on site
4.All connectors with high standardization ,strong generality and fast operation
5.Low cost ,high durability
