Scaffolding couplers are essential fittings in tube-and-coupler scaffolding because they connect scaffold tubes, control joint stability, and affect the overall strength, safety, and adaptability of the structure. Choosing the right scaffolding couplers involves more than matching a fitting to a tube, since each coupler type is designed for a different structural role such as fixed 90-degree joints, diagonal bracing, tube extension, or beam attachment. Proper selection should also consider tube size, load conditions, manufacturing method, protective coating, reuse cycle, and standards compliance, especially in commercial construction, industrial access, and infrastructure work where scaffolding couplers are exposed to frequent handling and demanding site environments.
● Scaffolding couplers should be selected by joint function, tube size, load demand, and site conditions.
● Different scaffolding couplers are designed for rigid joints, bracing, tube extension, and steel attachment.
● Standard tube compatibility, especially 48.3 mm and 48.6 mm, is critical for secure clamping.
● Pressed and forged scaffolding couplers differ in durability, strength, and reuse performance.
● Zinc-plated and hot-dip galvanized finishes affect corrosion resistance in different environments.
Scaffolding couplers are mechanical fittings used to join scaffold tubes in a controlled and secure way. In tube scaffolding, they connect standards, ledgers, transoms, and braces, allowing the structure to act as a stable framework rather than a collection of separate tubes. Their function is structural, not just mechanical, because the quality and type of scaffolding couplers influence load transfer, joint rigidity, and scaffold alignment.
Each connection in a scaffold performs a different task, and scaffolding couplers are designed accordingly. Some create fixed 90-degree joints, some allow variable-angle bracing, and some join tubes end to end. Selecting the right fitting means understanding what the connection is required to do in the overall scaffold arrangement.
Because scaffolding couplers are used in large numbers throughout a scaffold, consistency is important. Variations in fit, bolt quality, or body strength can affect assembly speed, inspection outcomes, and long-term reuse performance.
Tube-and-coupler scaffolding is widely used where standard modular layouts are not practical. Irregular facades, steel structures, bridges, industrial plants, and confined working areas often require flexible connection points that can be adapted on site. Scaffolding couplers make this flexibility possible.
They also affect scaffold reliability over time. Poorly selected fittings may create weak joints, alignment issues, or clamping problems during repeated installation and dismantling. In contrast, well-chosen scaffolding couplers generally provide more stable assembly and more predictable field performance.
Their safety importance is especially high in primary structural joints and bracing positions. A coupler that does not match its intended use can reduce the stability of the scaffold even if the rest of the structure is correctly assembled.
Most scaffolding couplers are designed for common tube outside diameters such as 48.3 mm or 48.6 mm. A secure fit depends on correct dimensional compatibility between the coupler body and the scaffold tube. If the fit is poor, tightening performance and grip can both be affected.
Correct tube measurement is therefore an essential part of selection. Older tubes, mixed stock, or different production sources should not be assumed to match without checking. Even small dimensional differences can influence how scaffolding couplers seat and clamp in practice.
Fit accuracy also affects installation efficiency. When scaffolding couplers match the tube properly, crews can tighten them more consistently and maintain better alignment throughout the scaffold structure.
Every scaffold joint has a specific structural role, and different scaffolding couplers are built for different force conditions. A right-angle joint carrying a ledger does not behave the same way as a swivel fitting used in diagonal bracing. Correct selection keeps the intended load path and geometric stability of the scaffold intact.
When the wrong fitting is used, force transfer may become uneven or unreliable. That can lead to movement, joint distortion, or poor bracing performance, especially in taller or more complex structures. Structural suitability should always come before convenience.
This is particularly important in heavy-duty construction and industrial access scaffolds. In these settings, scaffolding couplers are exposed to live loads, repetitive use, and environmental effects that can quickly reveal any weakness in selection.
Scaffolding couplers are often reused across many projects, so selection should consider long-term durability as well as initial use. Pressed fittings may be suitable for standard applications, while forged scaffolding couplers are often chosen where greater strength and longer reuse cycles are needed.
Repeated tightening and dismantling place stress on the body, bolt, and threads. Lower-quality fittings may wear faster, seize, deform, or lose dimensional consistency over time. Durable scaffolding couplers usually perform better in stock rotation and site handling.
Environmental exposure also influences service life. Outdoor projects, coastal areas, and industrial facilities often require stronger corrosion protection to maintain condition across multiple uses.
Many projects specify scaffolding couplers that conform to EN74, BS1139, or related standards. These references are important in quality control, project documentation, and scaffold inspection. They also create a more consistent basis for technical evaluation.
On site, acceptance often depends on visible condition, fitting suitability, and confidence in manufacturing quality. If scaffolding couplers appear inconsistent or inappropriate for their joint location, inspection can become more difficult. Standard-compliant fittings are generally easier to assess and approve.
This makes standards compliance part of the selection process rather than an afterthought. It supports both technical consistency and practical site acceptance.
Most scaffolding couplers are made from carbon steel because it offers a practical combination of strength, durability, and manufacturability. The base material affects deformation resistance, reuse capability, and overall working life. Material consistency is especially important in fittings that will be used repeatedly in demanding site conditions.
Inferior steel quality can lead to early wear, cracking, or body distortion. Even if scaffolding couplers look acceptable initially, weak material can reduce confidence over repeated tightening and dismantling cycles. This is why material quality remains a key purchasing factor in B2B scaffold supply.
For projects involving heavy reuse, harsh handling, or industrial exposure, stronger and more consistent material usually brings better lifecycle performance. It also supports more predictable inspection outcomes.

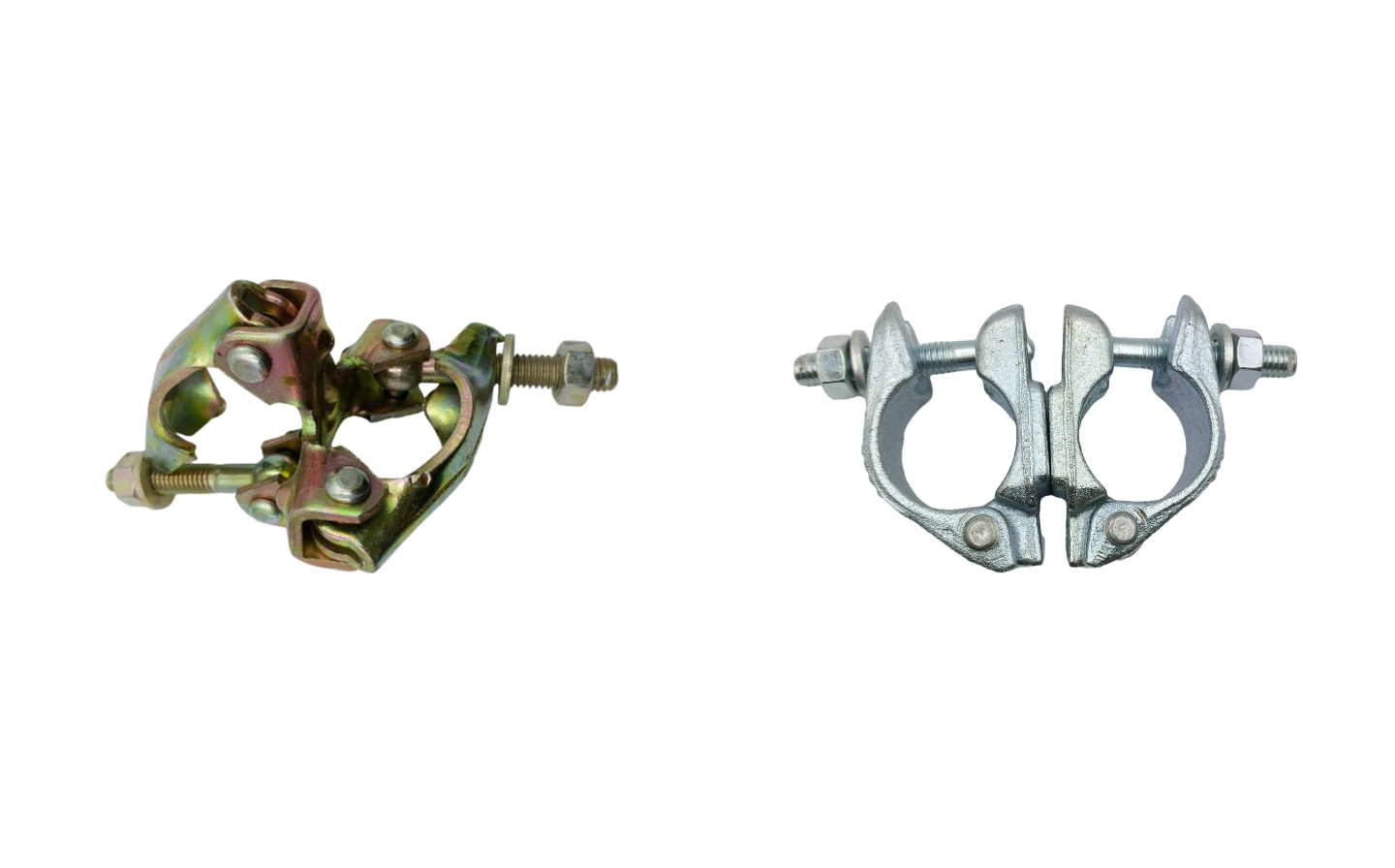

Scaffolding couplers are commonly produced as pressed fittings or forged fittings. Pressed couplers are formed from steel plate and are widely used in standard scaffold work. Forged scaffolding couplers are produced with a denser body structure and are often chosen where strength and reuse performance are more demanding.
Pressed fittings can be suitable for general applications when they are properly manufactured and correctly used. They are common in routine construction work where standard duty levels are expected. Their reliability still depends on dimensional accuracy and bolt quality.

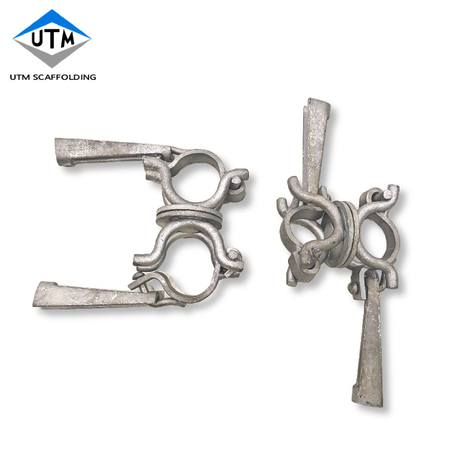

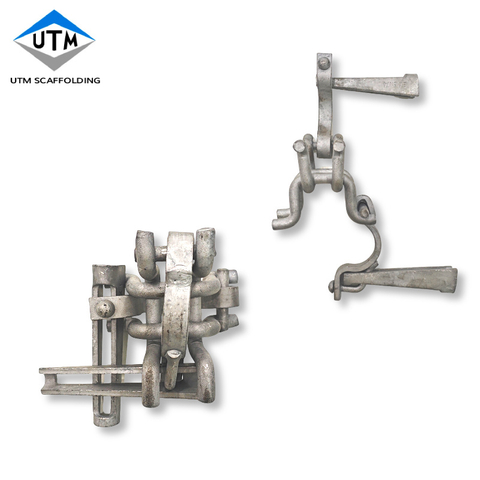

Forged scaffolding couplers are often selected for heavy-duty commercial or industrial use. They generally offer better body strength and can remain more stable over repeated cycles of installation and dismantling.
Protective coating has a major effect on the service life of scaffolding couplers. Zinc-plated finishes are widely used in ordinary environments and can provide a basic level of corrosion resistance. They are often suitable where storage and site exposure are relatively controlled.
Hot-dip galvanized scaffolding couplers are more appropriate for outdoor, humid, coastal, or industrial conditions. Their stronger protective layer offers better resistance to rust and surface deterioration. This can improve stock longevity and reduce maintenance pressure.
Coating selection should reflect actual working conditions rather than appearance alone. In many B2B scaffold applications, corrosion resistance is closely tied to reuse economics and field reliability.
Most scaffolding couplers are designed for standard scaffold tube sizes, so outside diameter should be checked before selection. A caliper or similar measuring tool is typically used to verify whether the tube matches the coupler specification. This step is especially important when stock comes from different suppliers or has been reused many times.
Measurement should be taken on a clean tube surface. Dirt, paint build-up, or local deformation can affect the reading and create false assumptions about compatibility. Where old tube stock is involved, extra checking is often justified.
Correct measurement supports safe clamping and smoother assembly. Scaffolding couplers that match the tube diameter properly are more likely to tighten consistently and maintain secure contact.
Choosing the right size alone is not enough. Scaffolding couplers must also match the structural purpose of the connection, since different fittings are intended for different joint conditions. A correct diameter with the wrong coupler type is still an incorrect selection.
Right-angle fittings are typically used for rigid 90-degree joints, swivel fittings for bracing, sleeve fittings for tube extension, and beam fittings for tube-to-steel attachment. Putlog and board retaining types serve more specific secondary functions. The connection role should always guide the choice.
This is one of the most common selection errors on site. Visual similarity between scaffolding couplers can lead to substitution, but structural behavior is not interchangeable.
Manufacturer specifications should be reviewed before final selection. Diameter, finish, intended use, manufacturing type, and technical references all matter when comparing scaffolding couplers. A practical test fit is also useful where large quantities are being prepared for site use.
Load demand is another key factor. Primary joints and heavily used scaffold sections may require stronger fittings, especially where long reuse cycles or difficult site conditions are expected. In such cases, forged scaffolding couplers may be more suitable than standard pressed versions.
Standards such as EN74 and BS1139 should also be checked where required by project documentation or inspection practice. Correct selection combines fit, function, and compliance rather than relying on one factor alone.
Scaffolding couplers should be inspected before use for body deformation, cracked sections, damaged bolts, worn threads, and corrosion. A fitting that has been over-tightened or heavily impacted may not perform reliably even if it still appears usable. Inspection should focus on both condition and function.
Thread condition is particularly important because it affects clamp consistency. Scaffolding couplers with worn or seized threads may tighten unevenly or fail to develop secure grip. Swivel fittings should also rotate as intended without uncontrolled looseness.
Regular pre-use checks are essential in reused scaffold stock. They reduce the chance of unsuitable fittings being installed in critical structural positions.
Storage conditions have a direct impact on the lifespan of scaffolding couplers. Dry, organized storage reduces exposure to moisture and makes it easier to separate damaged fittings from active stock. This is especially important when couplers are handled in large quantities across multiple projects.
Corrosion can begin as a surface issue but may eventually affect threads, body condition, and inspection confidence. Outdoor and industrial environments place greater pressure on protective coatings, which is why galvanized scaffolding couplers are often selected for more demanding service.
Effective reuse management depends on maintaining consistent stock quality. In B2B scaffolding operations, better-controlled coupler condition usually leads to more reliable assembly and easier project deployment.
Specification Factor | Pressed Scaffolding Couplers | Forged Scaffolding Couplers |
Production Style | Pressed steel plate | Forged steel body |
Typical Use | General scaffold work | Heavy-duty or repeated use |
Strength Priority | Standard use | Higher strength |
Finish Options | Zinc plated / galvanized | Zinc plated / galvanized |
Service Expectation | Moderate to good | Good to long-term |
Choosing the right scaffolding couplers means evaluating connection type, tube size, load demand, material quality, protective finish, and standards compliance as one complete decision. Different scaffolding couplers are intended for different structural purposes, and proper selection improves scaffold stability, inspection consistency, and long-term reuse performance.Nanjing Uni-Tech Metalwork Company Ltd. is a practical source for product review and technical reference.
Most scaffolding couplers are made for 48.3 mm or 48.6 mm scaffold tubes. These are the most common outside diameters used in tube-and-coupler scaffolding. The correct size should always be confirmed against the actual tube specification.
Right-angle scaffolding couplers create a fixed 90-degree joint between two tubes. Swivel scaffolding couplers allow the tubes to connect at different angles, which makes them suitable for bracing and irregular layouts. Both are common, but they are used for different structural purposes.
Forged scaffolding couplers are generally preferred where higher strength and longer reuse cycles are required. Pressed fittings are still widely used in standard scaffold applications and can perform well when correctly selected. The better choice depends on load demand, environment, and expected service life.
They can be used together only when tube diameter, dimensional fit, and technical compatibility are properly checked. Visual similarity is not enough to confirm safe use. Mixed stock should always be verified before site installation.
