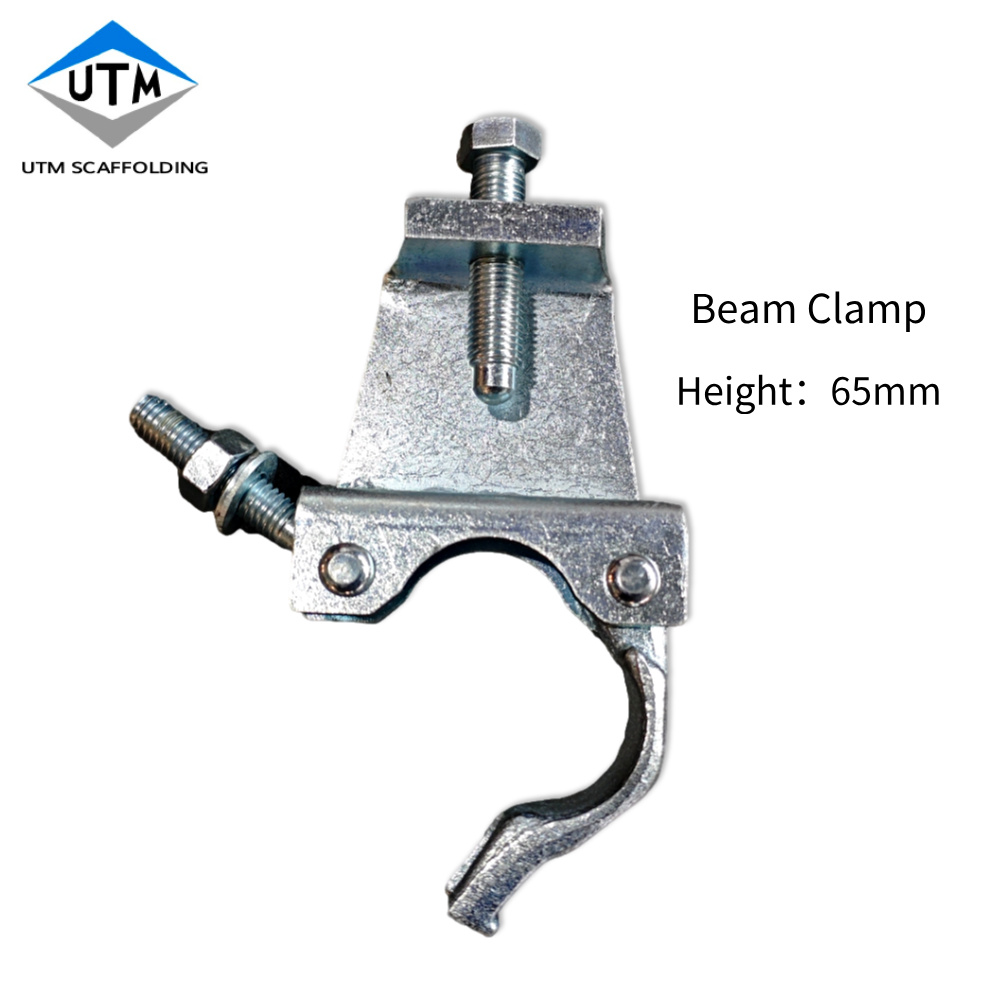

Galvanized Scaffolding Girder Coupler Height 50mm 65mm 80mm 100mm 120mm Fixed Beam Clamp

Materil：Q235
Finsh：Zinc Plate or Hot Dipped Galvanized
Standard：BS1139 / AS 1576.2

  • British Type

  • UTM

  • UTM-BBC-030

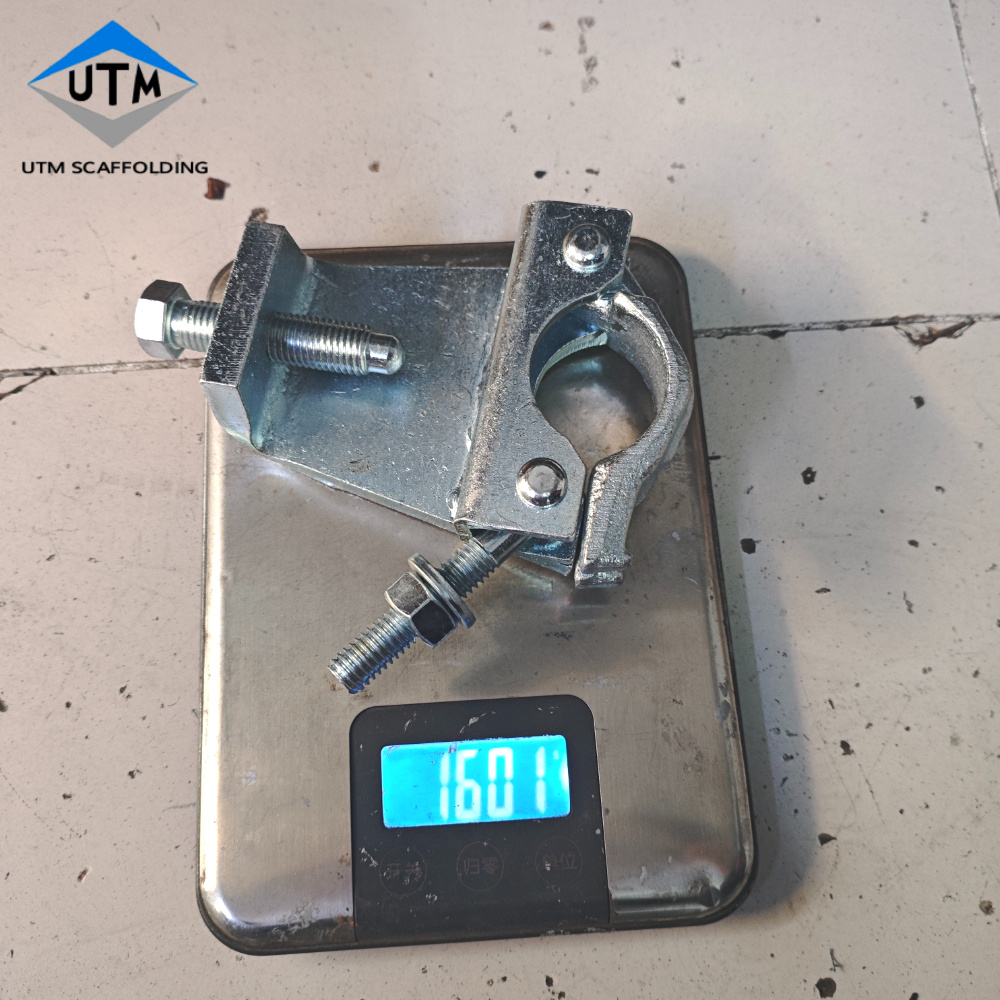

weight:
1.60kg
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

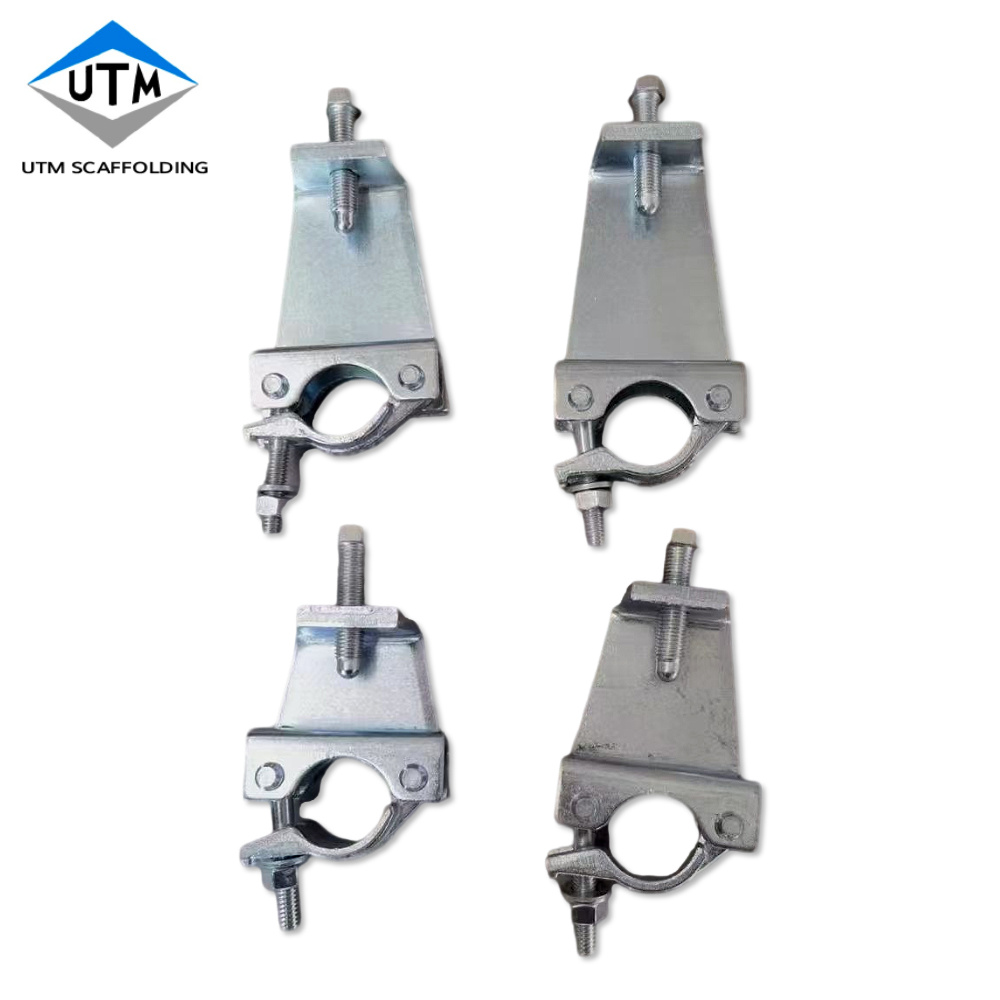

Scaffolding Girder Coupler Fixed Beam Clamp

Basic Definition and Function

A scaffolding beam coupler (also known as a beam clamp, Girder Coupler, or Gravlock Coupler) is a specially designed connecting device used to securely fasten scaffolding tubes to steel beams or I-beams. As a key component of modern scaffolding systems, it provides stable support and safe connection, particularly suitable for structural environments where direct scaffolding erection is not feasible.

Structural Features

  • Main Shape: U-shaped or C-shaped design to wrap around the steel beam flange

  • Material: High-strength forged steel (Q235/Q355 carbon steel grades) or steel plate stamping, ensuring high load-bearing capacity

  • Surface Treatment: Hot-dip galvanized or electro-galvanized for excellent corrosion resistance

Product Paramenters

Name Scaffolding Beam Clamp / Girder Coupler
Material Steel Q235
Process Forged / Pressed
Surfance Treatment Zinc Plate or Hot Dipped Galvanized
Standard EN74/BS1139/AS 1576.2
Specs For 48.3 tube
Weight 1.60kg,1.48kg 1.40kg  1.01kg
T-bolt M12, grade8.8
Sample

Available
Package

In woven bags+steel pallet or ton bag


Features of scaffolding beam clamp:

1.Good bearing capacity

2.Durable & stable
3.Easy to assemble & dismantle


*Meterial:Q235 steel

*Nut:21mm,22mm,23mm

*Weight 1.55-2.75kg or as per your request

*Standard:EN74,BS1139,CE and also fit for our demostic stardand , through SGS test.

*Technic:Forged

*Surface treatment:Self-color,Zinc plated ,Hot dip galvanised

*Color:Self-color(Black) , White, Yellow

*Style: American type (also can produce British,German , Japanese and so on)

*Quality:good bearing capacity,durable & stable

*Price:reasonable & wonderful

*OEM service is available


The main advantage of couplers :

1) High skid resistance: large touching area between steel tube and coupler

2) High crack resistance :drop forged from steel Q235, high strength and toughness

4) High corrosion resistance :coupler is deal with electro galvanized

5) High strength T-bolt.

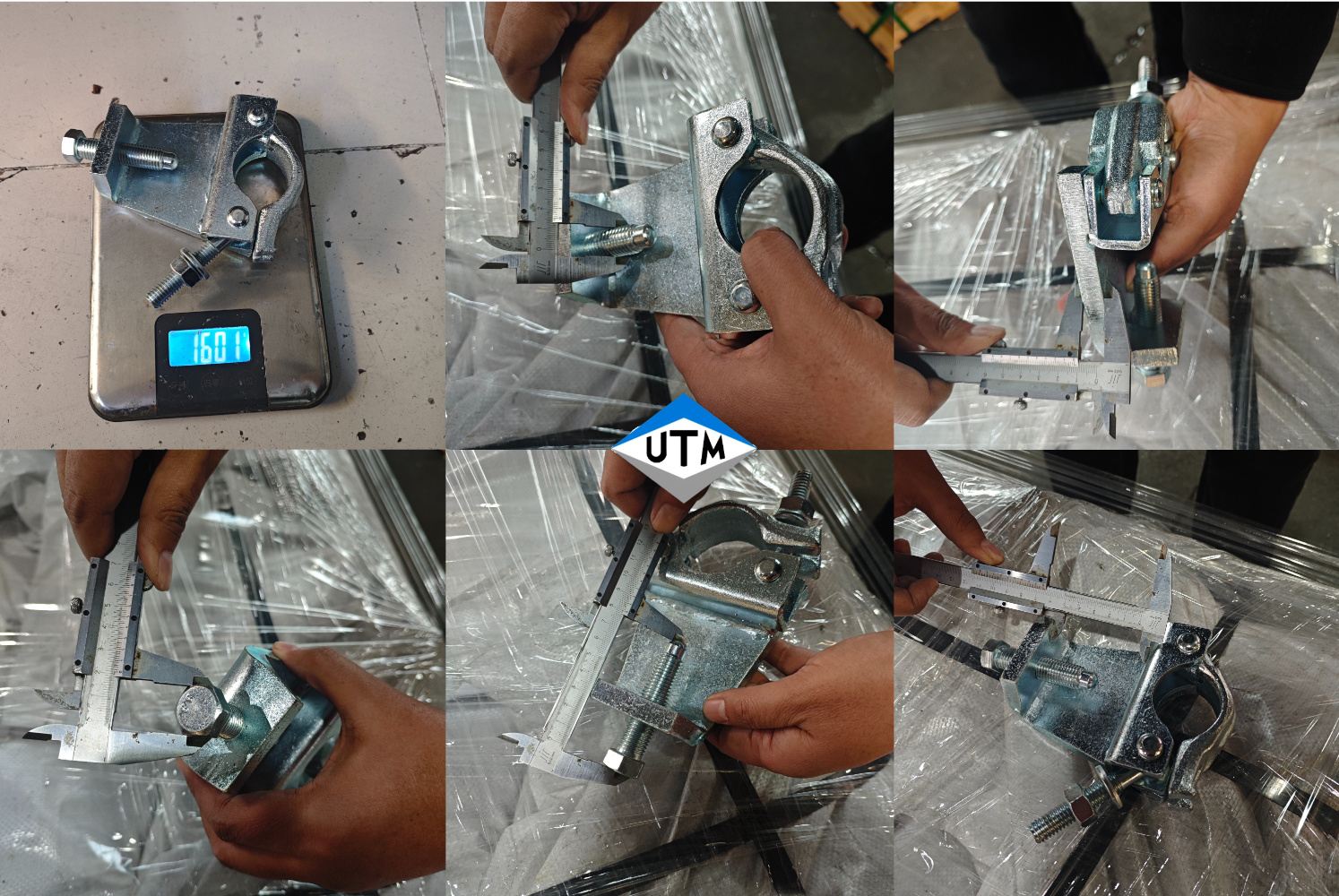

8

Application Scenarios

1. Infrastructure Construction

  • Bridge construction: Supporting temporary structures and bridge decks

  • Highway and railway projects: Viaduct and tunnel construction

  • Stadiums: Stand and roof support systems

2. Industrial Facilities

  • Power plants and chemical plants: Equipment maintenance platforms

  • Warehousing facilities: High-altitude shelf installation and inspection

  • Large workshops: Roof and wall construction

3. Building Construction

  • High-rise buildings: Facade construction and maintenance

  • Steel structure buildings: Connection between scaffolding and steel beams

  • Formwork support: Providing stable platforms for concrete pouring
