Hot Dipped Galvanized Ringlock Scaffolding for Bridge Construction

Wholesale High Quality Construction Ringlock Scaffolding for Building

Product structure

Structure and Components

• Core Elements:

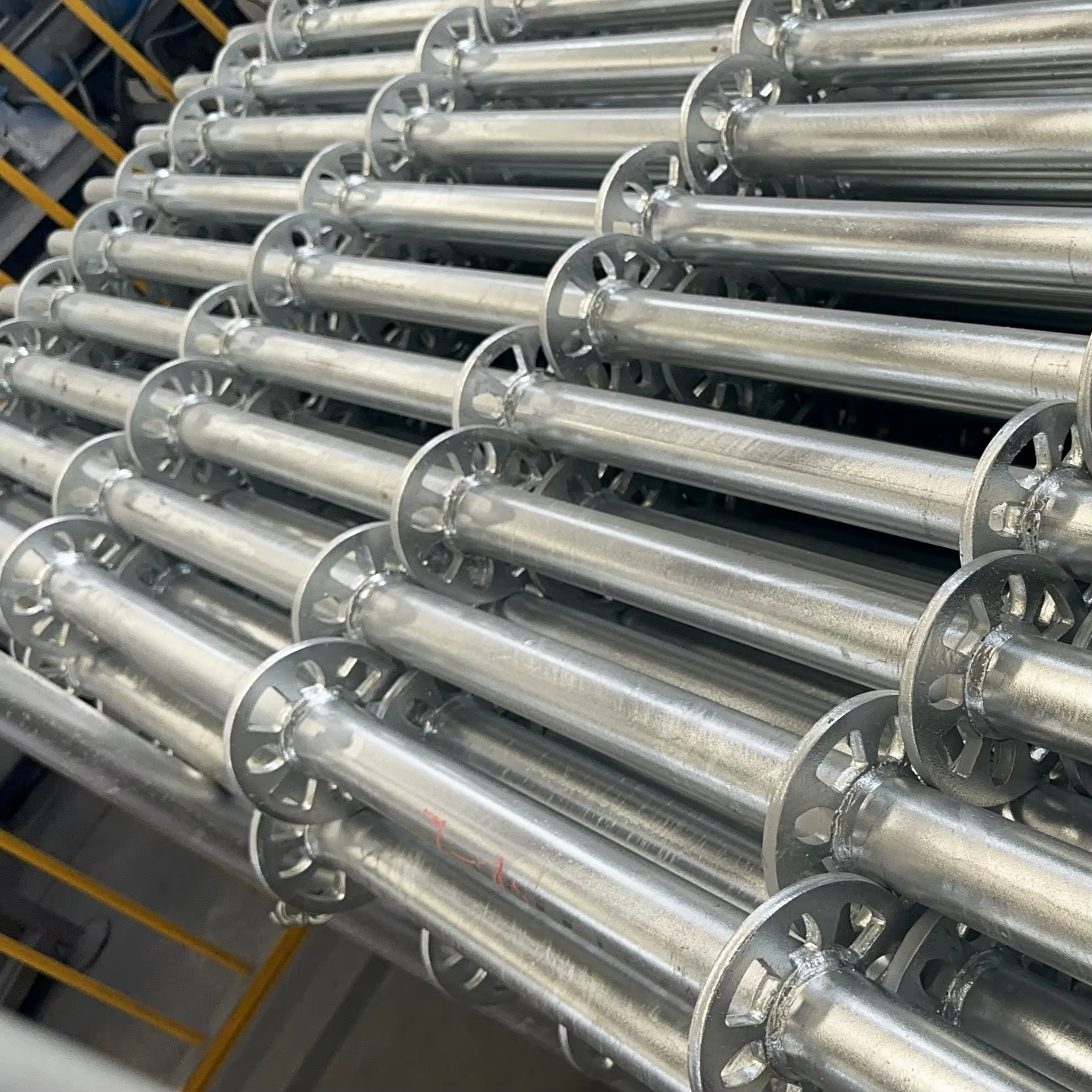

• Standards (Vertical Poles): Welded with rosette rings at 0.5m intervals, made of Q345 steel (48.3mm OD, 3.2mm thickness) for high strength. Available in lengths from 0.5m to 3.0m .

• Ledgers (Horizontal Bars): Fitted with cast wedge heads for quick connection to rosettes, ensuring secure and rigid joints. They support platforms and guardrails.

• Diagonal Braces: Reinforce the structure with swivel cast ends, forming triangular stability. Available in various lengths to suit different bay sizes.

• Accessories: Base collars, adjustable jacks, steel planks, ladders, and safety toeboards complete the system.




• Locking Mechanism: The rosette (8-hole disc) allows 360° connections, enabling diagonal and horizontal members to be secured with a single hammer strike, eliminating loose parts.

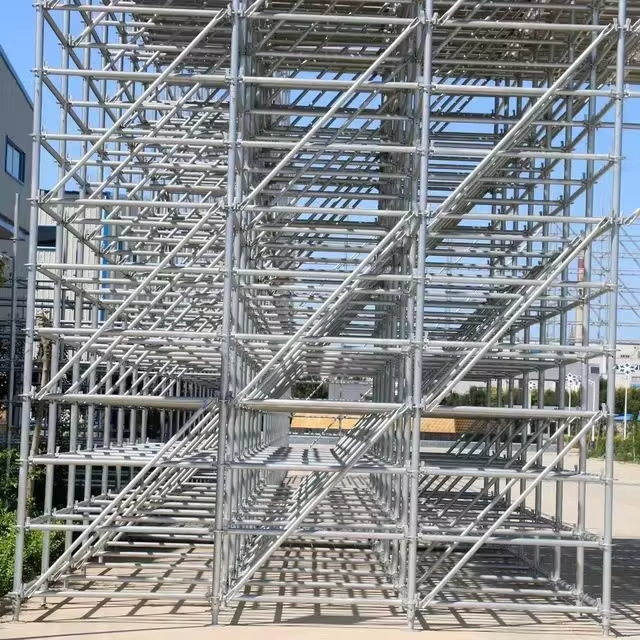

Scaffold System Ringlock is a multi-purpose modular scaffold system that can be used for all forms of access and support structures in the building and construction industries, shipbuilding, off-shore construction, and industrial maintenance.

We can also supply a complete range of accessories, including steel planks, side brackets, system toe boards, stairs, ladders, and reinforced ledgers.（Click the image below to see more products）
