Formwork clamps are essential tools in modern construction, particularly in concrete pouring projects. These devices secure formwork panels, ensuring structural integrity and dimensional accuracy during concrete curing. This article explores the types, operation, safety protocols, and maintenance of formwork clamps, offering insights for professionals and enthusiasts alike.
Understanding Formwork Clamps
Formwork clamps are mechanical devices designed to fasten formwork components, such as wooden or steel panels, beams, and tubes. They are critical for preventing displacement caused by the lateral pressure of wet concrete. Common types include:
Adjustable Beam Clamps: Ideal for securing horizontal beams, these clamps feature threaded spindles for precise tension adjustment .
Column Clamps: Used for cylindrical structures, these clamps consist of split collars that encircle the formwork and lock with bolts .

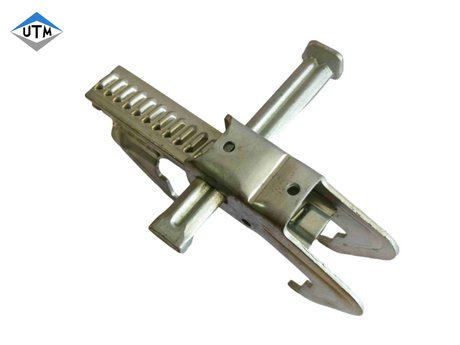

Wedge Pins: Simple yet effective, these pins use wedge-shaped mechanisms to clamp formwork panels without power tools .
Huff-Type Pipe Hoops: Commonly used for pipe penetrations in floors, these clamps combine semicircular steel plates and bolted collars .
How Formwork Clamps Work
Formwork clamps operate through mechanical leverage or friction. For example, adjustable clamps use a spindle-driven mechanism: rotating the hand crank tightens the jaws around the formwork, creating a secure grip . Wedge pins, on the other hand, rely on hammer strikes to drive the wedge into place, compressing the formwork against a locking mechanism . Modern designs often integrate corrosion-resistant materials like galvanized steel or aluminum to enhance durability .
Step-by-Step Usage Guide
Preparation:
Inspect the formwork for damage and ensure it aligns with design specifications.
Gather clamps, tools (e.g., wrenches, hammers), and safety equipment.
Installation:
Position the formwork panels and align them with support structures (e.g., steel tubes or wooden beams).
Attach clamps at intervals specified by the project’s engineering plans. For beam clamps, secure them at mid-span and near supports to distribute stress evenly .
Tighten clamps incrementally to avoid overloading. Use torque wrenches for consistency .
Concrete Pouring:
Monitor clamps during pouring to ensure they remain tight. Vibrate concrete gently to eliminate air voids without disturbing the formwork.
Dismantling:
Wait until the concrete reaches sufficient strength (typically 75% of design capacity) before removing clamps .
Loosen clamps in reverse order of installation and carefully disassemble the formwork.
Safety Considerations
Load Limits: Never exceed the clamp’s rated capacity. Overloading can cause structural failure .
Fall Protection: Use harnesses and guardrails when working at heights, as per OSHA guidelines .
Inspection: Regularly check clamps for wear, corrosion. Replace damaged parts immediately .
Training: Ensure operators are familiar with clamp-specific instructions and safety protocols.
Maintenance and Longevity
Cleaning: Remove concrete residue and debris after each use to prevent corrosion .
Lubrication: Apply anti-seize lubricant to threaded components to maintain smooth operation .
Storage: Store clamps in dry, ventilated areas to avoid rust. Use protective covers if exposed to moisture .
Calibration: Periodically verify torque settings for adjustable clamps to ensure consistent performance .
Advantages of Formwork Clamps
Efficiency: Clamps reduce assembly time compared to traditional methods like nails or screws .
Cost-Effectiveness: Reusable designs minimize material waste, lowering project costs .
Safety: Properly installed clamps mitigate risks of formwork collapse during pouring .
Case Study: Streamlining Construction with Clamps
In a recent high-rise project in Shanghai, contractors used Peri-brand formwork clamps to secure shear walls. By eliminating manual nailing, the team reduced labor hours by 30% while achieving a 98% reduction in formwork misalignment issues .
Formwork clamps are indispensable in concrete construction, offering reliability, precision, and safety. By understanding their operation, adhering to safety standards, and prioritizing maintenance, professionals can optimize workflows and deliver high-quality results. As technology evolves, innovations like lightweight alloys and smart tension sensors promise further improvements in clamp efficiency and performance.
