What Is Ringlock Scaffolding System ,standard And Size?

Ringlock scaffolding system is a versatile and efficient construction tool that is widely used in various industries.  It provides a safe and stable platform for workers to perform tasks at elevated heights.  This system is known for its quick assembly, high load-bearing capacity, and adaptability to different project requirements.

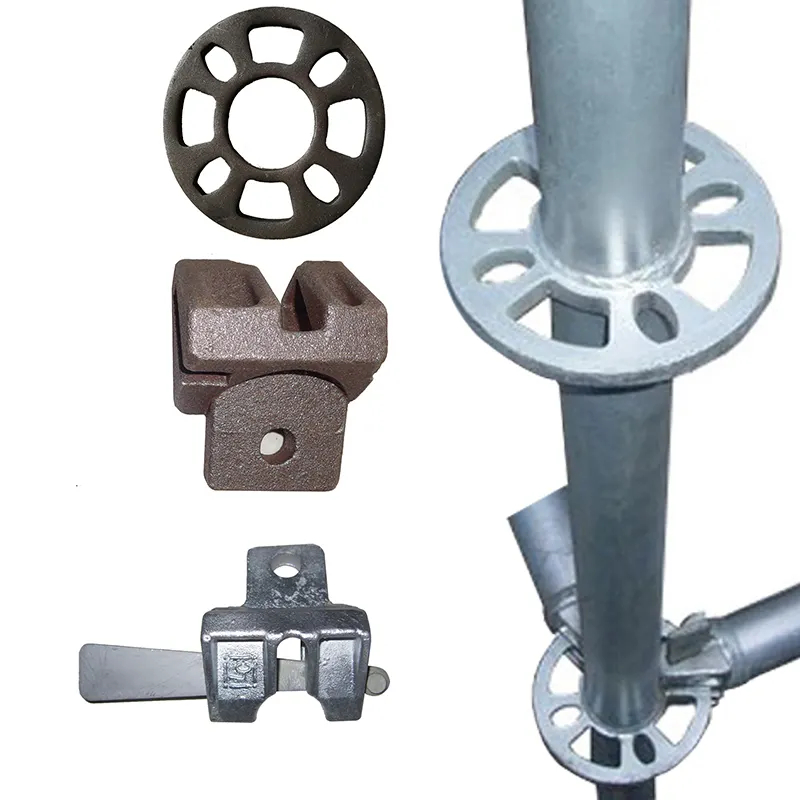

Ringlock scaffolding consists of vertical standards, horizontal ledgers, diagonal braces, and various accessories.  The standards are the vertical components that provide the main support for the scaffolding structure.  They are equipped with rosettes at regular intervals, allowing for the attachment of ledgers and braces.

Ringlock scaffolding standards are available in different sizes to accommodate various construction needs.  The most common sizes include 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, and 3.0m.  These sizes refer to the vertical length of the standards, which can be easily adjusted by connecting multiple standards together.

The horizontal ledgers are the horizontal components that connect the standards, forming the scaffolding framework.  They provide additional support and stability to the structure.  Like the standards, ledgers are also available in different lengths, typically ranging from 0.7m to 3.0m.  These lengths can be combined to create the desired span between standards.

Diagonal braces are essential for enhancing the rigidity and stability of the ringlock scaffolding system.  They are installed diagonally between the standards and ledgers, forming a triangular shape that distributes the load evenly.  Braces are available in various lengths, such as 1.5m, 2.0m, and 2.5m, to accommodate different scaffold configurations.

In addition to the main components, ringlock scaffolding also includes various accessories that enhance its functionality and safety.  These accessories include base collars, base jacks, adjustable screw jacks, side brackets, toe boards, and guardrails.  These accessories ensure the stability, levelness, and safety of the scaffolding system.

One of the key advantages of ringlock scaffolding is its quick and easy assembly.  The rosette connections on the standards allow for fast and secure attachment of ledgers and braces without the need for additional tools.  This saves valuable time and labor costs, making it an efficient choice for construction projects.

Furthermore, ringlock scaffolding offers exceptional load-bearing capacity, making it suitable for heavy-duty applications.  The design of the system ensures even weight distribution, enabling it to support heavy loads and multiple workers simultaneously.  This makes it ideal for construction projects that require robust scaffolding solutions.

The adaptability of ringlock scaffolding is another notable feature.  Its modular design allows for easy customization and adjustment to fit different project requirements.  The various sizes of standards, ledgers, and braces provide flexibility in creating scaffolding structures of varying heights and spans.

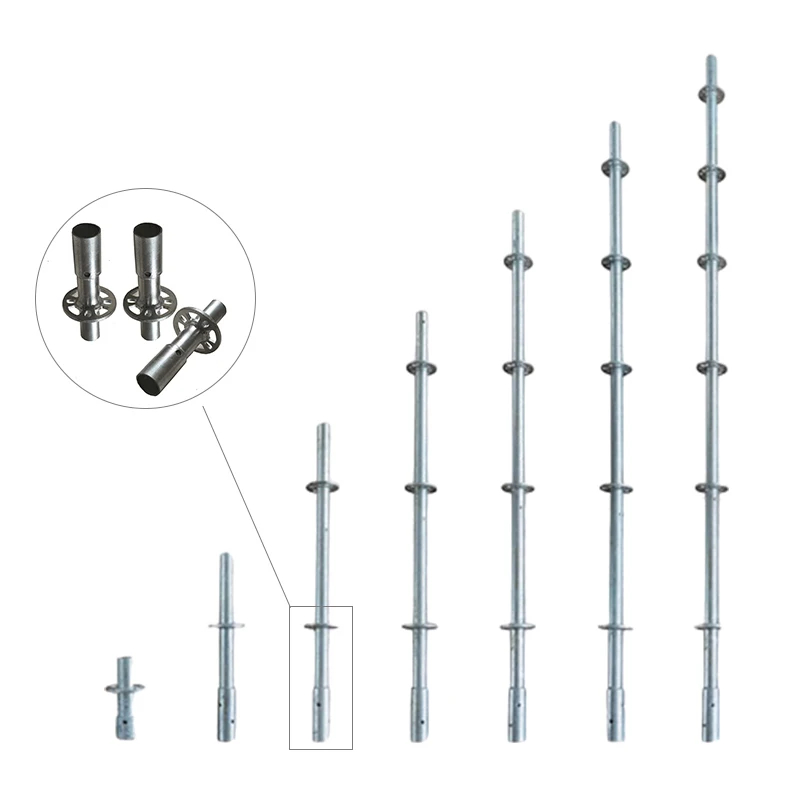

Ringlock Standard

Scaffolding ringlock Standards are the vertical members of ringlok scaffolding.

They provide the vertical support for scaffolding.

Were made of high strength structural steel with hot dip galvanizing finish.

The ringlock standard bears the loads from the scaffold down to the earth.
