Choosing The Right Cuplock Scaffolding Specifications: A Practical Guide

Cuplock scaffolding is renowned for its speed, strength, and versatility, making it a top choice for diverse construction projects worldwide. However, selecting the correct specifications – primarily the standards (tube diameter and wall thickness) and ledger lengths – is crucial for ensuring safety, efficiency, and cost-effectiveness. Here’s a guide to making the right choice:

1. Understand Cuplock Basics:

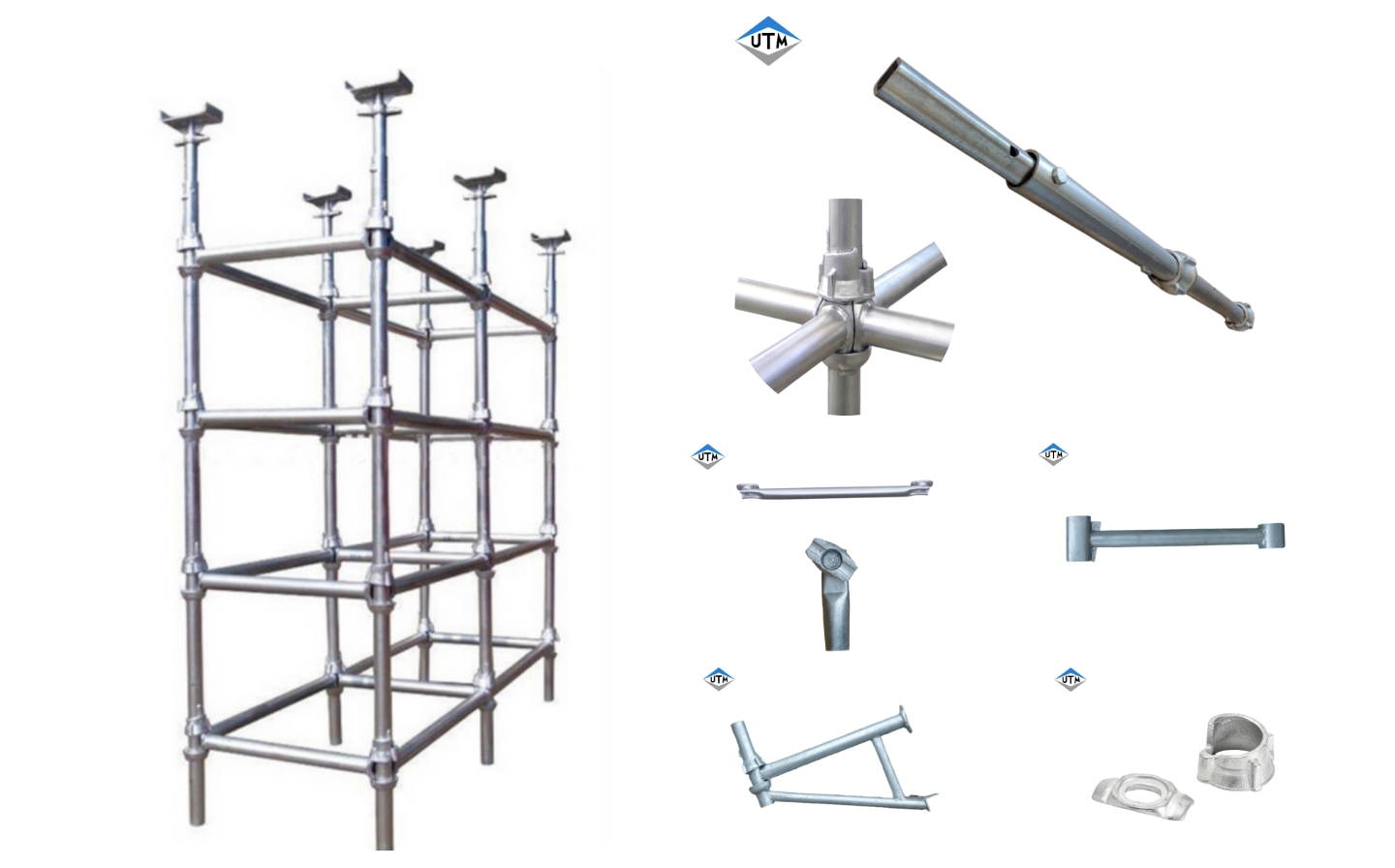

• System: Features pre-welded cups on vertical standards at fixed intervals (typically 500mm or 1000mm). Ledgers and transoms connect simultaneously into these cups using swivel blades, creating a rigid node.

• Key Components: Standards (Verticals), Ledgers (Horizontals), Transoms (Bearers), Base Jacks, Sleeve Couplers, and necessary braces.

2. Core Specifications to Consider:

• Standard Size (Tube Diameter & Wall Thickness):

• 48.3mm OD (Outer Diameter): This is the most common global standard. Wall thicknesses typically range from 3.2mm (common) to 4.0mm (heavy-duty). Choose 4.0mm for higher loads, greater heights, or demanding environments.

• 60.3mm OD: Used for projects requiring exceptional load-bearing capacity (e.g., heavy formwork, material storage platforms) or very tall structures. Offers superior strength and stiffness.

• Critical Factor: Load Capacity. Heavier loads (workers, materials, equipment) demand thicker walls or larger diameters. Always consult load tables provided by the manufacturer/supplier specific to the standard size and wall thickness.

• Ledger Length:

• Site Access & Obstacles: Choose lengths that navigate around columns, machinery, or tight spaces.

• Structural Design: Bay width directly impacts scaffold stability and load distribution. Engineering calculations are essential, especially for larger bays.

• Efficiency: Standardizing on fewer ledger lengths (e.g., 2.0m and 1.5m) can speed erection and reduce complexity.

• Platform Requirements: Ledger length influences transom placement and decking board lengths.

• Determines the bay width (distance between standards along the ledger).

• Common Lengths: 1.0m, 1.5m, 1.8m, 2.0m, 2.5m, 3.0m.

• Selection Factors:

• Transom Length: Determines the lift length (distance between ledgers). Common lengths are similar to ledgers (1.0m, 1.5m, 1.8m, 2.0m, 2.5m, 3.0m), chosen based on required platform width and structural design.

3. Key Factors Influencing Specification Choice:

• Intended Use & Load Class:

• Light Duty (Inspection/Access): 48.3mm x 3.2mm standards often suffice.

• General Construction (Medium Duty): 48.3mm x 3.2mm or 4.0mm is standard.

• Heavy Duty (Masonry, Formwork, Material Storage): 48.3mm x 4.0mm or 60.3mm standards are essential. Verify load class (e.g., BS EN 12811 Class 4, 5, or 6) requirements.

• Scaffold Height: Taller scaffolds experience greater wind loads and require enhanced stability. Larger diameters (60.3mm), thicker walls (4.0mm), potentially smaller bay widths, and increased bracing are typically needed.

• Site Conditions:

• Wind Exposure: High-wind sites demand robust specifications (stronger tubes, closer bracing, smaller bays).

• Ground Conditions: Uneven ground may require more adjustable base jacks or sole boards, but doesn't directly change tube spec unless affecting stability significantly.

• Access Constraints: Tight spaces often necessitate shorter ledger lengths (1.0m, 1.5m) for maneuverability.

• Local Regulations & Standards: Always comply with national and local scaffolding codes (e.g., OSHA in the US, TG20:21/BS EN 12811 in the UK/EU, AS/NZS 1576 in Aus/NZ). These dictate minimum requirements for tube specs, design, and safety factors.

• Available Inventory & Cost: Consider what equipment the rental company or your own yard possesses. Standardizing on common sizes (48.3mm, 2.0m/1.5m ledgers) is usually more economical and readily available than bespoke sizes. Balance optimal design with practical availability.
